DEMA USR 2200/170 E Ultrasonic Cleaner Instruction Manual

1. Sarrera

The DEMA USR 2200/170 E Ultrasonic Cleaner is designed for thorough and gentle cleaning of various items, particularly those with stubborn dirt or in inaccessible areas. It utilizes ultrasonic waves to create cavitation, a process involving the formation and dissolution of microscopic vapor bubbles in liquid. When these bubbles collapse, they generate powerful micro-jets that dislodge dirt particles from the surface of the items, ensuring deep and detailed cleaning.

This manual provides essential information for the safe and effective operation, setup, and maintenance of your ultrasonic cleaner.

2. Segurtasun-argibide garrantzitsuak

Mesedez, irakurri arretaz segurtasun-jarraibide guztiak gailua erabili aurretik. Argibide hauek ez jarraitzen badituzu, deskarga elektrikoak, suteak edo lesio larriak gerta daitezke.

• Segurtasun elektrikoa: Ziurtatu elikadura hornidura bolumenarekin bat datorrelatage specified on the device (230 V, 50 Hz). Do not operate the unit with a damaged power cord or plug. Do not immerse the main unit in water. Always unplug the device when not in use, before filling or emptying the tank, or before cleaning.
• Ura eta likidoak: Use only water or approved ultrasonic cleaning solutions in the tank. Do not use flammable, corrosive, or abrasive liquids. Ensure the liquid level is between the MIN and MAX marks.
• Beroaren abisua: The unit features an integrated heating function. The tank and liquid can become hot (40-50 °C). Exercise caution when handling the unit during or after operation.
• Gainkarga babesa: The device is equipped with overload protection. If the unit stops unexpectedly, unplug it and allow it to cool before attempting to restart.
• Haurrak eta maskotak: Keep the device out of reach of children and pets. This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities unless supervised.
• Erabilera egokia: Use the device only for its intended purpose as an ultrasonic cleaner. Do not attempt to disassemble or repair the unit yourself. Contact qualified service personnel for repairs.

3. Produktua amaitu daview eta Osagaiak

Familiarize yourself with the main parts of your DEMA USR 2200/170 E Ultrasonic Cleaner:

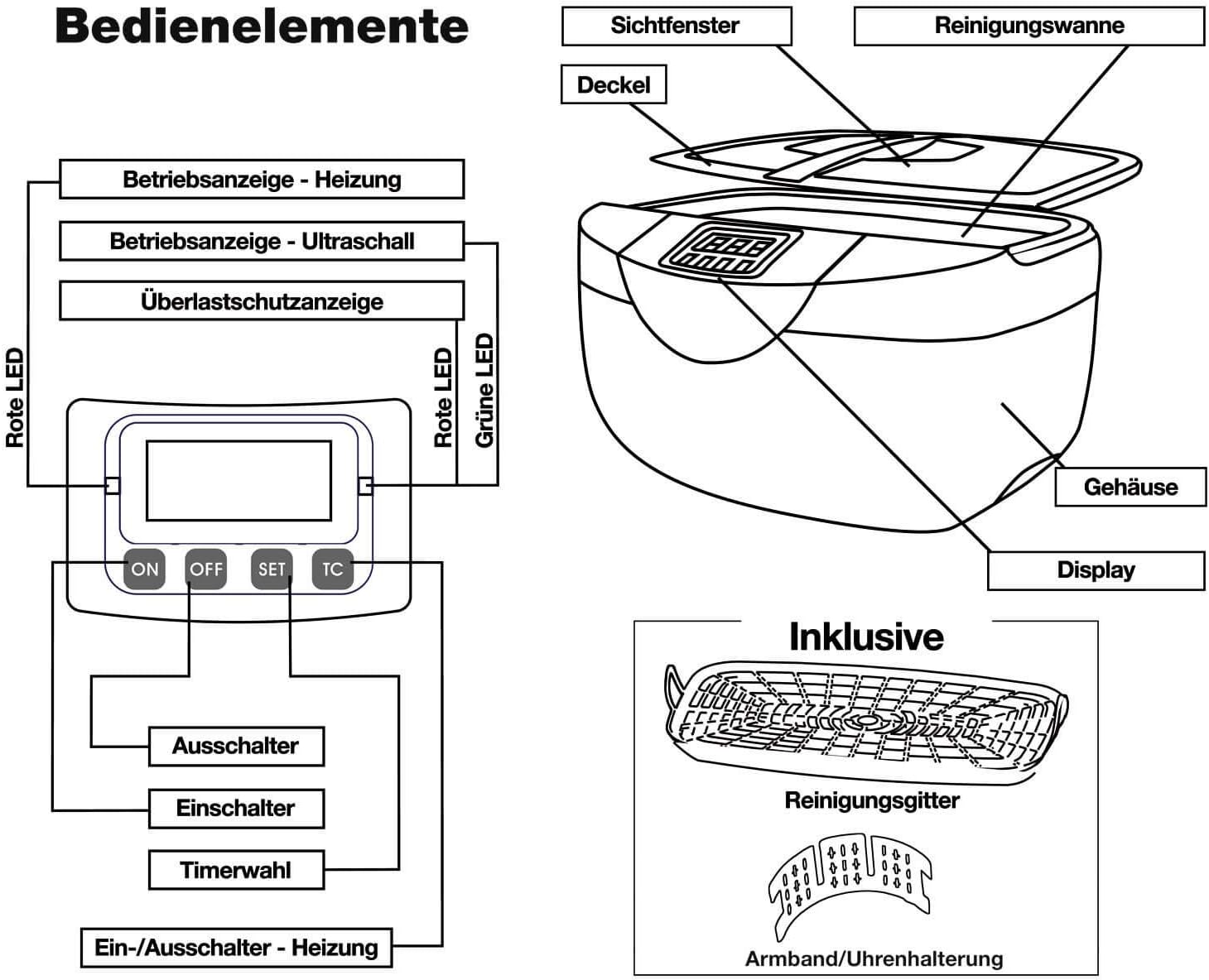

1. irudia: Diagram illustrating the main components of the ultrasonic cleaner, including the viewing window, lid, cleaning tank, housing, display, and control buttons (ON, OFF, SET, TC) with corresponding indicator LEDs for heating, ultrasound, and overload protection. It also shows the included cleaning basket and watch/bracelet holder.

• Estalkia: Transparent lid to cover the cleaning tank during operation.
• Cleaning Tank: Made of SUS 304 stainless steel, where items are placed for cleaning.
• Kontrol-panela: Features a digital display and buttons for ON, OFF, SET (timer), and TC (temperature control/heating).
• LED adierazleak: Red LED for heating status, Green LED for ultrasonic working status, and an indicator for overload protection.
• Garbiketa Saskia: A removable plastic basket to hold items during cleaning, preventing them from resting directly on the tank bottom.
• Watch/Bracelet Holder: A specialized attachment for cleaning watches and bracelets within the basket.

2. irudia: Goiena view of the DEMA USR 2200/170 E Ultrasonic Cleaner with the lid open, revealing the stainless steel cleaning tank and the white plastic cleaning basket in place.

3. irudia: The DEMA USR 2200/170 E Ultrasonic Cleaner with the cleaning basket removed, providing a clear view of the stainless steel tank interior and the attached power cord.

4. Zehaztapenak

5. Konfigurazioa

1. Desegin: Carefully remove the ultrasonic cleaner and all accessories from the packaging. Retain packaging for future storage or transport.
2. Lekua: Place the unit on a stable, flat, and dry surface, away from heat sources and direct sunlight. Ensure there is adequate ventilation around the unit.
3. Potentzia-konexioa: Jarraitu aurretik, ziurtatu unitatea deskonektatuta dagoela.
4. Saskia sartu: Place the cleaning basket into the stainless steel tank.

6. Funtzionamendu-argibideak

6.1 Depositua betetzea

1. Ireki estalkia.
2. Fill the stainless steel tank with water or a suitable ultrasonic cleaning solution. Ensure the liquid level is between the 'MIN' (700 ml) and 'MAX' (2200 ml) marks indicated inside the tank. Do not overfill or underfill.
3. Itxi tapa.

6.2 Placing Items for Cleaning

1. Place the items to be cleaned into the cleaning basket. For delicate items like watches, use the provided watch/bracelet holder.
2. Ensure items are fully submerged in the cleaning solution but do not touch the bottom of the tank directly.
3. Avoid overcrowding the basket, as this can reduce cleaning efficiency.

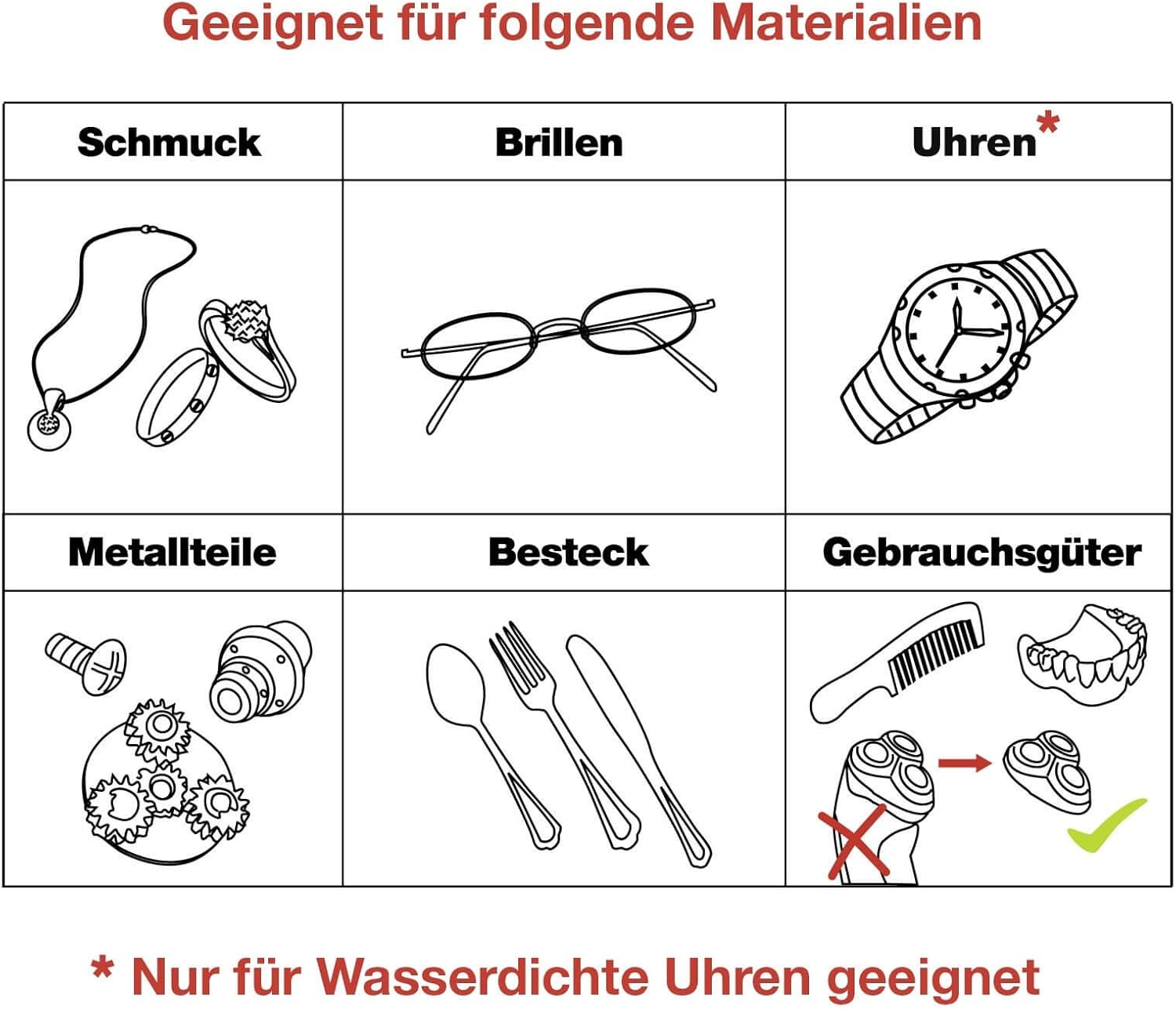

4. irudia: Diagram illustrating various items suitable for ultrasonic cleaning, including jewelry, glasses, metal parts, cutlery, and general household items. It also specifies that only waterproof watches should be cleaned.

Suitable Items for Cleaning: Jewelry, glasses, waterproof watches, metal parts, cutlery, and various small household items. Note: Only clean waterproof watches.

6.3 Tenporizadorea ezartzea

1. Entxufatu elikatze-kablea lurrera konektatutako entxufe elektriko batera. Pantaila digitala piztuko da.
2. Press the 'SET' button repeatedly to cycle through the 5 preset cleaning times: 90s, 180s, 280s, 380s, 480s. Select the desired cleaning duration.

6.4 Using the Heating Function

1. Press the 'TC' button to activate the heating function. The red 'Heat' LED will light up.
2. The unit will heat the liquid to a temperature between 40-50 °C. Heating can improve cleaning effectiveness for certain items.
3. Press 'TC' again to turn off the heating function.

6.5 Garbiketa abiaraztea eta gelditzea

1. After setting the timer and optionally activating heating, press the 'ON' button to start the ultrasonic cleaning process. The green 'Working' LED will light up.
2. The unit will automatically stop when the selected timer duration expires.
3. To stop cleaning manually before the timer expires, press the 'OFF' button.
4. After cleaning, unplug the unit and carefully remove the cleaning basket with the cleaned items. Rinse items under clean water if necessary and dry them thoroughly.

7. Mantentzea eta Garbiketa

Mantentze-lan erregularrak zure ultrasoinu-garbigailuaren iraupena eta errendimendu optimoa bermatzen ditu.

• Depositua hustutzea: After each use, especially if using cleaning solutions, unplug the unit and carefully pour out the liquid from the tank. Avoid spilling liquid onto the control panel or housing.
• Depositua garbitzea: Wipe the stainless steel tank with a soft, damp cloth. Do not use abrasive cleaners or scouring pads, as these can scratch the surface.
• Etxebizitza garbitzea: Wipe the exterior housing with a soft, dry, or slightly damp oihal. Ez erabili produktu kimiko gogorrak.
• Garbiketa osagarriak: Rinse the cleaning basket and watch/bracelet holder with clean water and allow them to air dry.
• Biltegiratzea: Store the unit in a cool, dry place, away from direct sunlight and moisture. Ensure the tank is empty and dry before storage.

8. Arazoak

If you encounter any issues with your DEMA USR 2200/170 E Ultrasonic Cleaner, please refer to the following table before contacting customer support.

9. Bermea eta Laguntza

DEMA products are manufactured to high-quality standards. For warranty information or technical support, please refer to the documentation provided with your purchase or contact your retailer. Keep your proof of purchase for any warranty claims.

For further assistance, please visit the official DEMA webwebgunean edo jarri harremanetan bere bezeroarentzako arreta zerbitzuarekin.
