Sarrera
The Intermatic K122 Pole Bracket Adapter is designed to facilitate the mounting and connection of 3-pole type locking photocontrols, specifically the K1200, K4500, and LC4500 series. This adapter provides a secure and reliable interface for your photocontrol, ensuring proper electrical connection and physical support. It features a phenolic base enclosure and is rated for 105-480 Volts AC, with a current rating of 15 Amps.
Segurtasun Informazioa
OHARRA: Risk of electric shock. Installation should be performed by a qualified electrician in accordance with all national and local electrical codes. Disconnect power at the circuit breaker or fuse box before installing or servicing this product. Failure to follow these instructions could result in serious injury or death.
- Ziurtatu elikadura hornidura bolumenarekin bat datorrelataggailuaren balorazioa.
- Ez gainditu 15eko gehienezko korronte-balorazioa Amps.
- Mantendu haurrak instalazio elektrikoetatik urrun.
- Inspect the product for any damage before installation.
Paketearen edukia
- 1 x Intermatic K122 Pole Bracket Adapter
- (Photocontrol sold separately)
Konfigurazioa eta Instalazioa
The K122 adapter is designed for bracket mounting and provides the necessary connection points for compatible photocontrols.
- Potentzia deskonexioa: Before beginning any installation, ensure that the main power supply to the circuit is turned off at the breaker or fuse box. Verify with a voltage probatzailea.

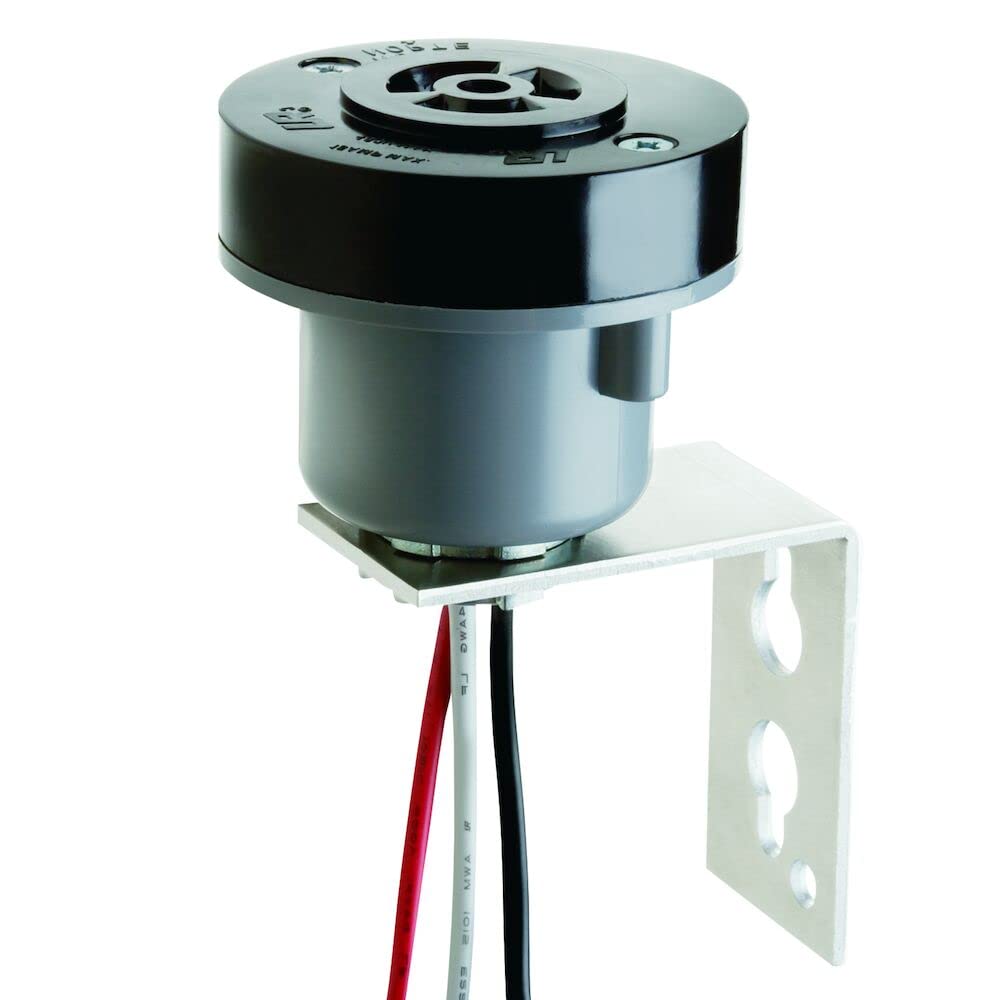

- Soportea muntatzea: Secure the K122 pole bracket adapter to a suitable pole or flat surface using appropriate hardware (not included). The bracket features keyhole slots for flexible mounting.
- Kableatu konexioak:
- Connect the incoming power wires to the corresponding wires of the K122 adapter. The adapter typically includes black (line), white (neutral), and red (load) wires.
- Ensure all connections are tight and insulated according to electrical codes. The adapter is designed for 14 AWG wire size.
- Photocontrol Installation: Once the K122 adapter is securely mounted and wired, insert a compatible 3-pole locking photocontrol (K1200, K4500, or LC4500 series) into the receptacle on top of the adapter. Twist the photocontrol clockwise until it locks into place.
- Energia berreskuratzea: After confirming all connections are secure and correct, restore power to the circuit.
Funtzionamendu-argibideak
The Intermatic K122 Pole Bracket Adapter serves as a connection point and mounting solution for a photocontrol. It does not have independent operational controls. Its function is to provide a secure electrical and physical interface for the photocontrol, allowing the photocontrol to operate as intended (e.g., turning lights on/off based on ambient light levels).
For specific operating instructions, refer to the manual provided with your Intermatic K1200, K4500, or LC4500 series locking photocontrol.
Mantentzea
The K122 Pole Bracket Adapter requires minimal maintenance. Periodically inspect the unit for any signs of physical damage, corrosion, or loose connections. Ensure the photocontrol is securely seated in the adapter. If any issues are observed, disconnect power before inspecting or servicing the unit.
Arazoak konpontzea
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Photocontrol not functioning | Loose connection between photocontrol and adapter. Incorrect wiring of the adapter. Faulty photocontrol. | Ensure photocontrol is fully twisted and locked into the adapter. Verify wiring connections (black to line, white to neutral, red to load) with power off. Test photocontrol separately or replace if necessary. |
| No power to the connected device | Ez dago egokitzailerik korronterik. Kableatutako konexio solteak. Gainkarga edo zirkuitulaburra. | Egiaztatu etengailua/fusiblea. Verify all wiring connections are secure (power off). Inspect for shorts or overloads; consult an electrician if problem persists. |
Zehaztapenak
- Eredua: K122
- Mota: 3-Pole Pole Bracket Adapter
- Bateragarritasuna: Intermatic K1200, K4500, LC4500 series locking photocontrols
- liburukiatage Balorazioa: 105 - 480 Volt korronte alternoa
- Uneko balorazioa: 15 Amps
- Hariaren tamaina: 14 AWG
- Itxituraren materiala: Phenolic Base
- Muntaketa: Parentesi mendia
- Neurriak: 2.63 x 5.5 x 4.38 hazbete inguru
- Pisua: 6.4 ontza gutxi gorabehera
Bermea
For detailed warranty information, please refer to the manufacturer's description or contact Intermatic customer support. The warranty typically covers defects in materials and workmanship under normal use.
Laguntza
For technical assistance, replacement parts, or further inquiries, please visit the official Intermatic website or contact their customer service department. Ensure you have your product model number (K122) available when seeking support.
Oharra: Produktuaren zehaztapenak eta itxura alda daitezke abisurik gabe.
