Everpure EV9275-70 QL2-OW200L Water Filtration System Instruction Manual

1. Produktua amaitu daview

The Everpure EV9275-70 QL2-OW200L is a water filtration system designed to deliver premium quality drinking water. This system is suitable for use with bottleless coolers and drinking fountains, providing sparkling, fresh water by reducing various contaminants.

Sistema honen ezaugarri nagusien artean hauek daude:

• Iragazketa Aurreratua: Utilizes Everpure's unique filter blend with activated carbon to reduce chlorine taste and odor, along with other offensive contaminants.
• Lead Reduction: Effectively reduces lead levels to below the Federal Action Level of 15 ppb.
• TTHM Reduction: Reduces Trihalomethanes (TTHMs).
• Submicron Technology: Precoat submicron technology reduces dirt and particles as small as 1/2 micron in size. This technology is NSF Certified under NSF/ANSI Standards 42.
• Sanitary Cartridge Replacement: Designed for simple, quick, and clean cartridge replacement, ensuring internal filter parts are not exposed to handling or contamination.

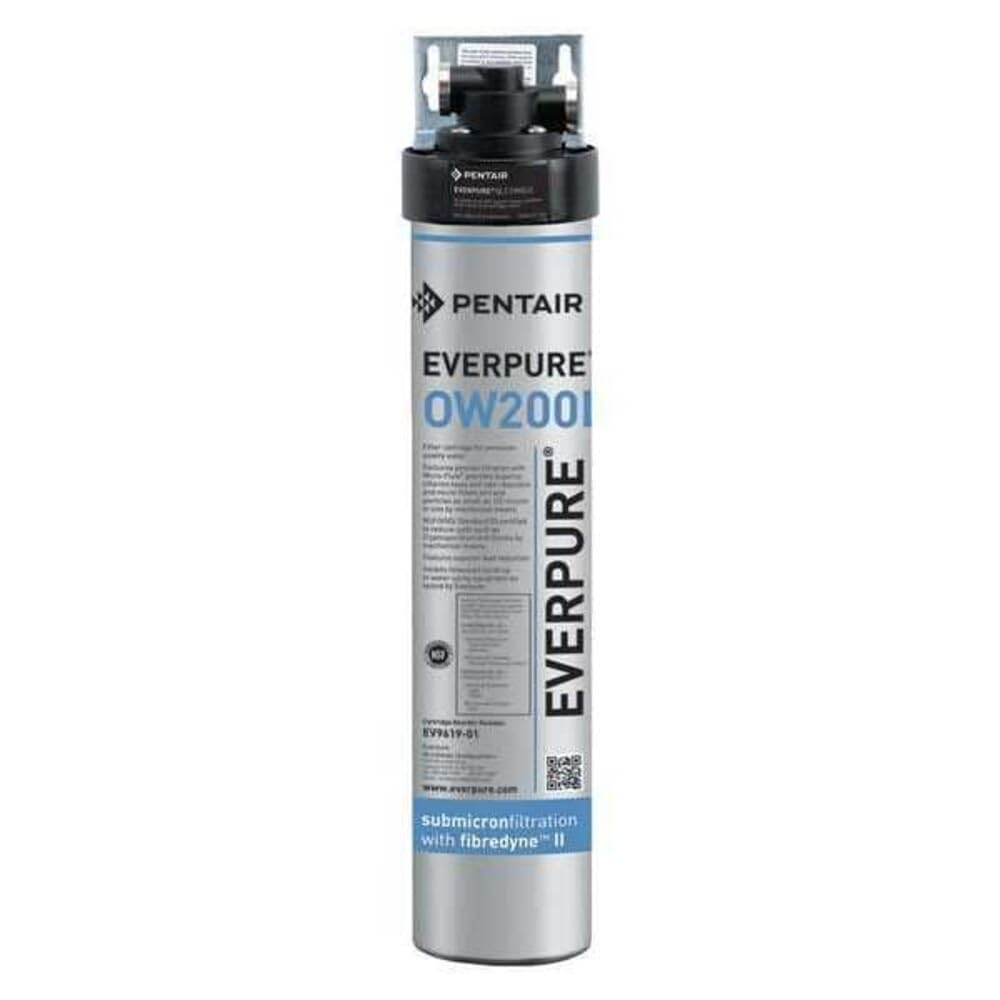

Image 1.1: The Everpure EV9275-70 QL2-OW200L Water Filtration System, showing the filter cartridge and head unit.

2. Segurtasun informazioa

Please read and understand all safety instructions before installing or operating the Everpure EV9275-70 QL2-OW200L Water Filtration System. Failure to follow these instructions could result in property damage or injury.

• Ur-hornidura: Always turn off the main water supply before beginning installation or performing maintenance.
• Presioa: Ensure the water pressure to the system does not exceed the manufacturer's recommended limits. Consult a professional if unsure.
• Ihesen egiaztapenak: After installation and any maintenance, thoroughly check all connections for leaks.
• Izoztea: Protect the system from freezing temperatures, which can cause damage to the filter housing and lead to leaks.
• Instalazio profesionala: If you are not comfortable with plumbing tasks, it is recommended to have the system installed by a qualified plumber.
• Aurreikusitako erabilera: This system is designed for use with potable (drinkable) water only. Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.

3. Paketearen edukia

Instalazioarekin jarraitu aurretik, egiaztatu osagai guztiak daudela eta kalterik gabe daudela.

• Iragazki-kartutxoa
• Iragazki Burua

Note: Additional plumbing fittings, tubing, and tools required for installation are not included and must be purchased separately.

4. Zehaztapenak

5. Instalazioa eta konfigurazioa

This section provides general guidelines for installing the Everpure EV9275-70 QL2-OW200L Water Filtration System. Specific plumbing configurations may vary. If you are unsure about any step, consult a qualified plumber.

5.1. Instalazio aurreko egiaztapen-zerrenda

• Ensure you have all necessary tools (e.g., wrench, drill, tubing cutter, Teflon tape).
• Confirm the installation location provides adequate space for the filter system and allows for future cartridge replacement.
• Verify that the water supply line is accessible and can be easily shut off.

5.2. Instalazio urratsak

1. Itzali uraren hornidura: Locate the main water shut-off valve and turn off the water supply to the installation area. Open a nearby faucet to relieve pressure.
2. Iragazkiaren burua muntatzea: Choose a secure location under the sink or near the water line. Use appropriate screws to mount the filter head firmly to a sturdy surface. Ensure there is enough clearance below for cartridge removal.
3. Ur-hodiak konektatu:
   • Identify the "IN" and "OUT" ports on the filter head.
   • Connect the cold water supply line to the "IN" port of the filter head. Use appropriate fittings and Teflon tape to ensure a watertight seal.
   • Connect the "OUT" port of the filter head to the faucet or appliance that will receive filtered water.
4. Iragazki-kartutxoa instalatu: Align the new filter cartridge with the filter head. Insert the cartridge into the head and twist clockwise until it is securely seated. Do not overtighten.
5. Restore Water Supply and Check for Leaks: Slowly turn on the main water supply. Check all connections for any signs of leaks. Tighten connections as needed.
6. Garbitu sistema: Open the filtered water faucet and allow water to run for several minutes (e.g., 5-10 minutes) to flush out air and any carbon fines from the new filter. The water may appear cloudy initially; this is normal and will clear.

6. Funtzionamendua

Once installed and flushed, the Everpure EV9275-70 QL2-OW200L Water Filtration System operates automatically. Water flows through the filter cartridge as it is drawn from the connected faucet or appliance, providing filtered water on demand.

• Initial Flow: The initial flow rate may be slightly reduced as the filter saturates. This is normal.
• Taste and Odor: You should notice an improvement in the taste and odor of your water immediately after flushing.
• Sistemaren presioa: The system is designed to operate under standard household water pressure. Significant drops in pressure may indicate a clogged filter or other plumbing issues.

7. Mantentzea

Regular maintenance, primarily filter cartridge replacement, is essential to ensure the continued performance and water quality provided by your Everpure EV9275-70 QL2-OW200L system.

7.1. Filter Cartridge Replacement

The filter cartridge should be replaced periodically, typically every 6 to 12 months, or when the flow rate significantly diminishes, or the taste/odor returns. Refer to the specific cartridge's lifespan recommendations.

1. Itzali uraren hornidura: Itzali iragazki-sistemako ur-hornidura.
2. Presioa arindu: Open the filtered water faucet to relieve any remaining pressure in the system.
3. Kendu kartutxo zaharra: Twist the old filter cartridge counter-clockwise to unlock it from the filter head. Pull the cartridge downwards to remove it. A small amount of water may drip out.
4. Kartutxo berria instalatu: Remove the protective cap from the new filter cartridge. Align the new cartridge with the filter head and push it upwards, then twist clockwise until it locks securely into place.
5. Restore Water Supply and Check for Leaks: Slowly turn on the water supply and check for leaks around the new cartridge.
6. Flush New Cartridge: Open the filtered water faucet and run water for 5-10 minutes to flush the new filter.

Note: The sanitary cartridge replacement design ensures that internal filter parts are never exposed to handling or contamination during the replacement process.

8. Arazoak

This section addresses common issues you might encounter with your water filtration system.

If you experience issues not covered here or if solutions do not resolve the problem, please contact customer support.

9. Bermea eta Laguntza

9.1. Fabrikatzailearen bermea

The Everpure EV9275-70 QL2-OW200L Water Filtration System comes with a 12 Months Parts warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use and service. It does not cover damage resulting from misuse, abuse, accident, neglect, improper installation, or freezing.

Gorde erosketa-froga berme-erreklamazioetarako.

9.2. Bezeroarentzako arreta

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Everpure customer support. Refer to the contact information provided with your product packaging or visit the official Everpure webgunea uneko laguntza-xehetasunak ikusteko.

When contacting support, please have your product model number (EV9275-70) and date of purchase readily available.
