Nikon AF Nikkor 70-210mm 1:4-5.6 Zoom Lens Instruction Manual

1. Sarrera

This instruction manual provides essential information for the safe and effective use of your Nikon AF Nikkor 70-210mm 1:4-5.6 Zoom Lens. Please read this manual thoroughly before using the lens to ensure proper operation and to maximize its performance. Keep this manual accessible for future reference.

2. Produktua amaitu daview

The Nikon AF Nikkor 70-210mm 1:4-5.6 is a versatile telephoto zoom lens designed for Nikon cameras. It features a variable aperture and a zoom range suitable for various photographic situations, from portraits to distant subjects. This lens is compatible with Nikon FX and DX format cameras that possess an internal focus motor.

2.1. irudia: Nikon AF Nikkor 70-210mm 1:4-5.6 Zoom Lens shown with its instruction manual and lens caps.

Ezaugarri nagusiak:

• Foku-luzera: 70-210mm zoom range for telephoto photography.
• Irekiera: Variable maximum aperture of f/4-5.6.
• Autofokua (AF): Utilizes the camera's internal focus motor for autofocus operation.
• Bateragarritasuna: Designed for use with Nikon FX and DX cameras.
• D-Type Lens: Incorporates a chip to transmit distance information to compatible camera bodies, aiding in flash metering.
• Eraikuntza: Features a robust construction, often with metal components, for durability.

Lens Components:

Refer to the image below for a visual representation of the lens and its key areas.

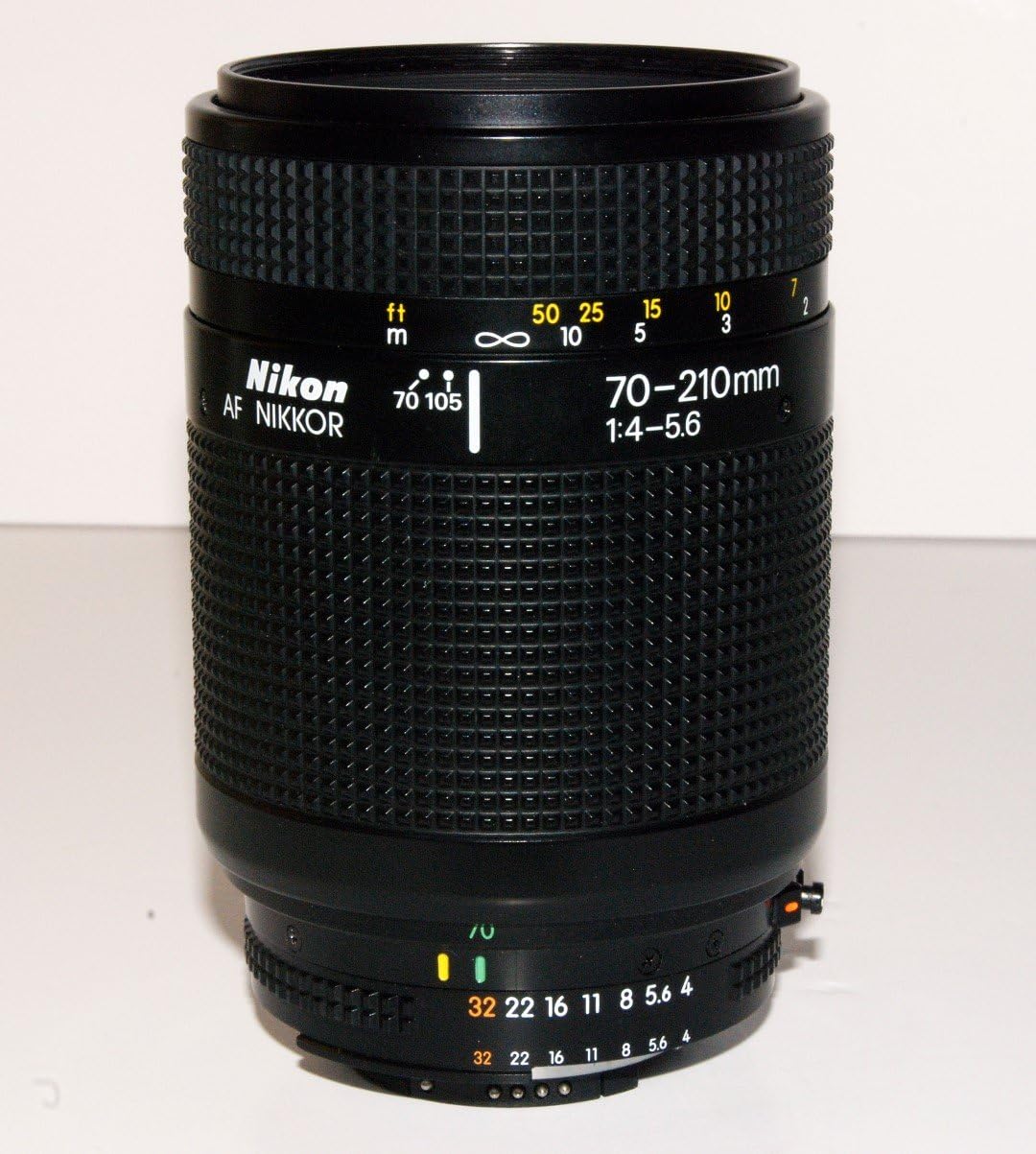

2.2. irudia: Xehetasuna view of the Nikon AF Nikkor 70-210mm 1:4-5.6 Zoom Lens barrel, highlighting focal length and aperture scales.

1. Front Element: The outermost glass element at the front of the lens.



   Figure 2.3: Front optical element.

2. Zoom Ring/Barrel: Used to adjust the focal length (70mm to 210mm). This lens typically features a push-pull zoom mechanism.
3. Fokatzeko eraztuna: Eskuzko fokatzerako erabiltzen da.
4. Irekidura-eraztuna: Used to set the aperture (f-stop).
5. Lentearen muntaia: The rear part of the lens that attaches to the camera body.



   Figure 2.4: Rear lens mount and optical element.

6. Rear Element: The innermost glass element at the rear of the lens.

3. Konfigurazioa

Lentea eranstea:

1. Ziurtatu kamera eta lentea garbi eta hautsik gabe daudela.
2. Lerrokatu lentearen muntaketa-indize marka kameraren gorputzeko dagokion markarekin.
3. Rotate the lens counter-clockwise (when viewaurrealdetik jarrita) klik egin arte. Ez behartu lentea.
4. Kendu aurreko lentearen tapoia.

Lentea kentzea:

1. Jarri aurreko eta atzeko lenteen estalkiak lentearen elementuak babesteko.
2. While pressing the lens release button on the camera body, rotate the lens clockwise until it detaches.
3. Store the lens in a protective case or pouch.

4. Lentearen funtzionamendua

Zoomaren funtzionamendua:

The Nikon AF Nikkor 70-210mm 1:4-5.6 lens typically features a push-pull zoom mechanism. To change the focal length:

• To zoom in (increase focal length): Pull the lens barrel forward, away from the camera body.
• To zoom out (decrease focal length): Push the lens barrel backward, towards the camera body.

Adjust the zoom to frame your subject as desired.

Enfokatzea:

This lens supports both autofocus (AF) and manual focus (M).

• Autofokua (AF): For autofocus to function, your Nikon camera body must have an internal focus motor. Set the camera's focus mode to AF. The lens will then use the camera's motor to achieve focus.
• Eskuzko fokua (M): To focus manually, set your camera's focus mode to M. Rotate the focus ring on the lens until your subject appears sharp in the viewbilatzailean edo kameraren LCD pantailan.

Oharra: The "D" model of this lens includes a chip that provides distance information to the camera, which can improve flash metering accuracy.

Irekidura kontrola:

The lens features an aperture ring. For modern Nikon cameras, it is generally recommended to set the aperture ring to its smallest aperture (highest f-number, e.g., f/32) and lock it there, allowing the camera body to control the aperture electronically. Consult your camera's manual for specific instructions on using lenses with aperture rings.

5. Mantentzea

Lentea garbitzea:

• Lentearen elementuak: Use a lens blower brush to remove dust. For smudges or fingerprints, use a clean, soft lens cloth and a small amount of lens cleaning fluid. Apply fluid to the cloth, not directly to the lens.
• Lentearen gorputza: Garbitu lentearen kartutxoa oihal leun eta lehor batekin. Saihestu produktu kimiko edo disolbatzaile gogorrak erabiltzea.

Biltegiratzea:

• Always attach both front and rear lens caps when the lens is not in use.
• Gorde lentea leku fresko eta lehor batean, eguzki-argitik eta muturreko tenperaturetatik babestuta.
• Using a lens pouch can provide additional protection against dust and minor impacts.

5.1. irudia: Black soft pouch with Nikon branding, designed for storing the lens.

6. Arazoak

• Autofokua ez dabil:
  • Ensure your camera body has an internal focus motor.
  • Check that the camera's focus mode is set to AF.
  • Verify the lens is securely mounted to the camera body.
• Image appears blurry:
  • Check focus settings (AF/M) and ensure proper focus acquisition.
  • Verify shutter speed is fast enough to prevent camera shake, especially at longer focal lengths.
  • Clean lens elements if smudges or dust are present.
• Lens not attaching/detaching smoothly:
  • Ensure alignment marks are correctly matched.
  • Do not force the lens. If resistance is met, re-align and try again.

7. Zehaztapenak

8. Bermea eta Laguntza

This product is sold without a seller warranty. For any support or service inquiries, please refer to the official Nikon support channels or contact your retailer for assistance regarding product functionality or compatibility.

For official Nikon support, please visit the Nikon denda Amazonen edo Nikon ofiziala webgunea.
