1. Sarrera
This manual provides essential information for the proper installation, operation, and maintenance of your T&S Brass B-0102 Pot & Glass Filler. Designed for commercial food service environments, this unit features a durable polished chrome plated brass body, a plain end curved nozzle, and a 68-inch flexible stainless steel hose for versatile use.
Please read all instructions carefully before beginning installation or operation to ensure safe and efficient use of the product.
Image 1.1: The T&S Brass B-0102 Pot & Glass Filler, showing the coiled flexible stainless steel hose and the plain end curved nozzle.
2. Konfigurazioa eta instalazioa
The T&S Brass B-0102 is designed for wall-mount installation. Professional installation by a qualified plumber is recommended to ensure compliance with local plumbing codes and proper functionality.
2.1 Segurtasun-neurriak
- Itzali beti ur-hornidura nagusia edozein instalazio edo mantentze-lan hasi aurretik.
- Erabili babes pertsonaleko ekipamendu (EPI) egokia, hala nola segurtasun betaurrekoak eta eskularruak.
- Ziurtatu konexio guztiak ondo finkatuta daudela ihesak saihesteko.
2.2 Beharrezko tresnak (ez daude barne)
- Giltza erregulagarria
- Pipe thread sealant or Teflon tape
- Screwdriver (if mounting bracket requires)
- Maila
2.3 Instalazio-urratsak
- Instalazio eremua prestatu: Ensure the wall surface is clean, dry, and structurally sound to support the unit. Identify the water supply lines.
- Txorrotaren gorputza muntatzea: Secure the main faucet body to the wall using appropriate mounting hardware (not specified in product details, typically included with the unit or purchased separately). Ensure it is level and tightly fastened.
- Konektatu ur-hornidura: Apply pipe thread sealant or Teflon tape to the threaded connections of the water supply lines. Connect the hot and cold water lines to the corresponding inlets on the faucet body. Tighten connections securely with an adjustable wrench, but do not overtighten.
- Lotu mahuka malgua: Connect the 68-inch flexible stainless steel hose to the faucet body outlet. Ensure the connection is tight and leak-free.
- Erantsi pita: Connect the plain end curved nozzle to the end of the flexible hose.
- Ihesak egiteko proba: Slowly turn on the main water supply. Check all connections for leaks. If leaks are detected, turn off the water supply, tighten the connection, and retest.

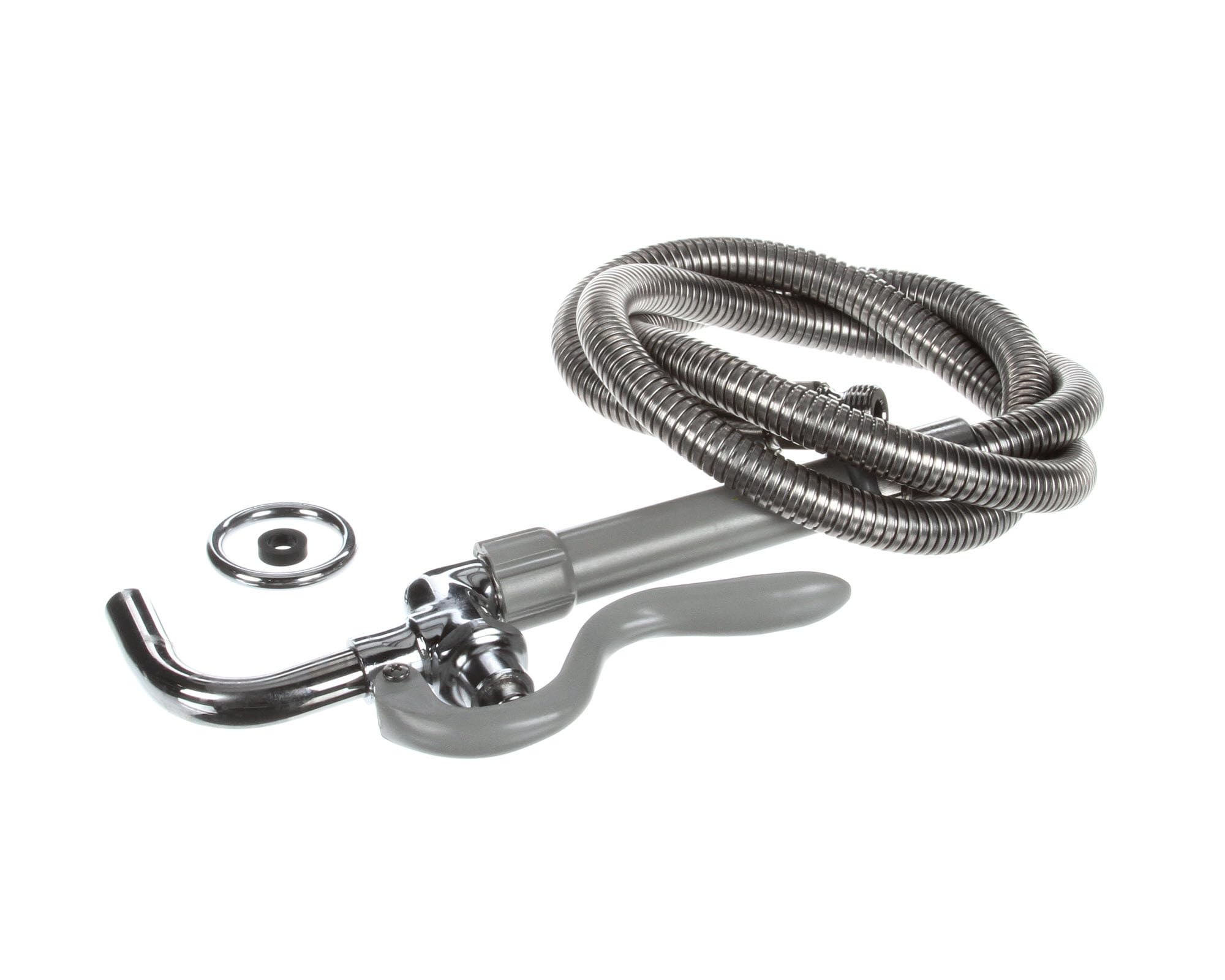

Image 2.1: Components of the T&S Brass B-0102, showing the flexible hose, nozzle, and a sealing ring.
3. Funtzionamendu-argibideak
The T&S Brass B-0102 Pot & Glass Filler is designed for simple and efficient operation.
3.1 Ur-fluxuaren kontrola
- To activate water flow, depress the lever handle on the nozzle.
- To stop water flow, release the lever handle.
3.2 Using the Flexible Hose and Nozzle
- The 68-inch flexible stainless steel hose allows for extended reach and maneuverability, making it ideal for filling large pots or multiple glasses.
- Direct the plain end curved nozzle into the container you wish to fill.
- Ensure the nozzle is positioned correctly to prevent splashing.
Image 3.1: The T&S Brass B-0102 with the flexible hose coiled and the plain end curved nozzle extended, ready for use.
4. Mantentzea
Regular maintenance ensures the longevity and optimal performance of your T&S Brass B-0102 Pot & Glass Filler.
4.1 Garbiketa
- Kanpoko garbiketa: Wipe the polished chrome plated brass body and stainless steel hose with a dry, soft cloth regularly to remove water spots and maintain its finish.
- For stubborn spots, use a mild soap and water solution, then rinse thoroughly and dry immediately.
- Do not use abrasive cleaners, harsh chemicals, or scouring pads, hauek akabera kaltetu baitezakete.
4.2 Ikuskapena
- Periodically inspect the flexible stainless steel hose for any signs of wear, kinks, or damage. Replace if necessary.
- Check all connections for tightness and signs of leaks. Tighten any loose connections.
- Ensure the lever handle operates smoothly and returns to the off position when released.
5. Arazoak
Ikusi beheko taula arazo ohikoenak eta haien irtenbide posibleak ikusteko.
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Ur-fluxurik ez edo ur-presio baxua | Ur-hornidura nagusia itzalita Clogged supply line Kinked mahuka | Ziurtatu ur-hornidura nagusia martxan dagoela Check and clear any obstructions in supply lines Straighten the flexible hose |
| Konexioetako ihesak. | Konexio solteak O-eraztunak/arandelak kaltetuta Improperly applied sealant | Tighten connections securely Inspect and replace O-rings/washers if damaged Reapply pipe thread sealant or Teflon tape |
| Nozzle lever sticks or is difficult to operate | Mineralen pilaketa Internal component wear | Clean the nozzle and lever mechanism Contact T&S Brass support for replacement parts or service |
If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact T&S Brass customer support.
6. Zehaztapenak
- Marka: T&S Brass
- Modelo zenbakia: B-0102
- Materiala: Polished chrome plated brass body, Plain end outlet, Stainless steel hose
- Kolorea: Chrome
- Instalazio mota: Wall-mendia
- Hodiaren luzera: 68 hazbetekoa
- Tobera mota: Plain End Curved Nozzle
- Produktuaren neurriak: 10 x 11 x 4 hazbete
- Elementuaren pisua: 1 libra (16 ontza)
- UPC: 802063181258, 405610619565, 013389116064, 671262000574
- Lehen eskuragarri dagoen data: 10ko azaroaren 2009a
7. Bermea eta Laguntza
For specific warranty information regarding your T&S Brass B-0102 Pot & Glass Filler, please refer to the documentation provided at the time of purchase or visit the official T&S Brass webgunea. Bermearen baldintzak eskualdearen eta saltzailearen arabera alda daitezke.
For technical support, replacement parts, or further assistance, please contact T&S Brass directly through their official customer service channels. You can typically find contact information on their website or by searching for 'T&S Brass customer support'.
