TOTO THU334#01 Toilet Connection Assembly Parts User Manual

1. Sarrera

This manual provides essential information for the installation, maintenance, and troubleshooting of the TOTO THU334#01 Toilet Connection Assembly Parts. This assembly is specifically designed for use with TOTO WT151M and WT152M in-wall tank systems. Please read these instructions carefully before proceeding with installation or maintenance to ensure proper function and longevity of your toilet system.

2. Produktua amaitu daview

The TOTO THU334#01 is a critical component for connecting your wall-hung toilet to the TOTO WT151M or WT152M in-wall tank system. It ensures a secure and leak-free connection, facilitating the proper operation of the toilet.

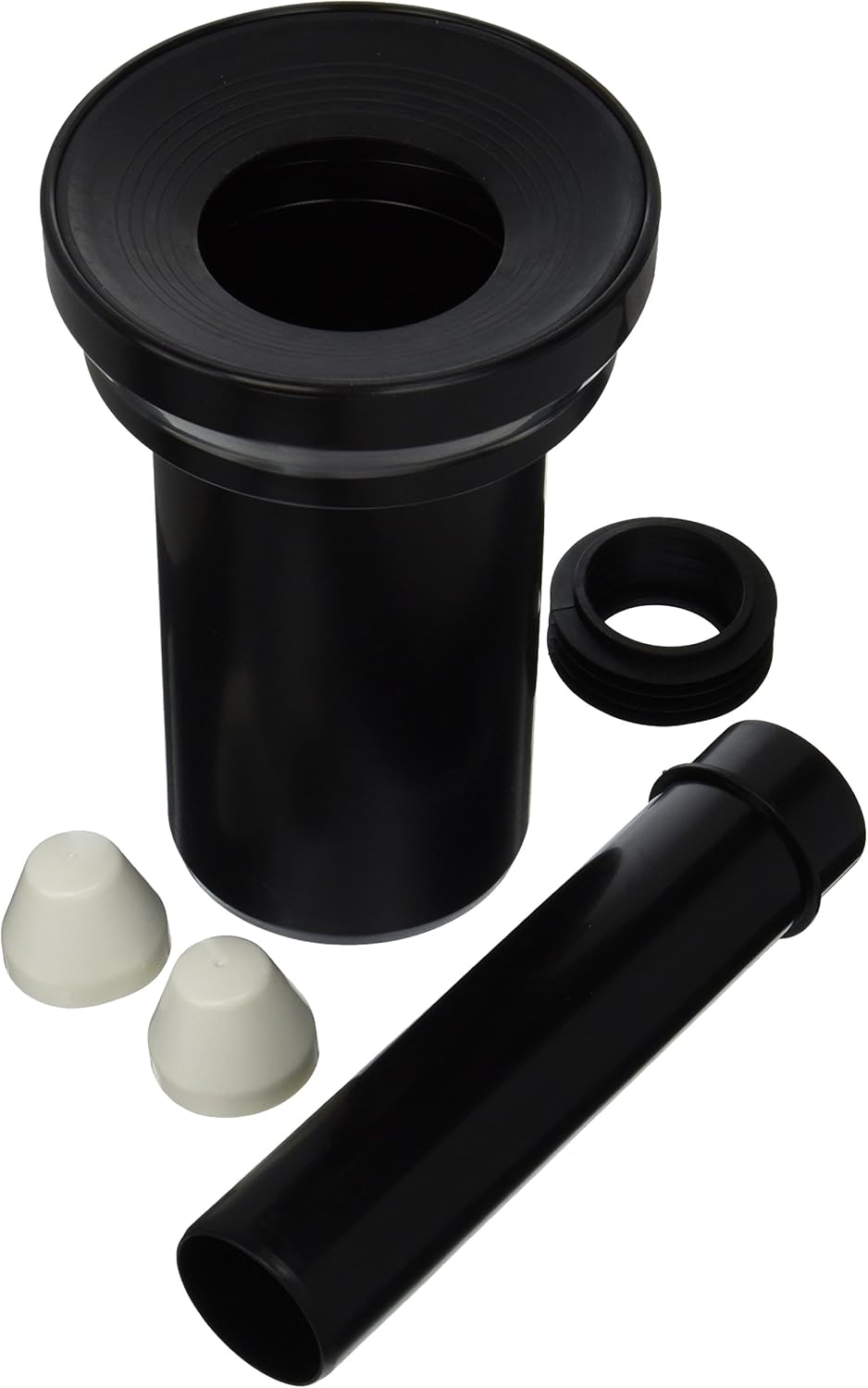

Image 2.1: TOTO THU334#01 Toilet Connection Assembly Parts. This image displays the various components included in the THU334#01 connection assembly, typically consisting of a main connection pipe, sealing gaskets, and mounting hardware.

Dakarten osagaiak:

• Connection parts for wall-hung toilet (specific components may vary slightly but generally include pipes, gaskets, and fasteners).

3. Zehaztapenak

4. Konfigurazioa eta instalazioa

The TOTO THU334#01 connection assembly is designed for integration with TOTO WT151M and WT152M in-wall tank systems. Proper installation is crucial for preventing leaks and ensuring the long-term reliability of your toilet. It is highly recommended that installation be performed by a qualified plumber or a professional familiar with TOTO in-wall tank systems.

Instalaziorako jarraibide orokorrak:

1. Review Toilet Manual: Always refer to the specific installation manual provided with your TOTO WT151M or WT152M in-wall tank system and the wall-hung toilet for detailed, step-by-step instructions. This assembly is a component of that larger system.
2. Ikuskatu osagaiak: Before installation, carefully inspect all parts of the THU334#01 assembly for any signs of damage or manufacturing defects. Ensure all gaskets and seals are present and in good condition.
3. Konexio puntuak prestatu: Ensure the connection points on both the in-wall tank system and the wall-hung toilet are clean and free of debris.
4. Konexio seguruak: Install the connection pipes and gaskets according to the toilet and tank system manuals. Ensure all connections are tightened securely but do not overtighten, which can damage components.
5. Leak proba: After installation, perform a thorough leak test by flushing the toilet multiple times and carefully inspecting all connection points for any signs of water leakage. Address any leaks immediately.

If you are unsure about any step of the installation process, consult a professional plumber or contact TOTO customer support.

5. Funtzionamendua

The TOTO THU334#01 connection assembly is a passive component that facilitates the function of your wall-hung toilet. Once correctly installed, it requires no direct operation. Its purpose is to provide a sealed conduit for water and waste between the toilet fixture and the in-wall tank system.

Proper operation of your toilet system relies on the correct installation and integrity of this connection assembly. Any issues with flushing or water retention may indicate a problem with the connection or other parts of the toilet system.

6. Mantentzea

Regular maintenance of your TOTO THU334#01 connection assembly is minimal but important for ensuring long-term performance and preventing issues.

Gomendatutako mantentze-lanak:

• Aldizkako ikuskapena: Periodically inspect the visible connection points between the toilet and the in-wall tank system for any signs of leaks, corrosion, or wear on the gaskets.
• Garbiketa: Keep the exterior of the connection area clean. Use mild, non-abrasive cleaners and a soft cloth. Avoid harsh chemicals that could degrade plastic or rubber components.
• Juntak ordezkatzea: If any leaks are detected or if gaskets appear brittle or worn, they should be replaced immediately with genuine TOTO replacement parts to maintain a watertight seal.

Do not attempt to disassemble the connection assembly unless you are performing a repair or replacement. Always turn off the water supply to the toilet before any maintenance involving water lines.

7. Arazoak

Most issues related to the THU334#01 connection assembly manifest as leaks or improper toilet function. Here are some common troubleshooting steps:

Ohiko arazoak eta irtenbideak:

• Leakage at Connection Points:
  • Kausa: Loose connections, damaged or improperly seated gaskets.
  • Irtenbidea: Turn off the water supply. Carefully inspect the gaskets for damage. If damaged, replace them. Ensure all connection nuts/bolts are tightened appropriately, but do not overtighten. Re-test for leaks.
• Toilet Not Flushing Properly (Weak Flush/No Water):
  • Kausa: While less likely to be directly caused by the connection assembly itself, a blockage within the waste pipe connected to the assembly could contribute. More often, this indicates an issue with the in-wall tank mechanism or water supply.
  • Irtenbidea: Check the water supply valve to ensure it is fully open. Inspect the in-wall tank's fill valve and flush valve for proper operation. If a blockage is suspected, professional plumbing assistance may be required.
• Unusual Noises from Connection Area:
  • Kausa: Air in the lines, loose components, or water pressure issues.
  • Irtenbidea: Ensure all air is purged from the water lines. Check for any loose components in the connection assembly. If noises persist, consult a plumber.

For persistent issues or problems not covered here, it is advisable to contact a certified plumber or TOTO customer support.

8. Bermea eta Laguntza

TOTO products are manufactured to high-quality standards and are typically backed by a manufacturer's warranty. For specific warranty details regarding your THU334#01 connection assembly, please refer to the warranty documentation included with your original TOTO in-wall tank system or visit the official TOTO webgunea.

Bezeroarentzako laguntza:

If you require technical assistance, have questions about installation, or need to order replacement parts, please contact TOTO customer support directly. Contact information can usually be found on the TOTO webgunean edo zure produktuarekin batera doan dokumentazioan.

TOTO Ofiziala Webgunea: www.toto.com
