Denon AVR-X1000 5.1-Channel Networking Home Theater AV Receiver User Manual

Sarrera

The Denon AVR-X1000 is a 5.1-channel networking home theater AV receiver designed to deliver powerful surround sound performance with advanced connectivity. It integrates network functions for streaming services like Spotify, Pandora, and SiriusXM Internet Radio, along with AirPlay for seamless content enjoyment from Apple devices. This receiver also supports the Denon Remote App for convenient control from your smartphone or tablet. Its multi-zone functionality allows for flexible audio distribution throughout your home.

Irudia: Aurrealdea view of the Denon AVR-X1000 receiver, showcasinbere diseinu beltz dotorea eta aurrealdeko paneleko kontrolak.

Konfigurazioa

Setting up your Denon AVR-X1000 is designed to be straightforward. The unit features an on-screen graphical display with clear text and icons to guide you through the process. The exclusive Denon Setup Assistant will walk you through optimizing the receiver for your specific speaker configuration and source equipment.

Konexioak

• HDMI sarrerak: The AVR-X1000 is equipped with six HDMI inputs (five on the rear panel and one on the front panel) and one HDMI output. This allows for easy connection of various HDMI-equipped devices such as camcorders, game consoles, and other multimedia devices.
• Bozgorailu konexioak: The multi-way speaker-wire-binding post connections on the rear panel are banana-plug compatible and arranged in a horizontal configuration. Color-coded speaker cable labels are provided to ensure correct speaker cable hookup.
• Sare-konexioa: The receiver's network functionality requires a wired Ethernet connection. Ensure your home network has an available Ethernet port for connection.
• USB Sarrera: A built-in USB port on the front panel supports digital music playback and charging from iPod, iPhone, iPad, or other USB devices.

Initial Configuration with Denon Setup Assistant

Upon first power-on, the Denon Setup Assistant will appear on your TV screen (connected via HDMI). Follow the on-screen prompts to configure your speaker system, input sources, and network settings. This assistant simplifies the optimization process for your listening environment.

Funtzionamendu-argibideak

Audio Processing with Audyssey Silver

The AVR-X1000 features Denon's Audyssey Silver package, which includes Audyssey MultEQ XT, Audyssey Dynamic Volume, and Audyssey Dynamic EQ. These technologies work together to optimize your audio experience:

• Audyssey MultEQ XT: Calibrates the system for up to eight different seating positions, using high-quality filters for improved bass response and more even sound distribution throughout the room.
• Audyssey Bolumen Dinamikoa: Automatically adjusts the difference between normal and very loud sounds, preventing sudden volume spikes.
• Audyssey EQ dinamikoa: Automatically adjusts subwoofer and surround speaker levels to maintain optimal performance at any playback volume.

Video: An informational video explaining the benefits and features of Audyssey technology built into Denon AV receivers, including MultEQ XT, Dynamic Volume, and Dynamic EQ, and how they enhance the home theater experience.

Network Functionality and Streaming

The AVR-X1000's network capabilities allow you to enjoy a wide range of streaming media:

• Interneteko irratia: Access services such as Spotify, Pandora, and SiriusXM (subscription may be required).
• AirPlay: Wirelessly stream music from iTunes on your PC or Mac, or directly from your iPod touch, iPhone, or iPad via your home network.
• DLNA 1.5 Certification: Ensures audio streaming compatibility with the latest Windows 8 PCs and tablets.

Kontrol-aukerak

You can control the AVR-X1000 using several methods:

• Urruneko kontrola: The included remote control features discrete source-selection buttons for quick input switching.
• Denon Remote App: Control the receiver using your iOS or Android smartphone or tablet via the free Denon Remote App.
• Web Kontrola: Adjust sound settings and choose inputs from any PC or Mac connected to your home network via a web arakatzailea.
• Automated Home Control Systems: Features an RS-232C serial port and I/P control for integration with automated home control systems from partners like AMX, Control4, Crestron, RTI, Savant, and URC.

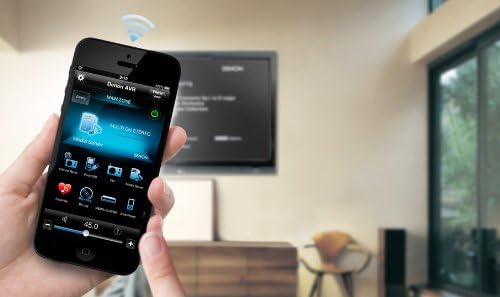

Image: A hand holding a smartphone displaying the Denon Remote App interface, demonstrating wireless control of the AV receiver.

Gela anitzeko gaitasuna

With two-zone, two-source multi-room capability, you can connect a stereo amplifier to the Zone 2 pre-out. This allows you to enjoy stereo sound from one source in a different room, while others can enjoy a separate program in the main home theater room.

Mantentzea

To ensure the longevity and optimal performance of your Denon AVR-X1000, follow these general maintenance guidelines:

• Garbiketa: Use a soft, dry cloth to clean the exterior of the unit. Avoid using abrasive cleaners, waxes, or solvents.
• Aireztapena: Ensure adequate ventilation around the receiver. Do not block ventilation openings or place the unit in an enclosed space without proper airflow.
• Potentzia: Deskonektatu korronte-kablea hormako entxufetik unitatea denbora luzez erabiliko ez bada.

Arazoak konpontzea

This section addresses common issues you might encounter with your Denon AVR-X1000. For more detailed troubleshooting, refer to the full Owner's Manual.

Zehaztapenak

Kutxan dagoena

The Denon AVR-X1000 package includes the following items:

• AVR-X1000 Receiver
• Setup Measuring Microphone with attached cable
• Urruneko Kontrola
• Bi AAA bateria
• Elikatze kablea
• FM antena
• AM Loop Antena
• CD-ROM Owner's Manual
• Ezarpen azkarrerako gida
• Color-coded Speaker Label Tags
• Bermearen informazio orria

Bermea eta Laguntza

For detailed warranty information, please refer to the Warranty Information Sheet included in your product package. For further assistance, technical support, or to download the full Owner's Manual, please visit the official Denon support webgunea edo kontsultatu emandako erabiltzailearen gidaren esteka:

Deskargatu erabiltzailearen eskuliburua (PDF)
