BLACK+DECKER 40V MAX Cordless String Trimmer, Edger, and Leaf Blower Combo (LCC140) Instruction Manual

1. Sarrera

This manual provides essential instructions for the safe operation, assembly, maintenance, and troubleshooting of your BLACK+DECKER 40V MAX Cordless String Trimmer, Edger, and Leaf Blower Combo (LCC140). Please read this manual thoroughly before using the product to ensure proper function and to prevent injury.

Figure 1: The BLACK+DECKER LCC140 Combo Kit, featuring the string trimmer and leaf blower.

2. Segurtasun informazio garrantzitsua

Always adhere to safety guidelines when operating power tools. Failure to do so may result in serious injury or property damage.

• Always wear eye protection and gloves when using the tools.
• Be aware of flying debris and potential cut hazards.
• Ez erabili material sukoien ondoan.
• Maintain a safe distance from others while operating the equipment.
• Mantendu haurrak eta maskotak lan-eremutik urrun.
• Ziurtatu bateria guztiz kargatuta dagoela erabili aurretik, eta muntaketa edo mantentze-lanetan zehar kendu.

3. Paketearen edukia

Your BLACK+DECKER LCC140 combo kit includes the following items:

• 13-inch String Trimmer/Edger
• Handheld Leaf Blower/Sweeper
• 40V MAX* Lithium-Ion Battery (2.0 Ah)
• Bateria kargagailua
• Debris Shield for Trimmer
• Auxiliary Handle for Trimmer
• Argibide eskuliburua

4. Muntaketa

4.1 Hari-ebakigailuaren muntaketa

1. Attach Debris Shield: Align the debris shield with the trimmer head and snap it into place. Secure it with the provided screw using a Phillips head screwdriver.
2. Instalatu helduleku osagarria: Pinch the handle clamps and slide the auxiliary handle onto the trimmer shaft until it snaps into position. Adjust its position for comfortable use.

Figure 2: The BLACK+DECKER 40V MAX Cordless String Trimmer, ready for assembly.

4.2 Hosto-puzgailuaren muntaketa

1. Attach Blower Tube: Align the blower tube with the main housing of the leaf blower. Push firmly until it clicks securely into place.

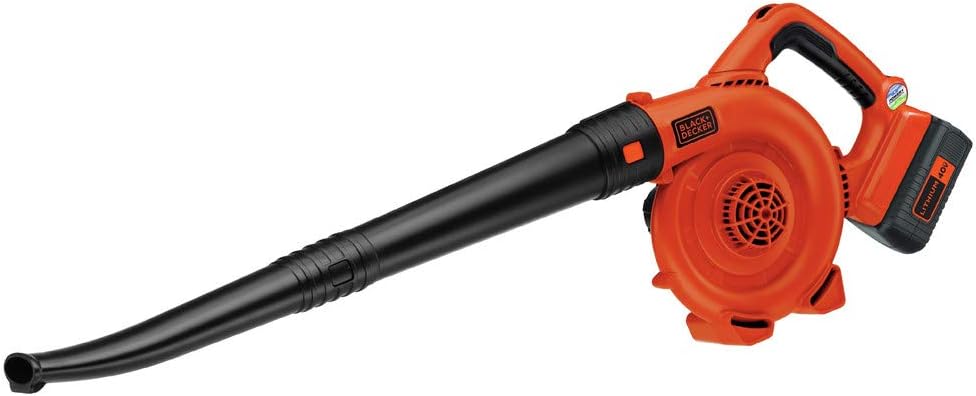

Figure 3: The BLACK+DECKER 40V MAX Cordless Leaf Blower, ready for tube attachment.

5. Bateria kargatzea

The 40V MAX* Lithium-Ion battery provides power for both tools. Ensure it is fully charged before initial use.

1. Insert Battery into Charger: Slide the battery into the charger until it clicks into place.
2. Konektatu kargagailua: Plug the charger into a standard electrical outlet. The indicator light on the charger will illuminate to show charging status.
3. Monitor kargatzen: The light will typically flash green while charging and turn solid green when fully charged.
4. Kendu bateria: Once fully charged, unplug the charger and press the release button on the battery to remove it.

Figure 4: The 40V MAX Lithium-Ion battery, showing its power indicator.

6. Operating the String Trimmer/Edger

6.1 Inserting/Removing Battery

• Txertatu: Slide the charged battery into the tool's battery port until it clicks.
• Kendu: Press the battery release button and pull the battery out.

6.2 Adjusting Length and Handle

• Ardatzaren luzera: Twist the locking collar on the shaft to loosen, adjust the shaft to your desired length, then twist to tighten.
• Helduleku laguntzailea: Press the orange button on the auxiliary handle to adjust its angle and position for optimal comfort and control.

6.3 Trimming and Edging Modes

The trimmer easily converts to an edger for clean lines along sidewalks and driveways.

• Aldaketa moduak: Rotate the trimmer head 180 degrees to switch between trimming and edging functions. A small wheel on the debris shield assists in guiding the edger.

Figure 5: The string trimmer configured for edging, showing the guide wheel.

6.4 Operation and Power Settings

• Hasiera: Press the safety button on the side of the handle, then squeeze the trigger to start the trimmer.
• Potentzia kontrola: The trimmer features a variable speed motor with settings from 1 to 6. Adjust the setting based on the thickness of the vegetation and desired runtime. Higher settings provide more power but reduce battery life.
• Lerro-jario automatikoa: The patented Auto Feed System automatically feeds more string as needed, eliminating the need for bumping.

7. Operating the Leaf Blower

7.1 Inserting/Removing Battery

• Txertatu: Slide the charged battery into the blower's battery port until it clicks.
• Kendu: Press the battery release button and pull the battery out.

7.2 Operation and Speed Control

• Hasiera: Estutu triggerea haizagailua martxan jartzeko.
• Bi Abiadurako Kontrola: The blower offers two-speed control for versatile use. Use lower speeds for light debris around delicate areas like flower beds, and higher speeds (up to 120 MPH) for tougher debris on hard surfaces.
• Barneko arraskagailua: Utilize the built-in scraper on the blower nozzle to loosen stubborn debris before blowing.

Figure 6: A user operating the BLACK+DECKER 40V MAX Cordless Leaf Blower to clear leaves from a deck.

8. Mantentzea

• Garbiketa: Regularly clean the tools with a damp cloth. Ensure all vents are free from debris to prevent overheating.
• Katearen ordezkoa: The trimmer uses an automatic line feed system. When the line runs out, replace the spool with a compatible BLACK+DECKER replacement spool. Refer to the trimmer's specific instructions for detailed replacement steps.
• Bateria zaintzea: Gorde bateriak leku fresko eta lehor batean, eguzki-argitik babestuta. Ez gorde bateria guztiz deskargatuak denbora luzez.

9. Arazoak

10. Zehaztapenak

• Marka: BLACK+DECKER
• Modelo zenbakia: LCC140
• Energia iturria: Battery Powered (40V MAX* Lithium-Ion)
• String Trimmer Cutting Width: 13 hazbetekoa
• String Trimmer Speed: Gehienez 7000 RPM
• Leaf Blower Air Speed: Gehienez 120 MPH
• Elementuaren pisua: 13.4 kilo (konbinatuta)
• Produktuaren neurriak: 43.3"L x 13"W (Trimmer)
• Beharrezkoa den muntaia: Bai

11. Bermea eta Laguntza

Bermeari buruzko informazioa, laguntza teknikoa edo ordezko piezak erosteko, jo ezazu BLACK+DECKER-en webgune ofizialera. webwebgunera edo jarri harremanetan bezeroarentzako arreta-zerbitzura zuzenean. Gorde erosketa-agiria erosketaren frogagiri gisa berme-erreklamazioetarako.

Lineako laguntza: Bisitatu BLACK+DECKER denda Amazonen produktuari buruzko informazio gehigarria eta laguntza-baliabideak lortzeko.
