Exerpeutic 100XL Magnetic Resistance Manual Treadmill User Manual

1. Sarrera

The Exerpeutic 100XL Magnetic Resistance Manual Treadmill is designed to provide an effective fitness walking experience. This manual treadmill offers a convenient way to engage in regular exercise, featuring magnetic resistance, incline adjustments, and a heart pulse monitoring system. This instruction manual provides essential information for the safe and efficient use, setup, and maintenance of your treadmill.

Figure 1.1: The Exerpeutic 100XL Magnetic Resistance Manual Treadmill in its operational state.

2. Segurtasun informazioa

Before operating the Exerpeutic 100XL treadmill, please read and understand all safety instructions. Failure to follow these instructions may result in injury or damage to the product.

• Erabiltzailearen pisu-gaitasuna: Ez gainditu erabiltzailearen gehienezko pisua, 325 lb-koa (147 kg).
• Azalera egonkorra: Always place the treadmill on a flat, stable surface to prevent tipping.
• Sakea: Ensure adequate clear space around the treadmill during use.
• Oinetakoak: Wear appropriate athletic footwear when using the treadmill.
• Barandak: Utilize the extra-long safety handles for balance and security, especially when starting or stopping.
• Inklinazio-doikuntza: Adjust the incline only when the treadmill is stationary and you are not on the belt.
• Magnetic Tension: Adjust magnetic tension gradually to find a comfortable and effective workout level.
• Haurrak eta maskotak: Mantendu haurrak eta maskotak zintatik urrun funtzionatzen ari diren bitartean.
• Aholku medikoa: Kontsultatu medikuari edozein ariketa programa hasi aurretik. Utzi ariketa fisikoa berehala zorabiatzen bazara, zorabiatzen bazara edo mina baduzu.

3. Konfigurazioa eta Muntaketa

The Exerpeutic 100XL treadmill comes largely pre-assembled. Follow these steps to complete the setup:

1. Despaketatzea: Kontu handiz atera osagai guztiak paketetik. Egiaztatu kalterik dagoen.
2. Oinarrizko muntaia: Attach any necessary leg extensions or base supports as per the included quick assembly guide. Ensure all bolts are securely tightened.
3. LCD Monitor Attachment: Connect the LCD monitor panel to the main frame. Ensure all cables are properly connected and secured.
4. Bateriaren instalazioa: Install the required batteries into the LCD monitor. (Note: If the display does not function, ensure batteries are new and correctly inserted).
5. Lekua: Position the treadmill on a level, stable surface.

Figure 3.1: Illustration of adjusting the treadmill incline mechanism.

Figure 3.2: Detail of the quick release incline adjustment for setting the treadmill's angle.

4. Funtzionamendua

4.1 Zure entrenamendua hastea

The Exerpeutic 100XL is a manual treadmill, meaning the belt moves with your steps. Begin by standing on the side platforms, then step onto the belt and start walking at a comfortable pace. Hold onto the extra-long safety handles for stability.

Figure 4.1: A user demonstrating proper posture while walking on the treadmill.

Figure 4.2: Detail of feet engaging with the treadmill belt during a workout.

4.2 Adjusting Magnetic Resistance (Pacer Control)

The treadmill features an 8-level magnetic tension 'Pacer Control' system. This unique technology helps stabilize the speed of the belt and allows you to walk at various difficulty levels. Turn the knob on the console to increase or decrease the resistance.

Figure 4.3: The console displaying the magnetic tension control knob.

4.3 Inklinazio-doikuntza

The treadmill offers 3 quick-release incline positions: 8, 10, and 15 degrees. Adjusting the incline increases the intensity of your workout, helping to burn more calories and build endurance. Ensure the treadmill is stationary before adjusting the incline.

4.4 Heart Pulse System

The integrated heart pulse pads on the handles allow you to measure your target heart rate. Grip the sensors firmly with both hands to get a reading on the LCD display. This feature helps you monitor your workout intensity.

Figure 4.4: Detail of the heart pulse sensors located on the handrails.

4.5 LCD pantailaren funtzioak

The computer LCD display provides real-time workout data:

• Iragandako denbora: Zure entrenamenduaren iraupena erakusten du.
• Distance Walked: Egindako distantzia osoa bistaratzen du.
• Calorie Burn: Saioan zehar erretako kaloriak kalkulatzen ditu.
• Abiadura: Indicates your current walking speed.
• Bihotz-taupadak: Shows your heart rate when gripping the pulse sensors.

Figure 4.5: The LCD console displaying various workout metrics.

4.6 Tolestura eta biltegiratzea

The Exerpeutic 100XL treadmill is designed for easy folding and storage. It features transportation wheels for convenient movement when folded.

1. Tolesgarria: Carefully lift the rear of the treadmill deck until it locks into an upright position.
2. Mugitzea: Tilt the folded treadmill onto its transportation wheels and roll it to your desired storage location.
3. Zabaltzen: To unfold, release the locking mechanism and gently lower the deck until it rests flat on the floor.

Figure 4.6: A user demonstrating the folding mechanism of the treadmill.

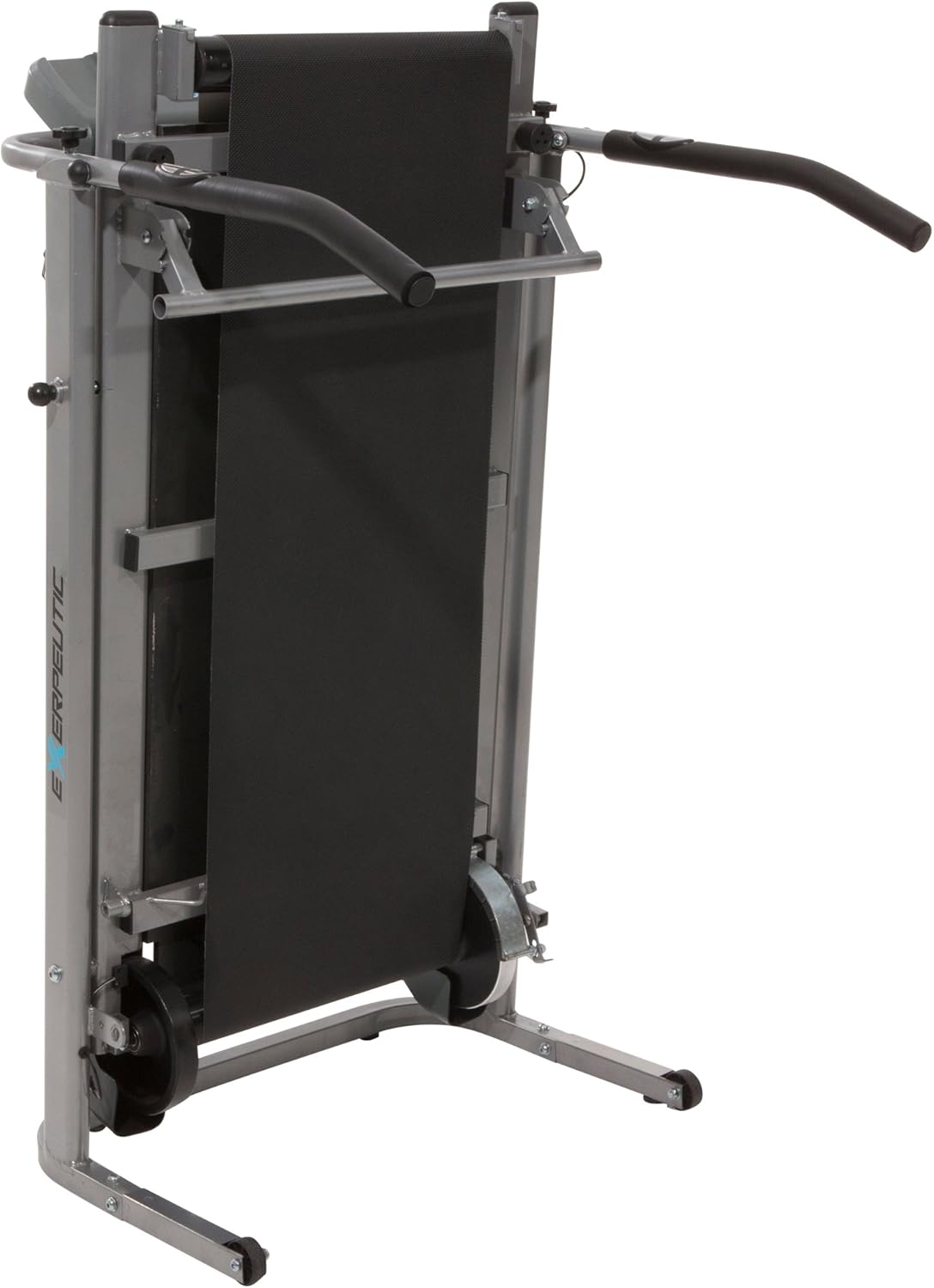

Figure 4.7: The treadmill in its compact, folded state, ready for storage.

5. Mantentzea

Regular maintenance ensures the longevity and optimal performance of your Exerpeutic 100XL treadmill.

• Garbiketa: Erabili ondoren, garbitu zinta-korda iragarki batekin.amp oihal bat izerdia eta hautsa kentzeko. Saihestu garbitzaile urratzaileak.
• Gerriko lerrokatzea: Periodically check the treadmill belt for proper alignment. If the belt drifts to one side, refer to the assembly guide for instructions on how to adjust it. A slight quarter-turn adjustment is often sufficient.
• Lubrifikazioa: Consult the original assembly guide for specific lubrication requirements for the treadmill belt. Over-lubrication can be detrimental.
• Hardwarearen egiaztapena: Aldian-aldian ikuskatu torloju, azkoin eta konexio guztiak, ondo estuak eta sendoak daudela ziurtatzeko.

6. Arazoak

This section addresses common issues you might encounter with your Exerpeutic 100XL treadmill.

• Treadmill Belt Not Moving Smoothly:
  • Ensure the magnetic tension is not set too high for your current walking speed.
  • Check for proper belt alignment.
  • Verify that the treadmill is on a level surface.
• LCD pantailak ez du funtzionatzen:
  • Check the batteries in the console. Replace them with new ones if necessary.
  • Ziurtatu kontsolaren kable-konexio guztiak ondo lotuta daudela.
• Unstable Feeling During Use:
  • Confirm all assembly bolts are tightened.
  • Ensure the treadmill is on a firm, level surface.
  • Utilize the extra-long handrails for stability.
• Heart Rate Monitor Inaccurate:
  • Ensure your hands are firmly gripping both pulse sensors.
  • Skin contact must be consistent and direct.

7. Zehaztapenak

8. Bermea eta Laguntza

8.1 Bermearen informazioa

The Exerpeutic 100XL Magnetic Resistance Manual Treadmill comes with a 3 urteko berme mugatua. This warranty covers manufacturing defects and ensures the quality and durability of your product. Please retain your proof of purchase for warranty claims.

8.2 Bezeroarentzako laguntza

For any questions, technical assistance, or warranty claims, please contact Exerpeutic customer support. Refer to the contact information provided in your product packaging or visit the official Exerpeutic webgunea.
