Central Machinery 5-Ton Electric Log Splitter User Manual

1. Segurtasun-argibide garrantzitsuak

Always read and understand all safety warnings and instructions before operating this log splitter. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

1.1 Segurtasun orokorra

• Mantendu lan-eremua garbi eta ondo argiztatuta. Eremu nahasiak edo ilunek istripuak gonbidatzen dituzte.
• Ez erabili tresna elektrikoak atmosfera lehergarrietan, adibidez, likido sukoiak, gasak edo hautsak daudenean. Erreminta elektrikoek hautsa edo keak piztu ditzaketen txinpartak sortzen dituzte.
• Mantendu haurrak eta ingurukoak urrun, erreminta elektrikoa erabiltzen duzun bitartean. Distrakzioek kontrola galtzea eragin dezakete.

1.2 Segurtasun elektrikoa

• Erreminten entxufeak entxufearekin bat etorri behar dira. Inoiz ez aldatu entxufea inola ere.
• Saihestu gorputzaren ukipena lurpeko gainazalekin, hala nola hodiak, erradiadoreak, sukaldeak eta hozkailuak. Deskarga elektrikoa jasateko arriskua areagotu egiten da zure gorputza lurrarekin lotuta badago.
• Ez jarri tresna elektrikoak euria edo hezetasunera. Erreminta elektriko batean sartzeak deskarga elektrikoaren arriskua areagotuko du.

1.3 Segurtasun pertsonala

• Always wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, and heavy-duty gloves.
• Ez ezazu gainditzen. Mantendu oin eta oreka egokia uneoro. Horrek tresna elektrikoa hobeto kontrolatzen du ustekabeko egoeretan.
• Jantzi behar bezala. Ez erabili arropa solterik edo bitxirik. Mantendu ilea, arropa eta eskularruak mugitzen diren ataletatik urrun.

2. Produktua amaitu daview

The Central Machinery 5-Ton Electric Log Splitter is designed to efficiently split logs up to 10 inches in diameter. It features a powerful 1.8 HP electric motor and a robust hydraulic system to deliver 5 tons of splitting force. The integrated wheel kit and easy-grip handle ensure convenient transport and storage.

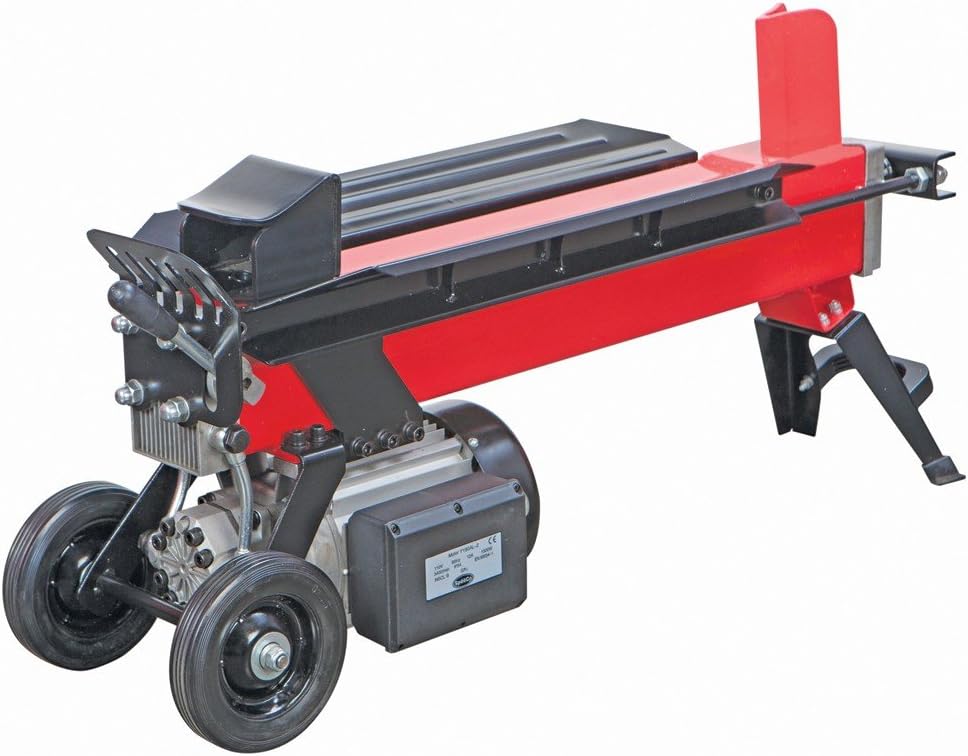

2.1 Irudia: Gainetikview of the Central Machinery 5-Ton Electric Log Splitter. This image shows the complete log splitter assembly, highlighting its red and black frame, electric motor, hydraulic pump, splitting wedge, log tray, control handle, and transport wheels. The robust construction is visible, designed for efficient log splitting.

2.1 Funtsezko osagaiak

• Splitting Wedge: The hardened steel wedge that forces into the log.
• Log Tray: Supports the log during the splitting process.
• Ariete hidraulikoa: The moving part that pushes the log against the wedge.
• Motor elektrikoa: Powers the hydraulic pump.
• Kontrol-heldulekua: Activates the hydraulic ram.
• Garraio Gurpilak: Unitatearen mugikortasun errazerako.

3. Konfigurazioa

3.1 Desontziratzea eta ikuskatzea

1. Kontu handiz kendu osagai guztiak ontzitik.
2. Inspect the log splitter for any signs of damage during shipping. Do not operate if damaged.
3. Ziurtatu ontziratze-zerrendan zerrendatutako pieza guztiak daudela.

3.2 Muntaketa

The log splitter comes largely pre-assembled. Minor assembly may be required for the transport wheels and handle.

• Attach the 6-inch transport wheels to the axle using the provided hardware. Ensure they are securely fastened.
• Secure the easy-grip handle to the designated mounting points.

3.3 Placement and Electrical Connection

• Place the log splitter on a firm, level surface. Ensure adequate space around the unit for safe operation and log handling.
• Connect the log splitter to a grounded electrical outlet. Ensure the power supply matches the specifications of the unit (12 Amps, 1.8 HP motor). Use a heavy-duty extension cord if necessary, rated for outdoor use and appropriate amparoa.

4. Funtzionamendu-argibideak

4.1 Eragiketa aurreko egiaztapenak

• Ziurtatu lotura-elementu guztiak ondo estututa daudela.
• Check hydraulic fluid level. Refer to the maintenance section for details.
• Ensure the work area is clear of debris and bystanders.

4.2 Loading Logs

• Place the log firmly on the log tray against the splitting wedge.
• Ensure the log is centered and stable. Do not attempt to split logs larger than 10 inches in diameter.
• Never hold the log with your hands while operating the splitter.

4.3 Splitting Process

1. With the log properly positioned, firmly grasp the control handle.
2. Push the control handle to activate the hydraulic ram. The ram will extend, pushing the log against the wedge.
3. Once the log is split, release the control handle. The ram will retract automatically.
4. Remove the split wood from the log tray.

4.4 Post-Operation

• Deskonektatu korronte-kablea entxufetik.
• Clean the log splitter of any wood chips or debris.
• Store the unit in a dry, secure location.

5. Mantentzea

5.1 Garbiketa

• After each use, clean the log splitter to remove wood chips, sawdust, and dirt.
• Use a dry cloth or brush. Do not use water or solvents directly on electrical components.

5.2 Hydraulic Fluid Check

• Regularly check the hydraulic fluid level. Refer to the fluid reservoir cap for the correct level indicator.
• Top up with recommended hydraulic fluid if necessary. Consult the manufacturer's guidelines for fluid type.

5.3 Wedge Inspection

• Periodically inspect the splitting wedge for sharpness and damage.
• If the wedge becomes dull, it can be sharpened with a file or grinder. Ensure the original angle is maintained.

6. Arazoak

7. Zehaztapenak

• Eredua: sku 61373
• Marka: Central Machinery
• Zatiketa indarra: 5 tona
• Motorra: 1.8 HP elektrikoa
• Amparoa: 12 Amps
• Gehienezko enbor-diametroa: 10 hazbetekoa
• Gurpilak: 6 inches for easy transport

8. Bermea eta Laguntza

For warranty information or technical support regarding your Central Machinery 5-Ton Electric Log Splitter, please refer to the purchase documentation or contact Central Machinery customer service directly. Keep your proof of purchase for any warranty claims.

For further assistance, please visit the official Central Machinery webgunera edo jarri harremanetan haien laguntza-telefonora.
