TOTO SN920M G400 Integrated Toilet Washlet Top Unit User Manual

1. Sarrera

This manual provides comprehensive instructions for the TOTO SN920M G400 Integrated Toilet Washlet Top Unit. This unit is designed to enhance personal hygiene and comfort when installed with the compatible TOTO CT920CEMFG bottom bowl unit. Please read this manual thoroughly before installation and operation to ensure correct usage and to prevent damage.

Ohar garrantzitsua: This product is the WASHLET top unit only. It requires the TOTO CT920CEMFG bottom bowl unit for proper installation and full functionality.

2. Segurtasun informazio garrantzitsua

• Ensure all electrical connections comply with local codes. The unit operates on 120 Volts and requires a 15 Amps zirkuitua.
• Do not install in locations where water may splash directly onto the unit.
• Produktu hau barrualdean erabiltzeko bakarrik dago pentsatuta.
• For California Residents: This product may expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Professional installation is recommended to ensure correct setup and to avoid potential issues.

3. Produktua amaitu daview

The TOTO SN920M G400 Washlet Top Unit integrates advanced features for a comfortable and hygienic experience. Key features include:

• Front and Rear Washing: Adjustable warm water temperature and pressure controls for personalized cleansing.
• Eserleku berotua: Seat temperature control for enhanced comfort.
• Aire desodorizatzaile automatikoa: Helps to neutralize odors.
• Aire epela lehorgailua: Provides a comfortable drying experience after washing.
• Urruneko kontrola: All functions are easily accessible via a convenient remote control.

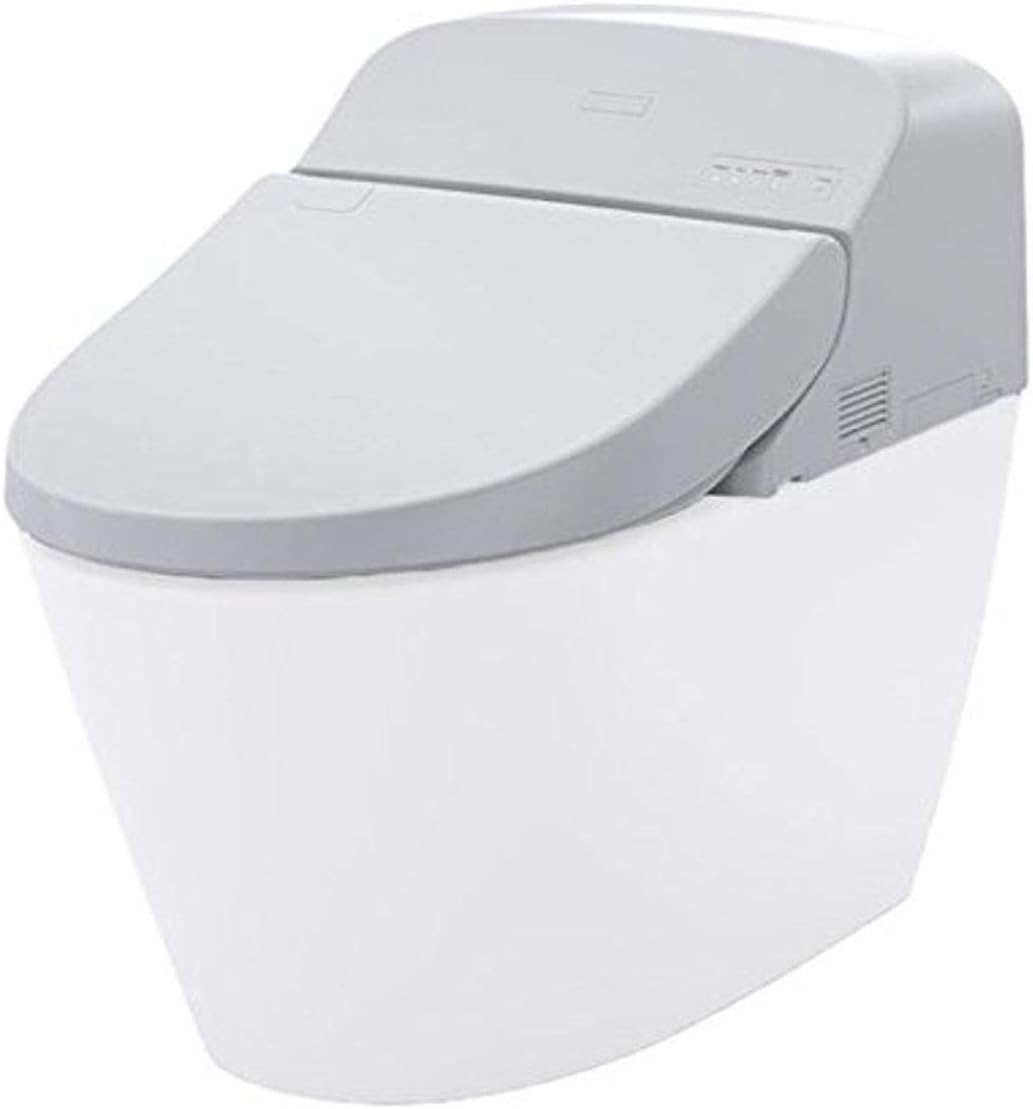

Figure 1: TOTO SN920M G400 Integrated Toilet Washlet Top Unit. The unit features a modern, D-shaped design with a light-colored seat and a grey-toned upper housing for the washlet functions. It is shown from a slight angle, highlighting its compact and integrated appearance.

4. Konfigurazioa eta instalazioa

The TOTO SN920M G400 is a top unit designed for integration with the TOTO CT920CEMFG bottom bowl unit. Ensure you have the correct compatible bowl unit before proceeding with installation.

4.1 Instalazioaren aurreko egiaztapenak

• Verify that the electrical outlet meets the 120V, 15A requirement.
• Confirm water supply connections are accessible and meet pressure requirements.
• Deskonprimitu osagai guztiak eta ziurtatu ez dagoela piezarik falta edo kaltetuta.

4.2 Instalazio urratsak (laburpena)

1. Install the TOTO CT920CEMFG bottom bowl unit according to its specific instructions.
2. Carefully place the SN920M G400 Washlet Top Unit onto the installed bowl, aligning it with the mounting points.
3. Secure the top unit to the bowl using the provided fasteners.
4. Connect the water supply hose to the unit and the water shut-off valve.
5. Plug the power cord into the dedicated electrical outlet.
6. Egin ihes-egiaztapena eta probatu funtzio guztiak.

For detailed installation instructions, refer to the separate installation guide provided with the complete integrated toilet system.

5. Funtzionamendu-argibideak

All functions of the TOTO SN920M G400 Washlet Top Unit are controlled via the included remote control. Familiarize yourself with the remote's layout for optimal use.

5.1 Oinarrizko funtzionamendua

• Piztu/Itzali: Press the power button on the remote to activate or deactivate the unit.
• Eserlekuaren sentsorea: The unit will only operate when a user is seated, detected by the seat sensor.

5.2 Washing Functions

• Aurrealdeko garbiketa: Press the "Front" button for feminine wash.
• Atzeko garbiketa: Press the "Rear" button for posterior wash.
• Uraren presioa: Use the "+" and "-" buttons to adjust water spray intensity.
• Uraren tenperatura: Use the temperature control buttons to select desired warm water temperature.
• Toberaren posizioa: Adjust the nozzle position forward or backward using the dedicated buttons.

5.3 Erosotasun Ezaugarriak

• Eserleku berotua: Adjust the seat temperature using the dedicated control buttons on the remote.
• Aire epela lehorgailua: After washing, press the "Dryer" button to activate the warm air dryer. Adjust air temperature as desired.
• Aire desodorizatzailea: The automatic air deodorizer activates when the seat sensor detects a user, helping to maintain freshness.

6. Mantentzea

Regular cleaning and maintenance will ensure the longevity and optimal performance of your Washlet Top Unit.

6.1 Unitatea garbitzea

• Kanpoaldea: Garbitu kanpoko gainazalak leun batekin, damp cloth and a mild, non-abrasive cleaner. Avoid harsh chemicals, abrasive pads, or strong detergents, as these can damage the plastic and finish.
• Tobera: The self-cleaning nozzle extends and retracts. For deeper cleaning, refer to the detailed cleaning instructions in the full product manual for specific nozzle cleaning procedures.
• Eserlekua: Clean the seat with a soft cloth and mild soap.

6.2 Long-Term Care

• If the unit will not be used for an extended period, unplug it from the power outlet and turn off the water supply.
• In freezing conditions, ensure the unit is properly drained to prevent damage from frozen water.

7. Arazoak

If you encounter issues with your TOTO SN920M G400 Washlet Top Unit, refer to the following common troubleshooting steps:

If the problem persists after attempting these solutions, please contact TOTO customer support.

8. Zehaztapenak

9. Bermea eta Laguntza

Bermea: This TOTO product is covered by a 1-year limited warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use and service.

Bezeroarentzako laguntza: For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact TOTO customer service. Refer to your purchase documentation or the TOTO official webuneko harremanetarako informazioa lortzeko gunea.
