1. Produktua amaitu daview
The Everactive NC-1200 is a versatile and intelligent battery charger designed for Ni-MH (Nickel-Metal Hydride) rechargeable batteries. It features 12 independent charging slots, allowing for simultaneous charging of various combinations of AA Mignon and AAA Micro batteries. The charger is equipped with an LCD display for monitoring charging status and a refresh function to optimize battery performance.
This package includes the Everactive NC-1200 fast charger unit.
Image: The Everactive NC-1200 charger, showcasing its 12 empty battery slots and the clear LCD display at the top, ready for battery insertion.
2. Konfigurazioa
- Despaketatzea: Carefully remove the NC-1200 charger from its packaging. Inspect the unit for any signs of damage.
- Potentzia-konexioa: Connect the provided power adapter to the DC input port on the charger. Plug the power adapter into a standard electrical outlet (100-240V AC). The charger's LCD display should illuminate, indicating it is powered on.
- Lekua: Place the charger on a stable, flat, and dry surface, away from direct sunlight, heat sources, and moisture. Ensure adequate ventilation around the unit.
Image: The Everactive NC-1200 charger displayed alongside its included power adapter and a car adapter, illustrating the components for power connection.
3. Funtzionamendu-argibideak
3.1 Pilak sartzea
- Insert Ni-MH AA or AAA rechargeable batteries into the charging slots. Ensure correct polarity (+ and -) as indicated on the charger and the batteries.
- The charger can accommodate up to 12 batteries simultaneously. Each slot operates independently.
3.2 LCD pantaila ulertzea
The LCD display provides real-time information for each charging slot:
- CHG: Indicates that the battery in the corresponding slot is currently charging.
- Bateria ikonoa: Shows the approximate charge level of the battery. Segments will fill up as the battery charges.
- FRESKATU: Indicates that the refresh function is active for the corresponding slot.
- Full/Solid Icon: A solid battery icon indicates that the battery is fully charged.
3.3 Kargatze-prozesua
Once batteries are inserted correctly, the charger will automatically detect them and begin the charging process. The LCD display will show "CHG" and the battery icon will animate to indicate charging.
Charging times vary depending on the battery capacity and its current charge level. Refer to the specifications section for estimated charging times.
3.4 Refresh Function
The refresh function can help to restore the capacity of older or underperforming Ni-MH batteries by fully discharging them before recharging. To activate the refresh function, press the 'REFRESH' button on the charger. The display will show 'REFRESH' for the selected slot.
Image: The Everactive NC-1200 charger with all 12 battery slots filled with Everactive AA rechargeable batteries, demonstrating its full capacity.
4. Mantentzea
- Garbiketa: Disconnect the charger from power before cleaning. Use a soft, dry cloth to wipe the exterior of the charger. Do not use liquid cleaners or solvents. Ensure no dust or debris accumulates in the battery slots.
- Biltegiratzea: Erabiltzen ez duzunean, gorde kargagailua leku fresko eta lehor batean, eguzki-argitik eta muturreko tenperaturetatik urrun.
- Segurtasuna: Do not attempt to disassemble or modify the charger. Do not expose the charger to water or other liquids. Only use the charger with compatible Ni-MH AA/AAA batteries.
5. Arazoak
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Charger display is off. | Ez dago energia konexiorik. | Ensure the power adapter is securely connected to the charger and the wall outlet. Check the power outlet. |
| Battery not charging (no "CHG" indication). | Incorrect battery insertion or non-rechargeable battery. | Re-insert the battery, ensuring correct polarity. Confirm the battery is a Ni-MH rechargeable type. |
| Kargatzeak denbora gehiegi behar du. | High capacity battery or battery deeply discharged. | This is normal for high-capacity or deeply discharged batteries. Ensure good ventilation. |
| Kargagailua edo bateriak bero daude kargatzen ari diren bitartean. | Funtzionamendu normala. | A slight warmth is normal. If excessively hot, disconnect and allow to cool. Ensure proper ventilation. |
6. Zehaztapenak
| Ezaugarri | Xehetasuna |
|---|---|
| Eredua | NC-1200 (EVNC1200) |
| Sarrera boltage | 12V DC, 1.5A |
| Output (AA) | 12x 1.5V DC, 500mA Max |
| Output (AAA) | 12x 1.5V DC, 250mA Max |
| Onartutako bateria motak | Ni-MH AA, Ni-MH AAA |
| Zirrikitu kopurua | 12 zirrikitu independente |
| Bistaratzea | LCD atzeko argiarekin |
| Funtzioak | Charging, Refresh |
| Neurriak (L x W x H) | 23.9 x 10.5 x 3 cm |
| Pisua | 305 g |
| Ziurtagiriak | CE |
Estimated Charging Times (approximate)
| Bateria mota | Edukiera | Denbora |
|---|---|---|
| AAA | 800 mAh | 3.5 h |
| AAA | 1000 mAh | 4.5 h |
| AA | 2000 mAh | 4.5 h |
| AA | 2500 mAh | 6.0 h |

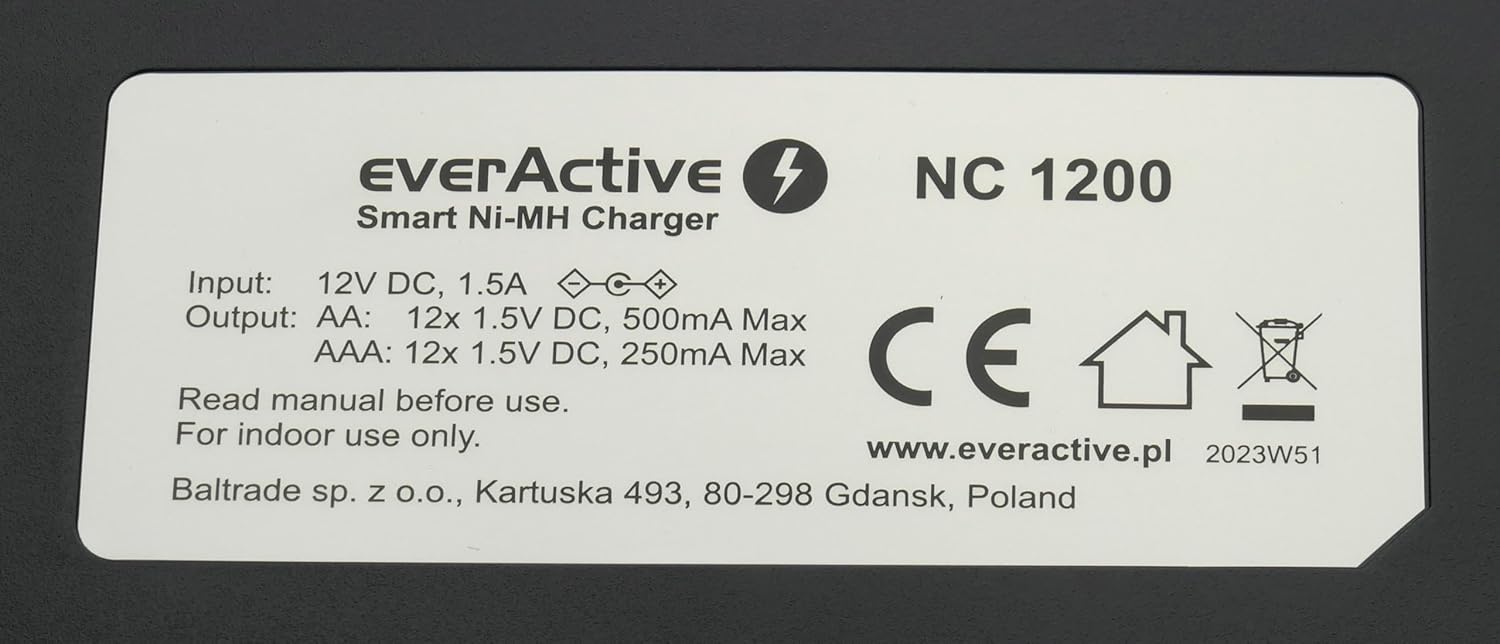

Image: The underside of the Everactive NC-1200 charger, displaying its input and output specifications, CE certification, and manufacturer information.
7. Bermea eta Laguntza
The Everactive NC-1200 charger comes with a 2 urteko bermea erosketa-datatik aurrera. Berme honek fabrikazio-akatsak eta erabilera normalaren ondoriozko matxurak estaltzen ditu.
For technical support, warranty claims, or further inquiries, please contact the manufacturer:
- Fabrikatzailea: Baltrade sp. z oo
- Helbidea: Kartuska 493, 80-298 Gdansk, Poland
- Webgunea: www.everactive.pl
Gorde erosketaren egiaztagiria bermearen ondorioetarako.
