Drive Medical Scout Compact Travel Power Scooter (3-Wheel, Extended Battery) User Manual

1. Sarrera

The Drive Medical Scout Compact Travel Power Scooter is designed for convenient mobility, offering a balance of portability and performance. This 3-wheel model is compact, lightweight, and can be easily disassembled into five manageable pieces for transport. It features a delta-style tiller for easier operation and color-through panels to maintain its appearance.

Figure 1: The Drive Medical Scout Compact Travel Power Scooter (3-Wheel).

Ezaugarri nagusiak:

• Quick and easy disassembly for transport.
• Interchangeable color panels to hide scuffs and scratches.
• Padded and adjustable armrests.
• Height-adjustable swivel seat with fold-down backrest.
• Large, plastic carry basket included.
• Delta tiller for easy adjustment and ergonomic throttle control.
• Flat-free, non-marking tires and anti-tip wheels.

2. Segurtasun informazioa

Read all instructions carefully before operating the scooter. Failure to follow safety guidelines may result in injury or damage to the scooter.

Segurtasun-neurri orokorrak:

• Always ensure the scooter is fully assembled and all locking mechanisms are secure before use.
• Ez gainditu 300 lb-ko (136 kg) gehienezko pisu-gaitasuna.
• Operate the scooter at a safe speed, especially in crowded areas or on uneven terrain.
• Avoid sudden stops or turns, which could lead to instability.
• Be aware of your surroundings and watch for obstacles, pedestrians, and traffic.
• Do not operate the scooter under the influence of alcohol or medication that may impair your judgment.
• Ensure the battery is fully charged before extended use to avoid unexpected power loss.
• Always engage the electromagnetic brake when parking or dismounting the scooter.
• Consult a healthcare professional if you have any medical conditions that might affect your ability to operate the scooter safely.

3. Konfigurazioa eta Muntaketa

The Scout scooter is designed for quick and easy disassembly and reassembly. It breaks down into five main components for convenient transport and storage.

Figure 2: Main components of the disassembled Scout scooter.

Muntatzeko urratsak:

1. Attach the Rear Section: Align the rear drive section with the main chassis and secure it according to the locking mechanism.
2. Instalatu bateria paketea: Place the battery pack securely into its compartment on the main chassis. Ensure it clicks into place.
3. Mount the Seat: Insert the seat post into the receiver on the chassis. Adjust the seat height as desired (see Operating Instructions for details) and secure it.
4. Attach the Tiller: Raise the tiller column and secure it in the upright position. Ensure all locking pins are engaged.
5. Install the Basket: Hook the front basket onto the designated mounts on the tiller column.
6. Adjust Armrests: Adjust the armrest width and position for comfort (see Operating Instructions).
7. Egiaztatu konexioak: Verify all electrical connections are secure and the battery is charged before first use.

Interchangeable Color Panels:

The scooter comes with interchangeable color panels (red and blue) that can be swapped to customize its appearance and hide minor scuffs. Gently snap the desired panels into place on the front and rear sections of the scooter.

Figure 3: Interchangeable color panels.

4. Funtzionamendu-argibideak

Kontrolak amaitu diraview:

Figure 4: Delta tiller control panel with battery gauge and throttle.

• Tekla etengailua: Insert the key and turn it to the "ON" position to power on the scooter.
• Bateriaren neurgailua: Located on the tiller, this gauge indicates the current battery charge level. Recharge when the indicator shows low.
• Abiadura kontrolatzeko markaketa: Adjusts the maximum speed of the scooter. Start with a low setting until comfortable.
• Azeleragailu palanka: Push the lever forward with your right thumb for forward motion, or pull with your left thumb for reverse. Release to engage the electromagnetic brake.
• Adarra botoia: Sakatu adarra jotzeko.

Eserlekua doitzea:

5 irudia: Eserlekuaren altuera doitzeko palanka.

• Eserlekuaren altuera: To adjust the seat height, locate the lever beneath the seat. Pull the lever, raise or lower the seat to one of the three available positions, and release the lever to lock it in place.
• Eserlekua birakaria: The seat can swivel 180 degrees. Use the swivel lever (usually located near the seat post) to rotate the seat for easier boarding or dismounting.
• Beso-euskarriaren doikuntza: The padded armrests can be flipped up for easy access. To adjust their width, loosen the knobs located under the seat, slide the armrests to the desired width, and tighten the knobs.

Figure 6: Left: Seat with armrests down. Right: Seat with armrests flipped up.

Adjusting the Tiller Angle:

Figure 7: Tiller angle adjustment lever.

To adjust the tiller angle, locate the adjustment lever at the base of the tiller. Pull the lever, move the tiller to your desired comfortable position, and release the lever to lock it. This allows for optimal ergonomic control.

Driving the Scooter:

• Ensure you are seated comfortably and the tiller is adjusted to your preference.
• Turn the key to the "ON" position.
• Select your desired speed using the speed control dial.
• Gently press the throttle lever to move forward or backward. The scooter will accelerate smoothly.
• To stop, release the throttle lever. The electromagnetic brake will automatically engage.
• When turning, reduce your speed and make wide, gradual turns to maintain stability.

5. Mantentzea

Bateria kargatzea:

It is crucial to charge the scooter's battery regularly to ensure optimal performance and battery life. The battery pack is designed for easy charging.

Figure 8: The Scout scooter with its battery pack.

1. Ensure the scooter is turned "OFF" before charging.
2. Locate the charging port on the battery pack.
3. Connect the charger to the charging port, then plug the charger into a standard wall outlet.
4. Allow the battery to charge fully. The charger indicator light will typically change color (e.g., from red to green) when charging is complete.
5. Avoid overcharging, but regular full charges are recommended.

Garbiketa orokorra:

• Garbitu scooterra aldizka iragarkiekinamp oihala eta detergente leuna.
• Saihestu akabera kaltetu dezaketen garbitzaile edo disolbatzaile urratzaileak erabiltzea.
• Mantendu osagai elektrikoak lehor.

Pneumatikoen zainketa:

The Scout scooter is equipped with flat-free, non-marking tires, which require minimal maintenance. Periodically inspect the tires for any signs of wear or damage.

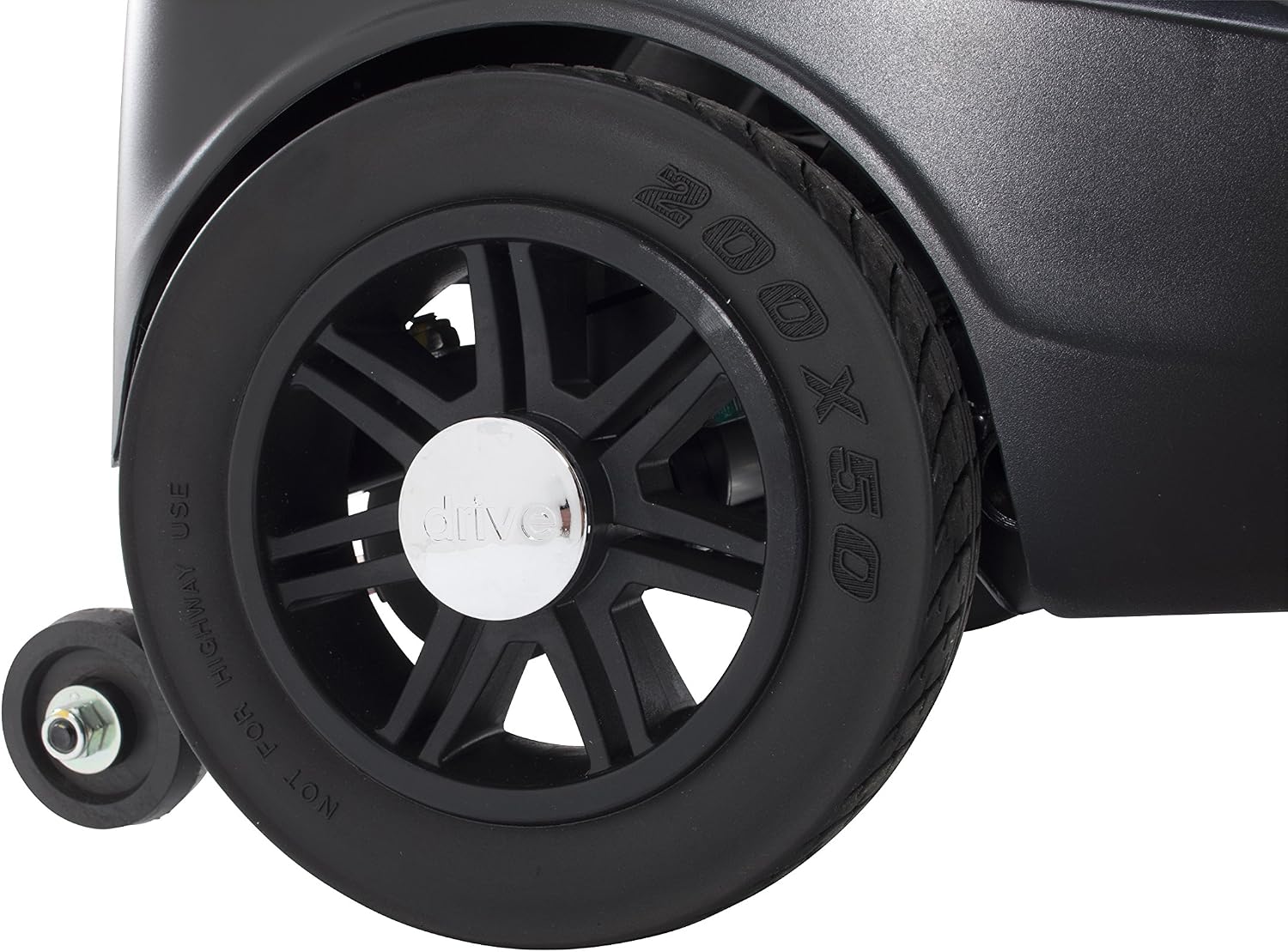

Figure 9: Flat-free, non-marking tire.

6. Arazoak

This section addresses common issues you might encounter with your Scout scooter. For problems not listed here, please contact customer support.

7. Zehaztapenak

Below are the technical specifications for the Drive Medical Scout Compact Travel Power Scooter (3-Wheel, Extended Battery).

8. Bermea eta Laguntza

For specific warranty information regarding your Drive Medical Scout Compact Travel Power Scooter, please refer to the warranty card included with your product or visit the official Drive Medical webgunea. Gorde erosketa-agiria berme-erreklamazioetarako.

If you require technical assistance, replacement parts, or have questions about your scooter, please contact Drive Medical Customer Support:

• Sarean: Visit the Drive Medical weblaguntza baliabideen eta harremanetarako formularioen gunea.
• Telefonoa: Kontsultatu zure produktuaren dokumentazioa bezeroarentzako arreta-zerbitzuko telefono-zenbakia lortzeko.

When contacting support, please have your model number (SFSCOUT3-EXT) and serial number ready.
