Argibide eskuliburua

Sarrera

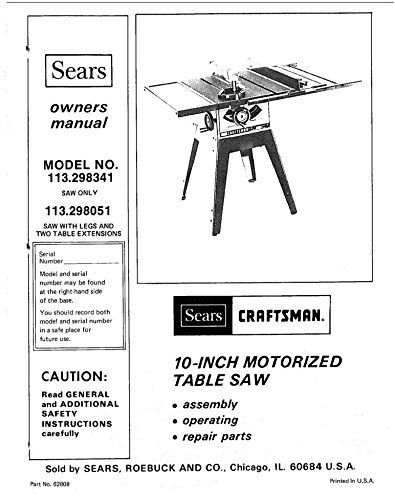

This manual provides essential information for the safe and efficient operation, assembly, maintenance, and repair of your Craftsman 10-inch Motorized Table Saw. It covers models 113.298341 (saw only) and 113.298051 (saw with legs and two table extensions). Please read this manual thoroughly before using your table saw to ensure proper understanding of its features and safety precautions.

For future reference, locate and record the model and serial number of your table saw. This information is typically found on the right-hand side of the saw's base. Keep this manual in a safe and accessible place.

Segurtasun-argibideak

Operating any power tool can be dangerous if proper safety precautions are not followed. This section outlines critical general and specific safety guidelines for using your Craftsman table saw. Adhering to these instructions will help prevent serious injury and damage to the tool.

Segurtasun Arau Orokorrak:

• Erabili beti begi-babesak.
• Use hearing protection when operating noisy equipment.
• Keep work area clean and well-lit. Cluttered areas invite accidents.
• Ez erabili tresna elektrikoak atmosfera lehergarrietan, adibidez, likido sukoiak, gasak edo hautsak daudenean.
• Mantendu haurrak eta ingurukoak urrundu erreminta elektrikoa erabiltzen duzun bitartean.
• Dress properly. Do not wear loose clothing or jewelry. Keep hair, clothing, and gloves away from moving parts.
• Saihestu ustekabeko abiarazteak. Ziurtatu etengailua itzalita dagoela konektatu aurretik.
• Ez ezazu gainditzen. Mantendu oin eta oreka egokia uneoro.
• Deskonektatu entxufea elikadura iturritik doikuntzak egin, osagarriak aldatu edo tresna elektrikoak gorde aurretik.

Specific Table Saw Safety:

• Always use the blade guard and splitter for through-cutting operations.
• Use a push stick or push block when making narrow cuts.
• Never reach over or behind the saw blade.
• Ensure the blade is sharp and clean. Dull blades can cause kickback.
• Support long workpieces to prevent tipping.
• Do not perform freehand cuts. Always use the fence or miter gauge.
• Before starting the saw, ensure the blade is clear of the workpiece and all adjustments are tightened.

Batzarra

This section details the steps required to assemble your Craftsman 10-inch Motorized Table Saw. Assembly procedures may vary slightly depending on whether you have model 113.298341 (saw only) or 113.298051 (saw with legs and two table extensions).

Beharrezko tresnak:

• Giltza erregulagarria
• Bihurkin (Phillips eta laua)
• Hex giltza multzoa
• Segurtasun betaurrekoak

Muntaketa Urratsak (Orokorrak):

1. Despaketatzea eta ikuskatzea: Carefully remove all components from the packaging. Verify that all parts listed in the packing list are present and undamaged. Report any missing or damaged parts immediately.
2. Attaching Legs (Model 113.298051 only): Securely attach the four legs to the main saw unit using the provided bolts and nuts. Ensure all connections are tight and stable.
3. Installing Table Extensions (Model 113.298051 only): Mount the two table extensions to the sides of the main table, aligning them flush with the main surface. Fasten them securely.
4. Motorra muntatzea: Attach the motor to the saw frame according to the instructions, ensuring proper alignment with the blade arbor.
5. Installing the Saw Blade: Carefully install the 10-inch saw blade onto the arbor, ensuring the teeth are oriented correctly for cutting. Secure with the arbor nut.
6. Attaching Blade Guard and Splitter: Install the blade guard and splitter assembly. Ensure it moves freely and provides adequate protection.
7. Assembling the Rip Fence: Attach the rip fence assembly to the front rail. Test its movement and locking mechanism.
8. Azken egiaztapenak: Before connecting to power, double-check all fasteners for tightness. Ensure all moving parts operate smoothly without obstruction.

Funtzionamendua

This section covers the fundamental procedures for operating your Craftsman 10-inch Motorized Table Saw safely and effectively. Familiarize yourself with these operations before making any cuts.

Oinarrizko Eragiketak:

• Potentzia-konexioa: Connect the saw to a grounded electrical outlet. Ensure the power switch is in the "OFF" position before plugging in.
• Palaren altueraren doikuntza: Use the blade height adjustment handwheel to raise or lower the blade. For most cuts, the blade should extend approximately 1/8 inch above the workpiece.
• Alaka angeluaren doikuntza: Use the bevel adjustment mechanism to tilt the blade for angled cuts. Lock the bevel angle securely before cutting.
• Rip Fence Adjustment: Position the rip fence to the desired width of cut. Ensure it is parallel to the blade and locked firmly in place.
• Miter Gauge Use: For cross-cutting, use the miter gauge. Adjust it to the desired angle and slide it in the table's miter slot.

Ebaketa teknikak:

• Erauzi: Use the rip fence to guide the workpiece for lengthwise cuts. Apply steady, even pressure. Always use a push stick for narrow cuts.
• Cross-Cutting: Use the miter gauge to guide the workpiece for cuts across the grain. Ensure the workpiece is firmly against the miter gauge.
• Dadoing/Grooving (if applicable): If your saw supports dado blades, follow specific instructions for installing and using them to cut grooves or dados.
• Bizel-ebakiak: Adjust the blade to the desired angle. Ensure the workpiece is properly supported and guided.

Always ensure the blade guard is in place and functioning correctly before starting any cut.

Mantentzea

Regular maintenance is crucial for the longevity and safe operation of your Craftsman table saw. Follow these guidelines to keep your tool in optimal condition.

Garbiketa:

• Erabilera bakoitzaren ondoren: Disconnect power. Remove sawdust and debris from the table surface, blade guard, and motor housing using a brush or vacuum.
• Pala garbiketa: Periodically remove the blade and clean off accumulated pitch and resin using a blade cleaner. This improves cutting performance and reduces kickback risk.

Lubrifikazioa:

• Apply a light coat of paste wax to the table surface to reduce friction and prevent rust.
• Lubricate moving parts such as the blade height adjustment screw, bevel mechanism, and rip fence rails with a dry lubricant or light machine oil as recommended.

Ikuskapenak:

• Palaren egoera: Inspect the saw blade for dullness, missing teeth, or cracks. Replace damaged blades immediately.
• Elikatze kablea: Check the power cord for any cuts, fraying, or damage.
• Loturak: Aldian-aldian egiaztatu azkoin, torloju eta torloju guztiak ondo estututa daudela. Behar izanez gero, estutu.
• Blade Guard and Splitter: Ensure the blade guard and splitter are intact, properly aligned, and move freely.

Arazoak konpontzea

This section provides solutions to common problems you might encounter with your Craftsman 10-inch Motorized Table Saw. Before attempting any repairs, always disconnect the saw from the power source.

If you encounter a problem not listed here, or if the suggested solutions do not resolve the issue, please contact a qualified service technician or the manufacturer's support.

Konponketa Piezak

When replacement parts are needed for your Craftsman 10-inch Motorized Table Saw, it is recommended to use only genuine Craftsman or Sears authorized replacement parts. Using non-genuine parts may void your warranty, compromise safety, and affect the performance of your tool.

Refer to the parts list diagram (typically found in the original manual) to identify the correct part numbers for your specific model (113.298341 or 113.298051). When ordering parts, always provide the complete model number of your table saw.

For assistance in identifying or ordering parts, you may contact Sears, Roebuck and Co. customer service or visit an authorized service center.

Zehaztapenak

The Craftsman 10-inch Motorized Table Saw models 113.298341 and 113.298051 are designed for woodworking applications, offering precision and power for various cutting tasks.

Note: Specific specifications may vary slightly based on the exact manufacturing year and revision of your model. Always refer to the original product labeling for precise details.

Bermearen informazioa

Craftsman products are manufactured to high-quality standards. While specific warranty terms may vary, generally, Craftsman tools are covered against defects in material and workmanship for a specified period from the date of purchase. Please retain your original purchase receipt as proof of purchase for any warranty claims.

This manual reprint does not include specific warranty details. For precise warranty information applicable to your Craftsman 10-inch Motorized Table Saw, please refer to the warranty card included with your original purchase or contact Craftsman/Sears customer service directly.

Note: Warranty coverage typically does not extend to normal wear and tear, misuse, abuse, or unauthorized repairs.

Laguntza eta Zerbitzua

For technical assistance, service, or to order replacement parts for your Craftsman 10-inch Motorized Table Saw, please contact the manufacturer or an authorized service center.

When contacting support, be prepared to provide the full model number (113.298341 or 113.298051) and serial number of your table saw, along with a detailed description of the issue you are experiencing.

Contact Information (Historical - Sears, Roebuck and Co.):
Sears, Roebuck and Co.
Chicago, IL. 60684 U.S.A.

Please note that contact methods and service availability may have changed since the original publication of this manual. Refer to current Craftsman or Sears official websites for the most up-to-date support information.
