Best Choice Products 3-in-1 Robot Vacuum Cleaner

Sarrera

This manual provides essential instructions for the safe operation, maintenance, and troubleshooting of your Best Choice Products 3-in-1 Robot Vacuum Cleaner, Model SKY4719. This device is designed to vacuum, sweep, and mop various floor types, offering automated cleaning with smart features.

Mesedez, irakurri arretaz eskuliburu hau produktua erabili aurretik eta gorde ezazu etorkizunean erreferentzia gisa.

Paketearen edukia

Kontu handiz deskonprimitu kutxa eta ziurtatu behean zerrendatutako elementu guztiak daudela eta egoera onean daudela. Elementuren bat falta bada edo hondatuta badago, jarri harremanetan bezeroarentzako arreta-zerbitzuarekin.

This image displays the complete package contents, including the robot vacuum, remote control, mop pads, HEPA filters, water tank, dust bin, power adapter, cleaning brush, and charging dock station.

• 1 x BCP Cleaning Robot
• 1 x Urruneko kontrola
• 2 x Fregona-zapiak
• 1 x Ur depositua
• 3 x HEPA iragazki
• 1 x Hautsontzia
• 6 x Alboko eskuilak
• 1 x korronte egokitzailea
• 1 x Argibide eskuliburua
• 1 x Charging Dock Station
• 1 x Garbiketa eskuila

Produktua amaituview

The Best Choice Products SKY4719 robot vacuum is a versatile cleaning device designed for efficiency and convenience. It integrates vacuuming, sweeping, and mopping functionalities into one compact unit.

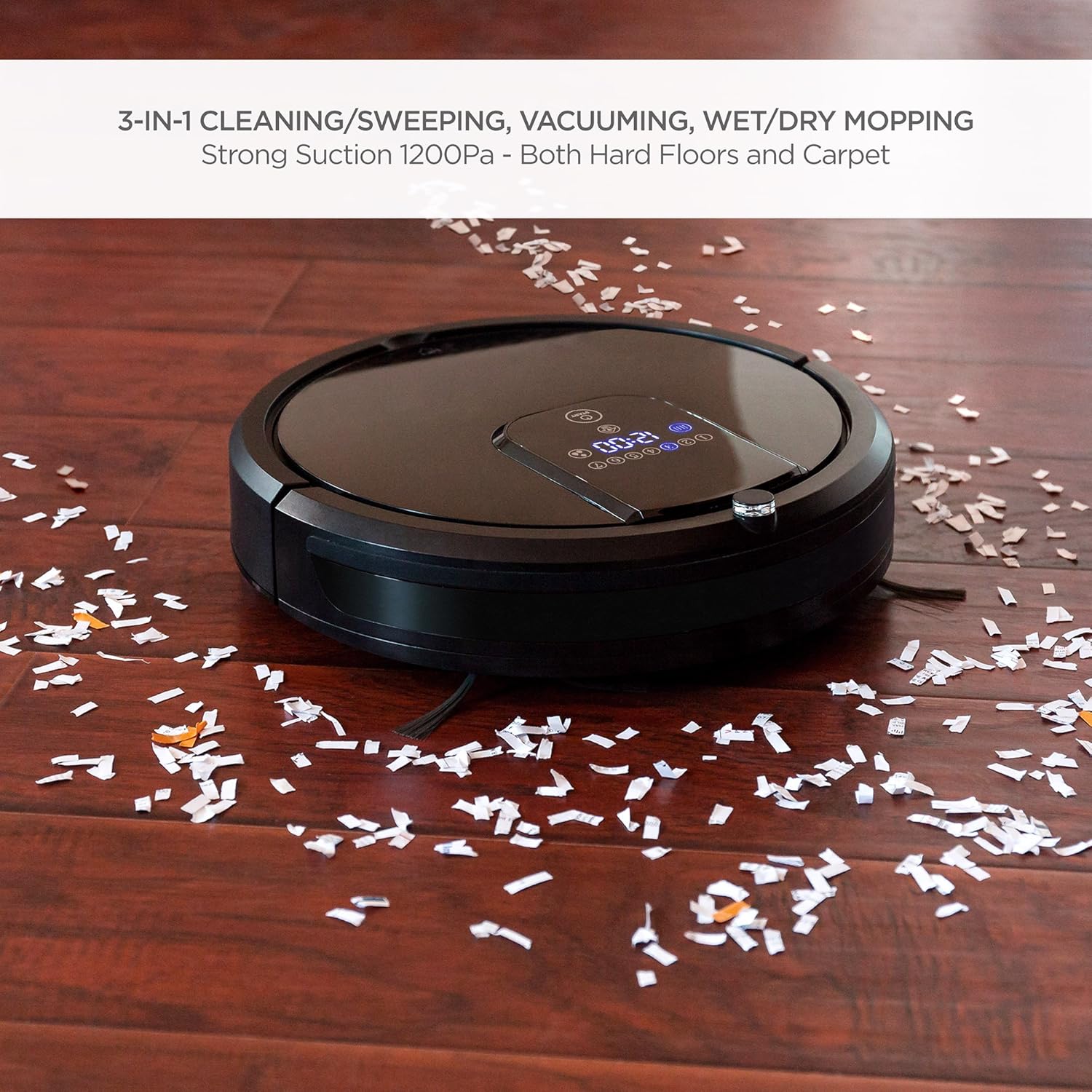

The robot vacuum cleaner features a sleek black design with a central control panel and a lift-up cover for the dustbin.

Ezaugarri nagusiak:

• 3-in-1 garbiketa: Sweeps, vacuums, and mops for comprehensive floor care.
• Autokargatzea: Automatikoki itzultzen da kargatzeko oinarrira bateria baxua denean.
• Garbiketa modu anitz: Includes Spot, Zig-Zag, Auto, and Edge cleaning.
• Sentsore adimendunak: Equipped with anti-collision and fall prevention technology.
• Zarata gutxiko funtzionamendua: Designed for quiet cleaning.
• Remote & Voice Control: Convenient control options for ease of use.

A view of the robot's underside reveals the main brush, side brushes for sweeping, and the removable mop pad, designed for effective cleaning on various surfaces.

Konfigurazioa

1. Kargatzeko oinarriaren kokapena

Place the charging base against a wall in an open, uncluttered area. Ensure there is at least 1 meter (3 feet) of clear space in front of the base and 0.5 meters (1.5 feet) on either side. Plug the power adapter into the charging base and then into a wall outlet.

2. Hasierako kargatzea

Before first use, fully charge the robot vacuum. Place the robot onto the charging base, ensuring the charging contacts align. The indicator lights on the robot will show charging status. A full charge typically takes 4-5 hours.

3. Attaching Side Brushes

Snap the two side brushes onto the posts on the bottom of the robot. Ensure they are securely attached.

4. Filling Water Tank (for Mopping)

If using the mopping function, remove the water tank from the robot. Open the water tank cap, fill it with clean water (do not use cleaning solutions that may clog the nozzle), and securely close the cap. Reinsert the water tank into the robot until it clicks into place. Attach a clean mop pad to the bottom of the water tank.

Funtzionamendu-argibideak

Piztu/Itzaltzea

Press and hold the power button on the robot or the remote control to turn the device on or off.

Garbiketa moduak

The robot vacuum offers several cleaning modes to suit different needs. These can be selected via the remote control or the control panel on the robot.

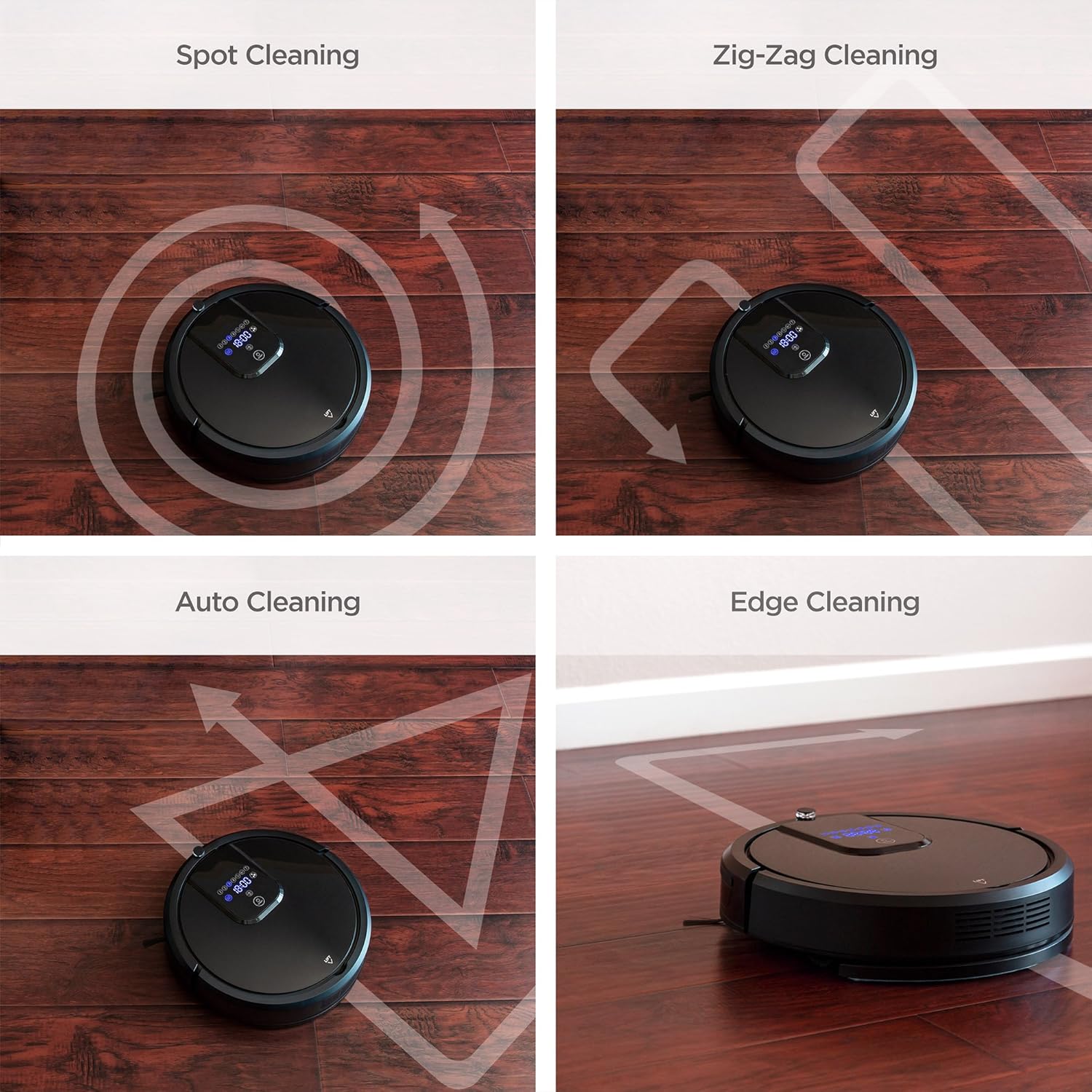

Four distinct cleaning patterns are illustrated: Spot cleaning for concentrated areas, Zig-Zag for systematic coverage, Auto cleaning for general use, and Edge cleaning for walls and corners.

• Garbiketa automatikoa: Robotak automatikoki nabigatzen du eta zoru osoa garbitzen du.
• Leku garbiketa: Concentrates cleaning on a specific dirty area. The robot will clean in a spiral pattern.
• Ertz garbiketa: Robotak hormak eta altzarien ertzak garbitzen ditu.
• Zig-saga garbiketa: The robot cleans in a systematic back-and-forth pattern, ideal for large, open spaces.

The robot vacuum is shown effectively collecting small debris from a hardwood floor, demonstrating its powerful vacuuming capability.

The robot vacuum is shown actively mopping a hardwood floor, highlighting its wet/dry mopping capability.

Urruneko Kontrola

Use the included remote control to start/stop cleaning, select cleaning modes, direct the robot manually, set cleaning schedules, and send the robot back to its charging base.

Ahots kontrola

The robot vacuum is compatible with Amazon Echo devices. Follow the instructions in your Amazon Echo app to connect and enable voice commands for your robot vacuum.

Autokargatzea

When the battery level is low, the robot will automatically return to its charging base to recharge. Ensure the charging base is accessible and unobstructed.

Segurtasun Ezaugarriak

This image illustrates the robot vacuum's intelligent features: automatic return to charging base, obstacle avoidance, ability to climb over small thresholds, and sensors to prevent falls down stairs.

• Anti-Collision: Built-in sensors detect obstacles and allow the robot to navigate around them, preventing damage to furniture and the robot itself.
• Eskalada: The robot can climb over small thresholds and carpets up to a certain height.
• Erorketaren prebentzioa: Cliff sensors prevent the robot from falling down stairs or off elevated surfaces.

Mantentzea

Mantentze-lan erregularrak zure robot-xurgagailuaren errendimendu optimoa bermatzen du eta bizitza luzatzen du.

1. Hautsontzia hustea

After each cleaning cycle, or when the dust bin is full, remove it from the robot and empty its contents into a trash receptacle. Clean the dust bin with a dry cloth.

2. Iragazkiak garbitzea

The HEPA filters should be cleaned regularly. Tap them gently to remove dust. Replace filters every 1-3 months depending on usage. Do not wash HEPA filters with water.

3. Alboko eskuilak garbitzea

Periodically check the side brushes for tangled hair or debris. Use the included cleaning brush or scissors to remove any obstructions. Replace worn brushes as needed.

4. Cleaning Mop Cloths

After each mopping session, remove the mop cloth and wash it with water. Allow it to air dry completely before reattaching or storing.

5. Sentsoreak eta kargatzeko kontaktuak garbitzea

Wipe the cliff sensors, anti-collision sensors, and charging contacts on both the robot and the charging base with a clean, dry cloth to ensure proper function.

Arazoak konpontzea

Zure robot-xurgagailuarekin arazoak badituzu, jo ezazu honako arazo eta irtenbide ohikoenei:

If the problem persists after trying these solutions, please contact Best Choice Products customer support.

Zehaztapenak

Bermea eta Laguntza

For warranty information or technical support, please refer to the warranty card included in your package or visit the official Best Choice Products website. Please have your model number (SKY4719) and purchase details ready when contacting support.
