UIOTEC SRD-05VDC-SL-C 8-Way 5V Relay Module User Manual

1. Sarrera

The UIOTEC SRD-05VDC-SL-C is an 8-channel USB controlled relay module designed for ON/OFF switching of electrical devices. It is suitable for various applications including home automation, robotics, and PC intelligent control systems. This module utilizes HID technology, eliminating the need for specific drivers, offering plug-and-play functionality with Windows XP, 7, and 8 (32-bit and 64-bit) systems.

2. Produktua amaitu daview

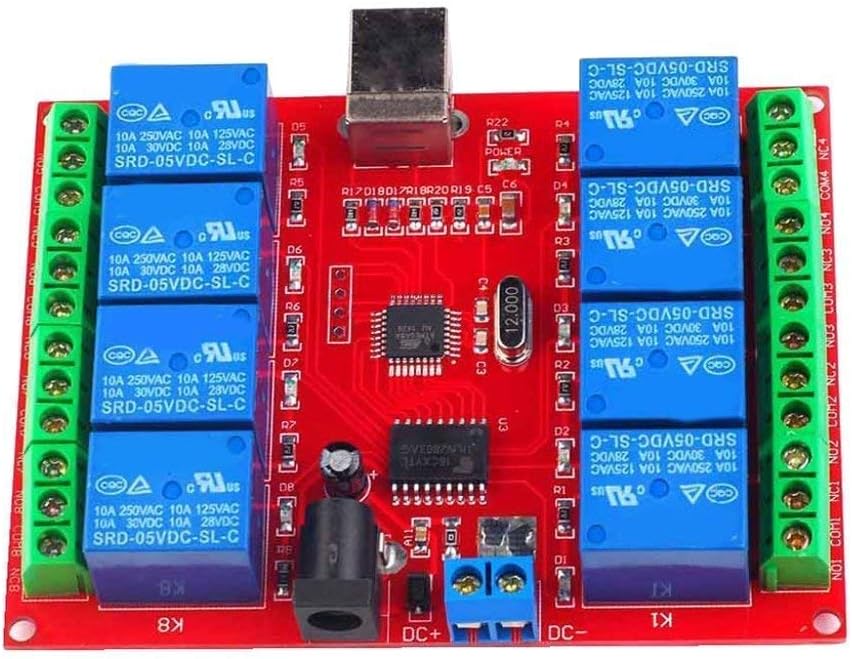

Figure 1: UIOTEC SRD-05VDC-SL-C 8-Way 5V Relay Module. This image shows the red PCB board with eight blue relays, green screw terminals on both sides, a USB Type-B port, and a DC power jack.

2.1 Ezaugarri nagusiak

• HID technology for driver-free, plug-and-play operation.
• Compatibility with Windows XP/7/8 (32-bit and 64-bit systems).
• High-performance USB controller chip and military-grade PCB production.
• Eight 5V relays, capable of controlling loads up to 250V 10A AC or 30V 10A DC.
• Reserved 4-way and 8-way power interfaces for maintaining relay state even when USB is disconnected or PC is off. (Note: 1-way and 2-way versions do not have this power connector).
• LED indicators for power and each relay output.

3. Zehaztapenak

4. Konfigurazioa eta instalazioa

1. Potentzia-konexioa: Connect a 5V DC power supply to the module's DC power jack or the DC+ / DC- screw terminals. Ensure the power supply can provide at least 300mA. For 4-way and 8-way modules, this external power supply allows the relay state to be maintained even if the USB connection is lost.
2. USB konexioa: Connect the module to your computer's USB port using a standard USB cable. The module will be recognized automatically as a HID device, requiring no additional driver installation.
3. Karga konexioa: Identify the Normally Open (NO), Normally Closed (NC), and Common (COM) terminals for each relay.
   • Normalean irekita (EZ): The circuit is open (disconnected) when the relay is de-energized and closes (connects) when the relay is energized.
   • Normalean itxita (NC): The circuit is closed (connected) when the relay is de-energized and opens (disconnects) when the relay is energized.
   • Ohikoa (COM): The common terminal for the relay switch.
   Connect your electrical device to the appropriate NO/NC and COM terminals based on your application requirements. Ensure the load's voltage and current do not exceed the relay's maximum ratings (10A 250VAC / 10A 30VDC).

5. Funtzionamendu-argibideak

The UIOTEC SRD-05VDC-SL-C module is controlled via software running on your PC. UIOTEC provides universal software compatible with their relay boards, along with example code for various programming environments.

5.1 Software Control

• Deskargatu softwarea: Obtain the latest control software and example code from the UIOTEC official website or the provided resources.
• Aplikazioa abiarazi: Run the provided software application on your Windows PC.
• Erreleen kontrola: The software interface will typically allow you to individually control each of the 8 relays (e.g., turn ON/OFF). Observe the LED indicators on the module, which will illuminate when a corresponding relay is energized.

5.2 Programazio Adibideaamples

UIOTEC provides software examples for various programming languages, facilitating custom application development:

• VB6
• BCB6
• Java (NetBeans)
• VB.NET 2010 Express
• C++.NET 2010 Express

Ikusi emandako adibample code and documentation for integrating the relay module into your own projects.

6. Mantentzea

• Garbiketa: Keep the module clean and free from dust. Use a soft, dry cloth for cleaning. Do not use liquid cleaners or solvents.
• Ingurumena: Operate the module in a dry environment, away from moisture, extreme temperatures, and corrosive substances.
• Konexioak: Aldian-aldian egiaztatu konexio elektriko guztiak, ondo finkatuta daudela eta korrosiorik gabe daudela ziurtatzeko.
• Biltegiratzea: When not in use for extended periods, store the module in an anti-static bag in a cool, dry place.

7. Arazoak

8. Aplikazioak

The UIOTEC SRD-05VDC-SL-C 8-Way 5V Relay Module is versatile and can be used in various projects, including:

• Robotics control
• Etxeko automatizazio sistemak
• Controlling doors and windows via a Windows system
• General controller power supply applications

9. Paketearen edukia

Paketea irekitzean, elementu hau aurkitu beharko zenuke:

• 1 x UIOTEC SRD-05VDC-SL-C 8-Channel USB Relay Module

10. Bermea eta Laguntza

For warranty information, technical support, or further inquiries, please refer to the official UIOTEC webwebgunera edo jarri harremanetan zuzenean bezeroarentzako arreta-zerbitzura. Gorde erosketa-agiria berme-erreklamazioetarako.
