Whirlpool W10418078A LP Gas Conversion Kit Instruction Manual

Sarrera

This instruction manual provides essential information for the safe and correct installation and use of the Whirlpool W10418078A LP Gas Conversion Kit. This kit is designed to convert a gas range from natural gas to liquid propane (LP) gas. It is crucial to read and understand all instructions before beginning the conversion process.

This product is a Factory Certified Accessory, ensuring it meets Whirlpool's quality specifications and is designed for compatibility with your appliance.

Segurtasun informazio garrantzitsua

OHARRA: Instalazio, doikuntza, aldaketa, zerbitzu edo mantentze desegokiek lesioak edo jabetza kalteak eragin ditzakete. Ikus eskuliburu hau. Laguntza edo informazio gehigarria lortzeko, kontsultatu instalatzaile kualifikatu batekin, zerbitzu-agentziarekin edo gas hornitzailearekin.

• Always disconnect the appliance from the gas supply and electrical power before performing any service or maintenance.
• Gas conversion should only be performed by a qualified service technician or licensed plumber.
• Ensure all gas connections are properly sealed and tested for leaks after conversion.
• Keep flammable materials away from the appliance during and after conversion.
• Verify that the converted appliance is properly vented according to local codes and manufacturer instructions.

Paketearen edukia

The Whirlpool W10418078A LP Gas Conversion Kit typically contains the necessary orifices for converting your gas range to LP gas. Please verify all components are present upon opening the package.

• LP Gas Orifices (quantity and specific types may vary by appliance model)

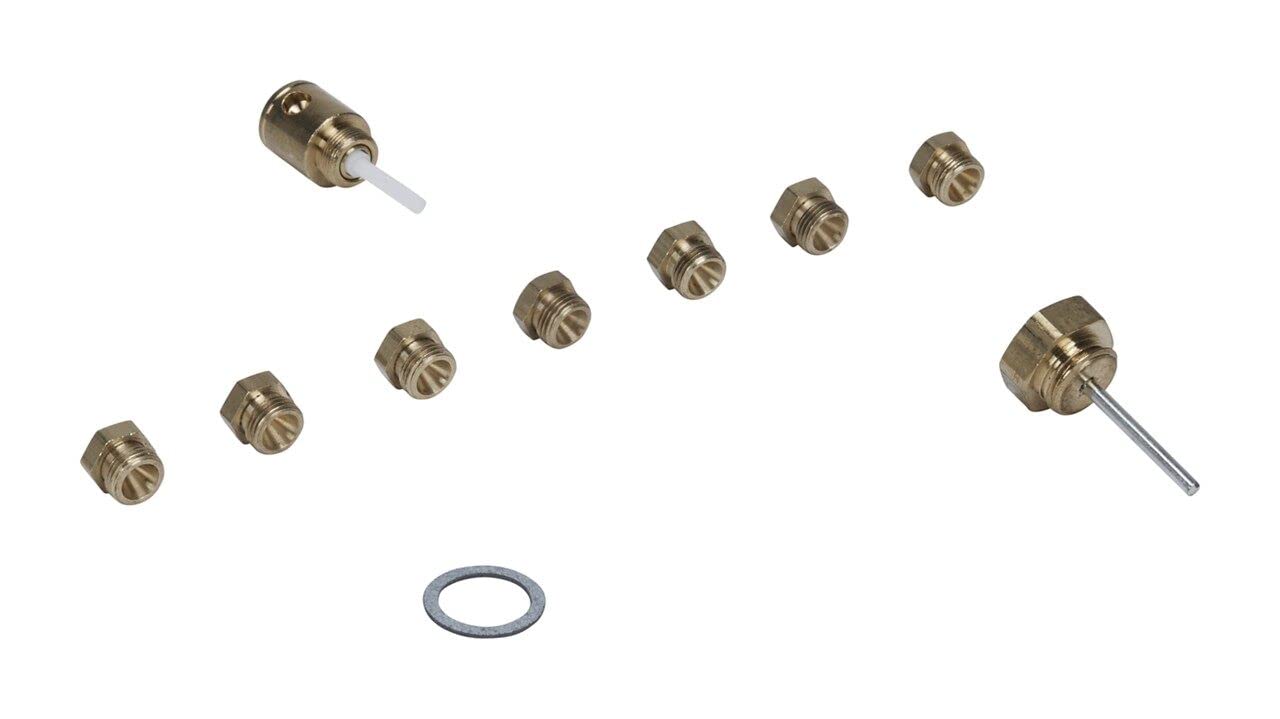

Image: A collection of brass LP gas orifices, which are key components of the conversion kit.

Irudia: Gertutik view of a single brass LP gas orifice, illustrating the component's design.

Beharrezko tresnak

Before beginning the conversion, ensure you have the following tools:

• Bihurkin anitzekoa
• Giltza erregulagarria
• 7.0 mm-ko azkoin-gidaria
• 7.0 mm-ko giltza
• Leak detection solution (e.g., soapy water)

Installation (LP Gas Conversion)

OHARRA: Always refer to your specific gas range's installation manual for detailed, model-specific conversion instructions. The steps below are general guidelines.

1. Deskonektatu argindarra eta gasa: Turn off the gas supply to the range at the main shut-off valve. Unplug the range from the electrical outlet or disconnect power at the circuit breaker.
2. Access Burner Orifices: Remove grates, burner caps, and burner heads to expose the natural gas orifices on the cooktop. For the oven burner, access may require removing the oven bottom panel.
3. Ordeztu zuloak: Carefully remove the existing natural gas orifices using the appropriate wrench or nut driver. Install the new LP gas orifices from the kit into their respective positions. Ensure they are tightened securely to prevent leaks.
4. Adjust Pressure Regulator: Locate the gas pressure regulator on the back of the range. Most regulators have a convertible cap or screw. Follow your range's manual to convert the regulator from natural gas to LP gas setting. This typically involves unscrewing a cap, flipping a plastic pin, and re-securing the cap.
5. Reassemble and Reconnect: Reinstall all burner components, oven panels, and any other parts removed. Reconnect the gas supply and electrical power.
6. Leak proba: Apply a leak detection solution (soapy water) to all gas connections, including the regulator and burner connections. Bubbles indicate a gas leak. If a leak is detected, immediately turn off the gas supply, tighten the connection, and retest. Do not proceed until all leaks are resolved.
7. Adjust Burner Flames: Turn on a cooktop burner to the 'HI' setting. The flame should be stable, blue, and approximately 1 inch high. If the flame is yellow or too high/low, adjust the air shutter on the burner tube (if applicable) or consult your range's manual for flame adjustment procedures. Repeat for all burners.
8. Verify Oven Burner Operation: Test the oven burner for proper ignition and flame characteristics.

Funtzionamendu-argibideak

After successful conversion to LP gas, operate your appliance according to its original user manual. The cooking performance should be consistent with a gas range designed for LP fuel.

Mantentzea

Regular maintenance is crucial for the safe and efficient operation of your gas range after conversion:

• Periodically inspect all gas connections for signs of wear or potential leaks.
• Ensure burner ports are clean and free of debris to maintain proper flame characteristics.
• Do not attempt to modify the LP orifices or regulator settings after initial conversion.

Arazoak konpontzea

If you encounter issues after converting your gas range:

• Gas ihesa detektatu da: Immediately turn off the gas supply. Recheck all connections for tightness and reapply leak detection solution. If the leak persists, contact a qualified service technician.
• Improper Flame (Yellow or too high/low): This may indicate incorrect orifice installation, an improperly adjusted pressure regulator, or blocked burner ports. Review the installation steps and consult your range's manual for specific flame adjustment procedures.
• Burner Not Igniting: Check if the gas supply is fully open and if the igniter is sparking. Ensure the orifice is clear and correctly installed.
• Kit Contents Incomplete: If you believe components were missing from your kit, contact the retailer or Whirlpool customer support immediately.

Zehaztapenak

Laguntza

For further assistance, technical support, or to inquire about replacement parts, please contact Whirlpool customer service or visit the official Whirlpool website. Always provide your appliance's model and serial number when seeking support.
