AMTIFO A5 RV Backup Camera Wireless System User Manual

1. Sarrera eta Overview

The AMTIFO A5 RV Backup Camera Wireless System is designed to provide enhanced visibility and safety for various large vehicles, including RVs, trucks, travel trailers, motorhomes, and campers. This system features a 7-inch touch key monitor and a high-definition wireless camera, offering a clear rear view eta grabatzeko gaitasunak.

Equipped with newly upgraded dual antennas and the latest digital signal chip, the A5 system ensures improved power, transmission distance, stability, and durability. It is capable of transmitting 1080P video to the display, with a signal range of up to 984ft in open areas and effective operation within 320ft on vehicles.

A key feature of this system is its compatibility with Furrion pre-wired RVs, including a dedicated bracket and pigtail wire for seamless integration. The monitor supports up to four video inputs, allowing for expansion with additional cameras (license plate, side, or rear RV cameras) for comprehensive coverage. The system also includes a built-in record function with loop recording, automatically managing storage on a memory card.

Figure 1.1: AMTIFO A5 RV Backup Camera Wireless System components.

2. Zer dago kutxan

Mesedez, egiaztatu osagai guztiak daudela eta egoera onean daudela paketea irekitzean:

• Kamera
• Kameraren euskarria
• Monitorea
• Monitorearen euskarria
• Eguzkia
• Zigarro-pizgailuaren entxufea
• Elikatze kablea
• Argibide eskuliburua

3. Ezaugarri nagusiak

• Enhanced Wireless Signal: Features dual antennas and an advanced digital signal chip for improved transmission distance and stability, reaching up to 320ft on vehicles.
• Definizio handiko bideoa: Delivers clear 1080P video resolution for detailed rear views.
• Furrion Pre-Wired Compatibility: Includes a dedicated bracket and pigtail wire for easy integration with Furrion pre-wired RVs.
• Sistema zabalgarria: The 7-inch monitor supports up to 4 video inputs, allowing for additional cameras (license plate, side, or rear) to be added.
• Iraunkorra eta eguraldiarekiko erresistentea: Camera boasts an IP69 waterproof rating, ensuring reliable performance in various weather conditions.
• Begizta grabatzeko funtzioa: Built-in recording capability with continuous loop recording, automatically managing storage on a memory card.
• Konfigurazio azkarra eta erraza: Digital wireless modules are built into both the monitor and camera, simplifying installation to connecting antennas and power.
• Pantaila erregulagarria: Monitor allows adjustment of brightness, contrast, hue, and image flip mode.
• Customizable Guide Lines: Parking guide lines can be turned on/off, and their height, width, and position can be adjusted.
• Gaueko ikuspegia: Upgraded sensor provides clear night vision with 100% brightness at night.

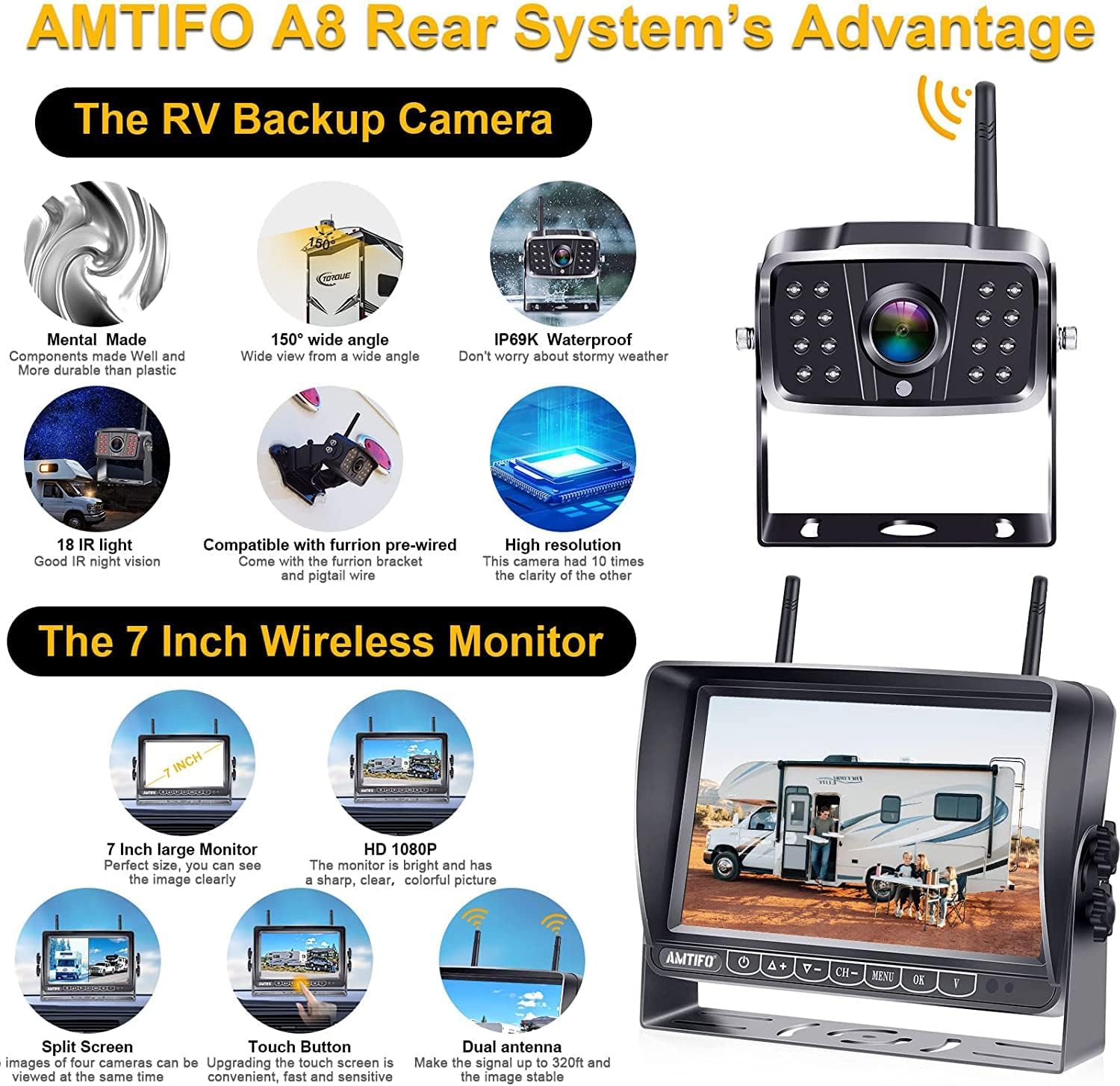

Figure 3.1: Key features of the AMTIFO A5 system.

4. Konfigurazioa eta instalazioa

The AMTIFO A5 system is designed for quick and simple installation, typically completed within 30 minutes.

4.1 Kameraren instalazioa

1. Muntatu kamera: Secure the camera using the provided camera bracket.
2. Konektatu energia: Wire the camera to your vehicle's marker light, running light, or directly to a Furrion pre-wired port if available. Ensure proper grounding.

4.2 Monitorearen instalazioa

1. Monitorea muntatu: Attach the monitor to your dashboard or windshield using the provided monitor bracket. Two mount methods are supported: U-bracket or windshield mount (windshield mount not included).
2. Konektatu energia: Plug the monitor's power cable into your vehicle's cigarette lighter socket.
3. Lotu antenak: Screw the antennas onto both the camera and the monitor.

4.3 Hasierako piztea

Once both the camera and monitor are installed and powered, the digital wireless modules will automatically transport video signals. Turn on the monitor to view kamera jarioa.

4.1 irudia: 3 urratseko instalazio-prozesu sinplea.

Figure 4.2: Furrion pre-wired compatibility components.

5. Funtzionamendu-argibideak

5.1 Monitorearen kontrolak

The 7-inch monitor features touch keys for easy navigation and adjustments:

• Distira doitzea: Use the controls to increase or decrease screen brightness.
• Kontrastearen doikuntza: Modify the contrast level for optimal image clarity.
• HUE Adjustment: Adjust the color hue to your preference.
• Flip modua: Change the image orientation (e.g., mirror image) as needed.
• Guide Line Control: Turn parking guide lines on or off. Adjust their height, width, and position on the screen to match your vehicle and preference.

Figure 5.1: Monitor display adjustments.

5.2 Kamera anitzeko euskarria

The monitor supports up to four cameras, allowing for various display modes:

• Pantaila osoa: Displays a single camera feed.
• Pantaila zatitua: Displays two camera feeds simultaneously.
• Lau pantaila: Displays four camera feeds simultaneously.
• H-Screen: A specific layout for multiple camera views.

Figure 5.2: Multi-camera display options.

5.3 Begizta grabaketa

The system features a built-in loop recording function. When a memory card (not included, contact AMTIFO for details) is inserted, the system will continuously record footage. Once the memory card is full, it will automatically overwrite the oldest files to ensure continuous recording without manual intervention.

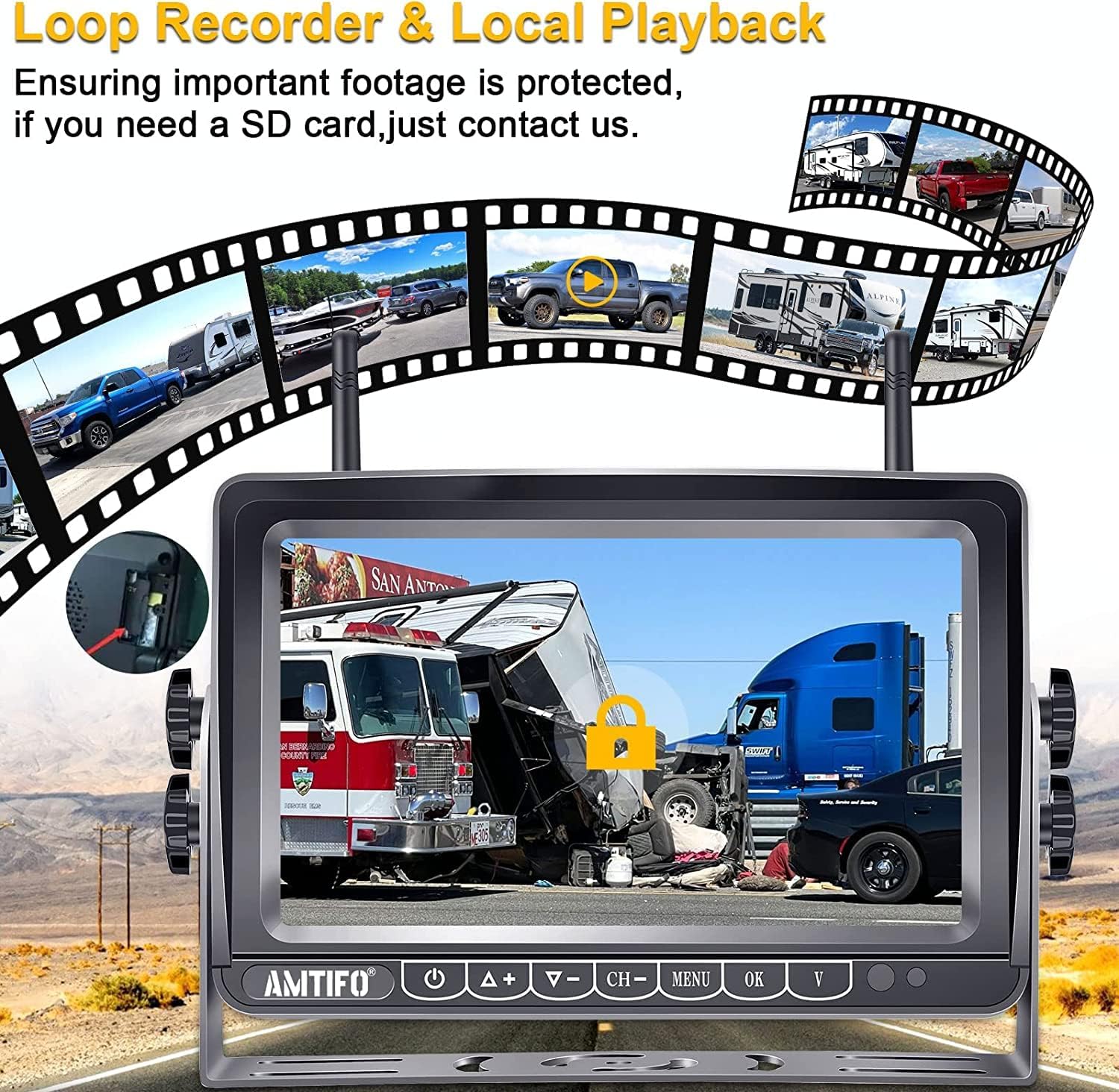

Figure 5.3: Loop recording and local playback.

6. Mantentzea

The AMTIFO A5 system is designed for durability and minimal maintenance. The camera is IP69 waterproof, making it resistant to dust and water ingress.

• Garbiketa: Periodically clean the camera lens and monitor screen with a soft, damp oihal bat erabili ikusgarritasun garbia bermatzeko. Saihestu garbitzaile urratzaileak.
• Tenperatura tartea: The system is built to operate in a wide temperature range, from -22°F to 149°F (-30°C to 65°C).
• Konexioak: Regularly check all power and antenna connections to ensure they are secure.

Figure 6.1: Durability features of the camera.

7. Arazoak

If you encounter issues with your AMTIFO A5 system, please refer to the following common troubleshooting steps:

• No Signal/Flickering Image:
  • Ensure both camera and monitor are receiving power. Check all power connections.
  • Verify that antennas are securely attached to both the camera and monitor.
  • Reduce the distance between the camera and monitor, or minimize obstructions that might interfere with the wireless signal.
  • Egiaztatu beste gailu batzuetatik interferentzia elektromagnetiko sendoak dauden.
• Monitorea ez da pizten:
  • Confirm the cigarette lighter plug is fully inserted and receiving power.
  • Egiaztatu ibilgailuaren entxufearen fusiblea.
• Irudiaren kalitate arazoak (lausoa/distortsionatua):
  • Clean the camera lens and monitor screen.
  • Adjust the brightness, contrast, and HUE settings on the monitor.
• Grabaketak ez du funtzionatzen:
  • Ensure a compatible memory card is inserted correctly.
  • Check if the memory card is full; the loop recording function should overwrite old files, but a faulty card might prevent this.
  • Format the memory card if issues persist (this will erase all data).

If these steps do not resolve the issue, please contact AMTIFO customer support for further assistance.

8. Zehaztapenak

9. Bermea eta Laguntza

AMTIFO stands behind the quality of its products. The AMTIFO A5 RV Backup Camera Wireless System comes with:

• 30 eguneko dirua itzultzeko bermea: If you are not satisfied with your purchase.
• 2 urteko bermea: Covers manufacturing defects and ensures product reliability.
• Free Tech Support: Dedicated technical assistance is available to help with any questions or issues.
• Ordezko Zerbitzua: In case of eligible product malfunctions.

For support, please refer to the contact information provided in your product packaging or visit the official AMTIFO webgunea.
