Swagtron EB-8 Outlaw bizikleta elektrikoaren erabiltzailearen eskuliburua

1. Produktua amaitu daview

The Swagtron EB-8 Outlaw is a versatile 20-inch fat tire electric bike designed for off-road adventures and convenient portability. It features a powerful 350W motor, a removable 36V battery, and a foldable aluminum alloy frame, making it suitable for various terrains and easy storage.

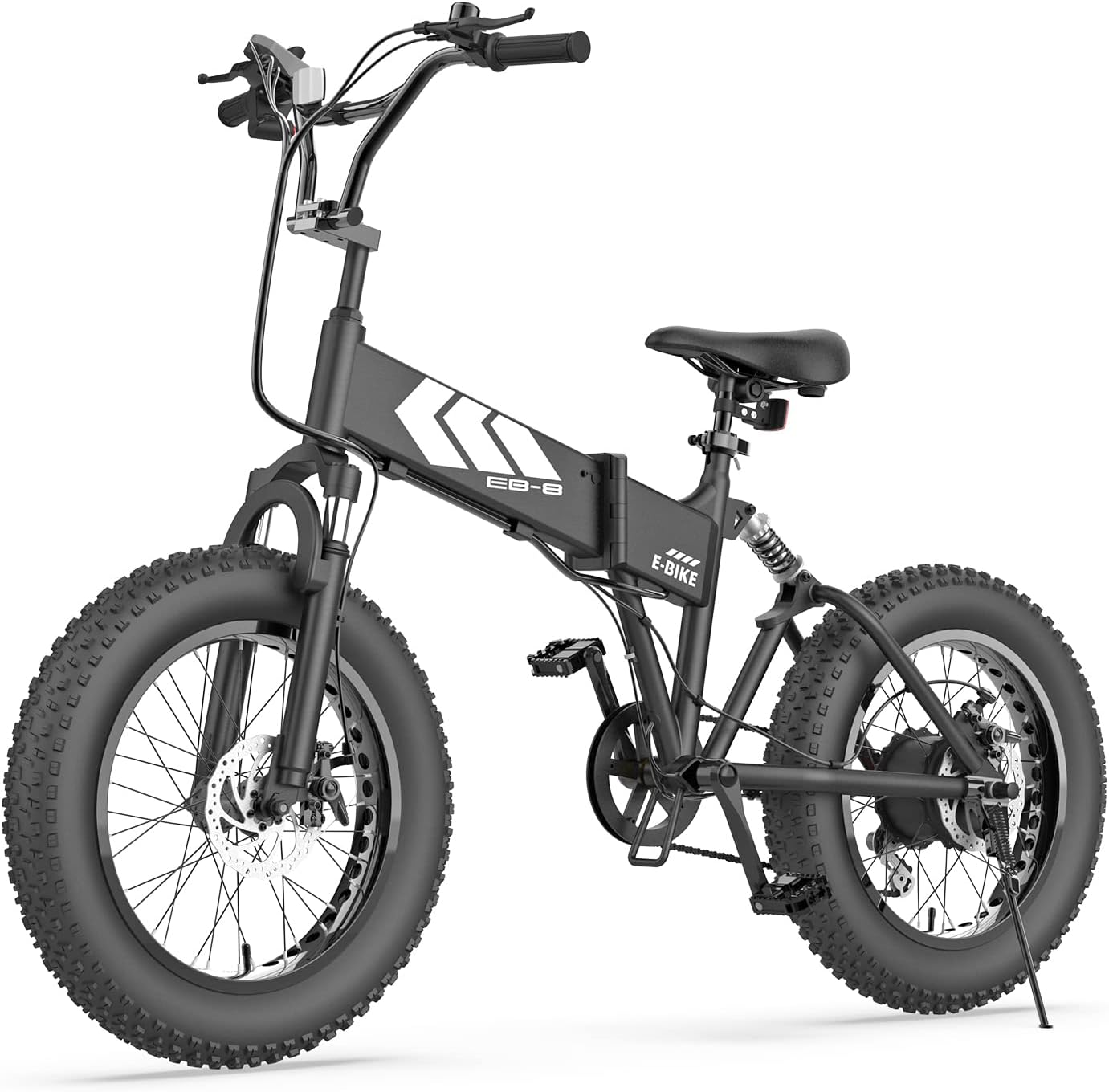

Figure 1: Swagtron EB-8 Outlaw Electric Bike

2. Segurtasun Jarraibideak

Always prioritize safety when operating your Swagtron EB-8 Outlaw. Adhere to all local traffic laws and regulations. Wearing a helmet is strongly recommended for all riders. Perform a pre-ride inspection before each use to ensure all components are in good working order.

• Kaskoaren erabilera: Beti eraman kasko homologatua bizikletan ibiltzean.
• Tokiko Legeak: Familiarize yourself with and obey all local laws regarding electric bicycle use.
• Ibilaldi aurreko egiaztapena: Before each ride, check tire pressure, brake function, and battery level.
• Pisu muga: Ez gainditu 264.5 lb-ko (120 kg) gehienezko pisu-gaitasuna.
• Eguraldi-baldintzak: Exercise caution when riding in wet or slippery conditions.
• Adinaren gomendioa: This e-bike is designed for adult riders.

3. Paketearen edukia

Egiaztatu elementu guztiak paketean daudela:

• Swagtron EB-8 Outlaw Electric Bike
• Erabiltzailearen eskuliburua
• Bateria kargagailua
• Assembly Tools (basic tools for initial setup)

4. Konfigurazioa eta Muntaketa

4.1 Bizikleta zabaltzea

The EB-8 Outlaw features a single-fold design for easy transport and storage. To unfold:

1. Locate the safety lock and latch mechanism on the frame.
2. Askatu segurtasun-blokeoa.
3. Ireki lokailua.
4. Carefully unfold the bike until the frame is fully extended.
5. Secure the latch and engage the safety lock to ensure the frame is rigid.
6. Unfold the pedals by pushing them outwards until they click into place.

Figure 2: Portable Design and Folding Mechanism

4.2 Bateriaren instalazioa eta kargatzea

The EB-8 Outlaw comes with an enclosed, removable 36V 8.8 Ah Li-ion battery. The built-in lock at the center of the frame secures the battery and activates the bike's electrical functions.

1. Sartu bateria markoaren bere konpartimentuan.
2. Use the provided key to lock the battery in place. This action powers on the bike.
3. For initial use, fully charge the battery. Connect the charger to the bike's charging port and then to a power outlet. The charging time is approximately 5-6 hours.
4. The battery can be easily removed for indoor charging or swapping with a fresh one (sold separately).

Figure 3: Battery Lock and Removable Battery

5. Funtzionamendu-argibideak

5.1 Ibiltzeko moduak

The EB-8 Outlaw offers three distinct riding modes:

• Throttle-Only: Engage the throttle for full electric power without pedaling. Max speed up to 18.6 MPH.
• Pedal-Assist: The motor provides assistance as you pedal, extending range and reducing effort.
• Pedal-Only: Ride the bike like a traditional bicycle with no electric assistance. This mode is useful if the battery is depleted or for exercise.

Figure 4: Battery Indicator and Eco-Friendly Features

5.2 Martxa-aldaketa

The bike is equipped with a Shimano SIS 7-Speed Indexed Gear Shifting system for optimized speeds across various terrains.

• Use the gear shifters on the handlebars to change gears.
• Shift to lower gears for climbing inclines and higher gears for flat terrain or downhill riding.
• The rear freehub design allows for coasting without pedaling or while using throttle power.

Figure 5: Shimano SIS 7-Speed Gear System

5.3 Balaztatze sistema

The EB-8 features front and rear disc brakes for powerful and consistent stopping power. It also includes special "Autoguard" braking technology, which ensures the motor fully disengages when the brakes are applied.

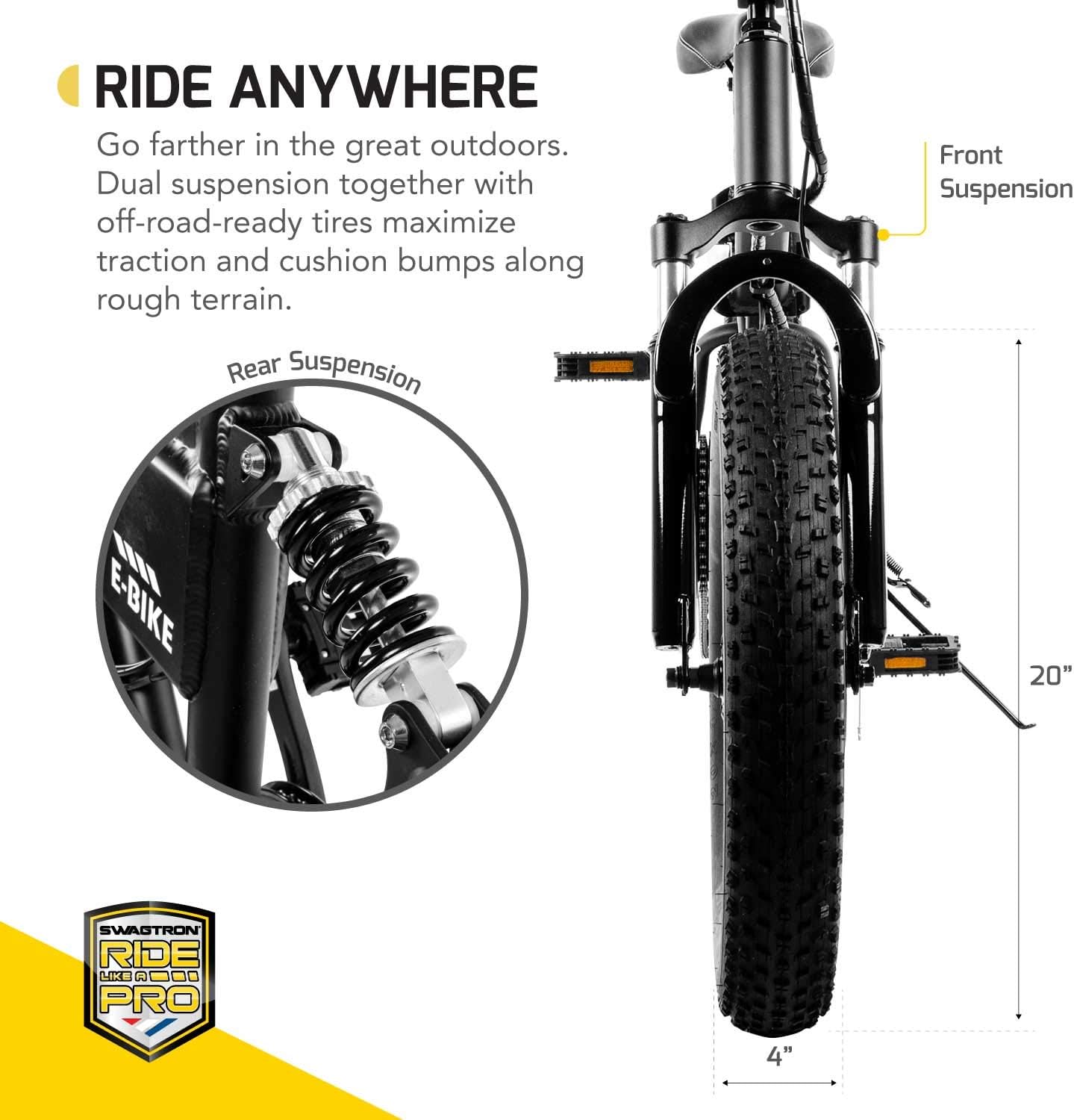

Figure 6: Dual Suspension for Off-Road Riding

6. Mantentzea

Regular maintenance ensures the longevity and optimal performance of your EB-8 Outlaw.

• Pneumatikoak: Maintain recommended tire pressure (20 PSI | 1.4 BAR) for optimal performance and safety. The 4-inch fat tires provide superior traction and shock absorption.
• Balaztak: Regularly inspect brake pads and cables for wear. Adjust as needed to ensure effective stopping power.
• Katea: Keep the chain clean and lubricated to prevent rust and ensure smooth operation.
• Bateria zaintzea: Store the battery in a cool, dry place. Avoid fully discharging the battery frequently to prolong its lifespan. Charge regularly, even if not in use.
• Motorra: The rear hub motor features convenient power line quick disconnects, simplifying tire changes and general maintenance without needing an electrician.
• Garbiketa orokorra: Garbitu bizikleta aldizka iragarkiarekinamp oihal. Saihestu presio handiko ur-zorrotadak zuzenean osagai elektrikoetan erabiltzea.

7. Arazoak

If you encounter issues with your EB-8 Outlaw, consider the following common solutions:

• Bizikleta ez da pizten: Ensure the battery is fully charged and properly locked into the frame with the key. Check all electrical connections.
• Motorra ez dabil martxan: Verify the battery is charged and locked. Ensure the throttle is engaged or you are pedaling in pedal-assist mode. Check for any loose connections to the motor.
• Brakes Squeaking/Ineffective: Inspect brake pads for wear and replace if necessary. Adjust brake cable tension. Ensure discs are clean and free of debris.
• Murriztutako irismena: This can be due to low tire pressure, riding against strong winds, frequent use of throttle-only mode, or riding on steep inclines. Ensure proper tire inflation and consider using pedal-assist more often.

For persistent issues, refer to the full user manual PDF or contact Swagtron customer support.

8. Zehaztapenak

9. Bermea eta Laguntza

The Swagtron EB-8 Outlaw is covered by a 1 urteko fabrikatzailearen bermea. For detailed warranty information, troubleshooting, or to contact customer support, please refer to the official user manual or visit the Swagtron webgunea.

Download Full User Manual: Swagtron EB-8 Outlaw User Manual (PDF)
