Moulinex Masterchef Gourmet Food Processor

1. Sarrera

Thank you for choosing the Moulinex Masterchef Gourmet Food Processor. This appliance is designed to simplify your baking and cooking tasks, offering powerful performance and versatility for a wide range of recipes, from light meringues to heavy bread doughs. Please read this manual carefully before first use to ensure safe and optimal operation of your appliance.

This manual provides essential information on safety, setup, operation, maintenance, and troubleshooting to help you get the most out of your Masterchef Gourmet.

2. Segurtasun-argibide garrantzitsuak

Beti jarraitu oinarrizko segurtasun neurriak tresna elektrikoak erabiltzean, sute, deskarga elektriko eta/edo pertsonen lesio arriskua murrizteko, besteak beste, honako hauek:

• Irakurri argibide guztiak aparatua erabili aurretik.
• Ez murgildu motor-unitatea, kablea edo entxufea uretan edo beste likido batzuetan.
• Deskonektatu entxufetik erabiltzen ez duzunean, piezak jarri edo kendu aurretik eta garbitu aurretik.
• Avoid contact with moving parts. Keep hands, hair, and clothing, as well as spatulas and other utensils, away from moving parts during operation to prevent injury and/or damage to the appliance.
• Ez erabili aparaturik kablea edo entxufea hondatuta dagoenean, edo aparatuak gaizki funtzionatzen duenean, edo erortzen den edo edozein modutan hondatu bada.
• Fabrikatzaileak gomendatzen edo saltzen ez dituen eranskinak erabiltzeak sua, deskarga elektrikoa edo lesioak eragin ditzake.
• Ez erabili kanpoan.
• Ez utzi kablea mahaiaren edo erakusmahaiaren ertzean zintzilik.
• Ez utzi kablea gainazal beroekin harremanetan jartzen, sukaldearekin barne.
• Haurrak gainbegiratu behar dira aparatuarekin jolasten ez dutela ziurtatzeko.
• Tresna hau ez da gaitasun fisiko, sentsorial edo mental murriztua duten edo esperientzia eta ezagutza falta duten pertsonek (haurrak barne) erabiltzeko, baldin eta haien segurtasunaz arduratzen den pertsona batek gailuaren erabilerari buruz gainbegiratu edo jarraibiderik eman ez badu.
• Ziurtatu beti tresna behar bezala muntatuta dagoela erabili aurretik.
• Do not overfill the bowl. Refer to capacity guidelines in the operating section.

3. Produktua amaitu daview eta Osagaiak

The Moulinex Masterchef Gourmet Food Processor (Model QA510110) comes with several key components designed for various culinary tasks.

Figure 3.1: Moulinex Masterchef Gourmet Food Processor with included accessories.

This image displays the main unit of the Moulinex Masterchef Gourmet food processor in white, featuring a stainless steel mixing bowl and the three primary attachments: the Flex Whisk, the die-cast aluminum beater, and the die-cast aluminum dough hook. The speed dial and pulse button are visible on the side of the motor unit.

Osagai nagusiak:

• Unitate motorra: The main body housing the 1100W motor, speed control dial, and pulse function.
• Altzairu herdoilgaitzezko katilua: A 4.6-liter capacity bowl for mixing ingredients.
• Splash Guard: A transparent cover to prevent splashing during operation.

Included Pastry Kit Attachments:

• Irabiagailu malgua: Designed for light preparations, such as whipping egg whites, cream, and meringues, ensuring perfect, airy results even from a single egg white.
• Die-cast Aluminum Beater: Ideal for medium-heavy mixtures like cake batters, cookie dough, and pie crusts, ensuring homogeneous blending.
• Die-cast Aluminum Dough Hook: Perfect for heavy doughs such as bread, pizza, and brioche, providing efficient kneading.

4. Konfigurazioa

1. Despaketatzea: Kontu handiz atera osagai guztiak ontzitik. Gorde ontzia etorkizunean biltegiratzeko edo garraiatzeko, behar izanez gero.
2. Hasierako garbiketa: Before first use, wash the stainless steel bowl, splash guard, and all attachments (Flex Whisk, beater, dough hook) in warm soapy water. Rinse thoroughly and dry completely. Wipe the motor unit with a damp oihal.
3. Lekua: Place the motor unit on a clean, dry, stable, and flat surface. Ensure there is adequate space around the appliance for ventilation and operation.
4. Ontzia lotzea: Place the stainless steel bowl onto the base of the motor unit. Turn it clockwise until it locks securely into place.
5. Osagarri bat eranstea:
   • Ensure the appliance is unplugged and the speed dial is set to '0'.
   • Lift the mixer head by pressing the release button.
   • Insert the desired attachment (whisk, beater, or dough hook) into the accessory shaft. Push upwards and turn slightly until it clicks into place.
   • Lower the mixer head until it locks securely.
6. Zipriztinen aurkako babeslea jartzea: Once the bowl and attachment are in place, you can attach the splash guard by aligning it over the bowl and rotating it until it fits snugly.

4.1. irudia: Aldea view of the Moulinex Masterchef Gourmet, showing the motor unit and bowl assembly.

This image provides a clear side profile of the Moulinex Masterchef Gourmet food processor, highlighting its compact design and the secure fit of the stainless steel bowl and splash guard onto the main motor unit.

5. Funtzionamendu-argibideak

The Moulinex Masterchef Gourmet offers 8 speeds and a pulse function for precise control over your mixing tasks.

Eragiketa orokorra:

1. Ensure the appliance is properly assembled with the desired attachment and ingredients in the bowl.
2. Entxufatu korronte-kablea entxufe elektriko egoki batean.
3. Turn the speed control dial to the desired speed (1-8). Start with a lower speed and gradually increase as needed to prevent splashing.
4. For short bursts of maximum power, turn the dial to the 'Pulse' (P) setting and hold. Release to stop.
5. When finished, turn the speed dial back to '0' and unplug the appliance from the outlet.
6. Lift the mixer head to remove the bowl and attachment.

Using Attachments for Specific Tasks:

• Irabiagailu malgua:

  Use for whipping egg whites, cream, meringues, and light batters. The Flex Whisk technology ensures maximum volume and airy textures, even with small quantities.



  Figure 5.1: Flex Whisk in action, demonstrating perfect emulsions.

  This image shows the Moulinex Masterchef Gourmet food processor with the Flex Whisk attachment actively whipping ingredients in the stainless steel bowl, resulting in a perfectly emulsified, light mixture, such as whipped cream or meringue.

  Gomendatutako abiadura: Start at speed 4-5, then increase to 7-8 for optimal whipping.

• Die-cast Aluminum Beater:

  Ideal for mixing medium-heavy batters like cakes, cookies, brownies, and pie crusts. It ensures all ingredients are thoroughly combined for homogeneous mixtures.



  Figure 5.2: Beater ensuring homogeneous mixtures.

  This image illustrates the Moulinex Masterchef Gourmet food processor with the die-cast aluminum beater attachment mixing a yellow batter in the stainless steel bowl, demonstrating its capability to create smooth and homogeneous mixtures for cakes or cookies.

  Gomendatutako abiadura: Use speeds 2-6 depending on the consistency of the batter.

• Die-cast Aluminum Dough Hook:

  Designed for kneading heavy doughs such as bread, pizza, pasta, and brioche. It mimics hand-kneading to develop gluten effectively.

  Gomendatutako abiadura: Use speeds 1-3 for kneading. Do not exceed speed 3 for heavy doughs to prevent motor strain.

Edukiera-jarraibideak: The 4.6-liter bowl can handle up to 40 cupcakes or enough dough for 3 thin-crust pizzas (22 cm) in one session. Do not exceed the maximum fill lines indicated inside the bowl for specific ingredients.

6. Mantentzea eta Garbiketa

Proper cleaning and maintenance will ensure the longevity and optimal performance of your Moulinex Masterchef Gourmet.

Garbiketa jarraibideak:

1. Deskonektatu beti aparatua garbitu aurretik.
2. Unitate motorra: Garbitu motor-unitatea leun batekin, damp oihalik. Ez murgildu motor-unitatea uretan edo beste likido batean. Ez erabili garbitzaile urratzailerik edo urratzailerik.
3. Stainless Steel Bowl and Splash Guard: These parts are dishwasher safe. Alternatively, wash them in warm soapy water, rinse thoroughly, and dry immediately.
4. Eranskinak (irabiagailu malgua, irabiagailua, ore-amua): These attachments are dishwasher safe. For manual cleaning, wash in warm soapy water, rinse, and dry thoroughly. Ensure no food residue remains, especially in crevices.
5. Biltegiratzea: Gorde tresna eta bere osagarriak leku garbi eta lehor batean.

Oharra: Regular cleaning after each use prevents food buildup and maintains hygiene.

7. Arazoak

If you encounter any issues with your Moulinex Masterchef Gourmet, refer to the following common problems and solutions:

Irtenbide hauek probatu ondoren arazoa konpontzen ez bada, jarri harremanetan Moulinex bezeroarentzako arreta-zerbitzuarekin.

8. Zehaztapenak

Technical specifications for the Moulinex Masterchef Gourmet Food Processor (Model QA510110):

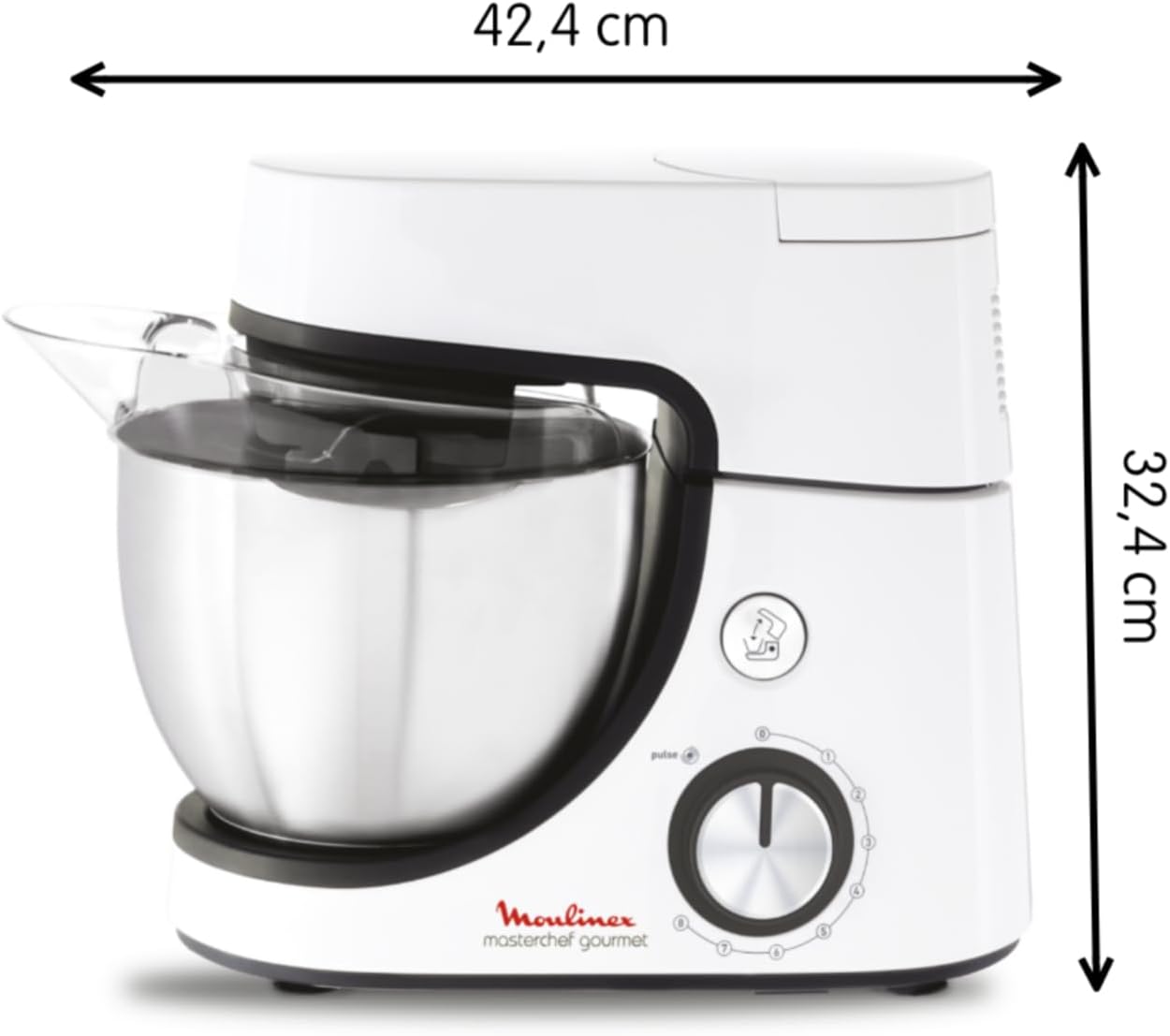

Figure 8.1: Dimensions of the Moulinex Masterchef Gourmet.

This image displays the Moulinex Masterchef Gourmet food processor with overlaid measurements, indicating its approximate length (42.4 cm) and height (32.4 cm), providing a visual reference for its physical size.

9. Bermea eta Laguntza

Moulinex is committed to providing durable and reliable products. Your Masterchef Gourmet Food Processor is designed for long-lasting performance.

Figure 9.1: Moulinex's commitment to durable performance and 15-year repairability.

This image features the Moulinex Masterchef Gourmet food processor in a kitchen setting, accompanied by a prominent badge indicating "DES PERFORMANCES DURABLES" (Durable Performance) and a "RÉPARABLE AU JUSTE PRIX 15 ANS" (Repairable at a Fair Price for 15 Years) logo, highlighting the brand's commitment to product longevity and repair support.

Konpongarritasun Konpromisoa:

Moulinex offers a 15 urteko konponketa-konpromisoa prezio bidezkoan, supported by a network of 6200 repairers worldwide. This initiative aims to contribute to environmental protection and waste reduction by ensuring spare parts and repair services are available for an extended period.

Bezeroarentzako laguntza:

For any questions, technical assistance, or warranty claims, please visit the official Moulinex website or contact their customer service department. Refer to your product's packaging or the Moulinex webzure eskualdeko harremanetarako datu zehatzak lortzeko webgunea.

Era berean, bisitatu dezakezu Moulinex denda Amazonen informazio gehiago eta produktuaren osagarriak lortzeko.
