Riobel 366C Shower Head Instruction Manual

1. Produktua amaitu daview

This manual provides detailed instructions for the installation, operation, and maintenance of your Riobel 366C Shower Head. Please read this manual thoroughly before beginning installation or use to ensure proper function and longevity of your product.

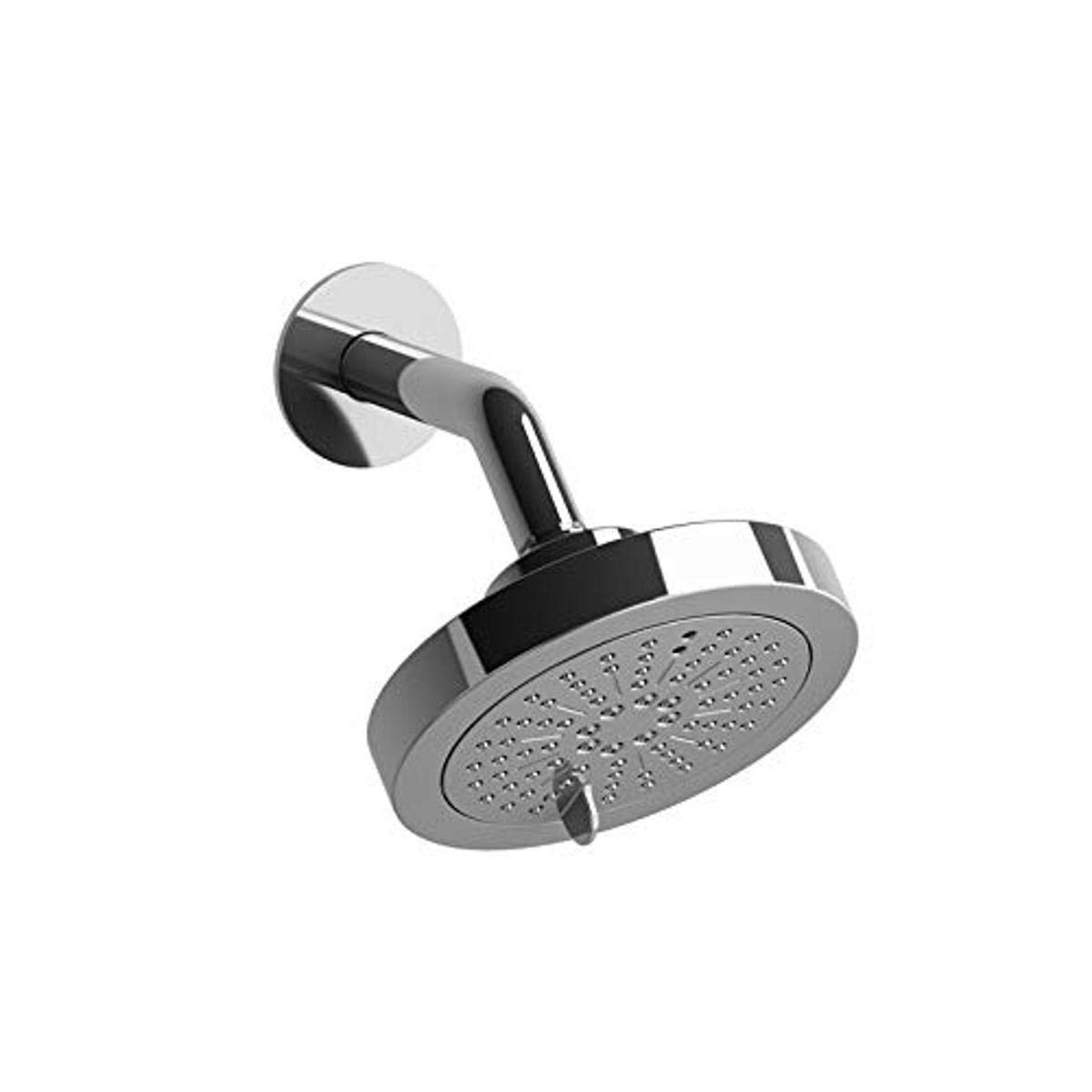

1.1. irudia: The Riobel 366C Shower Head, featuring a chrome finish and integrated shower arm.

2. Segurtasun informazioa

Mesedez, jarraitu segurtasun neurri hauek instalazioan eta erabileran zehar:

• Ziurtatu ur-hornidura nagusia itxita dagoela edozein instalazio edo mantentze-lan hasi aurretik.
• Instalazio prozesuaren edozein atalen inguruan ziur ez bazaude, kontsultatu iturgin kualifikatu bati.
• Do not use abrasive cleaners or harsh chemicals on the shower head finish, as this may cause damage.
• Egiaztatu konexio guztiak ondo itxita eta iragazgaitzak direla ihesak saihesteko.
• Mantendu pieza txikiak haurren eskura.

3. Paketearen edukia

Instalazioarekin jarraitu aurretik, egiaztatu osagai guztiak daudela:

• Riobel 366C 2-jet Shower Head
• Dutxa-besoa brida biribilarekin
• Installation Hardware (e.g., sealing tape, gaskets) - Note: Specific hardware may vary.

4. Zehaztapenak

5. Instalazioa (Konfigurazioa)

This section outlines the general steps for installing your wall-mounted shower head. Specific plumbing configurations may vary. Always ensure water supply is off before starting.

Beharrezkoak diren tresnak eta materialak:

• Giltza erregulagarria
• Plumber's Tape (PTFE tape)
• Oihal biguna

Instalazio urratsak:

1. Itzali uraren hornidura: Locate the main water shut-off valve for your home or the specific bathroom and turn it off.
2. Dutxa-buru zaharra kendu (hala badagokio): If replacing an existing shower head, unscrew it from the shower arm. Use an adjustable wrench if necessary, protecting the finish with a soft cloth.
3. Clean Shower Arm Threads: Clean any old plumber's tape or debris from the threads of the existing shower arm extending from the wall.
4. Aplikatu iturgin-zinta: Wrap 3-4 layers of plumber's tape clockwise around the threaded end of the new Riobel shower arm.
5. Dutxako besoa instalatu: Screw the new shower arm into the wall fitting by hand until snug. Use an adjustable wrench for a final quarter-turn, being careful not to overtighten. Ensure the arm is positioned correctly for the shower head.
6. Dutxa-burua lotu: Apply plumber's tape to the threads of the shower arm where the shower head will attach. Screw the Riobel 366C Shower Head onto the shower arm by hand until snug. Do not use tools on the shower head itself to avoid damaging the finish.
7. Egiaztatu ihesak: Slowly turn the main water supply back on. Check all connections for leaks. If leaks occur, turn off the water, tighten the connections slightly, and re-check.

6. Funtzionamendua

Your Riobel 366C Shower Head is designed for ease of use and offers multiple spray settings to enhance your showering experience.

Spray ezarpenak doitzea:

• The shower head features six distinct positions, allowing you to customize your water flow.
• barne hartzen ditu two primary jet types: a luxurious spray for a gentle, wide coverage, and an invigorating spray for a more focused, powerful rinse.
• To change the spray setting, gently rotate the outer ring or face of the shower head. You will feel a click as it moves between positions.

Biraketa Ezaugarria:

The shower head is equipped with a swivel joint, allowing you to adjust the angle of the water flow to your preference. Gently tilt the shower head to direct the spray.

7. Mantentzea

Regular cleaning and maintenance will help preserve the finish and performance of your Riobel 366C Shower Head.

Akabera garbitzea:

• Garbitu kromo akabera oihal leun batekinamp oihala eta xaboi leuna.
• Ur garbiarekin ondo garbitu eta zapi leun batekin lehortu ur-orbanak saihesteko.
• Do not use abrasive cleaners, scouring pads, or chemical-based cleaning agents, as these can damage the finish and void your warranty.

Scale-Free Nozzles:

The Riobel 366C features scale-free nozzles. To remove mineral deposits (limescale) that may accumulate over time:

• Gently rub the rubber nozzles with your finger or a soft brush to dislodge any mineral buildup.
• For stubborn deposits, a solution of equal parts white vinegar and water can be applied with a soft cloth, then rinsed thoroughly.

8. Arazoak

Ikusi beheko taula arazo ohikoenak eta haien irtenbideak ikusteko.

9. Bermea eta Laguntza

Bizi osorako berme mugatua:

The Riobel 366C Shower Head is backed by a BIZITZA MUGATUKO BERMEA. This warranty covers manufacturing defects and ensures the product is free from material and workmanship flaws under normal use and service. Please retain your proof of purchase for warranty claims.

For full details regarding the terms and conditions of your warranty, please refer to the official Riobel warranty documentation or visit the manufacturer's webgunea.

Bezeroarentzako laguntza:

If you encounter any issues not covered in this troubleshooting guide or require further assistance, please contact Riobel customer support. Contact information can typically be found on the official Riobel webgunea edo produktuaren ontziak.

When contacting support, please have your product model number (366C) and date of purchase readily available.
