AAOBOSI 15-Inch Dual Zone Wine Cooler (Model JC-85B) User Manual

Model: JC-85B | Brand: AAOBOSI

1. Sarrera

Thank you for choosing the AAOBOSI 15-Inch Dual Zone Wine Cooler. This appliance is designed to provide optimal storage conditions for your wine collection, featuring dual temperature zones for both red and white wines. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your wine cooler.

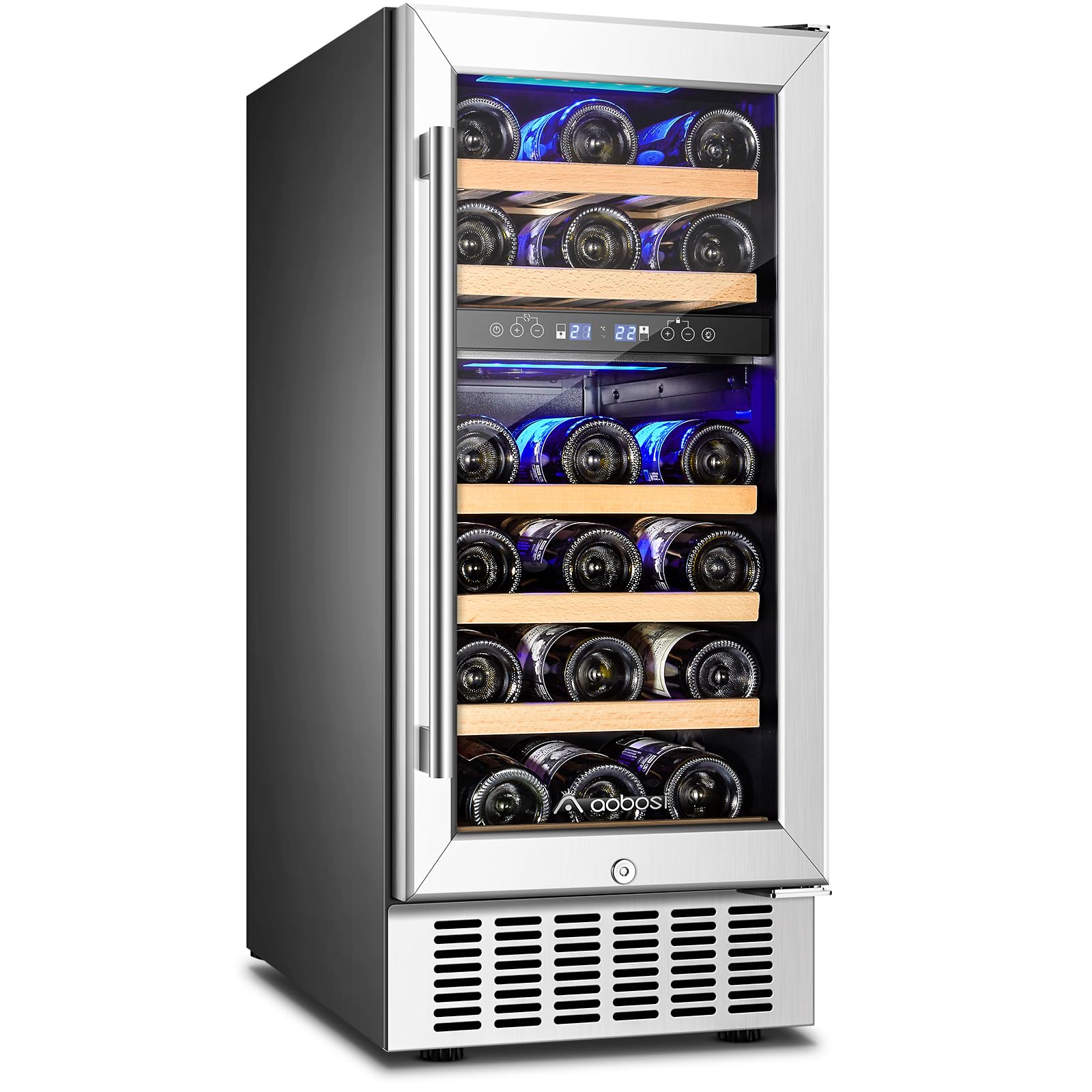

AAOBOSI 15-Inch Dual Zone Wine Cooler with stainless steel door and wooden shelves — Figure 1: AAOBOSI 15-Inch Dual Zone Wine Cooler

2. Segurtasun informazio garrantzitsua

Please read all instructions before using this appliance to reduce the risk of fire, electric shock, or injury. Keep this manual for future reference.

Ziurtatu gailua behar bezala lurrarekin lotuta dagoela.
Ez funtzionatu kablea edo entxufea hondatuta.
Ez gorde substantzia lehergarririk (adibidez, aerosol latak, propultsatzaile sukoi batekin) aparatu honetan.
Mantendu aireztapen-zuloak oztoporik gabe.
Ez erabili gailu mekanikorik edo bestelako baliabiderik desizozteko prozesua bizkortzeko, fabrikatzaileak gomendatutakoak ez ezik.
Before cleaning or maintenance, always unplug the appliance.
Tresna hau ez da gaitasun fisiko, sentsorial edo mental murriztua duten edo esperientzia eta ezagutza falta duten pertsonek (haurrak barne) erabiltzeko, baldin eta haien segurtasunaz arduratzen den pertsona batek gailuaren erabilerari buruz gainbegiratu edo jarraibiderik eman ez badu.

3. Konfigurazioa eta instalazioa

3.1 Desontziratzea eta hasierako kokapena

Upon receiving your wine cooler, carefully unpack it. It is crucial to allow the appliance to stand upright for at least 24 hours before plugging it in. This allows the refrigerant to settle, preventing potential damage to the cooling system.

Unpacking the AAOBOSI wine cooler from its cardboard box — Figure 2: Unpacking the wine cooler

3.2 Heldulekuaren instalazioa

The door handle is typically shipped unattached. To install, gently pull back the door gasket to expose the screw holes. Align the handle with the holes and secure it with the provided screws. Then, press the gasket back into place.

Diagram showing handle installation and removable shelves — Figure 3: Handle installation and removable shelf mechanism

3.3 Freestanding or Built-in Installation

This wine cooler is designed for both freestanding and built-in installation. Ensure adequate ventilation space around the unit, especially if built-in. The front ventilation system allows for flush installation.

AAOBOSI wine cooler installed under a kitchen counter — Figure 4: Built-in installation example

Diagram illustrating dimensions for built-in installation — Figure 5: Built-in installation dimensions

4. Funtzionamendu-argibideak

4.1 Kontrol-panela amaituview

The wine cooler features an intuitive LCD touch control panel for managing temperature, lighting, and the lock function. The panel will automatically lock if there is no operation within 3 minutes.

Close-up of the LCD control panel, sturdy wood shelves, soft blue LED light, and front ventilation — Figure 6: LCD Control Panel and key features

4.2 Setting Temperature Zones

This dual zone wine cooler allows independent temperature control for the upper and lower compartments. The upper zone typically ranges from 41°F to 53°F (5°C to 12°C) for white wines, while the lower zone ranges from 53°F to 68°F (12°C to 20°C) for red wines. Use the '+' and '-' buttons on the control panel to adjust the desired temperature for each zone.

Diagram showing optimal temperature ranges for different wine types in a dual zone cooler — Figure 7: Recommended wine serving temperatures

4.3 Screen Lock Function

To unlock the control panel, press the '-' and '+' buttons simultaneously. The panel will automatically lock after 3 minutes of inactivity to prevent accidental changes.

4.4 Barneko argiztapena

The wine cooler features soft blue LED lighting. Use the light button on the control panel to turn the interior light on or off.

4.5 Security Lock

A security lock is located at the bottom of the door to prevent unauthorized access. Use the provided key to lock or unlock the door.

Video 1: Demonstrating the functional display and controls of the AAOBOSI JC-85B wine cooler.

5. Mantentzea

5.1 Garbiketa

Regularly clean the interior and exterior of your wine cooler. Unplug the unit before cleaning. Use a soft cloth with a mild detergent and warm water. Avoid abrasive cleaners or solvents that could damage surfaces. Ensure the door gasket is clean and free of debris to maintain a proper seal.

5.2 Shelf Removal

The wooden shelves are removable for cleaning or to accommodate larger bottles. To remove a shelf, gently lift the plastic notch on one side and then the other, then slide the shelf out. Reinstall by reversing the process.

5.3 Desizozte automatikoa

The wine cooler features an automatic defrost system, eliminating the need for manual defrosting.

6. Arazoak

Arazoa	Kausa posiblea	Irtenbidea
Aparatuak ez du funtzionatzen	Not plugged in; circuit breaker tripped; temperature set too high.	Egiaztatu konexio elektrikoa; berrezarri etengailua; jaitsi tenperaturaren ezarpena.
Tenperatura ez da nahikoa hotza	Door not closed properly; frequent door openings; warm ambient temperature; poor ventilation.	Ensure door is sealed; reduce door openings; move to cooler location; ensure proper airflow.
Gehiegizko bibrazioa	Appliance not level; bottles touching each other.	Adjust leveling legs; rearrange bottles.
Noise from appliance	Normal operation sounds (compressor, fan); loose parts.	These are normal; check for loose parts and tighten if necessary.
Atea ez da behar bezala ixten	Appliance not level; door gasket dirty or damaged; shelves out of position.	Adjust leveling legs; clean or replace gasket; ensure shelves are correctly inserted.

7. Zehaztapenak

Ereduaren izena: Ardo freskagarria
Modelo zenbakia: JC-85B
Marka: AAOBOSI
Produktuaren neurriak: 14.96" L x 22.7" W x 34.2" H
Edukiera: 28 Bottles (approximate), 58 Liters, 4.5 Cubic Feet
Konfigurazioa: Zona Bikoitza
Kolorea: Metalikoa
Ezaugarri bereziak: Built-in or Freestanding, Dual Temperature Zones, Lock Screen Function, Memory Function, Quiet Operation
Instalazio mota: Eraikitakoa
Ate kopurua: 1
Desizozteko sistema: Automatikoa
liburukiatage: 110 Volt
Apalategi mota: Egurra
Hozteko metodoa: Konpresorea
Number Of Shelves: 6
Tenperatura-kontrol erregulagarria: Bai
Atearen orientazioa: Atzeragarria
Blokeo mota: Gakoa
Hozgarria: R-600A
Elementuaren pisua: 70 kilo
Urteko Energia Kontsumoa: 146 kilowatt-ordu

8. Bermearen informazioa

This AAOBOSI product comes with a standard manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms, conditions, and duration. Keep your proof of purchase for warranty claims.

9. Bezeroarentzako arreta

For any questions, technical assistance, or service requests, please contact AAOBOSI customer support. Contact details can typically be found on the manufacturer's official webgunean edo produktuaren ontzian.

Online Support: Visit the AAOBOSI Store on Amazon informazio eta laguntza baliabide gehiago lortzeko.
