1. Sarrera
Thank you for choosing the AIRSEE Professional Rechargeable 30000 RPM Nail Drill Machine, Model E6. This portable e-file is designed for efficient and precise nail care, suitable for both personal and professional use. It features variable speed control, low vibration, low noise, and low heat operation, making it ideal for grinding, cutting, carving, and removing gel polish and cuticles. Please read this manual thoroughly before operation to ensure safe and effective use.
2. Segurtasun informazioa
- Avoid contact with the rotating bit.
- Erabili beti begi-babesak funtzionatzerakoan.
- Operate the device in a well-ventilated area to prevent dust inhalation.
- Mantendu haurren eskura.
- Ez desmuntatu edo aldatu gailua.
- Ziurtatu korronte-egokitzailea zure tokiko bolumenarekin bateragarria delatage.
3. Paketearen edukia
The AIRSEE Professional Rechargeable Nail Drill Machine E6 package includes the following items:
- 1 x Rechargeable Nail Drill Control Unit
- 1 x UL Certificated Power Adapter
- 1 x Esku-pieza
- 1 x Esku-pieza euskarria
- 6 x Nail Drill Bits
- 6 x Lixatzeko Banda

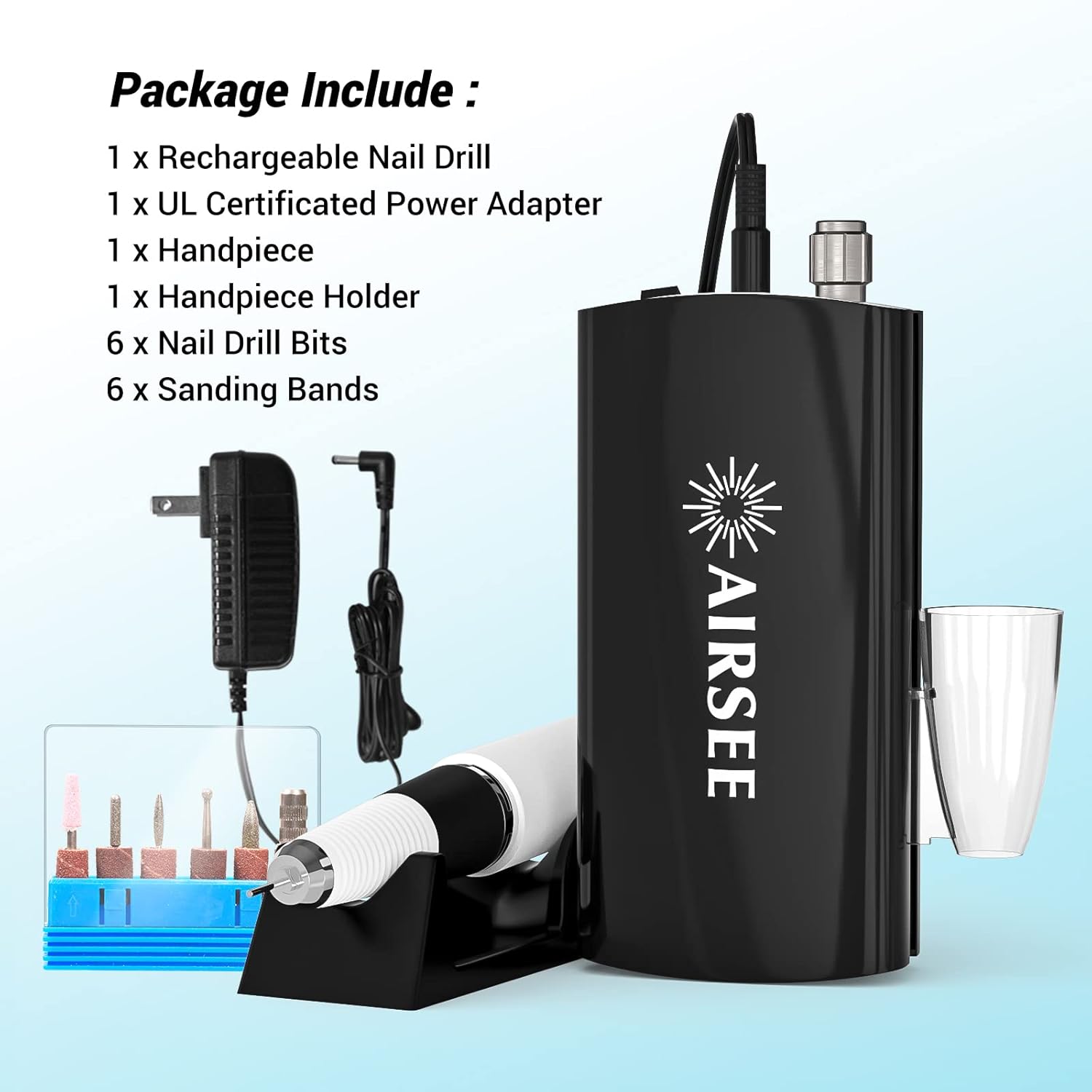

3.1. irudia: paketearen edukia
4. Produktua amaitu daview
The AIRSEE E6 Nail Drill Machine is a compact and powerful tool designed for various nail applications. Its key features include:
- Kargagarriak eta haririk gabekoak: Offers up to 6-10 hours of continuous operation after a 2-hour charge.
- Abiadura aldakorra kontrola: Adjustable from 0-30,000 RPM for diverse tasks.
- Low Vibration, Noise, and Heat: Engineered for user comfort and durability.
- Diseinu eramangarria: Lightweight with a convenient hook for easy carrying.
- Easy Bit Operation: Simple mechanism for changing 3/32 inch shank bits.
Figure 4.1: AIRSEE E6 Nail Drill Machine
Figure 4.2: Portable Hook for Convenient Use
Figure 4.3: Handpiece Features for Quiet, Low Heat, and Low Vibration Operation
5. Konfigurazioa
- Gailua kargatu: Connect the UL Certificated Power Adapter to the control unit and a power outlet. The charging indicator will illuminate. A full charge takes approximately 2 hours.
- Eskuko pieza konektatu: Plug the handpiece cable securely into the 'OUTPUT' port on the control unit.
- Insert/Remove Drill Bit:
- Turn the center barrel of the handpiece to the 'R' (Release) position.
- Insert the desired 3/32 inch shank nail drill bit into the chuck.
- Turn the center barrel back to the 'S' (Secure) position to lock the bit in place. Ensure the bit is firmly secured before operation.

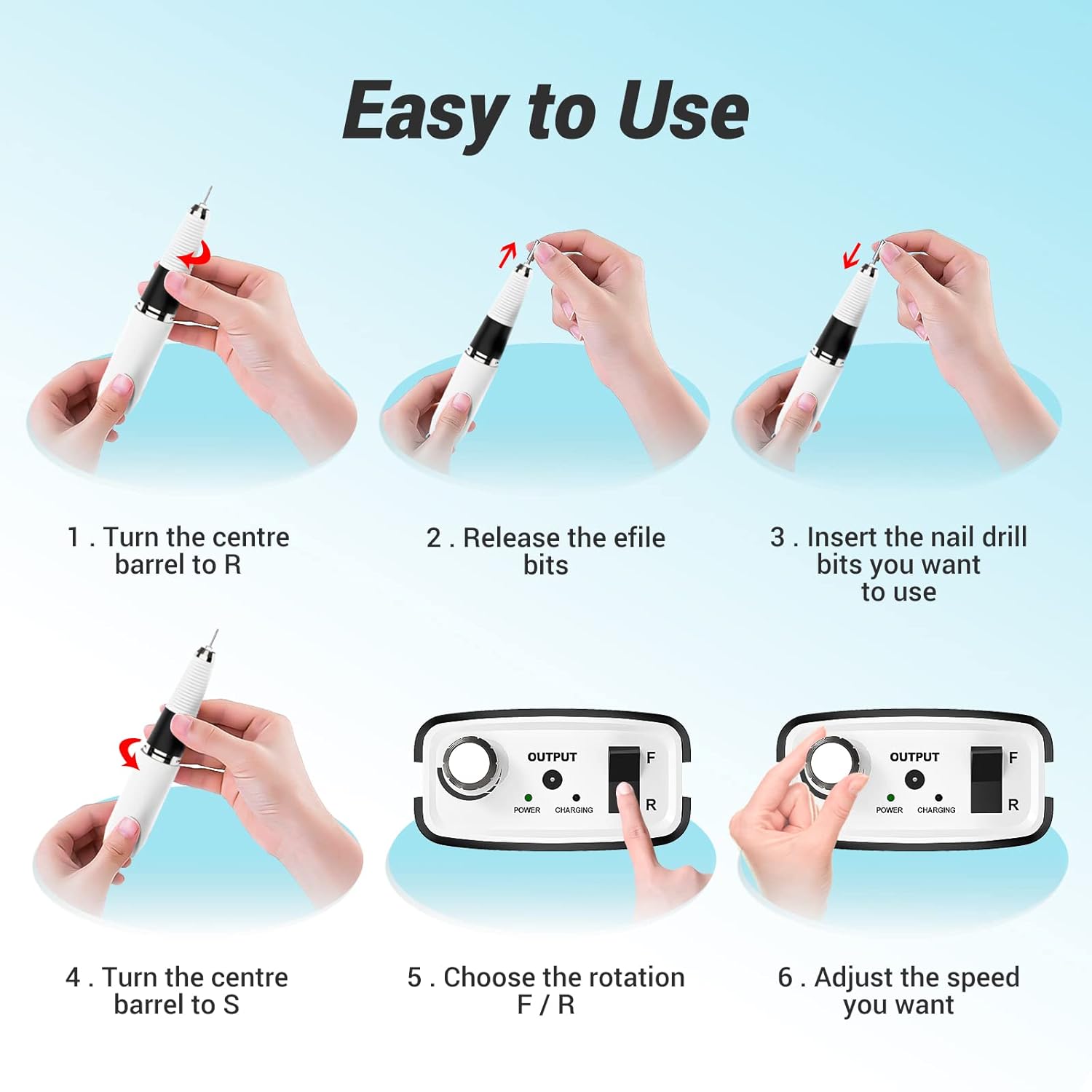

Figure 5.1: Bit Insertion and Basic Controls
6. Funtzionamendu-argibideak
- Piztu: Turn the power knob on the control unit clockwise to power on the device. The 'POWER' indicator will light up.
- Abiadura doitzea: Rotate the power knob clockwise to increase the speed (up to 30,000 RPM) and counter-clockwise to decrease it. Start with a low speed and gradually increase as needed for your task.
- Hautatu biraketa-norabidea: Use the F/R (Forward/Reverse) button to change the rotation direction of the drill bit. Press once for forward, press again for reverse. This feature accommodates both right-handed and left-handed users.
- Operazioa hasi: Gently apply the rotating drill bit to the nail surface. Avoid excessive pressure to prevent damage to the nail or the device.
- Itzali: Turn the power knob counter-clockwise until it clicks off.
7. Mantentzea
- Garbiketa: After each use, gently wipe the handpiece and control unit with a soft, dry cloth. Remove any dust or debris from the chuck and ventilation holes using a small brush or compressed air.
- Biltegiratzea: Store the device in a cool, dry place away from direct sunlight and moisture. Keep all components, especially drill bits, in their designated storage to prevent damage or loss.
- Bitaren zaintza: Regularly inspect drill bits for wear and tear. Replace dull or damaged bits to maintain optimal performance and prevent injury.
8. Arazoak
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Gailua ez da pizten | Bateria baxua; Etengailua itzalita; Konexio askatua | Charge the device; Turn on the power switch; Ensure all cables are securely connected |
| Eskuko pieza ez da biratzen | Handpiece not connected; Bit not properly secured; Internal issue | Check handpiece connection; Re-insert and secure bit; Contact customer service if problem persists |
| Gehiegizko dardara edo zarata | Loose bit; Damaged bit; Debris in handpiece | Secure bit firmly; Replace bit; Clean handpiece thoroughly |
| Gehiegi berotzea | Prolonged use at high speed; Blocked ventilation | Allow device to cool down; Ensure ventilation holes are clear |
9. Zehaztapenak
- Marka: AIRSEE
- Ereduaren izena: E6 Beltza
- Elementuaren eredu-zenbakia: NS-0801
- Materiala: Aluminioa
- Energia iturria: Bateriaren bidez
- Bateriaren iraupena: Up to 8 Hours (continuous operation)
- RPM gehienez: 30,000 RPM
- Paketearen neurriak: 9.76 x 6.06 x 2.72 hazbete
- Elementuaren pisua: 1.68 kilo
10. Bermea eta Laguntza
AIRSEE is committed to providing high-quality products and customer satisfaction. If you encounter any issues with your AIRSEE Professional Rechargeable Nail Drill Machine E6, please contact our customer service team. We offer 24-hour customer service to assist you with any product-related concerns.
For support, please refer to the contact information provided with your product packaging or visit the official AIRSEE webgunea.
