Sarrera
This manual provides instructions for the installation, operation, and maintenance of your KOHLER K-25224-0 Highline Tall Two-Piece Elongated Toilet. This model features an elongated bowl for comfort, a tall height for enhanced accessibility, and a 1.28 gallons per flush (GPF) design for water conservation. Please read all instructions carefully before proceeding with installation or use.

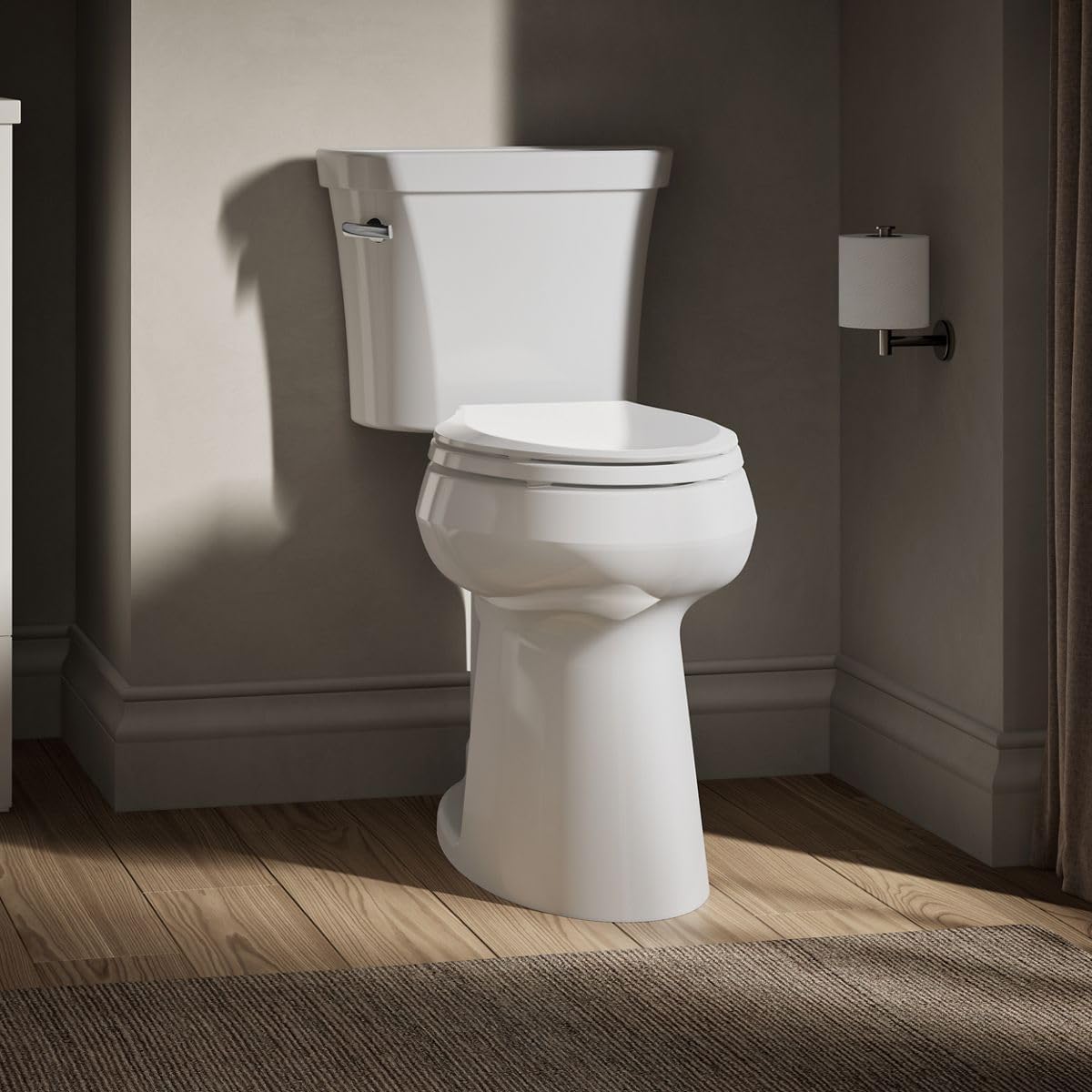

Image: The KOHLER K-25224-0 Highline Tall Two-Piece Elongated Toilet, showcasing its design and height in a bathroom environment.
Konfigurazioa eta Instalazioa
The KOHLER K-25224-0 is a two-piece toilet, meaning the tank and bowl are separate components that are assembled during installation. This toilet is designed for floor-mounted installation with a standard 12-inch (305 mm) rough-in.
Instalazio Ezaugarri Nagusiak:
- Bi piezako diseinua: Tank and bowl are separate for easier handling and installation.
- 3-Bolt Installation: This system is designed to save time and provide more options for adjustment during setup.
- Standard Rough-In: Compatible with a 12-inch (305 mm) rough-in.
Irudia: Xehetasun zehatza view of the 3-bolt installation system, highlighting its components for secure attachment.
It is recommended to consult a qualified plumber for professional installation to ensure proper function and adherence to local plumbing codes.
Funtzionamendu-argibideak
Your KOHLER K-25224-0 toilet operates with a standard left-hand trip lever for flushing. The toilet utilizes 1.28 gallons per flush (GPF), designed for efficient waste removal while conserving water.
Flushing Mekanismoa:
- Trip Lever: A polished chrome left-hand trip lever activates the flush.
- Water-Saving Flush: The 1.28 GPF system meets EPA WaterSense criteria, reducing water consumption without compromising performance.
- Class Five® Flushing Technology: Gravity creates a strong siphon during flushing for plug-free performance and powerful rinsing for a clean bowl.
Image: An illustration of the internal flushing mechanism within the toilet tank, detailing the components responsible for water flow and flushing action.
Mantentzea
Garbiketa eta mantentze erregularrak zure komunaren iraupena eta errendimendu optimoa bermatuko ditu.
Garbiketa:
- Use mild, non-abrasive cleaners for all surfaces.
- Avoid harsh chemicals or abrasive pads, as these can damage the ceramic finish.
- The smooth, skirted design of the bowl simplifies cleaning by minimizing hard-to-reach areas.
Image: A front-side perspective of the toilet, emphasizing its sleek design that facilitates easy cleaning.
Arazoak konpontzea
If you encounter any issues with your toilet, please refer to the following general troubleshooting tips. For complex problems, contact a qualified plumber or KOHLER customer support.
Arazo arruntak:
- Garbiketa ahula: Check the water level in the tank. Ensure the fill valve is functioning correctly and the flapper or flush valve is sealing properly.
- Ur korronte jarraitua: Inspect the flapper or flush valve for proper seating. Adjust the fill valve if the water level is too high.
- Isurketak: Check all connections for tightness. Inspect the tank-to-bowl gasket and the wax ring at the base of the toilet.
Zehaztapenak
Detailed specifications for the KOHLER K-25224-0 Highline Tall Two-Piece Elongated Toilet:
| Ezaugarri | Xehetasuna |
|---|---|
| Modelo zenbakia | K-25224-0 |
| Marka | Kohler |
| Kolorea | Zuria |
| Produktuaren neurriak | 29.5" L x 18" W x 33.25" H |
| Elementuaren pisua | 35.1 kilo |
| Materiala | Zeramika |
| Instalazio mota | Solairuan muntatua |
| Forma | Elongated (Oblong) |
| Flush-tasa | 1.28 Gallons Per Flush (GPF) |
| Trip Lever Position | Ezkerreko Eskua |
| Zakarra | 12" estandarra (305 mm) |
| Eserlekuaren material mota | Polipropilenoa |
| UPC | 885612787965 |
Image: A diagram illustrating the key dimensions of the toilet, including total height (33 1/4"), width (18"), length (19"), and bowl height (19"), along with the standard 12" rough-in.
Image: A visual comparison demonstrating the height of the Highline Tall toilet (19 inches) against standard (15 inches) and Comfort Height (16+ inches) toilets, emphasizing its enhanced accessibility.
Bermearen informazioa
This KOHLER K-25224-0 Highline Tall Two-Piece Elongated Toilet is covered by a KOHLER One-Year Limited Warranty. For specific terms and conditions, please refer to the official warranty documentation included with your product or visit the official Kohler webgunea.
Laguntza
For further assistance, technical support, or to order replacement parts, please contact KOHLER customer service. You can find contact information on the official Kohler webgunean edo ontziratze-materialetan.
Baliteke lineako baliabideak eta maiz egiten diren galderak ere eskuragarri egotea KOHLER denda Amazonen.
