Bosch KGN36VIEA Combi Refrigerator User Manual

1. Produktua amaitu daview

The Bosch KGN36VIEA Combi Refrigerator is designed to provide efficient and reliable food preservation. It features advanced technologies such as NoFrost, VitaFresh, and LED lighting to ensure optimal conditions for your food while minimizing energy consumption.

1.1. irudia: Aurrealdea view of the Bosch KGN36VIEA Combi Refrigerator with both refrigerator and freezer doors open, showcasing the interior layout.

Ezaugarri nagusiak:

• VitaFresh System: Keeps meat and fish fresh for longer and provides ideal humidity for fruits and vegetables, ensuring extended preservation.
• Izotz gabeko teknologia: Prevents frost formation in the freezer, eliminating the need for manual defrosting.
• LED argiztapena: Low-consumption, long-lasting LED lights illuminate gradually and progressively, adapting to your vision and reducing energy use.
• Super hozte funtzioa: Allows you to quickly lower the refrigerator temperature, ideal for rapidly cooling newly added groceries.
• Ate itzulgarria: The door orientation can be changed to suit your kitchen layout.

2. Segurtasun informazioa

Mesedez, irakurri arretaz segurtasun-argibide guztiak tresna erabili aurretik. Gorde eskuliburu hau etorkizunean erreferentzia gisa.

Segurtasun orokorra:

• Tresna hau etxeko erabilerarako soilik da.
• Ziurtatu gailua behar bezala lurrarekin lotuta dagoela.
• Ez kaltetu hozte-zirkuitua.
• Mantendu aireztapen-zuloak oztoporik gabe.
• Ez erabili gailu mekanikorik edo bestelako baliabiderik desizozteko prozesua bizkortzeko, fabrikatzaileak gomendatutakoak ez ezik.
• Ez gorde substantzia lehergarririk (adibidez, aerosol latak, propultsatzaile sukoi batekin) aparatu honetan.
• Desentxufatu aparatua garbitu edo mantendu aurretik.

3. Konfigurazioa eta instalazioa

Lekua:

• Jarri hozkailua gainazal sendo eta berdinean.
• Ensure adequate ventilation around the appliance. Maintain a minimum clearance of 5-10 cm on the sides and back.
• Avoid placing the refrigerator in direct sunlight or near heat sources (e.g., ovens, radiators).
• The appliance dimensions are 186 cm (height) x 60 cm (width) x 66 cm (depth).

Konexio elektrikoa:

• Connect the appliance to a dedicated 230 Volt, 50 Hz AC power supply.
• Ensure the plug type is compatible (Type F: 2 pins for Germany and Spain).
• Ez erabili luzapen-kableak edo entxufe anitzeko egokigailuak.

Atea itzultzea:

The door hinges can be reversed to open from the left or right, depending on your kitchen layout. This procedure should ideally be performed by a qualified technician.

Image 3.1: Illustration of the reversible door feature, indicating how the door can be adjusted to open from either side.

4. Funtzionamendu-argibideak

Kontrol-panela:

The control panel allows you to adjust temperature settings and activate special functions.

Image 4.1: Close-up of the refrigerator's electronic control panel, showing temperature indicators and function buttons for 'Super' cooling/freezing and 'Eco' mode.

Tenperatura kontrola:

• Use the temperature control buttons on the panel to set the desired temperature for the refrigerator and freezer compartments.
• Recommended refrigerator temperature is between 2°C and 4°C.
• Recommended freezer temperature is -18°C.

Using VitaFresh Drawers:

The VitaFresh drawers are designed to optimize humidity and temperature for specific food types.

4.2. irudia: Barnealdea view of the refrigerator compartment, highlighting the VitaFresh drawers for different food categories like meat, fish, and produce.

4.3 irudia: Xehetasun zehatza view of the VitaFresh drawers, showing fresh fruits and vegetables stored in the humidity-controlled compartment.

• VitaFresh 0°C Drawers: Ideal for storing meat and fish, keeping them fresh for longer at temperatures close to 0°C.
• VitaFresh Humidity-Controlled Drawer: Adjust the humidity level for fruits and vegetables to maintain their crispness and nutrients.

Super hozte funtzioa:

Activate the Super Cooling function before adding a large quantity of fresh food to the refrigerator. This rapidly lowers the temperature to quickly cool new items and protect existing ones.

• Press the 'Super' button on the control panel.
• The function will automatically switch off after approximately 6 hours or when the optimal temperature is reached.

Izozkailuaren konpartimendua:

The freezer compartment features NoFrost technology, eliminating the need for manual defrosting. It includes multiple drawers for organized storage.

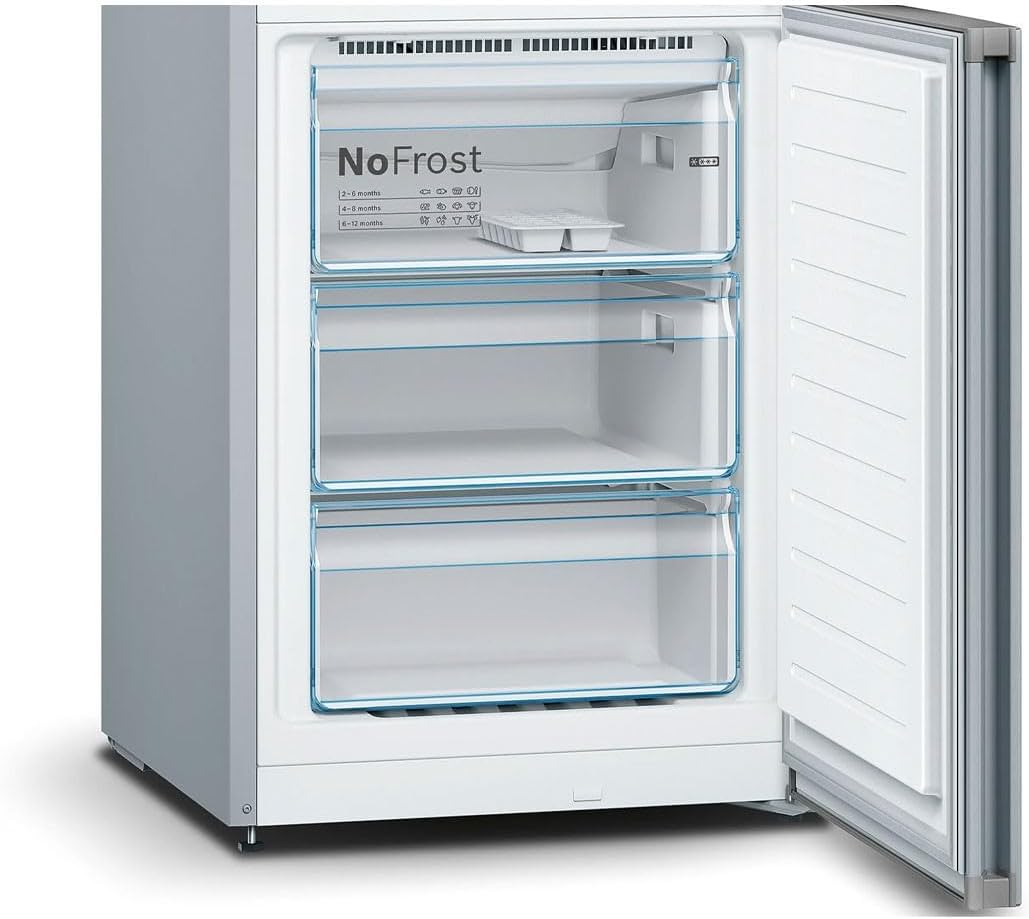

4.4. irudia: Barnealdea view of the freezer compartment, showing three transparent drawers for organized storage of frozen goods.

5. Zainketa eta Mantentzea

Garbiketa:

• Deskonektatu beti aparatua garbitu aurretik.
• Clean the interior and exterior surfaces with a soft cloth and a mild detergent. Avoid abrasive cleaners or solvents.
• Regularly clean the door seals to ensure a tight closure.
• Wipe down shelves and drawers with warm soapy water.

Izotz gabeko sistema:

Thanks to NoFrost technology, manual defrosting of the freezer is not required. The system automatically prevents ice buildup, ensuring consistent performance and energy efficiency.

6. Arazoak

Bezeroarentzako arreta-zerbitzuarekin harremanetan jarri aurretik, egiaztatu honako arazo eta irtenbide ohikoenak:

7. Zehaztapen Teknikoak

8. Bermea eta bezeroarentzako laguntza

Produktuen bermea:

This Bosch refrigerator comes with a three-year manufacturer's warranty. Please retain your proof of purchase for warranty claims.

Bezeroarentzako laguntza:

For technical assistance, spare parts, or warranty service, please contact Bosch customer support. Refer to the official Bosch website for contact details in your region.

You can also find additional information and a downloadable PDF version of the instructions here: Bosch KGN36VIEA User Manual (PDF)
