VEVOR CF55 Portable Refrigerator User Manual

1. Produktua amaitu daview

The VEVOR CF55 portable refrigerator is a versatile dual-zone unit designed for efficient cooling and freezing of food and beverages. Its robust compressor technology allows for rapid temperature changes, making it suitable for various environments including vehicles, campsites, and homes. The ample 58-quart capacity provides significant storage space for extended trips or gatherings.

Figure 1.1: VEVOR CF55 Portable Refrigerator with lid open, showcasing its spacious interior filled with various items.

2. Zer dago kutxan

Upon unboxing your VEVOR CF55 portable refrigerator, please ensure all the following components are present:

• 1 x Car Refrigerator (VEVOR CF55)
• 1 x DC elikatze-kablea (12/24V)
• 1 x Adapter for AC Power (110-240V)
• 1 x Erabiltzailearen eskuliburua

Figure 2.1: The VEVOR CF55 refrigerator comes with both DC (12/24V) and AC (110-240V) power adapters for versatile use.

3. Produktuaren Ezaugarriak eta Diseinua

The VEVOR CF55 is engineered with user convenience and optimal performance in mind. Key design elements include:

• Zona bikoitzeko edukiera: Separate compartments allow for simultaneous refrigeration and freezing.
• Bistaratze digitala: An intuitive digital panel for temperature monitoring and adjustment.
• USB kargatzeko ataka: Conveniently charge small electronic devices.
• Barneko saski kendugarria: For organized storage and easy access to contents.
• Desmuntagarria den heldulekua: Ergonomically designed for portability.
• LED argia integratua: Illuminates the interior for visibility in low-light conditions.
• Izkinako babesleak: Durable protectors to guard against impacts.
• Heat Dissipation Mesh: Ensures efficient cooling and extends compressor life.
• Aplikazioen kontrola: Manage settings remotely via a mobile application.

Figure 3.1: Explore the thoughtful design features of the VEVOR CF55, enhancing usability and durability.

4. Konfigurazioa eta hasierako erabilera

Before first use, ensure the refrigerator is placed on a stable, level surface. Allow it to stand upright for at least 6 hours before plugging it in to allow the refrigerant to settle.

4.1 Energia-konexioa

The VEVOR CF55 supports both DC and AC power inputs:

• DC 12/24V: Connect the DC power cord to your vehicle's cigarette lighter socket.
• 110-240V AC: Use the provided AC adapter to plug into a standard wall outlet.

Select the appropriate power source using the switch located near the power input port.

5. Funtzionamendu-argibideak

The control panel on the top of the unit allows for easy temperature management and mode selection.

Figure 5.1: The intuitive control panel provides full command over the refrigerator's functions.

5.1 Piztu/Itzali

Sakatu Pizteko botoia () to turn the unit on or off. The digital display will illuminate upon activation.

5.2 Tenperaturaren doikuntza

Erabili Gehiago (+) eta Minus (-) botoiak () to set the desired temperature for each zone. The display shows the current temperature of both the left (L) and right (R) compartments. The temperature range is from -20°C to 20°C (-4°F to 68°F).

5.3 Modu hautaketa

Sakatu Ezarpenak botoia () to cycle through different operating modes:

• MAX: Provides the quickest cooling, ideal for rapidly chilling contents.
• EKO: Energy-saving mode, suitable for maintaining temperature once desired coolness is reached.

5.4 Aplikazioen kontrola

The VEVOR CF55 can be controlled via a mobile application. Refer to the included User Manual for detailed instructions on downloading, installing, and pairing the app with your refrigerator.

6. Performance and Cooling Capability

Equipped with a powerful compressor, the VEVOR CF55 offers efficient and rapid cooling. It can reach freezing temperatures quickly, ensuring your items stay fresh or frozen as needed.

Figure 6.1: The VEVOR CF55 demonstrates rapid cooling, capable of reaching 0°F (freezing) from 68°F in approximately 15 minutes.

7. Bateriaren Babesa

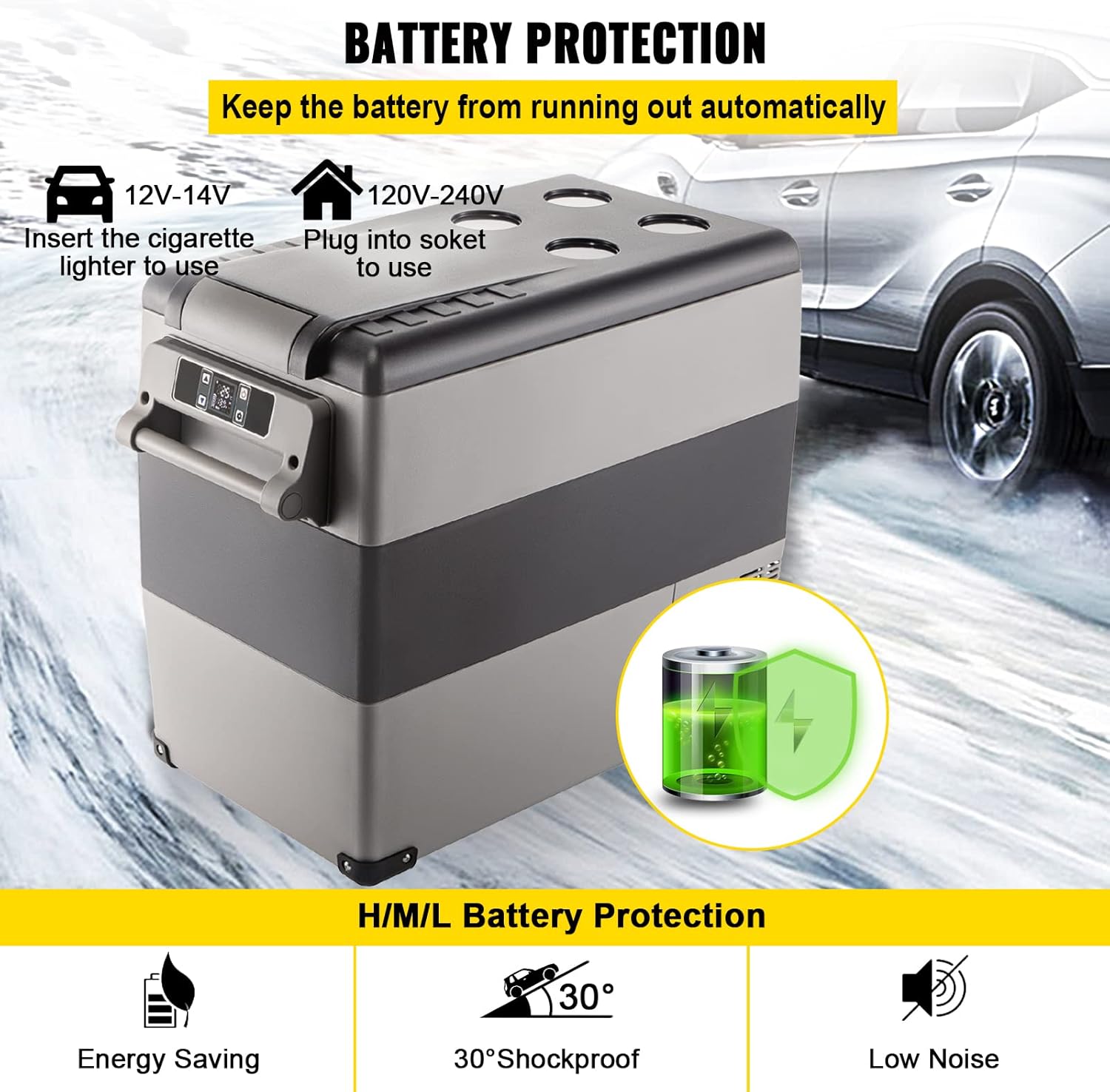

The refrigerator features a 3-level battery protection system (Low, Medium, High) to prevent your vehicle's battery from being drained. This ensures that your car's power supply remains stable and protected from overload or short-circuiting.

Figure 7.1: The VEVOR CF55 includes advanced battery protection for both vehicle and home use, ensuring power longevity.

8. Aplikazio zabala

The VEVOR CF55 is designed for extensive usage across various scenarios, providing reliable cooling wherever you need it.

Figure 8.1: Versatile applications of the VEVOR CF55, including use in cars, boats, homes, and outdoor settings.

9. Zehaztapenak

Detailed technical specifications for the VEVOR CF55 portable refrigerator:

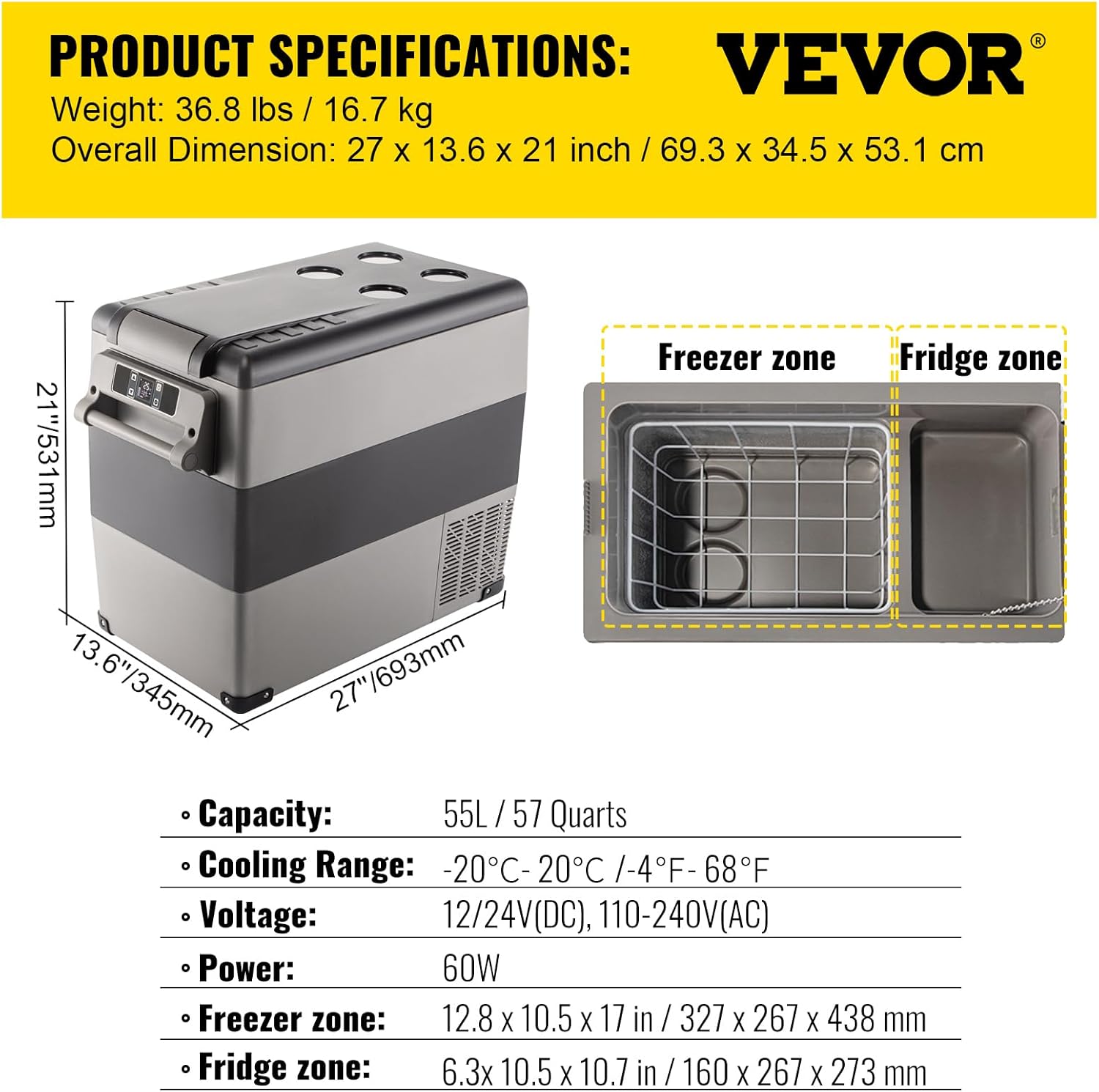

Figure 9.1: Detailed product specifications and dimensions for the VEVOR CF55.

10. Mantentzea eta Zainketa

Regular maintenance ensures the longevity and optimal performance of your VEVOR CF55 refrigerator.

• Garbiketa: Deskonektatu argindarra garbitu aurretik. Erabili iragarkia.amp cloth with mild detergent to wipe down the interior and exterior. Do not use abrasive cleaners or immerse the unit in water.
• Desizozketa: The unit features automatic defrost. If excessive ice builds up, manually defrost by turning off the unit and allowing ice to melt. Drain any water through the drain plug if available.
• Aireztapena: Ensure the heat dissipation mesh areas are clear of obstructions to allow for proper airflow.
• Biltegiratzea: When storing for extended periods, ensure the unit is clean and dry. Leave the lid slightly ajar to prevent odors and mold growth.

11. Arazoak

This section addresses common issues you might encounter with your VEVOR CF55 refrigerator.

12. Bermea eta Laguntza

Laguntza teknikoari eta bermeari buruzko informazioa lortzeko, bisitatu VEVOR laguntza ofiziala. website. The product includes a user manual with detailed warranty terms and conditions.

VEVORren laguntza ofiziala: www.vevor.com/support
