Aikoper KOP-DW2605A Countertop Dishwasher Instruction Manual

Sarrera

This manual provides essential information for the safe and efficient operation of your Aikoper KOP-DW2605A Compact Portable Countertop Dishwasher. Please read all instructions carefully before initial use and retain this manual for future reference.

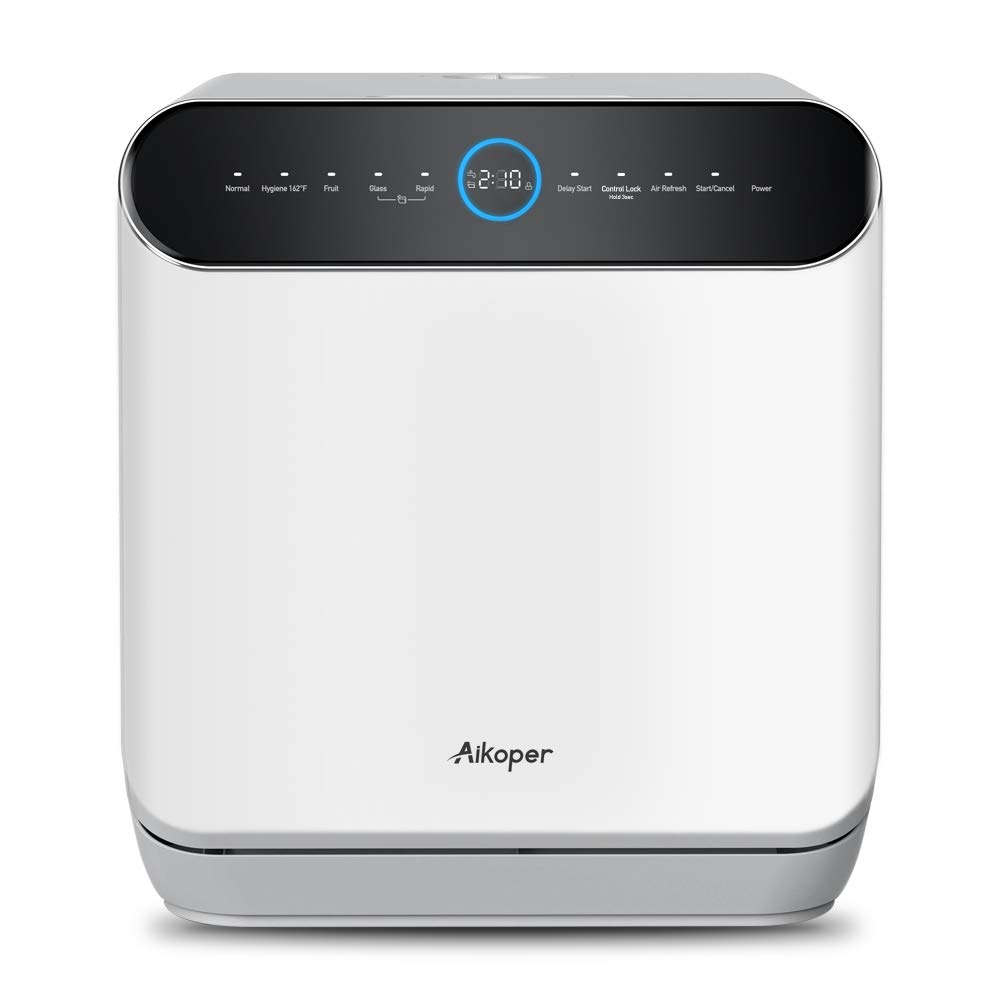

Image: Aikoper KOP-DW2605A Countertop Dishwasher showing its compact design and dimensions (17.13"W x 16.54"D x 18.42"H).

Segurtasun-argibideak

• Ziurtatu ontzi-garbigailua behar bezala lurrera konektatutako entxufe elektriko batera konektatuta dagoela.
• Ez erabili ontzi-garbigailua kable elektrikoa hondatuta badago.
• Mantendu haurrak ontzi-garbigailutik urrun funtzionatzen ari den bitartean.
• Ontzi-garbigailu automatikoetarako bereziki diseinatutako detergenteak soilik erabili.
• Avoid touching the heating element during or immediately after a wash cycle.
• The unit has been tested with water before leaving the factory; a small amount of residual water is normal.

Kutxan dagoena

Verify that all components are present upon unpacking your new dishwasher:

Image: Illustration of the Aikoper KOP-DW2605A dishwasher and its included accessories.

• Aikoper KOP-DW2605A Dishwasher Unit
• Dish Rack / Basket
• Fruta Saskia
• Hustubide Hodia
• Sarrerako kanalizazioa
• Pouring Water Assistant
• Water Bottle (for manual filling)
• Adapter (for water hose connection)

Konfigurazioa

1. Desontziratzea eta kokatzea

• Kontu handiz kendu ontziratzeko material guztiak.
• Place the dishwasher on a stable, level surface. Ensure adequate space around the unit for ventilation and access.
• The compact design (17.13"W x 16.54"D x 18.42"H) makes it suitable for small kitchens, apartments, dorms, garages, office rooms, and RVs.

2. Ur-konexioa

The dishwasher offers dual water input methods:

• Built-in 6L Water Tank: Manually pour water into the designated opening using the provided pouring water assistant until the tank is full.
• Water Hose Inlet: Connect the inlet pipe to a water source for automatic water supply. Ensure all connections are secure to prevent leaks.

3. Drainatze-konexioa

The dishwasher requires proper drainage for used water:

• Direct to Sink Drain: Connect the drain pipe to a standard dishwasher drain connection under your sink. This typically requires a 90-degree elbow and a splitter to integrate with your existing plumbing. Ensure all connections are clamped securely to prevent leaks.
• Temporary Bucket Drainage: For portable use, the drain pipe can be directed into a bucket. Ensure the bucket is large enough to hold the drained water from a full cycle and is emptied regularly.

Funtzionamendu-argibideak

1. Kontrol panela baino gehiagoview

The touch control panel features the following options:

• Garbiketa zikloak: Normal, Hygiene (162°F), Fruit, Glass, Rapid
• Funtzioak: Delay Start, Control Lock, Air Refresh
• Eragiketa: Start/Cancel, Power

2. Platerak kargatzea

Proper loading ensures optimal cleaning performance. The dishwasher has a 3 place setting capacity and can accommodate 12-inch diameter plates when angled correctly.

Irudia: Adibamples of loading cookware, a pot, and fruit into the dishwasher basket.

• Kargatu aurretik, kendu janari-partikula handiak.
• Place larger items and pots in the lower rack.
• Arrange glasses, cups, and smaller bowls in the upper rack.
• Ziurtatu elementuek ez dituztela ihinztagailu-besoak oztopatzen.

3. Detergentea gehitzea

Use only dishwasher detergent powder for best results. Follow the detergent manufacturer's recommendations for quantity.

4. Garbiketa-ziklo bat hautatzea

Choose the appropriate cycle based on your dishwashing needs:

• Normala: Zikinkeria normala duten eguneroko plateretarako.
• Hygiene (162°F): Provides thorough cleaning and sanitization, ideal for stubborn stains and oil pollution with high-temperature washing and rinsing.
• Fruta: A gentle cycle for washing fruits and vegetables.
• Beira: Optimized for delicate glassware.
• Azkar: A quick wash cycle for lightly soiled dishes.

5. Ziklo bat hastea

• Itxi ontzi-garbigailuaren atea ongi.
• Press the 'Power' button.
• Select your desired wash cycle.
• Press 'Start/Cancel' to begin the cycle.

6. Drying Features

• Atearen Irekitze Automatikoa: The dishwasher is designed to automatically open the door after the wash cycle finishes to facilitate drying.
• Fan-motorra: The fan motor continues to run when the door is opened to enhance drying and ventilation.
• Air Refresh: This function can be selected after a cycle to keep the interior dry, clean, ventilated, and prevent odors.

Mantentzea

1. Iragazkiak garbitzea

Regularly clean the filters to maintain optimal performance. Refer to the diagram in the manual for filter location and removal instructions.

2. Cleaning Interior

Garbitu barrualdea iragarkiarekinamp cloth periodically. For hard water stains, use a dishwasher cleaner or a solution of vinegar.

3. Deskalifikazioa

If you notice mineral buildup, perform a descaling cycle using a suitable descaling agent or white vinegar. Consult the manufacturer's guidelines for descaling frequency.

Arazoak konpontzea

• Ontzi-garbigailua ez da martxan jartzen: Ensure the power cord is securely plugged in and the door is fully closed. Check the circuit breaker.
• Ur-ihesak: Verify all water inlet and drain connections are tight and properly sealed. Check the door seal for any obstructions or damage.
• Platerak garbi ez egotea: Ensure dishes are loaded correctly and not blocking spray arms. Use the recommended amount of dishwasher detergent powder. Select an appropriate wash cycle for the soil level.
• Usain desatseginak: Run the 'Air Refresh' function. Clean filters and the interior of the dishwasher.
• Residual water in unit: This is normal due to factory testing. If excessive, check drain hose for kinks or blockages.

Zehaztapenak

Bermea eta Laguntza

For warranty information, please refer to the documentation included with your product at the time of purchase. An extended warranty card may be available for registration.

For technical support or service inquiries, please contact Aikoper customer service through their official webgunea edo zure produktuaren ontzian emandako harremanetarako informazioa.
