UniFlame 6-Burner Gas Barbecue with Side Burner User Manual

Sarrera

Thank you for choosing the UniFlame 6-Burner Gas Barbecue with Side Burner. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new gas grill. Please read all instructions carefully before use to ensure optimal performance and safety.

This high-performance gas barbecue is designed for outdoor use, offering ample cooking space and versatile features for all your grilling needs. It includes a main cooking area, a warming rack, a powerful side burner, and a rotisserie kit, all constructed from durable stainless steel.

Konfigurazioa eta Muntaketa

Produktu hau muntatu behar da. Mesedez, ziurtatu osagai guztiak daudela hasi aurretik. Gomendagarria da bi pertsona egotea muntatzeko.

Despaketatzea eta osagaien egiaztapena

Carefully remove all parts from the packaging. Refer to the parts list (typically found in a separate assembly guide) to verify all components are included and undamaged. Keep packaging materials until assembly is complete.

Muntatzeko jarraibideak

Follow the step-by-step instructions provided in the separate assembly manual. Ensure all fasteners are securely tightened. Do not overtighten.

Gas-konexioa

This barbecue is designed for use with propane gas cylinders (sold separately). It is supplied with a 27 mm diameter clip-on regulator and hose. Ensure the gas cylinder is placed on a stable, level surface away from the grill. Connect the regulator securely to the gas cylinder valve and the hose to the grill's gas inlet. Perform a leak test using soapy water on all connections before first use.

Figure 1: The UniFlame 6-Burner Gas Barbecue with Side Burner, showcasing its full assembly and stainless steel finish.

Funtzionamendu-argibideak

Eragiketa aurreko egiaztapenak

• Ensure the grill is on a level, stable surface.
• Check that all gas connections are tight and free of leaks.
• Ensure the grease tray is properly installed.

Erregailu Nagusiak piztea

1. Ireki parrillako tapa.
2. Ziurtatu erregailuaren kontrol-botoi guztiak 'OFF' posizioan daudela.
3. Ireki poliki-poliki gas-bonbonaren balbula.
4. Push in and turn one main burner control knob to the 'HIGH' position. You should hear the igniter click.
5. If the burner does not light within 5 seconds, turn the knob to 'OFF', wait 5 minutes for gas to dissipate, and repeat the process.
6. Erregailu bat piztuta dagoenean, ondoko erregailuak piztu ditzakezu haien botoiak 'ALTUERA' posizioan jarriz.

Alboko erregailua erabiliz

The infrared side burner is ideal for preparing sauces or side dishes. To light, ensure the main grill lid is open. Push in and turn the side burner control knob to 'HIGH'. If it does not light, follow the same safety procedure as for the main burners.

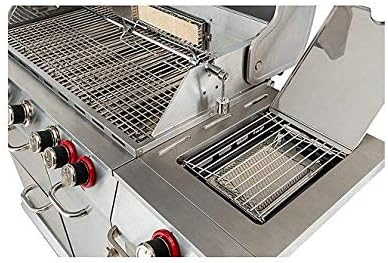

2. irudia: Zehaztutako irudia view of the infrared side burner, perfect for preparing sauces and side dishes.

Tenperatura Kontrola

Adjust the heat by turning the control knobs between 'HIGH' and 'LOW' settings. The grill's total power output is 22.3 kW, providing ample heat for various cooking styles. The integrated thermometer on the lid helps monitor internal grill temperature.

Figure 3: The control panel with individual knobs for precise temperature management of each burner.

Using the Rotisserie Kit

The integrated ignition rotisserie kit allows for slow, even cooking of roasts and poultry. Refer to the rotisserie kit's specific instructions for assembly and operation. Ensure the rotisserie burner is lit and the motor is functioning correctly before placing food.

Figure 4: The grill with its lid open, revealing the spacious cooking grates and the integrated rotisserie setup.

Mantentzea eta zaintzea

Garbiketa eta mantentze-lan erregularrak zure barbakoaren bizitza luzatuko du eta funtzionamendu segurua bermatuko du.

Sukaldatzeko parrillak garbitzea

After each use, once the grill has cooled, brush off any food residue from the stainless steel cooking grates using a grill brush. For stubborn residue, wash with warm soapy water and rinse thoroughly.

Altzairu herdoilgaitzezko gainazalak garbitzea

Wipe down all stainless steel surfaces with a soft cloth and a mild detergent or a specialized stainless steel cleaner. Always wipe in the direction of the grain to prevent streaking. Avoid abrasive cleaners or scouring pads.

Koipeen kudeaketa

Regularly check and empty the grease tray to prevent flare-ups and maintain cleanliness. Ensure the tray is clean before each use.

Biltegiratzea

When not in use, especially during extended periods or adverse weather, cover the barbecue with a weather-resistant grill cover to protect it from the elements. Store the LP gas cylinder in a well-ventilated area, away from direct sunlight and heat sources.

Arazoak konpontzea

This section addresses common issues you might encounter with your gas barbecue.

Erregailua Ez Pizten

• Gas-fluxurik ez: Check if the gas cylinder valve is fully open. Ensure the regulator is properly connected and the cylinder is not empty.
• Clogged Burner Ports: Clean burner ports with a wire brush or paper clip to remove debris.
• Igniter Issue: Check if the igniter electrode is clean and properly positioned near the burner port. If the igniter fails, you can manually light the burner with a long match or lighter through the lighting hole.

Berokuntza irregularra

• Clogged Burner Ports: Clean burner ports as described above.
• Gas presio baxua: Ensure the gas cylinder is not running low.
• Haizea: Strong winds can affect heat distribution. Position the grill in a sheltered area if possible.

Erlantzaldiak

• Excess Grease: Clean the grease tray and cooking grates regularly.
• Bero handia: Reduce burner heat settings.
• Fatty Foods: Kendu gehiegizko koipea haragietatik parrillan egin aurretik.

Zehaztapenak

Bermea eta Laguntza

Warranty information for your UniFlame Gas Barbecue is typically provided with your purchase documentation or can be found on the manufacturer's official webgunea. Gorde erosketaren egiaztagiria berme-erreklamazioetarako.

For technical support, spare parts, or service inquiries, please contact the retailer or manufacturer directly using the contact information provided at the time of purchase. Information regarding spare parts availability is not available in this document.
