ZOKOP BY-90PF Commercial Ice Machine User Manual

1. Sarrera

This manual provides detailed instructions for the safe and efficient operation, installation, and maintenance of your ZOKOP BY-90PF Commercial Ice Machine. Please read this manual thoroughly before operating the appliance and retain it for future reference.

1.1. irudia: Aurrealdea view of the ZOKOP BY-90PF Commercial Ice Machine, highlighting its stainless steel construction and transparent ice-making cover.

The ZOKOP BY-90PF is a high-efficiency commercial ice machine designed for various applications including homes, restaurants, bars, hotels, and grocery stores. It is capable of producing up to 150 lbs of clear, hard cube-shaped ice per 24 hours, with an ice-making cycle ranging from 11 to 18 minutes. The unit features a 24 lbs ice storage capacity and is constructed from durable stainless steel.

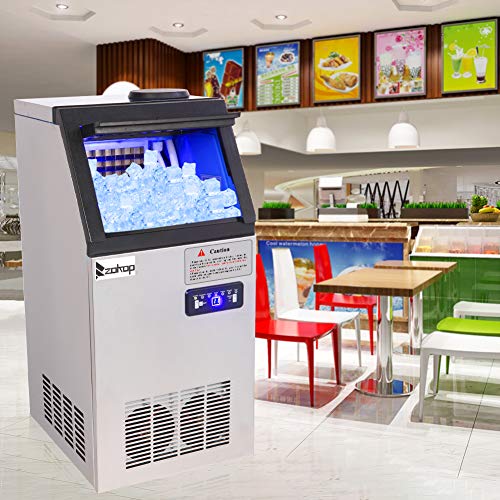

Image 1.2: The ice machine integrated into a commercial environment, demonstrating its suitability for various business settings.

2. Segurtasun informazioa

Beti jarraitu oinarrizko segurtasun neurriak tresna elektrikoak erabiltzean, sute, deskarga elektriko eta pertsonen lesio arriskua murrizteko.

• Ensure the power supply matches the specifications (120V / 60Hz).
• Ez erabili makina kablea edo entxufea hondatuta badago.
• Mantendu aireztapen-zuloak oztoporik gabe.
• Ez gorde substantzia lehergarririk (adibidez, aerosol latak, propultsatzaile sukoi batekin) aparatu honetan.
• Tresna hau ez da gaitasun fisiko, sentsorial edo mental murriztua duten edo esperientzia eta ezagutza falta duten pertsonek (haurrak barne) erabiltzeko, baldin eta haien segurtasunaz arduratzen den pertsona batek gailuaren erabilerari buruz gainbegiratu edo jarraibiderik eman ez badu.
• Haurrak gainbegiratu behar dira aparatuarekin jolasten ez dutela ziurtatzeko.
• Deskonektatu tresna garbitu edo mantentze-lanak egin aurretik.

3. Produktua amaitu daview

Familiarize yourself with the main components and accessories of your ice machine.

Image 3.1: The ice machine shown with its standard accessories, including an ice scoop, water hose, and water filter.

3.2. irudia: Amaituview of the ice machine and its key components, including the ice shovel and filter tube.

Kontrol panela

3.3 irudia: Xehetasun zehatza view of the control panel, showing indicator lights for "ice making", "reservation", "add water", "ice full", "melting", "stoppage", "clean", and buttons for "+", "-", "ON/OFF", and "Reservation/Clean".

The control panel features various indicator lights and buttons for managing the ice machine's functions:

• Izotza egitea: Indicates when the machine is actively producing ice.
• Erreserba: Indicates scheduled operation.
• Gehitu ura: Lights up when water supply is low or disconnected.
• Izotz betea: Indicates the ice storage bin is full.
• Urtzea: Indicates the ice is melting or the machine is in a defrost cycle.
• Stoppage: Indicates an error or operational halt.
• Garbitu: Indicates the machine is in cleaning mode.
• +/- Botoiak: Used for adjusting settings, such as ice thickness or reservation time.
• ON/OFF botoia: Makina piztu edo itzaltzen du.
• Reservation/Clean Button: Initiates reservation setting or cleaning cycle.

4. Konfigurazioa

4.1 Paketatzea

Carefully remove the ice machine from its packaging. Inspect for any shipping damage. Retain packaging materials for future transport if needed.

4.2 Jartzea

The ZOKOP BY-90PF can be used as a freestanding unit or built into a cabinet. Ensure adequate ventilation around the machine, especially at the front and rear vents. Allow at least 2 inches of clearance on all sides for proper airflow. Place the machine on a level, stable surface away from direct sunlight or heat sources.

Garrantzitsua: After transportation, allow the ice machine to stand upright for at least 24 hours before plugging it in. This allows the refrigerant to settle.

4.3 Ur-konexioa

The ice machine requires a continuous water supply and a drain. Connect the water inlet pipe to a potable water source and the sewage outlet to a drain. Ensure all connections are secure to prevent leaks.

Image 4.1: Schematic illustrating the necessary connections for power, water inlet, and sewage outlet for the ice machine.

Ur-iragazkia instalatzea

The included water filter should be installed in-line with the water supply to ensure clean ice production and prolong the machine's life.

Image 4.2: Visual instructions for connecting the water filter to the ice machine's water inlet. Steps include inserting the tube, securing connections, and attaching the filter.

1. Connect the water inlet hose to the designated port on the back of the ice machine (refer to Image 4.2, step 1 & 2).
2. Connect the other end of the hose to the water filter (refer to Image 4.2, step 3).
3. Connect a separate hose from the water filter to your potable water tap (refer to Image 4.2, step 4).
4. Ziurtatu konexio guztiak estu eta ihesik gabe daudela.

4.4 Energia-konexioa

Plug the ice machine into a grounded 120V / 60Hz electrical outlet. Do not use extension cords or adapters.

4.5 Hasierako garbiketa

Before first use, it is recommended to clean the inside walls of the water box and mold with a mild detergent. Rinse thoroughly with clean water. The machine also has a one-button cleaning function (see Section 6.2).

5. Funtzionamendu-argibideak

5.1 Piztu/Itzaltzea

Sakatu ON/OFF button on the control panel to power the machine on or off. The "Ice Making" indicator will illuminate when the machine is operating.

5.2 Ice Making Cycle

Once powered on and connected to water, the machine will automatically begin the ice-making process. An ice-making cycle typically takes 11 to 18 minutes, depending on ambient temperature and water temperature. The machine will stop making ice automatically when the ice storage bin is full, indicated by the "Ice Full" light.

5.3 Izotzaren lodiera doitzea

The thickness of the ice cubes can be adjusted using the + eta - buttons on the control panel. Press + for thicker ice and - for thinner ice. Adjusting the thickness will affect the ice-making cycle time.

Image 5.1: Visual representation of adjustable ice cube thickness (0.9"x0.9"x0.9" nominal size), showing thin, middle, and thick options.

5.4 Erreserba-funtzioa

The machine features a reservation function for scheduled shutdown and startup. To set a reservation, press the Reservation/Clean botoia. Erabili + eta - buttons to set the desired time for the machine to start or stop. Refer to the display for the set time.

5.5 NANO Blue Light for Sterilization

The ice machine is equipped with a NANO blue light feature for illumination and sterilization within the ice-making area. This function operates automatically to help maintain hygiene.

6. Mantentzea

Regular maintenance ensures optimal performance and longevity of your ice machine.

6.1 Ohiko garbiketa

Clean the ice machine regularly, especially the ice storage bin and water reservoir, to prevent mold and bacterial growth. Use a mild, food-safe cleaning solution and rinse thoroughly with clean water.

6.2 One-Button Cleaning Function

The machine is equipped with a convenient one-button cleaning function. To activate, ensure the machine is connected to water and power, then press and hold the Reservation/Clean button until the "Clean" indicator light illuminates. The machine will run an automatic cleaning cycle. Follow up with manual cleaning of accessible parts if necessary.

6.3 Iragazkia ordezkatzea

The water filter should be replaced periodically, typically every 3-6 months, depending on water quality and usage. Refer to the filter manufacturer's instructions for specific replacement intervals. A clogged filter can reduce ice production and quality.

6.4 Epe luzerako biltegiratzea

If the ice machine will not be used for an extended period, perform a thorough cleaning cycle, drain all water from the reservoir and hoses, and unplug the unit. Store in a dry, well-ventilated area.

7. Arazoak

This section covers common issues you might encounter and their potential solutions. If the problem persists, contact customer support.

8. Zehaztapenak

9. Bermea eta Laguntza

For warranty information or technical support, please contact ZOKOP customer service. Keep your purchase receipt and product model number (BY-90PF) handy when contacting support.

Kontaktu informazioa normalean fabrikatzailearen webgunean aurki daiteke. webgunean edo produktuaren ontzian.
