Bosch PBP6C5B60Q Stainless Steel Gas Hob User Manual

1. Sarrera

This manual provides essential information for the safe and efficient use of your Bosch PBP6C5B60Q Stainless Steel Gas Hob. Please read these instructions carefully before installation, operation, or maintenance. Keep this manual for future reference.

2. Segurtasun informazioa

OHARRA: Instalazio, doikuntza, aldaketa, zerbitzu edo mantentze-lan desegokiak lesioak edo ondasunen kalteak eragin ditzake. Kontsultatu eskuliburu hau. Laguntza edo informazio gehiago lortzeko, kontsultatu instalatzaile kualifikatu bati, zerbitzu-agentzia bati edo gas hornitzaileari.

• Gas-plaka erabiltzean, ziurtatu aireztapen egokia dagoela.
• Ez gorde material sukoiak aparatutik gertu.
• Mantendu haurrak gailutik urrun funtzionatzen ari diren bitartean.
• In case of a gas leak, immediately shut off the gas supply, open windows, and do not operate any electrical switches. Contact emergency services.
• Erabili beti gas-erregailuetarako egokiak diren sukaldeko tresneria.
• The appliance is equipped with a flame failure safety device, which automatically cuts off the gas supply if the flame accidentally extinguishes.

3. Produktua amaitu daview

The Bosch PBP6C5B60Q is a 4-burner gas hob designed for integrated installation. It features a stainless steel surface and durable cast iron pan supports.

1 Irudia: Gainetikview of the Bosch PBP6C5B60Q Gas Hob installed in a kitchen countertop.

Osagaiak:

• Erregailuak: Four gas burners of varying power outputs.
• Kontrol-mantokiak: Integrated knobs for precise flame adjustment and ignition.
• Zartaginaren euskarriak: Robust cast iron supports for stable placement of cookware.
• Altzairu herdoilgaitzezko gainazala: Sukaldeko gainazal iraunkorra eta erraz garbitzen dena.

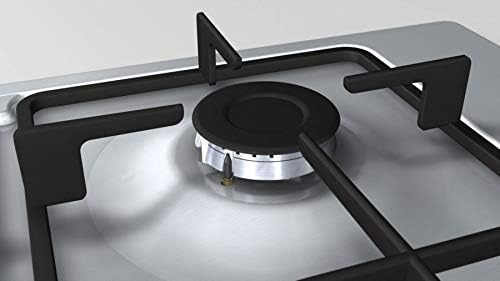

Figure 2: Detail of a gas burner and pan support.

Figure 3: Integrated control knobs for burner control.

4. Konfigurazioa eta instalazioa

Installation of this gas hob must be carried out by a qualified technician in accordance with local regulations and standards. Incorrect installation can lead to hazards.

Instalaziorako kontuan hartu beharreko gauza nagusiak:

• Gas hornidura: Ensure the gas type (natural gas) and pressure are compatible with the appliance.
• Konexio elektrikoa: The hob requires an electrical connection for the electronic ignition system. It comes with a 1-meter power cable.
• Aireztapena: Adequate ventilation must be provided in the kitchen area.
• Mahai gaineko mozketa: Follow the manufacturer's specified dimensions for the countertop cut-out to ensure a proper fit.
• Berdinketa: Ensure the hob is level after installation to prevent spills and ensure even cooking.

5. Funtzionamendu-argibideak

Erregailu bat piztea:

1. Jarri sukaldeko tresna egokiak zartaginaren euskarrian, nahi den erregailuaren gainean.
2. Sakatu dagokion kontrol-botoia eta biratu erlojuaren orratzen kontrako noranzkoan, sugar maximoaren ezarpenera iritsi arte (sugar handiaren ikurra).
3. Hold the knob down for a few seconds until the flame ignites and stabilizes. The electronic ignition system will spark automatically.
4. Once the flame is stable, release the knob. If the flame goes out, repeat the process, holding the knob down for a longer duration.
5. Adjust the flame size by turning the knob between the maximum and minimum flame settings (large and small flame symbols).

Suaren hutsegiteen segurtasun-gailua:

This hob is equipped with a safety device that automatically cuts off the gas supply to a burner if its flame is accidentally extinguished (e.g., by a draft or boiling over liquid). If this occurs, turn the control knob to the OFF position and wait for at least one minute before attempting to re-ignite the burner.

Burner Power Outputs:

• Aurrean Ezkerrean: Rapid burner, up to 3 kW (depending on gas type).
• Atzeko Ezkerra: Standard burner, up to 1.7 kW (depending on gas type).
• Atzeko eskuina: Standard burner, up to 1.7 kW (depending on gas type).
• Aurrealdea eskuinean: Economy burner, up to 1 kW (depending on gas type).

6. Mantentzea eta Garbiketa

Garbiketa eta mantentze-lan erregularrak zure gas-sukaldearen iraupena eta errendimendu optimoa bermatuko ditu.

Cleaning the Stainless Steel Surface:

• Utzi sukaldeko plaka guztiz hozten garbitu aurretik.
• Use a soft cloth and a mild detergent or a specialized stainless steel cleaner.
• Saihestu garbitzaile urratzaileak, estropajolak edo produktu kimiko gogorrak, gainazala urra edo kaltetu baitezakete.
• Wipe in the direction of the grain to prevent streaks.

Cleaning the Cast Iron Pan Supports:

• Remove the pan supports from the hob.
• Wash them with warm soapy water. For stubborn stains, a non-abrasive brush can be used.
• Ziurtatu guztiz lehor daudela berriro sukaldean jarri aurretik, herdoila saihesteko.

Erregailuaren osagaiak:

• Periodically clean the burner caps and crowns to ensure proper flame distribution.
• Ensure the ignition electrode and thermocouple (part of the flame failure safety device) are clean and free from food debris.

7. Arazoak

If you encounter issues with your gas hob, refer to the following common troubleshooting steps before contacting service.

For issues not listed here or if solutions do not resolve the problem, please contact Bosch customer service or a qualified service technician.

8. Zehaztapenak

Detailed technical specifications for the Bosch PBP6C5B60Q Gas Hob.

9. Bermea eta Laguntza

Bermearen informazioa:

This Bosch PBP6C5B60Q Gas Hob comes with a 5 urteko bermeaGorde erosketaren egiaztagiria bermearen erreklamazioetarako. Bermeak erabilera-baldintza normaletan fabrikazio-akatsak estaltzen ditu.

Bezeroarentzako laguntza:

For technical assistance, service requests, or warranty inquiries, please contact Bosch customer support. Refer to the contact information provided with your purchase documentation or visit the official Bosch webzure eskualderako gunea.

Bosch Support Line (as per product data): 15196

Era berean, bisitatu dezakezu Bosch denda Amazonen produktuaren informazio gehiago lortzeko.
