1. Sarrera
Thank you for choosing the Sandinrayli Indoor Cycling Bike. This manual provides essential information for the safe assembly, operation, and maintenance of your new exercise equipment. Please read this manual thoroughly before use and retain it for future reference.
Image 1: Sandinrayli Indoor Cycling Bike in use. This image shows the overall design of the bike with a user demonstrating a cycling position.
2. Segurtasun informazioa
Before beginning any exercise program, consult with your physician. It is crucial to follow these safety guidelines to prevent injury and ensure proper operation of the equipment.
- Always inspect the bike for loose parts or damage before each use.
- Ziurtatu torloju eta azkoin guztiak ondo estututa daudela.
- Mantendu haurrak eta maskotak ekipotik urrun funtzionatzen ari diren bitartean.
- Jantzi kirol oinetako eta arropa egokiak.
- Place the bike on a flat, stable surface. Use a mat underneath to protect flooring.
- Do not exceed the maximum user weight capacity of 275 LBS (125 kg).
- Use the emergency brake immediately if you feel unwell or need to stop quickly.
3. Paketearen edukia
Muntaketa hasi aurretik, egiaztatu osagai guztiak daudela. Piezarik falta edo hondatuta badago, jarri harremanetan bezeroarentzako arreta-zerbitzuarekin.
- Marko Nagusiaren Muntaia
- Aurrealdeko Egonkortzailea
- Atzeko Egonkortzailea
- Eskulekuaren argia
- Eskulekua
- Eserlekua
- Eserlekua
- Ezkerreko pedala
- Eskuineko pedala
- LCD monitorea
- Ur botila
- Hardware kita (torlojuak, arandelak, azkoinak, tresnak)
4. Muntatzeko jarraibideak
Jarraitu urrats hauek arretaz muntaketa egokia egiteko. Gomendagarria da bi pertsona egotea urrats batzuetarako.
- Egonkortzaileak erantsi: Lotu aurreko eta atzeko egonkortzaileak marko nagusiari emandako torlojuak eta arandelak erabiliz. Ziurtatu ondo estututa daudela.
- Instalatu pedalak: Identify the Left (L) and Right (R) pedals. The left pedal screws counter-clockwise, and the right pedal screws clockwise. Thread them into the crank arms and tighten securely with a wrench.
- Muntatzeko eserlekua: Attach the seat to the seat post, then insert the seat post into the main frame. Do not tighten the adjustment knob yet.
- Install Handlebar: Insert the handlebar post into the main frame, then attach the handlebar to the post. Connect any monitor wires if applicable. Do not tighten the adjustment knob yet.
- Konektatu monitorearekin: Attach the LCD monitor to the handlebar post and connect the sensor wires.
Image 2: Product dimensions and adjustable components. This diagram illustrates the overall dimensions of the bike and highlights the adjustable seat and handlebar positions.
5. Funtzionamendu-argibideak
5.1 Jarlekua eta eskulekua doitzea
- Eserlekuaren doikuntza: The seat can be adjusted 4-ways (up/down and forward/backward). Loosen the respective adjustment knobs, slide the seat to your desired position, and tighten the knobs firmly.
- Eskulekuaren doikuntza: The handlebar can be adjusted 2-ways (up/down). Loosen the adjustment knob, raise or lower the handlebar to a comfortable height, and tighten the knob securely.
5.2 Erresistentzia eta larrialdiko balazta doitzea
The bike features adjustable resistance to customize your workout intensity.
- Erresistentzia handitu: Turn the resistance knob clockwise.
- Murriztu Erresistentzia: Turn the resistance knob counter-clockwise.
- Larrialdiko balazta: Sakatu erresistentzia-botoia gogor larrialdiko balazta aktibatzeko eta bolantea berehala gelditzeko.
Image 3: Adjustable resistance and emergency brake. This image highlights the resistance knob, indicating how to increase or decrease resistance and how to engage the emergency brake.
5.3 LCD monitorearen erabilera
The LCD monitor tracks your workout data.
- Funtzioak: The monitor displays Time, Speed, Distance, Calories, Odometer, and Pulse (via grip sensors).
- Modu botoia: Press the 'MODE' button to cycle through the different display functions.
- Pultsu sentsoreak: Grip the pulse sensors on the handlebar to measure your heart rate.

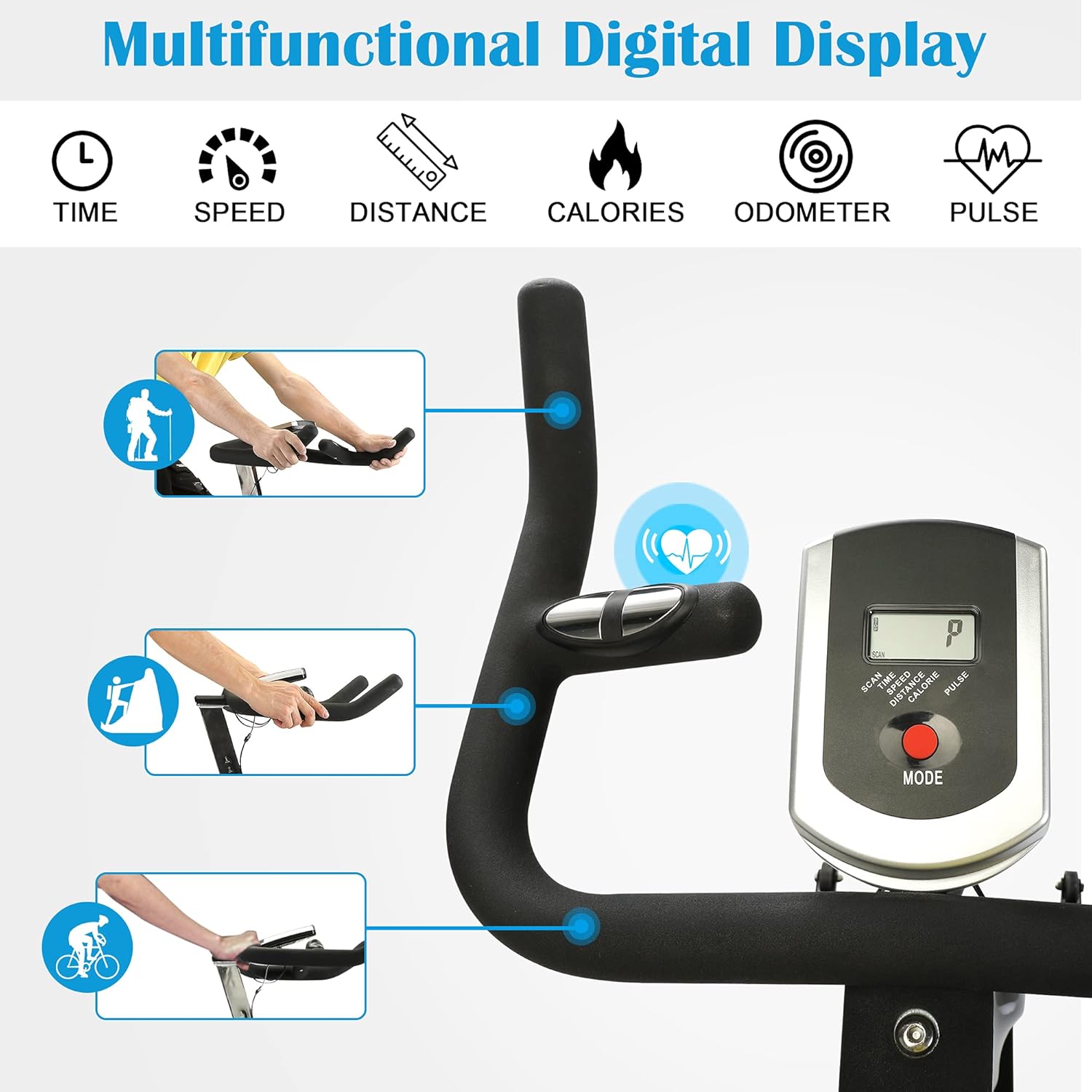

Image 4: Multifunctional digital display. This close-up shows the LCD monitor and its various tracking functions, including time, speed, distance, calories, odometer, and pulse.
5.4 Pedalak
The caged pedals feature adjustable straps to secure your feet during exercise.
- Place your feet into the cages and pull the straps to tighten them for a secure fit.
- Ensure your feet are properly secured to prevent slipping during your workout.
6. Mantentzea
Regular maintenance ensures the longevity and safe operation of your cycling bike.
- Garbiketa: Garbitu bizikleta iragarkiarekinamp Erabili ondoren zapi bat izerdia eta hautsa kentzeko. Saihestu garbitzaile urratzaileak.
- Egiaztatu konexioak: Periodically check all bolts, nuts, and screws to ensure they are tight. Tighten if necessary.
- Lubrifikazioa: The belt drive system is generally low maintenance. If any squeaking occurs, consult a professional or refer to specific lubrication instructions if provided with the product.
- Biltegiratzea: Gorde bizikleta leku lehor eta fresko batean, eguzki-argitik eta hezetasunetik babestuta.
Image 5: Transport wheels for convenient movement. This image shows the integrated transport wheels, making it easier to move the bike for storage or repositioning.
7. Arazoak
Arazorik izanez gero, jo ezazu honako arazo eta irtenbide ohikoenei.
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Bizikleta ezegonkorra da edo kulunkatzen da | Uneven surface; loose stabilizers | Adjust foot pads on stabilizers; tighten stabilizer bolts. |
| Kirrinka edo karraska-hotsa | Loose parts; lack of lubrication (rare for belt drive) | Check and tighten all bolts; if noise persists, contact support. |
| LCD monitoreak ez du erakusten | Loose connection; dead batteries | Check monitor cable connection; replace batteries in the monitor. |
| Erresistentzia ez da aldatzen | Erresistentzia-botoiaren mekanismoaren arazoa | Ensure the knob is properly engaged; contact support if problem persists. |
8. Zehaztapenak
Detailed technical specifications for the Sandinrayli Indoor Cycling Bike.
- Eredua: S-0283
- Kolorea: Beltza + Gorria
- Material nagusia: Iron + Plastic + PU
- Dimentsio orokorra: 45.7’’ (L) X 19.7’’ (W) X 40’’-44.7’’ (H)
- Eserlekuaren altuera erregulagarria: 30.7''-39.2''
- Adjustable Seat Distance: 3.3''
- Karga-gaitasuna: 275 LBS (125 kg)
- Gidatzeko mekanismoa: Gerrikoa
- Foot Pedal Style: Kaiolatua
- Pisu garbia: 86 LBS (39 kg)
- Neurgailuaren funtzioak: Time, Speed, Distance, Calories, Odometer, Pulse
- Energia iturria (monitorea): Bateriaren bidez

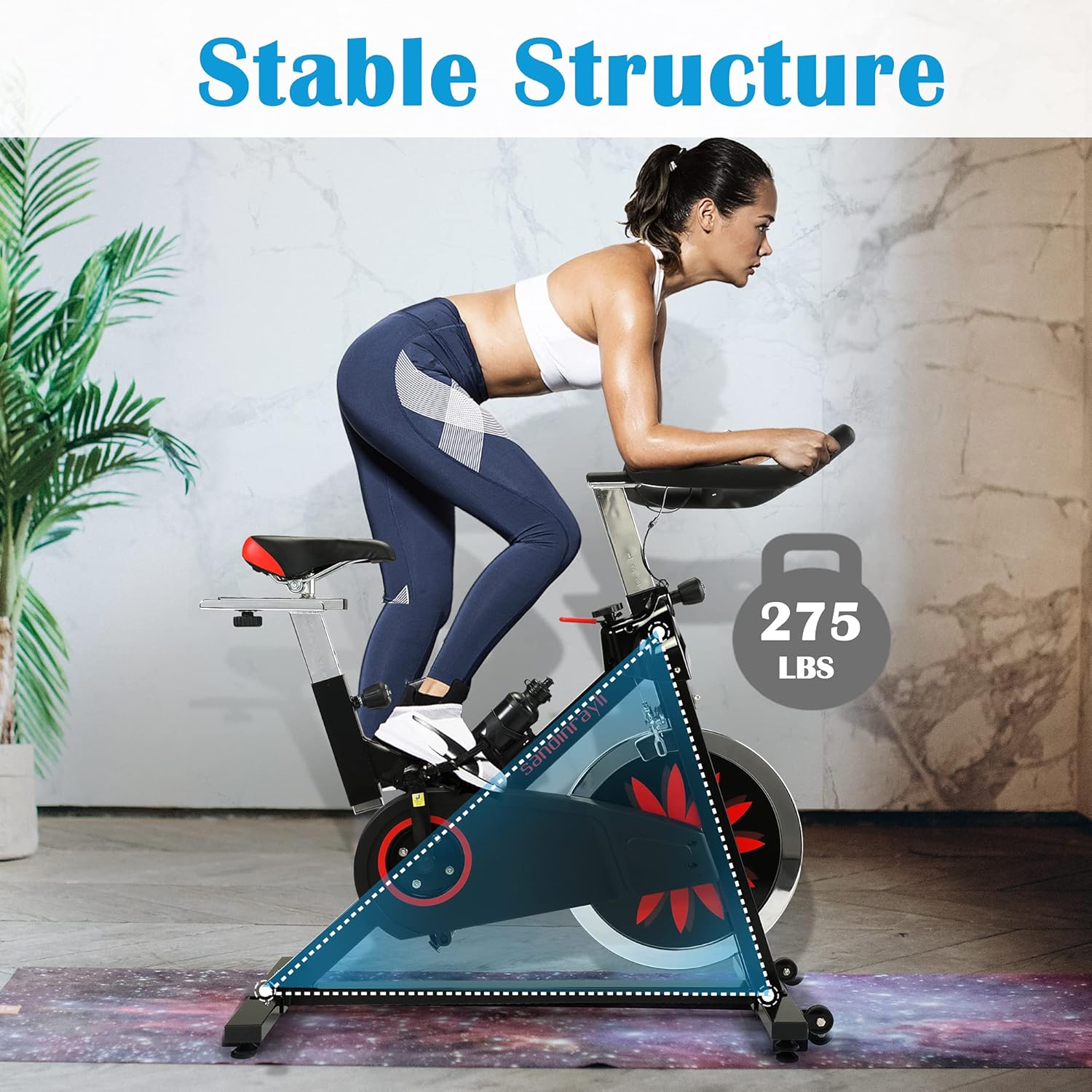

Image 6: Stable triangular structure. This image illustrates the robust triangular design of the bike frame, emphasizing its stability and maximum weight capacity of 275 LBS.
9. Bermea eta Laguntza
For warranty information or technical support, please refer to the purchase documentation or contact Sandinrayli customer service. Keep your proof of purchase for any warranty claims.
