POCHFAN 42-inch Retractable Ceiling Fan User Manual

Sarrera

Thank you for choosing the POCHFAN 42-inch Retractable Ceiling Fan. This modern fandelier combines the functionality of a ceiling fan with the illumination of an LED light fixture, designed to enhance the comfort and aesthetics of your bedroom or living room. Featuring a quiet DC motor, 6 fan speeds, 3 color temperature options, and dimmable lighting, this fan provides versatile climate control and ambiance. The retractable blades offer a sleek, compact look when not in use. Please read this manual thoroughly before installation and operation to ensure safe and optimal performance.

Image: The POCHFAN 42-inch Retractable Ceiling Fan, showcasing its brushed nickel finish, integrated LED light, and clear retractable blades. The remote control and a wall mount bracket are also visible.

Segurtasun-argibideak

Jarraitu beti oinarrizko segurtasun neurriak etxetresna elektrikoak instalatzean eta erabiltzean, sute, deskarga elektriko eta lesio pertsonalen arriskua murrizteko.

• Irakurri arretaz argibide guztiak instalatzen hasi aurretik.
• Instalazioa elektrizista kualifikatu batek egin behar du.
• Itzali korrontea etengailutik edo fusible-kutxatik kableatu aurretik.
• Ziurtatu konexio elektriko guztiek tokiko araudi eta ordenantzen araberakoak direla.
• The fan must be mounted to a structurally sound ceiling joist or outlet box capable of supporting the fan's weight (7.76 kg).
• Do not bend the blades when cleaning the fan.
• Ez sartu objekturik biratzen ari diren palak bidean.
• Tresna hau ez da gaitasun fisiko, sentsorial edo mental murriztua duten edo esperientzia eta ezagutza falta duten pertsonek (haurrak barne) erabiltzeko, baldin eta haien segurtasunaz arduratzen den pertsona batek gailuaren erabilerari buruz gainbegiratu edo jarraibiderik eman ez badu.

Paketearen edukia

Instalazioarekin jarraitu aurretik, egiaztatu osagai guztiak daudela eta kalterik gabe daudela.

• Sabaiko haizagailuaren motorren muntaia
• Retractable Fan Blades (pre-attached)
• LED Argiaren Kit
• Urruneko Kontrola
• Remote Control Wall Mount Bracket
• Downrods (Short: 5 inches, Long: 8 inches)
• Muntatzeko hardwarea (torlojuak, kable-azkoinak, etab.)
• Argibide eskuliburua
• AAA pilak (2 barne urrutiko agintearentzat)

Konfigurazioa eta Instalazioa

Jarraitu urrats hauek zure sabaiko haizagailua behar bezala instalatzeko. Instalazio profesional bat egitea gomendatzen da.

1. Prestatu muntaketa kokalekua: Ensure the electrical box is securely fastened to the building structure and can support the fan's weight. Turn off power at the main circuit breaker.
2. Instalatu muntatzeko euskarria: Lotu muntatzeko euskarria irteerako kutxan emandako torlojuak erabiliz.
3. Muntatu beheranzko haga: Choose the appropriate downrod (5-inch or 8-inch) based on your ceiling height and desired fan clearance. Insert the downrod through the canopy and connect it to the fan motor assembly.

Image: This diagram illustrates the two available downrod lengths (5 inches and 8 inches) and their corresponding total fan heights (15 inches and 18 inches). It also provides a recommended room size range of 13ft x 13ft to 18ft x 18ft for optimal air circulation.
4. Zintzilikatu haizagailua: Kontu handiz altxatu haizagailuaren multzoa eta zintzilikatu muntaketa-euskarrian.
5. Haizagailua kableatu: Connect the electrical wires according to the wiring diagram provided in the separate wiring instructions (typically black to black, white to white, and green/bare copper to ground). Secure connections with wire nuts.
6. Lotu Kanoia: Irristatu estalkia sabaira igo eta finkatu euskarriari torlojuekin.
7. Argi-kit-a instalatu: Connect the light kit wires to the fan motor assembly wires and secure the light kit to the fan housing.
8. Berrezarri boterea: Instalazioa amaitutakoan, berrezarri korrontea etengailu elektrikoan.

Funtzionamendu-argibideak

Your POCHFAN ceiling fan is controlled by the included remote control. Ensure the two AAA batteries are correctly installed in the remote.

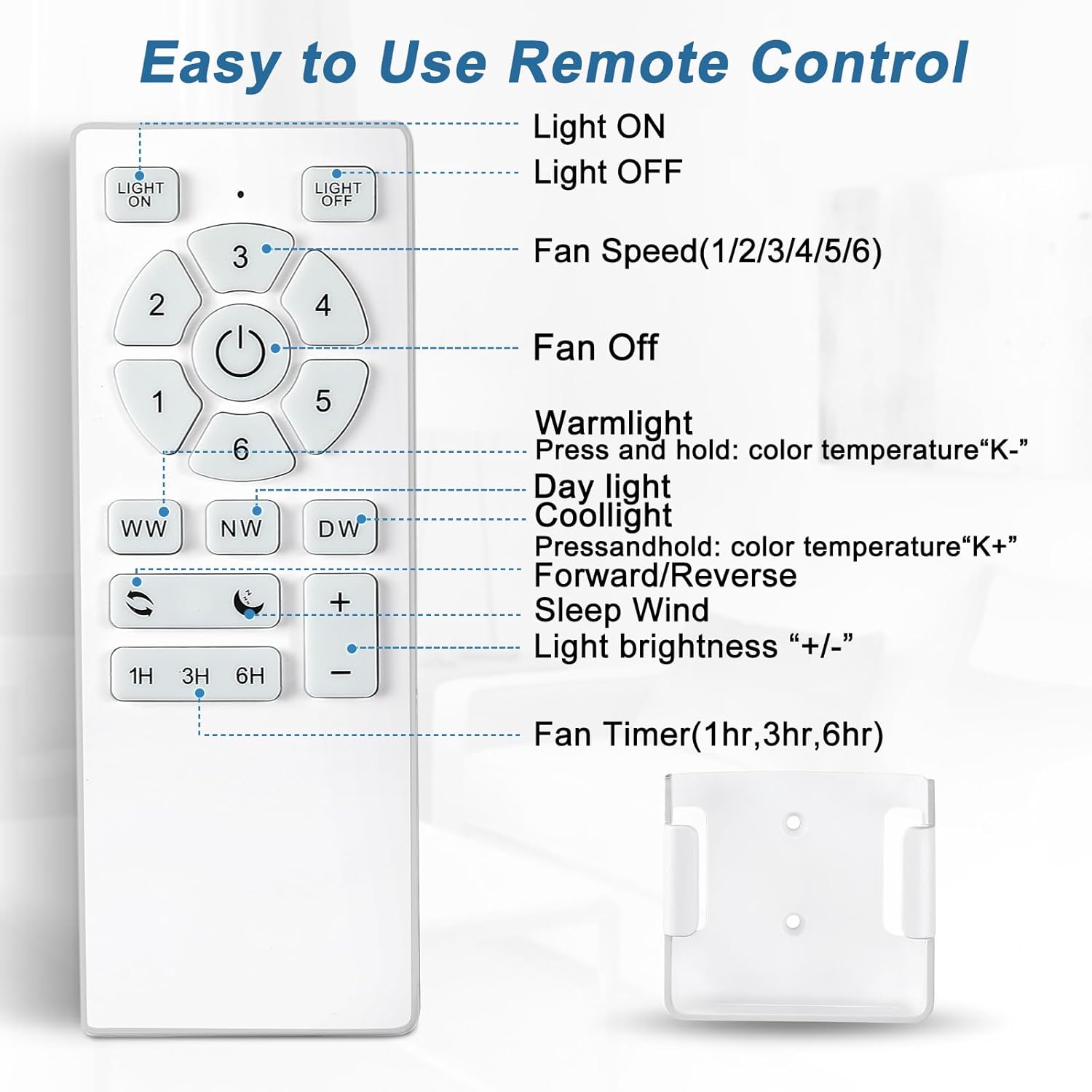

Image: A detailed diagram of the remote control for the POCHFAN ceiling fan, showing buttons for light ON/OFF, fan speed (1-6), fan OFF, color temperature adjustment (Warmlight, Day light, Coollight), forward/reverse mode, sleep wind, light brightness adjustment (+/-), and fan timer (1H, 3H, 6H).

Urruneko kontrolaren funtzioak:

• Argia piztu/itzali: Press the "Light ON" or "Light OFF" buttons to control the light.
• Haizagailuaren abiadura (1-6): Buttons labeled 1 through 6 control the fan speed, from lowest (1) to highest (6).
• Azalera itzali: Press the "Fan OFF" button to turn off the fan.
• Kolore-tenperatura aldaketa:
  • "WW" (Warm White): Activates 3000K warm white light.
  • "NW" (Natural White): Activates 4000K natural light.
  • "CW" (Cool White): Activates 6000K cool white light.
  • Press and hold "K-" or "K+" to fine-tune color temperature (if applicable).


Image: This image displays the three adjustable color temperatures of the LED light: 3000K Warm White, 4000K Natural Light, and 6000K Cool White. It also indicates that the light is 20%-100% smooth dimmable.

• Light Brightness Adjustment (+/-): Use the "+" and "-" buttons to increase or decrease the light brightness (20%-100% dimmable).
• Aurrera/Atzera modua: Press the "Forward/Reverse" button to change the direction of the fan blades. This allows for downdraft mode (summer) to create a cooling breeze or updraft mode (winter) to circulate warm air.

Image: This visual explains the reversible motor function, showing arrows for downdraft mode (cool and comfortable for summer) and updraft mode (enhances air circulation for winter warmth).
• Lo haizea: Activates a gentle, fluctuating breeze for comfortable sleep.
• Fan Timer (1H, 3H, 6H): Konfiguratu haizagailua 1, 3 edo 6 ordu igaro ondoren automatikoki itzaltzeko.

Image: The POCHFAN ceiling fan installed in a modern living room, with icons highlighting its key features: 6 fan speeds, timer setting (1H/3H/6H), dimmable brightness (20%-100%), reversible motor for summer cool and winter warm, and a quiet DC motor (<30db).

Mantentzea

Mantentze-lan erregularrak zure sabaiko haizagailuaren iraupena eta errendimendu optimoa bermatuko ditu.

• Garbiketa: To avoid damage to the finish, clean the fan with a soft, damp zapirik. Ez erabili garbitzaile edo disolbatzaile urratzailerik. Ziurtatu argindarra itzalita dagoela garbitu aurretik.
• Blade zaintzea: The retractable blades are designed to fold in when the fan is off. When cleaning, gently wipe the blades. Do not bend or apply excessive force.
• Loturak estutu: Aldian-aldian egiaztatu haizagailuaren eta muntatzeko hardwarearen torloju eta lotura guztiak, ondo finkatuta daudela ziurtatzeko.
• Argi iturria: LED argi-iturri integratua iraupen luzerako diseinatuta dago eta ezin du erabiltzaileak ordezkatu. Argia huts egiten badu, jarri harremanetan bezeroarentzako arreta-zerbitzuarekin.

Arazoak konpontzea

Zure haizagailuarekin arazoak badituzu, jo ezazu honako arazo eta irtenbide ohikoenei:

Zehaztapenak

• Marka: POCHFAN
• Modelo zenbakia: 1238X
• Produktuaren neurriak (L x W x H): 106.68 x 106.68 x 45.72 cm (42 x 42 x 18 hazbete)
• Elementuaren pisua: 7.76 kilogramo (17.1 lb)
• Palen kopurua: 3 (retractable)
• Argi-iturri kopurua: 1 (LED integratua)
• liburukiatage: 110 Volt
• Wattage: 60 Watt
• Beharrezko bateriak: Yes (2 AAA for remote, included)
• Motor mota: DC Motor isila
• Fan abiadura: 6
• Light Color Temperatures: 3000K (Warm White), 4000K (Natural Light), 6000K (Cool White)
• Erregulagarria: Bai (% 20-% 100)
• Tenporizadorearen ezarpenak: 1H, 3H, 6H

Bermea eta Laguntza

Information regarding product warranty and availability of spare parts is not explicitly provided in the product details. For any support inquiries, technical assistance, or warranty claims, please contact your retailer or the manufacturer directly using the contact information provided at the point of purchase.
