SeaKnight Rapid II Saltwater Spinning Reel Instruction Manual

1. Sarrera

This manual provides detailed instructions for the proper setup, operation, and maintenance of your SeaKnight Rapid II Saltwater Spinning Reel. Designed for both freshwater and saltwater environments, the Rapid II series offers high performance and durability. Please read this manual thoroughly before using your reel to ensure optimal performance and longevity.

Image 1: SeaKnight Rapid II Spinning Reel.

2. Produktuaren ezaugarriak

• Korrosioaren aurkako estaldura: The Rapid II features an anti-corrosive coating, making it suitable for both fresh and saltwater use.
• Enhanced Main Shaft: Equipped with an enhanced, thicker main shaft for increased strength and durability.
• Stainless Steel Ball Bearings: High-quality 10+1 shielded stainless steel ball bearings provide smooth operation and corrosion resistance.
• Carbon Fiber Drag System: A robust carbon fiber drag system offers up to 10kg (22Lbs) of drag power, capable of handling large gamefish.
• Sealed Aluminum Spool and Rotor: The sealed design prevents water and sand from entering the gearing, protecting internal components.
• Asymmetrical Power Rotor Design: (Note: 6000 size excluded) This design contributes to a lighter and stronger reel for enhanced performance.
• One-Piece Screw-in Handle: Features a one-piece screw-in handle with a removable EVA knob for strength and easy maintenance.

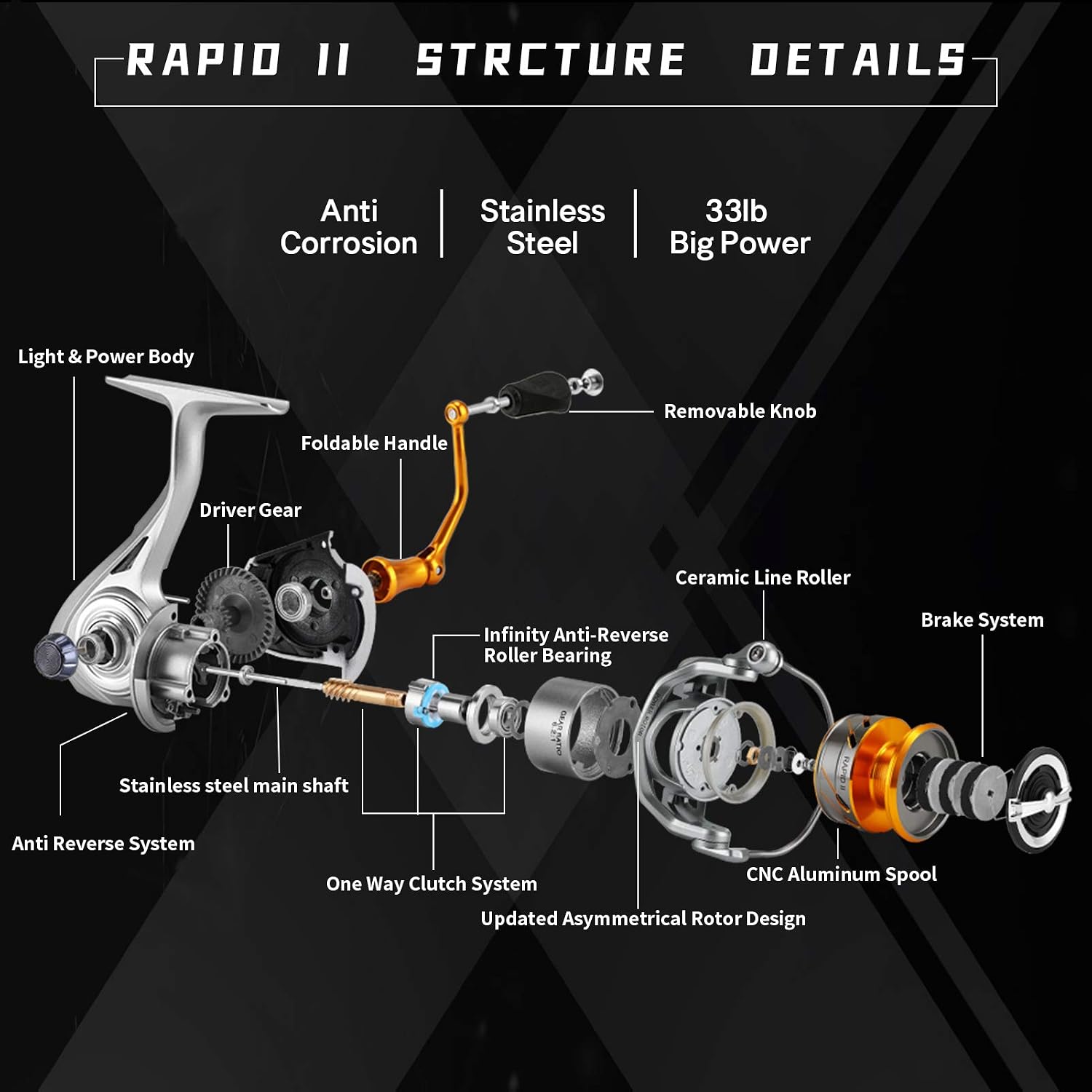

Image 2: Internal structure details of the Rapid II reel, highlighting components like the stainless steel main shaft, CNC aluminum spool, and anti-reverse system.

Image 3: Detail of the high precision alloy gear, brass pinion gear, and stainless steel main shaft, contributing to the reel's drag power.

Image 4: Illustration of the updated asymmetrical rotor design, which enhances strength (excluding 6000 size).

Image 5: Visual representation of the anti-water, anti-dust, and anti-corrosive features of the sealed spool and internal components.

Produktuaren bideo ofiziala

3. Konfigurazioa

1. Attaching the Reel to a Rod:

   Loosen the reel seat nut on your fishing rod. Place the reel foot into the reel seat and tighten the nut securely until the reel is firmly attached to the rod. Ensure there is no wobble.
2. Spooling Fishing Line:

   Open the bail arm. Tie the fishing line to the spool using an arbor knot or a similar secure knot. Close the bail arm. Begin winding the line onto the spool, maintaining light tension on the line to ensure it spools evenly and tightly. Fill the spool to approximately 1/8 inch (3mm) from the rim to prevent tangles and maximize casting distance.

3. Heldulekua doitzea:

   The handle can be switched for left or right-hand retrieve. Unscrew the handle from one side and screw it into the opposite side of the reel body until secure.

4. Funtzionamendu-argibideak

1. Galdaketa:

   Hold the rod with the reel underneath. Use your index finger to hold the line against the rod. Open the bail arm. Bring the rod back over your shoulder, then swiftly cast forward, releasing the line with your index finger as the rod reaches the 10 o'clock position. Close the bail arm manually or by turning the handle once the lure hits the water.

2. Berreskuratzen:

   Turn the handle to retrieve the line. Maintain a steady retrieve speed appropriate for your lure and target fish. The anti-reverse system prevents the handle from turning backward, ensuring solid hook sets.

3. Arrastatze doikuntza:

   The drag system is located on the top of the spool. Turn the drag knob clockwise to increase drag tension and counter-clockwise to decrease it. Adjust the drag so that line can be pulled off the spool with moderate effort, preventing line breakage during a fight with a fish. A good starting point is to set the drag to about 25-30% of your line's breaking strength.

5. Mantentzea

• Garbiketa: After each use, especially in saltwater, lightly rinse the reel with fresh water to remove salt, sand, and debris. Do not submerge the reel.
• Lehortzea: Allow the reel to air dry completely in a shaded, well-ventilated area.
• Lubrifikazioa: Periodically apply a small amount of high-quality reel oil to moving parts such as the handle shaft, bail arm pivot, and line roller. Use reel grease on gears if disassembling for deeper cleaning (recommended annually or bi-annually depending on use).
• Biltegiratzea: Store your reel in a dry, cool place away from direct sunlight. Loosen the drag knob slightly during storage to relieve pressure on the drag washers.
• Line Roller: Regularly check the line roller for smooth rotation. Clean any buildup of salt or debris.

6. Arazoak

7. Zehaztapenak

The SeaKnight Rapid II series is available in several models, each with specific characteristics:

Note: Weights are approximate and may vary slightly.

Image 6: Visual comparison of different Rapid II reel sizes and their respective spool dimensions.

8. Bermea eta Laguntza

For warranty information or technical support, please refer to the official SeaKnight webwebgunera edo jarri harremanetan zuzenean bezeroarentzako arreta-zerbitzuarekin. Gorde erosketa-agiria erosketaren frogagiri gisa.
