MASTERCANOPY Outdoor Garden Gazebo Instruction Manual

1. Sarrera

This manual provides detailed instructions for the assembly, operation, and maintenance of your MASTERCANOPY Outdoor Garden Gazebo. Please read this manual thoroughly before beginning assembly or use to ensure proper setup and safe operation. Retain this manual for future reference.

Figure 1.1: MASTERCANOPY Outdoor Garden Gazebo (10x10, Black)

2. Segurtasun informazioa

• Always ensure the gazebo is securely anchored to the ground using all provided stakes and ropes. Additional anchoring may be required in windy conditions.
• Do not use the gazebo in extreme weather conditions, including heavy winds, thunderstorms, or significant snowfall. Disassemble and store the canopy during such conditions.
• Regularly clear any accumulated water or snow from the canopy to prevent damage or collapse. The roof features drain holes to assist with water runoff.
• Keep all open flames and heat sources away from the gazebo fabric.
• Assembly requires a minimum of two adults. Do not attempt to assemble alone.
• Inspect all components for damage before assembly. Do not use if any parts are damaged.

3. Piezen zerrenda

Before beginning assembly, verify that all parts listed below are present and undamaged. Refer to the included diagram for visual identification of components.

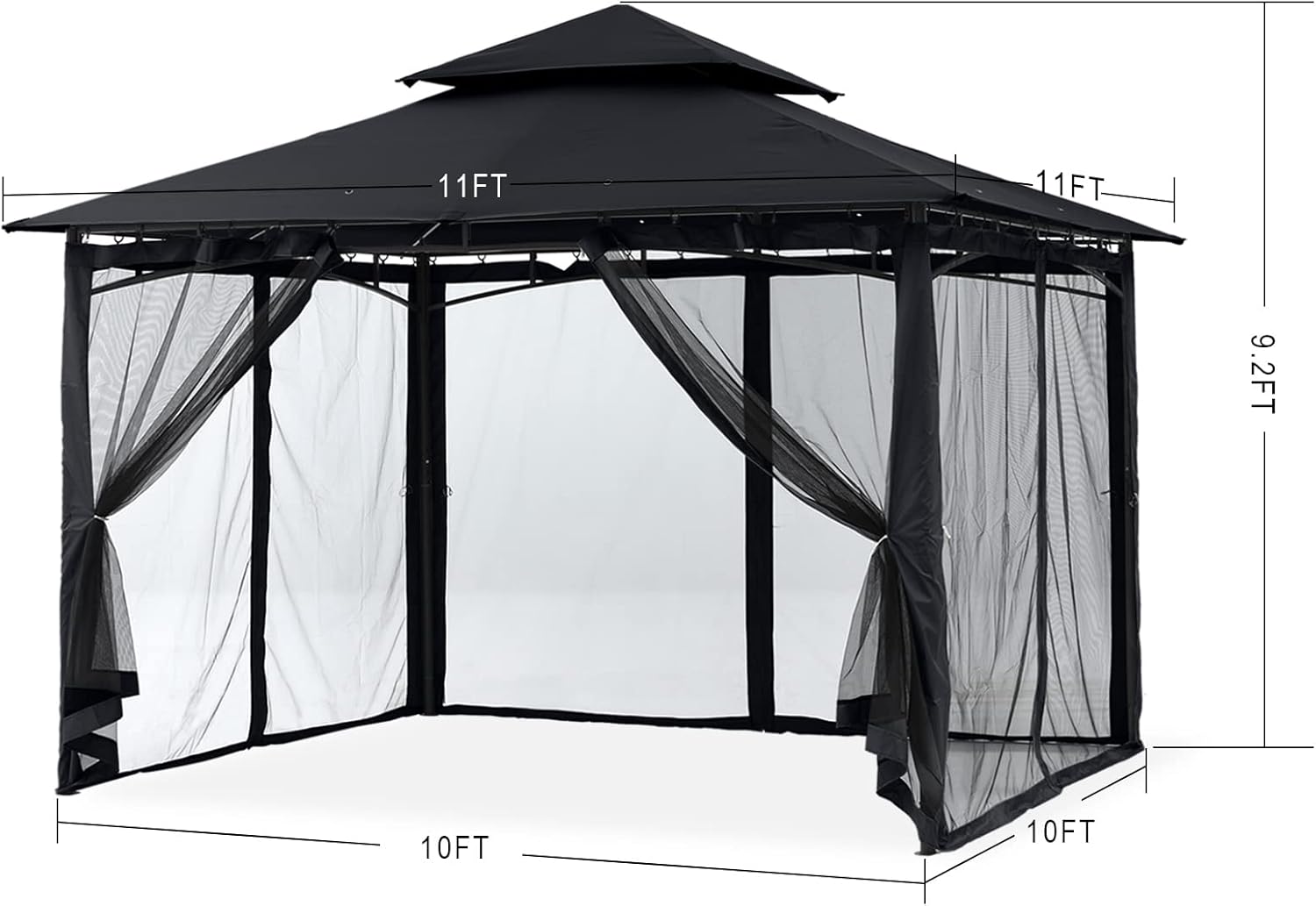

Figure 3.1: Gazebo Dimensions and Frame Structure

• Main Frame Components (Alloy Steel Poles, Connectors)
• Canopy Fabric (Double-tiered roof, UPF 50+ protected)
• Netting Walls (4 Removable zippered screen nets)
• Ground Stakes and Ropes
• Assembly Hardware (Bolts, Screws, Wrenches)

4. Muntaketa eta konfigurazio argibideak

Jarraitu urrats hauek arretaz muntaketa egokia egiteko. Oso gomendagarria da gutxienez bi pertsona egotea prozesu honetarako.

1. Deskonprimitu eta antolatu: Lay out all components on a clean, flat surface. Identify each part using the provided parts list and diagrams.
2. Oinarrizko markoa muntatu: Connect the horizontal base poles to the corner leg poles. Ensure all connections are secure.
3. Erect the Main Legs: Carefully raise the assembled base frame and attach the upper sections of the leg poles.
4. Teilatu-egitura instalatu: Assemble the upper roof frame structure, including the double-tiered ventilation system.
5. Lotu Kanoia: Drape the main canopy fabric over the roof frame. Secure it using the integrated Velcro straps for a snug fit. The double-tiered roof design promotes air circulation and stability.
6. Install Netting Walls: Attach the four removable zippered screen nets to the frame. Use the Velcro straps to adjust their coverage as needed.
7. Ziurtatu Gazeboa: Use the provided ground stakes and ropes to firmly anchor the gazebo to the ground. This is crucial for stability, especially in moderate winds.

Figure 4.1: Detail of the Rust-Proof Frame

Figure 4.2: Thick Leg Pole for Enhanced Stability

Muntaketa erakustaldi bideoa

Video 4.1: Official MASTERCANOPY Gazebo Product Overview and Durability Testing. This video demonstrates the gazebo's features and resilience to weather conditions, providing visual guidance on its robust design.

5. Funtzionamendu-argibideak

Your MASTERCANOPY gazebo is designed for ease of use and versatility.

• Netting Walls: The gazebo features four removable zippered screen nets. These can be zipped closed to provide protection from insects and light rain, or tied back to allow for open airflow and visibility.
• Canopy Ventilation: The double-tiered roof design allows for improved air circulation, helping to dissipate heat and maintain a comfortable environment underneath the canopy.
• Ura drainatzea: Drain holes are strategically placed on the edge of the roof to prevent water accumulation, reducing the risk of damage during rainfall.

Figure 5.1: Gazebo with Netting Walls Tied Back

6. Mantentzea

Mantentze-lan erregularrak zure gazeboaren bizitza eta itxura luzatuko ditu.

• Garbiketa: Clean the canopy fabric and netting with mild soap and water. Rinse thoroughly and allow to air dry completely before storage. Do not use harsh chemicals or abrasive cleaners.
• Markoaren zainketa: The powder-coated steel frame is rust-resistant. Wipe down the frame periodically with a damp cloth to remove dirt and debris. Inspect for any signs of rust or damage and address promptly.
• Sasoiko biltegiratzea: For prolonged periods of non-use or during severe weather seasons, it is recommended to disassemble the canopy and store it in a dry, protected area to prevent wear and tear.

7. Arazoak

• Uraren metaketa estalkian: Ensure the canopy is tautly secured to the frame. The integrated drain holes are designed to prevent pooling; if water still accumulates, check for any obstructions or sagging areas.
• Gazeboaren ezegonkortasuna: Verify that all leg poles are firmly seated and all anchoring stakes and ropes are properly installed and tightened. In very windy conditions, consider additional weight bags or temporary disassembly.
• Netting Zippers Sticking: Apply a silicone-based lubricant to the zipper teeth to ensure smooth operation. Keep zippers clean from dirt and debris.

8. Zehaztapenak

9. Bermea eta Laguntza

MASTERCANOPY stands behind the quality of its products.

• Markoaren bermea: 1 year for replacements of the frame.
• Piezen bermea: 6 months for replacements of other parts.
• Bezeroarentzako laguntza: If you encounter any manufacturing defects or require assistance with your product, please contact MASTERCANOPY customer service. Refer to your purchase documentation for specific contact details.
