AILINKE 3.4Gal/13L Large Room Humidifier Instruction Manual

1. Sarrera

Thank you for choosing the AILINKE 3.4Gal/13L Large Room Humidifier. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new humidifier. Please read it thoroughly before use and retain it for future reference.

Figure 1.1: AILINKE 3.4Gal/13L Large Room Humidifier

2. Produktua amaitu daview

Ezaugarri nagusiak:

• Edukiera handia: 3.4 Gallons (13 Liters) water tank for extended operation.
• Goiko betegarriaren diseinua: Ura betetzeko erraztasuna eta erosotasuna.
• Integrated Humidistat: Maintains desired humidity levels automatically.
• Funtzionamendu isila: Operates at ≤35dB, suitable for bedrooms and quiet environments.
• Aroma Kutxa: Allows for the use of essential oils to diffuse fragrance.
• Garbitzeko erraza: Designed for simple and hassle-free cleaning.
• Ukitu kontrol-panela: Intuitive controls for various settings.
• UV esterilizazioa: Helps purify water for cleaner mist.
• Lo egiteko modua: Dims display and operates quietly for undisturbed rest.
• Tenporizadorearen funtzioa: Set operating duration from 1 to 12 hours.
• Laino-maila erregulagarriak: Three mist output settings (Low, Medium, High).
• 48-Hour Run Time: Provides long-lasting humidification on a single fill.
• Ura Shortage Babesa: Automatically shuts off when water level is low.
• Autogarbiketa funtzioa: Simplifies internal cleaning.

Figure 2.1: Key features including 13L tank capacity, 48-hour run time, and quiet operation.

3. Konfigurazioa

3.1 Paketatzea

Kontu handiz kendu ontziratzeko material guztiak eta ziurtatu osagai guztiak daudela. Gorde ontzia etorkizunean biltegiratzeko edo garraiatzeko.

3.2 Jartzea

Jarri hezegailua gainazal lau, egonkor eta urarekiko erresistente batean, gutxienez 15 cm-ra hormetatik eta altzarietatik. Ziurtatu laino-irteera ez dagoela hormetara edo gailu elektronikoetara zuzenduta.

Figure 3.1: Humidifier placed in a large room, demonstrating mist coverage.

3.3 Ur depositua betetzea

1. Kendu hezegailuaren goiko estalkia.
2. Pour clean, cool tap water directly into the water tank through the top opening. Do not exceed the 'MAX' water level indicator.
3. Jarri goiko estalkia ongi.

Figure 3.2: Demonstrating the convenient top-fill design for water replenishment.

4. Funtzionamendu-argibideak

4.1 Kontrol-panela amaituview

The humidifier features an intuitive touch control panel located on the top. It includes buttons for Power, Max/Min Mist, Humidity, UV, Timer, and Sleep Mode.

Figure 4.1: Close-up of the humidifier's control panel.

4.2 Piztu/Itzali

Sakatu Boterea button to turn the humidifier on or off. The display will illuminate when the unit is active.

4.3 Adjusting Mist Levels

Sakatu Max/Min button to cycle through three mist output levels: Low, Medium, and High. The current level will be indicated on the display.

Figure 4.2: Visual representation of the three mist output levels.

4.4 Setting Humidity

Sakatu Hezetasuna button to set your desired humidity level (e.g., 40-60% RH). The humidifier will automatically adjust its mist output to maintain this level.

4.5 Tenporizadorearen funtzioa

Sakatu Tenporizadorea button to set an operating duration from 1 to 12 hours. The humidifier will automatically turn off once the set time expires.

4.6 Lo modua

Sakatu Lo egin button to activate sleep mode. The display lights will dim, and the humidifier will operate at a low, quiet mist level for undisturbed sleep.

4.7 UV Sterilization

Sakatu UV button to turn on the UV sterilization function, which helps to purify the water before it is dispersed as mist.

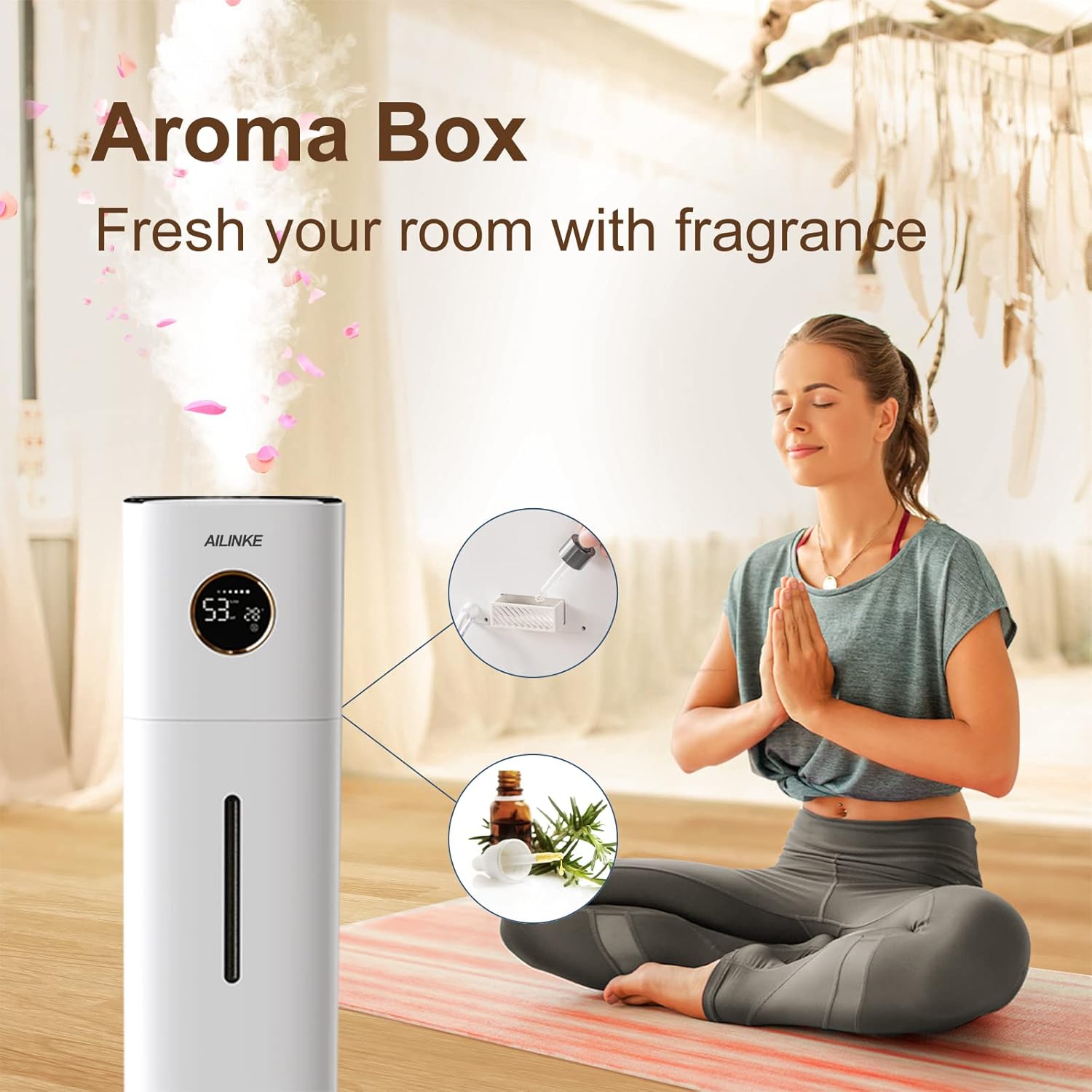

4.8 Using the Aroma Box

1. Locate the aroma box on the side of the humidifier.
2. Atera aroma-kutxaren erretilua.
3. Add a few drops of your preferred essential oil onto the aroma pad.
4. Irristatu aroma-kutxaren erretilua berriro bere lekuan.

Figure 4.3: Using the integrated aroma box for essential oil diffusion.

4.9 Produktu Ofizialen Bideoak

5. Mantentzea

5.1 Eguneko mantentze-lanak

• Hustu eta garbitu ur-depositua egunero, mineralen metaketa eta bakterioen hazkuntza saihesteko.
• Garbitu unitatearen kanpoaldea oihal leun eta lehor batekinamp oihal.

5.2 Asteko garbiketa

• Deskonektatu hezegailua garbitu aurretik.
• Kendu ur depositua eta bota gainerako ura.
• Clean the water tank and base with a soft brush and mild detergent. Rinse thoroughly.
• For mineral buildup, fill the tank with a 1:1 mixture of white vinegar and water. Let it soak for 30 minutes, then scrub and rinse.
• Ziurtatu pieza guztiak guztiz lehortuta daudela berriro muntatu aurretik.

5.3 Auto-garbiketa funtzioa

The humidifier includes a self-cleaning function to assist with internal maintenance. Refer to the control panel for activation. This feature helps to reduce mineral residue within the unit.

6. Arazoak

If you encounter issues with your humidifier, please consult the following common problems and solutions:

7. Zehaztapenak

• Marka: AILINKE
• Ereduaren izena: Goiko Bete Hezegailua
• Edukiera: 3.4 litro (13 litro)
• Kontrol-metodoa: Ukitu
• Produktuaren neurriak: 8.66 x 29.52 x 9.18 hazbete
• Elementuaren pisua: 7.63 kilo
• Gehienezko exekuzio-denbora: Gehienez 48 ordu
• Zarata maila: ≤35dB
• Estaldura-eremua: Up to 1000 sq.ft. (approximate, varies with conditions)
• UPC: 763431933940

8. Bermea eta Laguntza

This AILINKE humidifier comes with a 1 urteko bermea from the date of purchase. If you experience any issues or require assistance, please contact AILINKE customer service. Please have your purchase receipt and product model information ready when contacting support.

For customer service inquiries, please refer to the contact information provided with your product packaging or visit the official AILINKE webgunea.
