OMISOON 2000W PTC Electric Fan Heater User Manual

Segurtasun-argibide garrantzitsuak

Mesedez, irakurri arretaz argibide guztiak tresna hau erabili aurretik eta gorde etorkizunean erreferentzia gisa. Argibide hauek ez jarraitzen badituzu, deskarga elektrikoak, suteak edo lesio larriak gerta daitezke.

• Always plug the heater directly into a wall outlet. Never use with an extension cord or relocatable power tap.
• Ez erabili berogailua bainugeletan, garbitegietan edo ura egon daitekeen antzeko barruko lekuetan.
• Ez estali berogailua. Estaltzeak gehiegi berotu eta sua eragin dezake.
• Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 1 meter (3 feet) from the front and sides of the heater.
• Berogailu hau erabiltzen denean bero dago. Erredurak saihesteko, ez utzi azala biluziak gainazal beroak ukitzen.
• Gainbegiratzea beharrezkoa da edozein aparatu umeek edo baliogabeek erabiltzen dutenean edo ondoan erabiltzen dutenean.
• Deskonektatu berogailua erabiltzen ez duzunean.
• Ez erabili berogailurik kablea edo entxufea hondatuta badago, edo berogailua gaizki funtzionatzen badu, erori edo edozein modutan kaltetu bada.
• Ez sartu edo utzi objektu arrotzrik aireztapen edo ihes-zuloren batean sartzen, deskarga elektrikoa edo sutea eragin dezakeelako, edo berogailua kaltetu.
• Sute posible bat saihesteko, ez blokeatu aire-harrerak edo ihesak inola ere. Ez erabili gainazal bigunetan, ohe batean adibidez, non irekidurak blokeatu daitezkeen.
• The heater has an internal tip-over switch that automatically shuts off the heater if it is tipped over.
• The heater has an overheat protection system that automatically shuts off the heater if its internal temperature exceeds a standard value.
• Before use, remove the film from the display screen.

Produktua amaituview

Ezaugarri nagusiak:

• PTC Zeramikazko Berogailua: Provides instant heating with a maximum output of 2000W.
• Hainbat modu: Offers Low Heat (900W), High Heat (2000W), ECO Mode, and Fan Mode.
• Termostato digitala: Adjustable temperature range from 15°C to 35°C, with 1°C increments.
• 90°-ko oszilazioa: Beroa modu uniformean banatzen du eremu zabalago batean.
• 24 orduko tenporizadorea: Set the operating time from 1 to 24 hours.
• Urruneko kontrola: Urrutiko funtzionamendu erosoa.
• Segurtasun Ezaugarriak: Overheat protection and tip-over protection.
• Adjustable Control Panel: HD display with touch control, panel height can be adjusted.
• Zarata gutxiko funtzionamendua: Operates at approximately 40-60 dB.
• Diseinu eramangarria: Compact size (17 x 17 x 48 cm) and lightweight (2 kg) for easy movement.

Osagaiak:

• Berogailu Nagusia
• Urruneko Kontrola
• Elikatze-kablea (1.5 m-ko luzera)

Image: The OMISOON 2000W PTC Electric Fan Heater, showing its sleek black tower design, the digital display on top, and the remote control. Warm air is depicted flowing from the front grille.

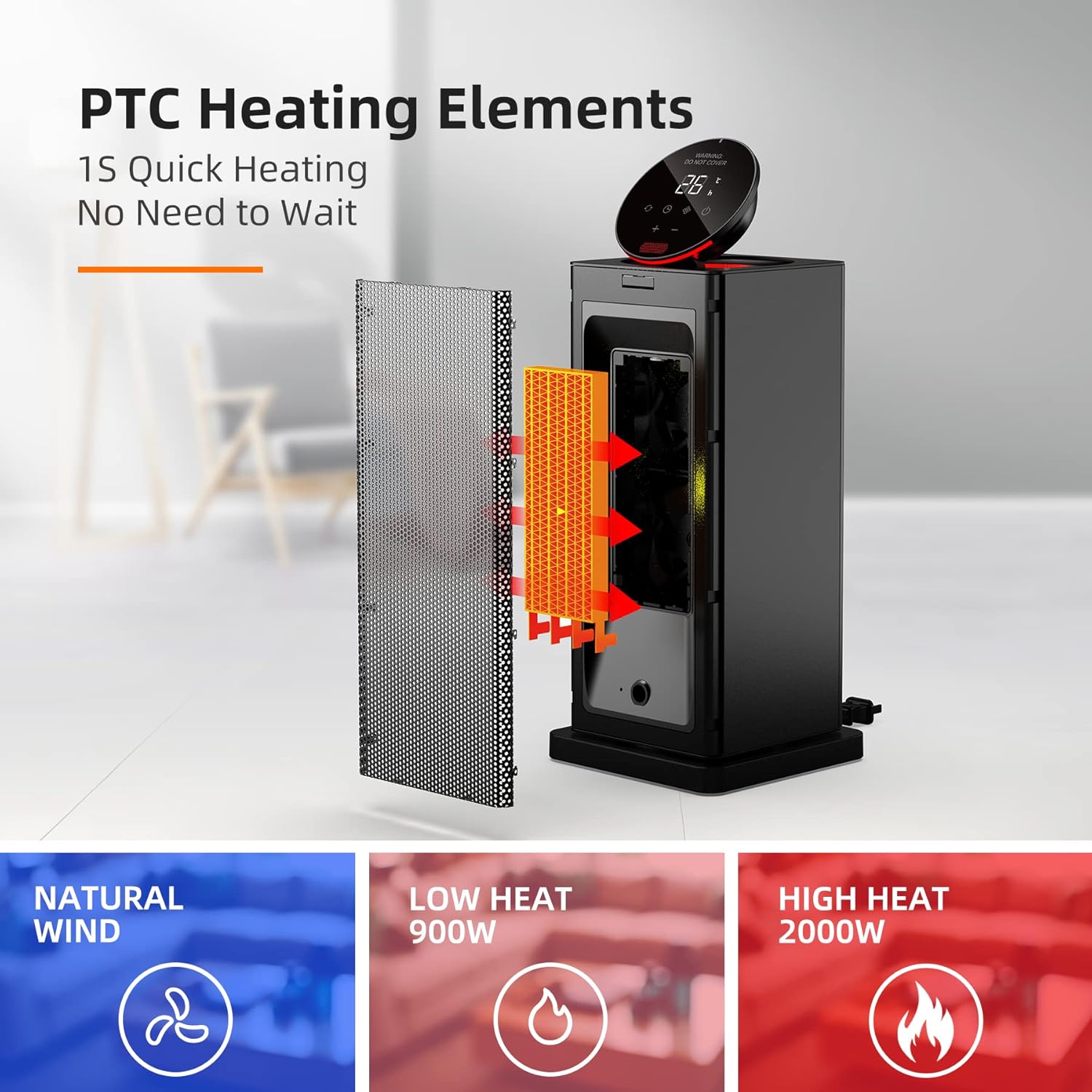

Irudia: Leherketa bat view diagram illustrating the PTC heating elements inside the heater, emphasizing 1-second quick heating. Below, icons represent Natural Wind, Low Heat (900W), and High Heat (2000W) modes.

Konfigurazioa

1. Despaketatzea: Kontu handiz atera berogailua eta osagarri guztiak paketetik.
2. Lekua: Place the heater on a firm, level surface. Ensure there is at least 1 meter (3 feet) of clear space around the heater from any combustible materials.
3. Potentzia-konexioa: Plug the power cord directly into a standard 220-240V ~ 50Hz wall outlet. Do not use extension cords or power strips.
4. Hasierako piztea: Press the master switch located at the back or bottom of the unit after plugging in the power. This prepares the unit for operation.
5. Display Film: If present, gently remove the protective film from the digital display screen.

Funtzionamendu-argibideak

Kontrol panela eta urruneko kontrola:

The heater can be operated using the touch-sensitive control panel on top of the unit or the included remote control. The control panel's height can be manually adjusted for convenience.

Irudia: Gertutik view of the heater's digital control panel, showing temperature display (e.g., 26°C) and touch buttons for power, mode, oscillation, timer, and temperature adjustment.

Image: The top of the heater with its control panel open, revealing a compartment for the remote control. The remote control itself is shown with buttons for Mode Switching, ON/OFF, Timer, Swing, and Temperature/Hour Increase/Decrease.

Piztu/Itzali:

• Ensure the master switch (usually at the back or bottom) is in the ON position.
• Sakatu Pizteko botoia () on the control panel or remote control to turn the heater ON or OFF.

Modu aukeraketa:

Sakatu Modu botoia () eskuragarri dauden berogailu moduen artean ziklatzeko:

• Bero baxua (900W): Berotze leun bat lortzeko.
• Bero handia (2000W): Berotze azkar eta indartsua lortzeko.
• ECO modua: The heater automatically adjusts its power output (900W/2000W) to maintain the set temperature, optimizing energy consumption. It will restart if the room temperature drops below the set temperature.
• Fan modua: Operates as a fan without heating.

Tenperaturaren doikuntza:

• In heating modes, use the "+" eta "-" buttons on the control panel or remote to adjust the desired temperature.
• The temperature can be set between 15°C and 35°C in 1°C increments.

Oszilazio funtzioa:

• Sakatu Swing botoia () on the control panel or remote to activate or deactivate the 90° oscillation feature.
• This feature helps distribute warm air more widely across the room.

Image: The heater shown oscillating 90 degrees, with warm air spreading across a room where a person and a dog are relaxing, illustrating the wide heat distribution.

Tenporizadorearen funtzioa:

• Sakatu Tenporizadorearen botoia () kontrol-panelean edo urrutiko agintean.
• Erabili "+" eta "-" buttons to set the desired operating time from 1 to 24 hours.
• Berogailua automatikoki itzaliko da ezarritako denbora igaro ondoren.

Image: The heater shown in a bedroom setting with a sleeping child, highlighting its thermostatic control, 1-24 hours adjustable timer, and low noise operation (around 40dB).

Mantentzea

Mantentze-lan erregularrak berogailuaren errendimendu optimoa eta iraupen luzea bermatzen ditu.

• Garbiketa:
  • Deskonektatu beti berogailua eta utzi guztiz hozten garbitu aurretik.
  • Erabili biguna, damp cloth to wipe the exterior surfaces of the heater.
  • Do not use abrasive cleaners or solvents as they may damage the surface.
  • The heater features a removable filter. Clean the filter regularly to ensure efficient airflow. Refer to the product diagram for filter location and removal instructions.
• Biltegiratzea:
  • Erabiltzen ez duzunean, gorde berogailua leku fresko eta lehor batean.
  • Berogailua jatorrizko ontzian gordetzea gomendatzen da hautsetik eta kalteetatik babesteko.

Arazoak konpontzea

Berogailuarekin arazoak badituzu, jo ezazu honako arazo eta irtenbide ohikoenei:

Image: Diagrams illustrating the safety features: tip-over protection (heater automatically turns off when tilted) and overheat protection (heater automatically turns off if internal temperature exceeds safe limits).

Zehaztapenak

Image: A diagram showing the precise dimensions of the heater: 17cm width, 17cm depth, and 48cm height.

Image: A person easily carrying the heater, highlighting its lightweight design (1.9kg) and portability. Also shows the general power supply switch at the bottom rear.

Bermea eta Laguntza

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official OMISOON webgunea. Gorde erosketa-agiria erosketaren frogagiri gisa, berme-erreklamazioetarako.

Oharra: Ordezko piezen erabilgarritasunari buruzko informazioa ez da produktuaren zehaztapenetan ematen.
