vidaXL Scandi-Style Engineered Wood Drawer Bottom Cabinet - Instruction Manual

1. Sarrera

This manual provides detailed instructions for the assembly, operation, and maintenance of your vidaXL Scandi-Style Engineered Wood Drawer Bottom Cabinet. This durable kitchen storage solution is designed to optimize your space with its well-organized shelves and drawer. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Produktuaren neurriak: 15.7 cm (Z) x 18.1 cm (S) x 32.1 cm (A)

2. Segurtasun informazioa

• Hormako eranskina: For stability and safety, this product behar be used with the wall attachment device provided. Securely fasten the cabinet to a wall to prevent tipping.
• Pisu muga: Do not exceed the maximum weight limit of 25 kilograms (approximately 55 pounds) for the entire cabinet. Distribute weight evenly.
• Muntaia: Ensure all components are correctly assembled and tightened according to the instructions. Loose parts can cause instability.
• Haurrak: Mantendu pieza txikiak eta ontziratzeko materialak haurren eskura urrun muntaketa bitartean, itotzea saihesteko.
• 65. proposamena Abisua: Produktu honek Kaliforniako estatuak minbizia eta jaiotzako akatsak edo ugalketa beste kalteak sor ditzakeen produktu kimikoak izan ditzake.

3. Paketearen edukia

Before assembly, verify that all parts are present and undamaged. If any parts are missing or damaged, contact customer support immediately. The package typically includes:

• Engineered wood panels (sides, top, bottom, back, door, drawer front, shelf)
• Hardware kit (screws, dowels, cam locks, hinges, drawer runners, handles, adjustable feet, wall attachment device)
• Assembly instructions (may be in German, refer to this manual for English guidance)

4. Muntatzeko jarraibideak

Assembly is required for this cabinet. Follow these general steps. Refer to the included diagram for specific part identification and orientation.

4.1. Beharrezko tresnak

• Phillips buruko bihurkina
• Mailua (aukerakoa, takoak egiteko)
• Drill (for wall attachment, if not pre-drilled)
• Maila

4.2. Urratsez urratseko muntaketa

1. Piezak desontziratu eta identifikatu: Lay out all panels and hardware on a clean, soft surface to prevent scratches. Identify each part using the provided diagrams.
2. Oinarria muntatu: Attach the adjustable feet to the bottom panel of the cabinet. Ensure they are securely fastened.
3. Eraiki markoa: Connect the side panels to the bottom and top panels using dowels and cam locks. Ensure all connections are tight and the frame is square.
4. Tiradera-euskarriak instalatzea: Attach the drawer runners to the interior side panels of the cabinet according to the instructions. Ensure they are level and aligned.
5. Muntatu tiradera: Construct the drawer box using the smaller panels and hardware. Attach the drawer front and handles. Insert the assembled drawer into the cabinet runners.
6. Ateko bisagrak lotu: Secure the hinges to the cabinet door and then to the cabinet frame. Adjust hinges as needed for proper door alignment.
7. Txertatu apala: Place the adjustable shelf into the desired position using the pre-drilled holes and shelf pins.
8. Atzeko panela erantsi: Secure the back panel to the cabinet frame using small nails or screws.
9. Hormako eranskina: Position the cabinet in its desired location. Using the provided wall attachment device, secure the cabinet to a sturdy wall stud. This is critical for safety.

Figure 1: Cabinet dimensions and internal measurements. The cabinet measures 40 cm wide, 81.5 cm high, with a drawer height of 9 cm and internal shelf space of 33.5 cm and 17.5 cm. The depth is 46 cm.

Figure 2: Cabinet with door open, revealing an adjustable internal shelf for storage.

Figure 3: Detail of the quality metal drawer runners for smooth movement and the elegant metal handles.

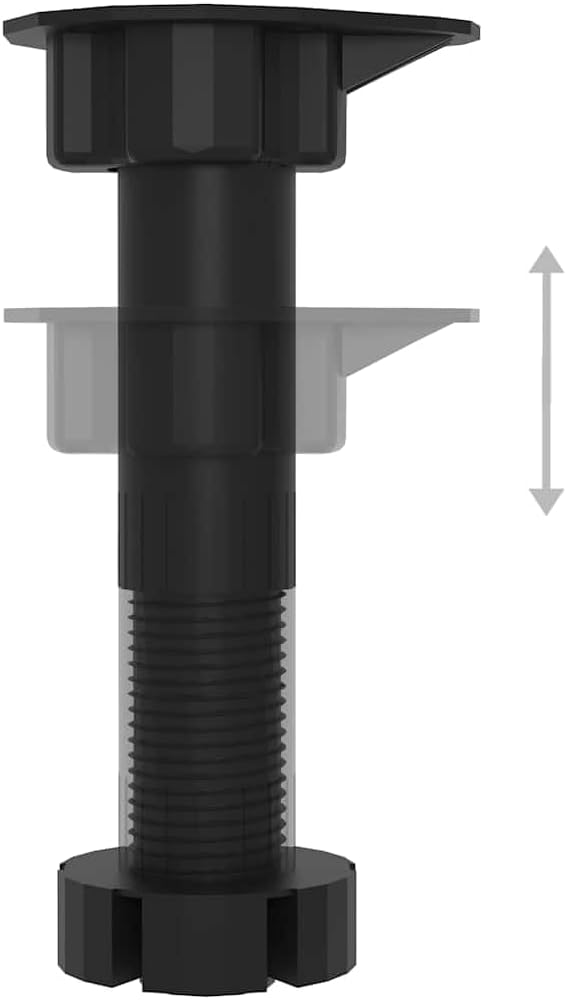

Figure 4: An adjustable cabinet foot, allowing for height customization and leveling on uneven surfaces.

5. Erabilera-argibideak

This cabinet is designed for general kitchen storage, suitable for items such as crockery, utensils, and pantry goods.

• Tiraderaren funtzionamendua: Pull the handle gently to open the drawer. Push firmly to close. Avoid slamming the drawer to ensure longevity of the runners.
• Atearen funtzionamendua: Pull the handle to open the cabinet door. Push firmly to close. The hinges allow for smooth opening and closing.
• Apalategiaren doikuntza: The internal shelf can be adjusted to different heights. To adjust, remove any items from the shelf, lift the shelf, remove the shelf pins from their current holes, reinsert them into the desired holes, and then place the shelf back on the pins.
• Pisuaren banaketa: Distribute items evenly across shelves and within the drawer to maintain stability and prevent damage to the cabinet structure.

6. Mantentzea

Arreta egokiak zure armairuaren iraupena eta itxura bermatuko ditu.

• Garbiketa: Garbitu armairuaren gainazalak iragarkiarekinamp cloth. For stubborn marks, a mild, non-abrasive cleaner can be used. Dry immediately with a clean cloth.
• Saihestu produktu kimiko gogorrak: Do not use abrasive cleaners, solvents, or strong chemical agents, as these can damage the painted finish and engineered wood.
• Isurketak: Garbitu isuriak berehala, hezetasunak egurraren kalteak saihesteko.
• Hardwarearen egiaztapena: Periodically check all screws, bolts, and fittings to ensure they remain tight. Retighten as necessary.

7. Arazoak

Muntaketa edo erabileran arazoak badituzu, jo ohiko irtenbide hauetara.

• Falta diren piezak: If any parts are missing from the package, contact vidaXL customer support with your product model number and a description of the missing part.
• Muntatzeko zailtasuna: Ensure you are following the steps in the correct order. Check that all cam locks and dowels are properly aligned and fully inserted. Do not force parts together.
• Armairu ezegonkorra: Verify that all screws are tightened. Ensure the adjustable feet are properly leveled on the floor. Confirm the cabinet is securely attached to the wall using the provided anti-tip device.
• Drawer/Door Not Closing Properly: Check that the drawer runners or door hinges are correctly installed and aligned. Adjust hinges if necessary. Ensure no obstructions are preventing full closure.

8. Zehaztapenak

9. Bermea eta Laguntza

For warranty information or customer support, please refer to the purchase documentation or contact vidaXL directly through their official website or the retailer where the product was purchased. Ensure you have your proof of purchase and product model number available when contacting support.

vidaXL Ofiziala Webgunea: www.vidaxl.com
