Mitsubishi 12,000 BTU Ductless Split System AC User Manual

Sarrera

This manual provides essential information for the safe and efficient operation of your Mitsubishi Ductless MZ-FH12NA Air Conditioner Mini Split. Designed for rooms up to 550 sq ft, this system offers advanced cooling and Hyper Heat capabilities with a SEER 26.1 rating, contributing to energy savings and reduced environmental impact.

Important: All units must be installed professionally by a local HVAC installer to ensure proper function and safety.

Ezaugarri nagusiak

• Cools & Heats 550 Sq ft Room
• H2i plusTM errendimenduak % 100eko berokuntza-gaitasuna eskaintzen du -5°-tan eta % 70 eta % 81-en -13° F-tan.
• Hot-Start Technology: no cold air rush at equipment startup
• 3D i-see Sensor enables advance features:
  • Indirect or Direct Airflow for personalized comfort
  • Absence Detection for energy-saving mode
• Haizagailuaren abiadura anitzeko aukerak: Lasaia, Baxua, Ertaina, Alta, Goi-altua, Automatikoa
• Inbertsoreak eragindako konpresoreak eta LEVk eraginkortasun eta erosotasun handia eskaintzen dute errendimendu maximoa mantentzeko behar den energia soilik erabiltzen duten bitartean
• Blue Fin korrosioaren aurkako tratamendua kanpoko unitateko bero-trukagailuari aplikatuta, bobina babesteko eta bizitza luzeagoa lortzeko

Konfigurazioa eta Instalazioa

The Mitsubishi Ductless Split System requires professional installation. This involves mounting the indoor unit, connecting the refrigerant line set and electrical conduit, and positioning the outdoor unit. Proper placement ensures optimal performance and energy efficiency.

This diagram illustrates the typical setup of the Mitsubishi Ductless Split System, showing the indoor unit (1), the refrigerant line set and electrical conduit (2) connecting to the outdoor unit (3).

Funtzionamendu-argibideak

The system is primarily controlled using the provided handheld remote. This remote allows you to adjust the temperature, fan speed, and select various operating modes (e.g., Cool, Heat, Fan, Dry, Auto) to suit your comfort needs. The remote provides convenient control from anywhere within the room.

The system is controlled via a handheld remote, allowing adjustment of temperature, fan speed, and various modes for optimal comfort.

Mantentzea

Regular maintenance is crucial for the longevity and efficiency of your Mitsubishi Mini Split system. The primary user-level maintenance involves cleaning the air filters.

Aire iragazkien garbiketa

1. Ireki astiro barneko unitatearen aurrealdeko panela.
2. Carefully remove the blue air filters.
3. Use a vacuum cleaner to remove accumulated dust and debris from the filters.
4. Once clean, reinsert the filters and close the front panel.

It is recommended to perform this filter cleaning about once a month, or more frequently if the unit is used heavily or in dusty environments.

Regular maintenance includes cleaning the air filters, which can be easily accessed by opening the front panel of the indoor unit. It is recommended to vacuum the filters monthly to ensure optimal performance and air quality.

Arazoak konpontzea

If you encounter any issues with your Mitsubishi Ductless Split System, please refer to the comprehensive troubleshooting guide in the full product manual provided at the time of purchase. For complex issues, contact a certified HVAC professional.

Zehaztapenak

Bermea eta Laguntza

For detailed warranty information and customer support, please refer to the documentation included with your product or visit the official MITSUBISHI website. Professional installation and regular maintenance are key to ensuring your warranty remains valid.

Produktuen bisualak

Bat baino gehiagoview of the Mitsubishi Ductless Split System, featuring both the sleek indoor air handler and the compact outdoor condenser unit.

The EnergyGuide label highlights the system's high efficiency, with a Cooling Efficiency Rating (SEER) of 26.10 and a Heating Efficiency Rating (HSPF) of 12.50.

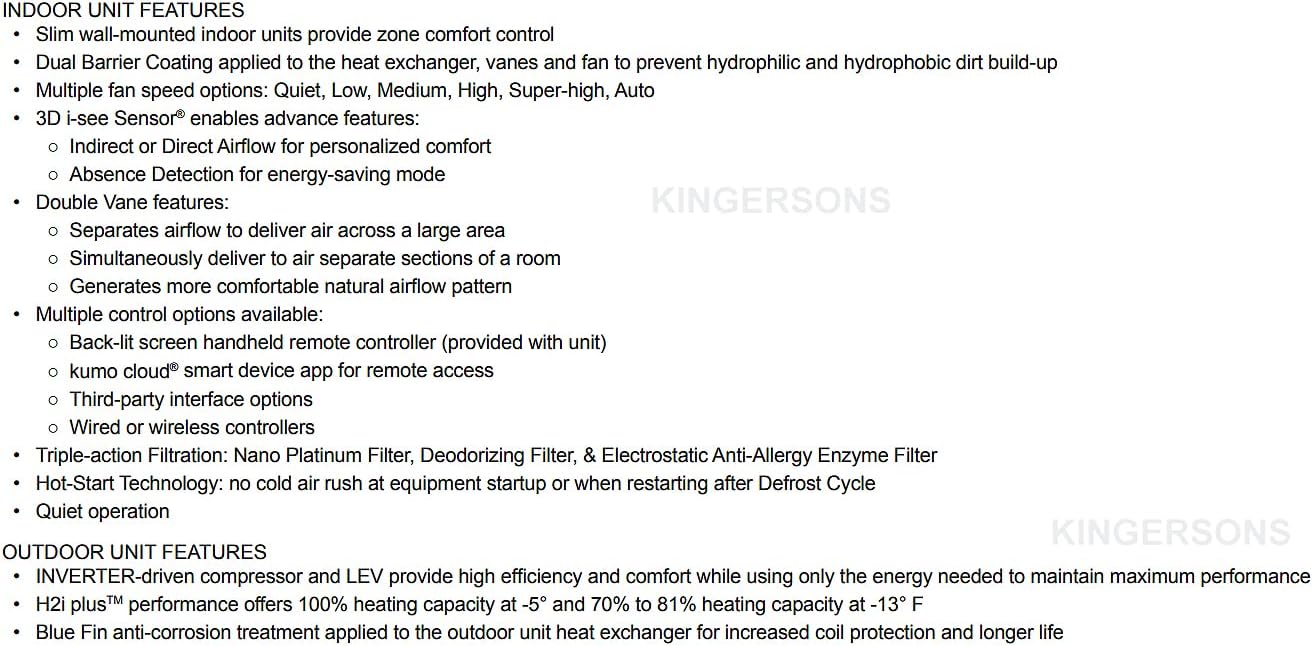

This image details advanced features such as Dual Barrier Coating for improved cleanliness, the 3D i-see Sensor for personalized airflow, and H2i plus™ performance for effective heating in cold climates.
