Sanyun SW010 Mini Soundbar User Manual

1. Sarrera

Eskerrik asko erosketagatik.asing the Sanyun SW010 Mini Soundbar. This manual provides essential information for setting up, operating, and maintaining your device. Please read it thoroughly before use to ensure optimal performance and longevity of your soundbar.

2. Paketearen edukia

Mesedez, egiaztatu paketea elementu hauek dituen:

• Sanyun SW010 Soundbar
• USB-C USB-A kablea
• Hasierako gida azkarra

3. Produktua amaitu daview

The Sanyun SW010 is a compact soundbar designed for versatile audio playback. Its pentagonal bar structure and compact size (26.5 x 5 x 5 cm) allow for convenient placement on any desk, under a monitor, or behind a laptop. It features a single multi-function knob for easy control.

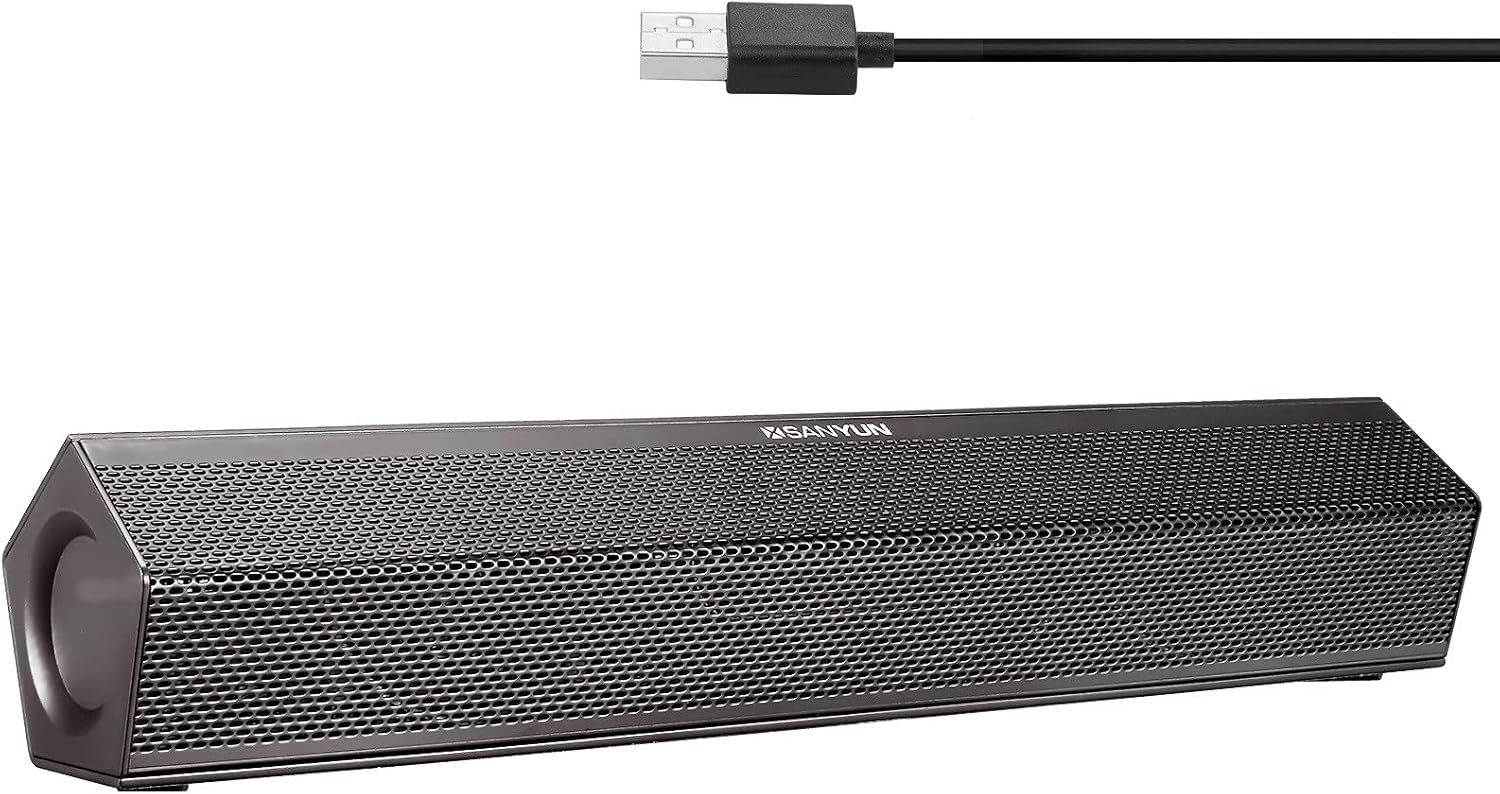

3.1. irudia: Aurrealdea view of the Sanyun SW010 Mini Soundbar with its USB connection cable.

3.2. irudia: Barnekoa view illustrating the speaker drivers and passive radiator for enhanced audio.

Kontrolak eta adierazleak:

• Funtzio anitzeko botoia: Located on the right side. Press to power on/off, switch modes (USB/Bluetooth), and rotate to adjust volume.
• LED adierazlea: Displays current mode (e.g., Red for USB, Blue for Bluetooth).
• USB-C ataka: For power and audio input via USB-A cable.
• 3.5 mm aurikularretarako konektua: Entzun pribaturako.

4. Konfigurazioa

The Sanyun SW010 offers two primary connection methods: wired USB-A and wireless Bluetooth 5.0.

4.1. Wired USB-A Connection

This method provides high-fidelity audio through the integrated 16-bit DAC, directly converting digital audio signals with minimal loss.

1. Connect the supplied USB-C to USB-A cable to the USB-C port on the soundbar.
2. Plug the USB-A end of the cable into an available USB-A port on your PC, laptop, or other compatible device.
3. The soundbar will power on automatically and enter USB mode (indicated by a red LED).
4. Ensure your device's audio output is set to the Sanyun SW010 soundbar.

Figure 4.1: Connecting the soundbar to a laptop using the USB-A cable for power and audio.

4.2. Bluetooth 5.0 konexioa

Gailu bateragarrietatik haririk gabeko audioa erreproduzitzeko.

1. Ensure the soundbar is powered on. If it's in USB mode, press the multi-function knob to switch to Bluetooth mode (indicated by a flashing blue LED).
2. Zure telefonoan, tabletan edo ordenagailuan, gaitu Bluetooth eta bilatu eskuragarri dauden gailuak.
3. Select "Sanyun SW010" from the list of devices to pair.
4. Once paired, the blue LED will become solid, and you can play audio wirelessly.

Figure 4.2: The soundbar connected wirelessly to a tablet, demonstrating Bluetooth functionality.

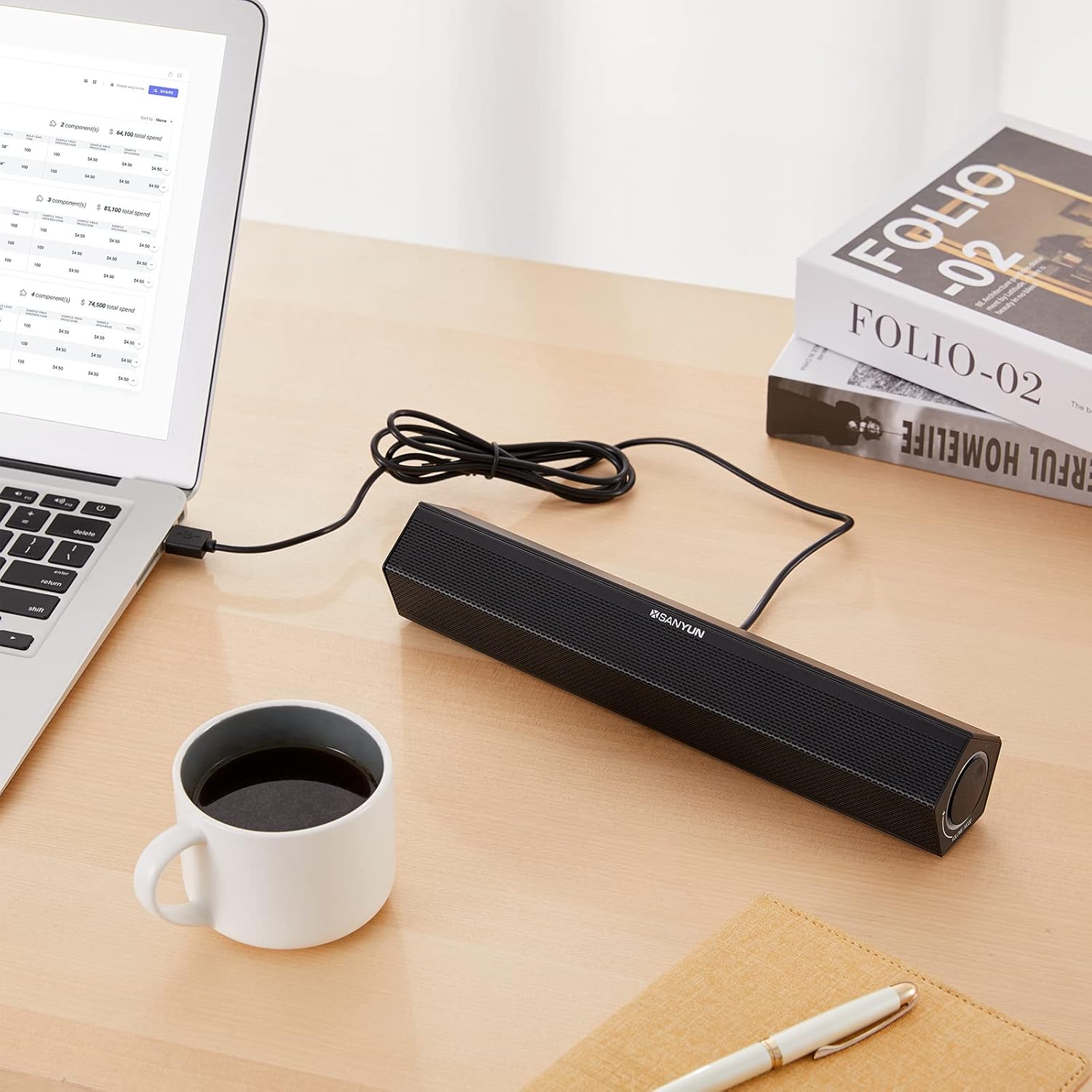

Figure 4.3: A typical desktop setup showing the soundbar positioned next to a laptop.

5. Funtzionamendu-argibideak

The Sanyun SW010 features a user-friendly single multi-function knob for all primary operations.

5.1. Piztu/Itzali

• Piztu: If the soundbar is off, press and hold the multi-function knob for approximately 3 seconds.
• Itzali: Press and hold the multi-function knob for approximately 3 seconds.

5.2. Bolumenaren doikuntza

• Handitu bolumena: Rotate the multi-function knob clockwise.
• Murriztu bolumena: Rotate the multi-function knob counter-clockwise.

5.3. Modu aldaketa

• Aldatu moduak: Briefly press the multi-function knob to toggle between USB mode (red LED) and Bluetooth mode (blue LED).

Figure 5.1: The multi-function knob, used for power, volume, and mode selection.

5.4. Using the 3.5mm Headphone Jack

Connect standard 3.5mm headphones to the headphone jack on the soundbar for private listening. When headphones are connected, audio will be routed through them, and the soundbar's speakers will be muted.

6. Mantentzea

To ensure the longevity and optimal performance of your Sanyun SW010 Soundbar, follow these simple maintenance guidelines:

• Garbiketa: Use a soft, dry cloth to wipe the surface of the soundbar. Do not use liquid cleaners, aerosols, or solvents, as they may damage the finish or internal components.
• Lekua: Place the soundbar on a stable, flat surface. Avoid placing it in direct sunlight, near heat sources, or in areas with high humidity or dust.
• Biltegiratzea: Soinu-barra denbora luzez gordetzen baduzu, deskonektatu korrontetik eta gorde leku fresko eta lehor batean.
• Saihestu eragina: Do not drop or subject the soundbar to strong impacts, as this can damage internal components.

7. Arazoak

If you encounter issues with your Sanyun SW010 Soundbar, please refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact Sanyun customer service for further assistance.

8. Zehaztapenak

9. Bermea eta Laguntza

Your Sanyun SW010 Soundbar comes with a 12 hilabeteko kezkarik gabeko bermea. Sanyun is committed to providing professional sound solutions and friendly lifetime customer service.

For warranty claims, technical support, or any inquiries, please refer to the contact information provided in your Quick Start Guide or visit the official Sanyun webgunea.
