Sojag Verona 10 Ft. X 14 Ft. Gazebo

1. Sarrera

This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your Sojag Verona 10 Ft. X 14 Ft. Gazebo. Please read this manual thoroughly before beginning assembly or use to ensure proper installation and safe operation. Keep this manual for future reference.

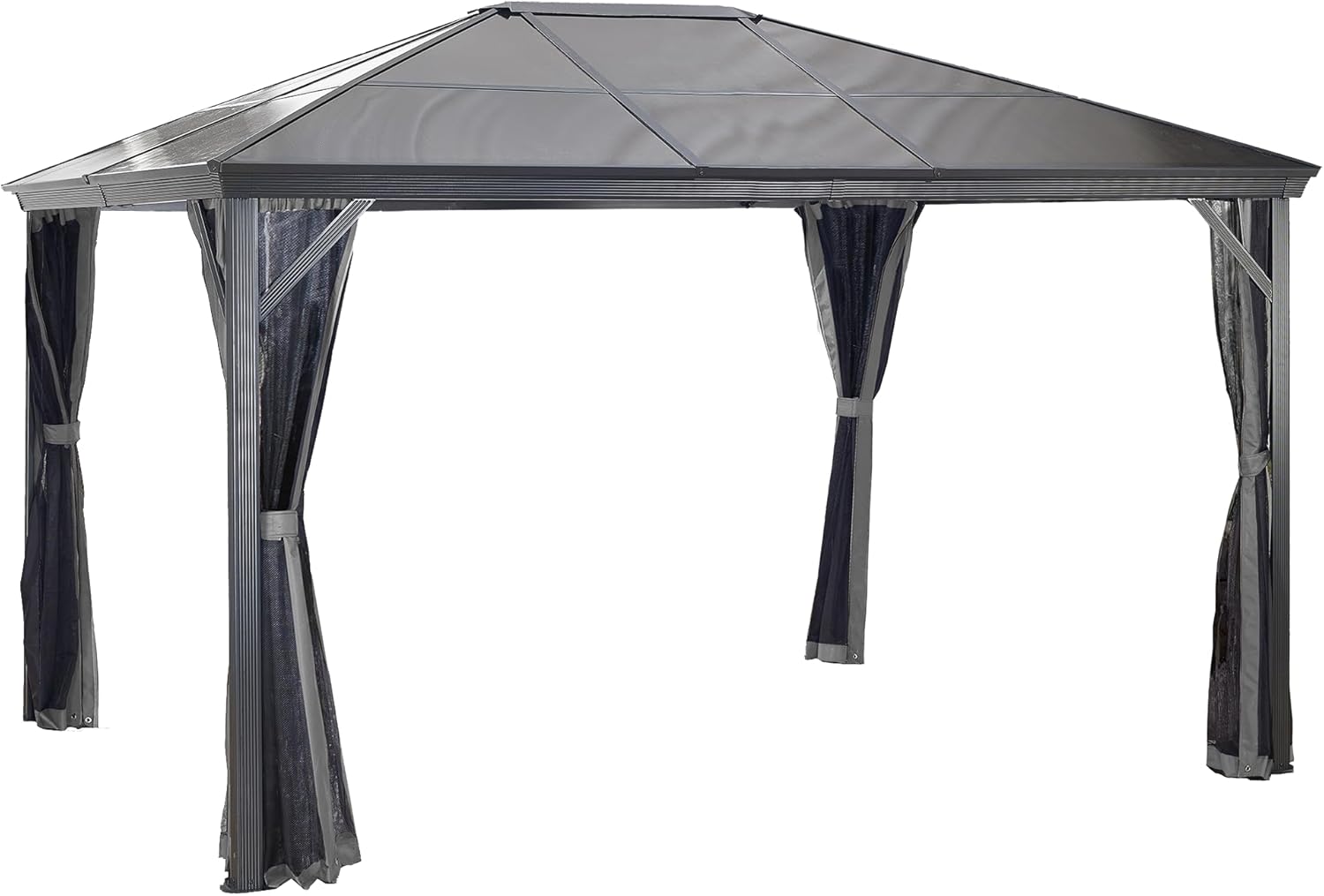

Image 1.1: The Sojag Verona 10 Ft. X 14 Ft. Gazebo, a durable outdoor structure designed for year-round use.

2. Segurtasun informazioa

Beti eman lehentasuna segurtasunari muntatzean eta erabiltzean. Argibide hauek ez jarraitzeak lesioak edo produktua kaltetu dezake.

• Bi pertsonako muntaketa: Assembly requires a minimum of two people for safety and ease of installation.
• Gunearen hautaketa: Choose a level, stable surface for installation. Ensure adequate clearance from power lines, trees, and other structures.
• Ainguraketa: Securely anchor the gazebo to the ground using appropriate hardware to prevent wind uplift.
• Elurra kentzea: In areas with snow accumulation, it is crucial to regularly remove snow from the gazebo roof to prevent structural damage.
• Ikuskapena: Periodically inspect all bolts, screws, and connections to ensure they are tight and secure.

3. Konfigurazioa eta Muntaketa

The Sojag Verona Gazebo is designed for straightforward assembly. All necessary parts and easy-to-follow instructions are included. It is recommended that two or more people participate in the assembly process.

1. Piezak desontziratu eta identifikatu: Kontu handiz desontziratu osagai guztiak eta egiaztatu muntaketa-gida bereizian emandako piezen zerrendarekin.
2. Markoaren muntaia: Begin by assembling the aluminum frame components. The extruded aluminum design provides enhanced durability.
3. Teilatu-panelen instalazioa: Install the UV-protected polycarbonate roof panels. These panels allow natural light while blocking harmful UV rays.
4. Mosquito Netting and Curtains: Attach the nylon mosquito netting using the double-track system. This system allows for simultaneous use of netting and optional curtains (sold separately).
5. Azken finkapena: Ensure all connections are tightened and the gazebo is securely anchored to its foundation.

Image 3.1: Diagram illustrating key features of the Verona Gazebo, including reinforced construction, protective finish, optimal shade protection, versatile shade with double track system, simple assembly, and pest prevention.

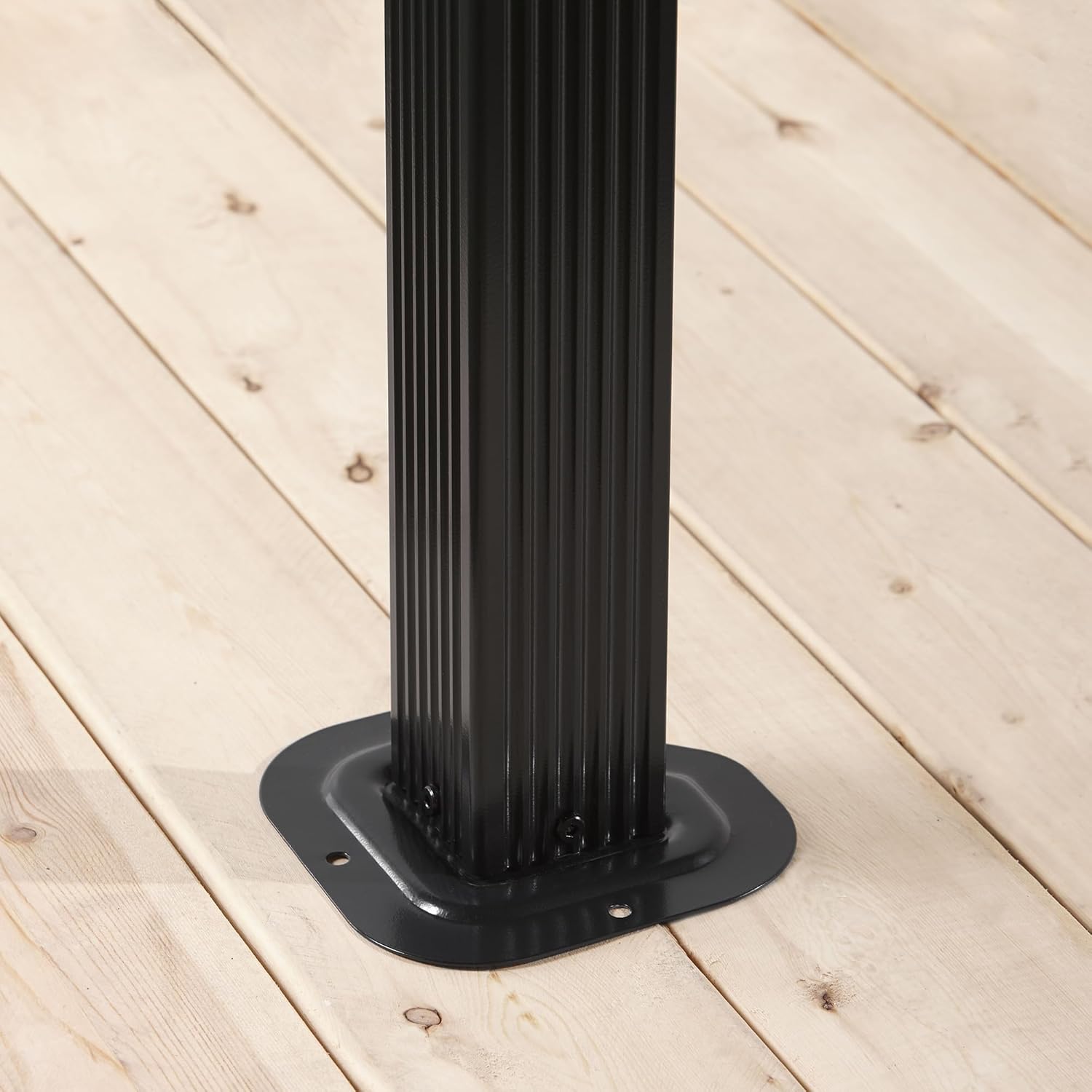

3.2 irudia: Gertuko planoa view of the gazebo's wide diameter column and base plate, highlighting the robust construction designed for improved strength and durability.

4. Funtzionamendu-argibideak

The Sojag Verona Gazebo is designed to enhance your outdoor living space, providing shade and protection throughout the year.

• Itzala eta UV babesa: The polycarbonate roof panels provide effective shade and block harmful ultraviolet rays, making it comfortable for daytime use.
• Izurriteak kontrolatzea: Utilize the integrated nylon mosquito net to keep insects out, ensuring an enjoyable outdoor experience. The double-track system allows the netting to be easily deployed or retracted.
• Denboraldi Guztietarako Erabilera: The robust aluminum frame with AkzoNobel's Interpon Powder Coating is built to withstand various weather conditions, allowing for year-round enjoyment.

Image 4.1: Detail of the double-track system, which allows for the simultaneous use of mosquito netting and privacy curtains, offering versatile protection and comfort.

Image 4.2: Close-up of the hook mechanism for securing the mosquito netting, demonstrating the ease of use for pest prevention.

5. Mantentzea

Regular maintenance will prolong the life and appearance of your Sojag Verona Gazebo.

• Snow Accumulation: Sojag strongly recommends removing any significant snow accumulation from the gazebo roof. Heavy snow can put excessive stress on the structure and lead to damage.
• Garbiketa: Clean the aluminum frame and polycarbonate panels with a mild soap and water solution. Avoid abrasive cleaners or harsh chemicals that could damage the AkzoNobel's Interpon Powder Coating or the polycarbonate. Rinse thoroughly with clean water.
• Markoaren babesa: The AkzoNobel's Interpon Powder Coating provides protection from fading, scratching, and corrosion. Avoid sharp objects that could scratch the coating.
• Netting Care: The nylon mosquito net can be gently cleaned with mild soap and water. Ensure it is completely dry before storing or retracting for extended periods.

Image 5.1: Visual representation of the rustproof aluminum frame, highlighting its ability to provide maximum protection from the elements due to its durable coating.

6. Arazoak

If you encounter issues with your Sojag Verona Gazebo, refer to the following common problems and solutions:

• Falta diren piezak: If any components are missing upon delivery, carefully re-check all packaging. If parts are still missing, contact Sojag customer support with your product model number and a detailed description of the missing items.
• Muntaketa Zailtasunak: Ensure you are following the step-by-step instructions provided in the separate assembly guide. Verify that all parts are oriented correctly. Do not force components together.
• Egitura zabartsua: Check that all bolts and screws are securely tightened. Ensure the gazebo is installed on a completely level surface. Re-anchor if necessary.
• Ur-ihesak: Inspect roof panels for proper seating and ensure all seals are intact. Check for any cracks or damage to the polycarbonate.

7. Zehaztapenak

Detailed specifications for the Sojag Verona 10 Ft. X 14 Ft. Gazebo:

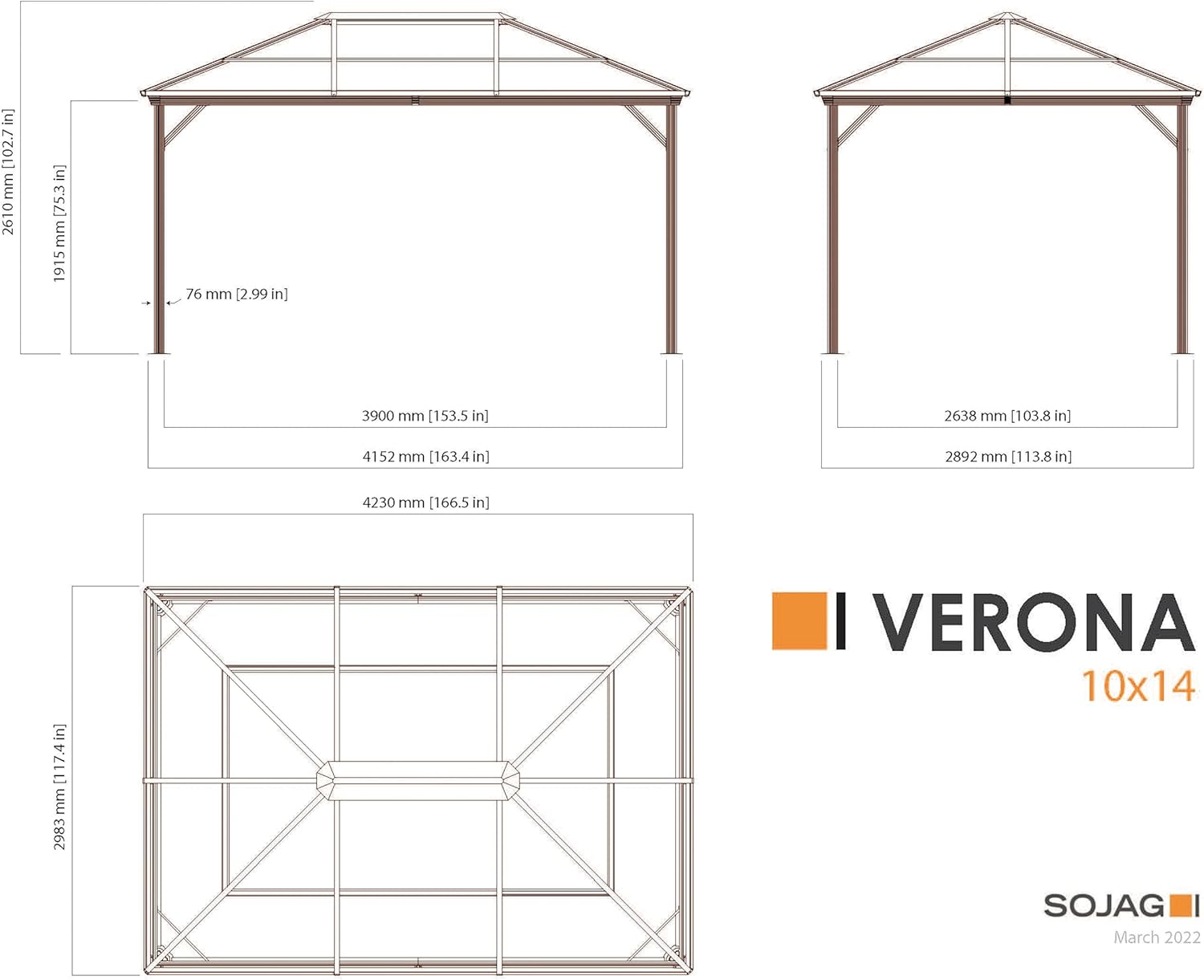

Image 7.1: Detailed technical drawing showing the dimensions of the Sojag Verona 10 Ft. X 14 Ft. Gazebo in both inches and millimeters.

8. Bermea eta Laguntza

For information regarding the product warranty, please refer to the warranty documentation included with your purchase or contact Sojag customer support directly. Keep your proof of purchase for any warranty claims.

For further assistance, technical support, or to order replacement parts, please visit the official Sojag webwebgunean edo jarri harremanetan bezeroarentzako arreta-zerbitzuarekin. Harremanetarako informazioa normalean produktuaren ontzian edo fabrikatzailearen eskuliburuan aurki daiteke. webgunea.
