WANGCL HOA26727 Universal Learning Remote Control User Manual

1. Sarrera

The WANGCL HOA26727 Universal Learning Remote Control is designed to replace multiple original infrared (IR) remote controls for various devices such as TVs, Satellite receivers, and DVD players. Its programmable learning function allows you to easily copy and consolidate the functions of your existing remotes into a single, convenient unit.

2. Produktua amaitu daview

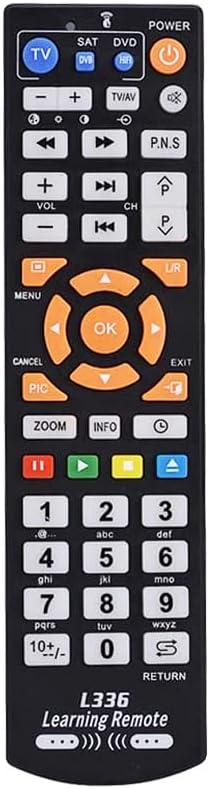

This remote control features a standard layout with dedicated buttons for TV, SAT, and DVD modes, along with a full numeric keypad, navigation buttons, and media controls. It is constructed from durable ABS material and comes in a black finish.

3. Konfigurazioa: Bateriaren instalazioa

The WANGCL HOA26727 remote control requires two AAA batteries (not included) for operation.

1. Kokatu bateriaren konpartimendua urrutiko agintearen atzealdean.
2. Irristatu bateriaren konpartimentuaren estalkia beherantz edo sakatu pestilloa eta altxatu irekitzeko.
3. Sartu bi AAA pila, ziurtatuz terminal positiboa (+) eta negatiboa (-) konpartimentuaren barruko markekin behar bezala lerrokatuta daudela.
4. Jarri bateriaren konpartimentuaren estalkia berriro bere lekuan sartuz, ondo klik egin arte.

Oharra: Always use new batteries and dispose of old batteries responsibly. Do not mix old and new batteries, or different types of batteries.

4. Operating Instructions: Learning Function

This remote control features a learning function, allowing it to copy commands from your original remote controls. Follow these steps to program the remote:

1. Prestaketa: Place the WANGCL universal remote control and your original remote control head-to-head, with the infrared emitters facing each other. Ensure the distance between them is less than 1 cm (approximately 0.4 inches).
2. Sartu Ikasteko moduan: Select the desired learning mode (TV, SAT, or DVD) by pressing the corresponding button in the upper left corner of the universal remote. Press and hold the selected mode button until the red indicator light flashes. Release the button.
3. Select Button to Program: Press the button on the WANGCL universal remote control that you wish to program. The red indicator light will remain steadily lit, indicating it is ready for programming.
4. Seinale transmisioa: Press the corresponding button on your original remote control. The WANGCL universal remote will receive the infrared signal and begin programming. The red indicator light will flash three times to confirm successful programming.
5. Program Additional Buttons: To program more buttons, press the next button on the WANGCL remote you wish to teach and repeat steps 3 and 4.
6. Exit Learning Mode: To exit the learning mode, press the learning mode button again, or the remote will automatically exit if no operation is performed within 15 seconds.

After programming, test the learned functions to ensure they operate correctly with your devices.

5. Mantentzea

• Garbiketa: Wipe the remote control with a soft, dry cloth. Do not use abrasive cleaners, solvents, or alcohol, as these can damage the surface.
• Bateria zaintzea: If the remote control will not be used for an extended period, remove the batteries to prevent leakage and potential damage. Replace batteries when the remote's performance degrades.
• Biltegiratzea: Store the remote in a cool, dry place, away from direct sunlight and extreme temperatures.

6. Arazoak

Urruneko gailuak ez du erantzuten:

• Egiaztatu bateriak polaritate zuzenarekin behar bezala sartuta dauden.
• Ordeztu bateriak berriekin.
• Ziurtatu ez dagoela oztoporik urruneko gailuaren eta gailuaren artean.
• Verify that the remote is pointed directly at the device's IR receiver.

Learning function fails or programmed buttons do not work:

• Ensure the distance between the universal remote and the original remote is less than 1 cm during the learning process.
• Make sure both remotes have fresh batteries.
• Repeat the learning procedure carefully, ensuring the red indicator light flashes correctly at each step.
• Some original remotes may have weaker IR signals; try adjusting the angle or distance slightly during learning.
• Ensure the original remote is functioning correctly.

Remote only controls one device:

• Remember to switch between TV, SAT, and DVD modes using the dedicated buttons at the top of the remote to control different devices.
• Ensure you programmed the correct functions under the desired mode.

7. Zehaztapenak

8. Bermea eta Laguntza

Specific warranty information for the WANGCL HOA26727 Universal Learning Remote Control is not provided in this manual. Please refer to the retailer's return policy or contact the seller directly for details regarding warranty coverage and customer support.

For further assistance or inquiries, please contact WANGCL customer service through the platform where the product was purchased.
