SHARK IX140H Lightweight Cordless Pet Stick Vacuum User Manual

Sarrera

This manual provides detailed instructions for the safe and efficient operation, maintenance, and troubleshooting of your Shark IX140H Lightweight Cordless Pet Stick Vacuum. Please read this manual thoroughly before first use and retain it for future reference.

The Shark IX140H Lightweight Cordless Pet Stick Vacuum in blue.

Produktuaren osagaiak

Your Shark IX140H vacuum comes with several components designed for versatile cleaning:

• Xurgagailu Nagusia (Eskukoa)
• Luzapen Makila
• Floor Nozzle with Brushroll
• 8" zirrikitu tresna
• Hautsak botatzeko eskuila
• Maskoten ile-tresna
• Kargatzeko egokitzailea

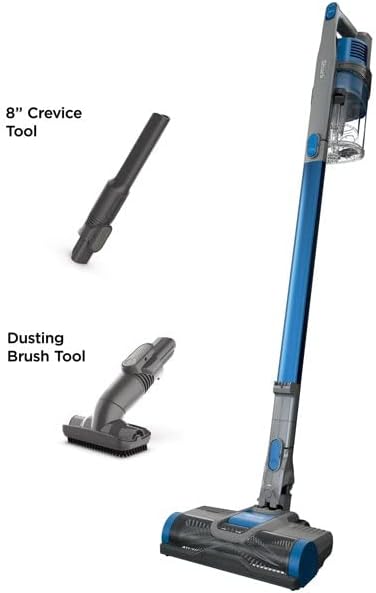

The 8-inch Crevice Tool, ideal for reaching tight spaces and corners.

The Dusting Brush Tool, suitable for delicate surfaces and removing fine dust.

The vacuum easily converts to a handheld unit for versatile cleaning above floors.

Konfigurazioa

1. Desegin: Kontu handiz kendu osagai guztiak ontzitik.
2. Muntatu:
   • Insert the extension wand into the floor nozzle until it clicks securely.
   • Insert the handheld vacuum into the top of the extension wand until it clicks securely.
3. Kargatu bateria: Connect the charging adapter to the handheld vacuum's charging port. Plug the adapter into a standard electrical outlet. The battery indicator lights will illuminate to show charging status. Ensure the battery is fully charged before first use (approximately 4 hours).

Funtzionamendu-argibideak

1. Piztu/Itzali: Press the Power button located on the handle to turn the vacuum on or off.
2. Hautatu potentzia modua: Your vacuum features two power levels. Press the mode selection button to switch between standard suction and MAX power mode for tougher messes.
3. Eranskinak erabiltzea:
   • To use the vacuum as a handheld unit, press the release button to detach the extension wand.
   • Attach the desired accessory (crevice tool, dusting brush, or pet hair tool) directly to the handheld vacuum or to the end of the extension wand for extended reach.
4. Azalerak garbitzea:
   • For bare floors and low-pile carpets, use the standard power mode.
   • For deep cleaning on carpets or stubborn debris, activate MAX power mode.

The Shark IX140H provides powerful cleaning on both carpets and hard floors.

Detach the nozzle and use the wand to easily clean hard-to-reach areas above the floor.

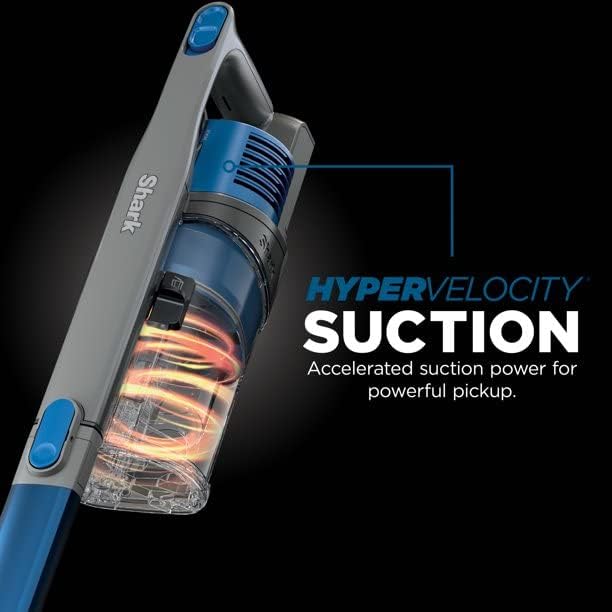

The vacuum features Hypervelocity Suction for accelerated and powerful pickup.

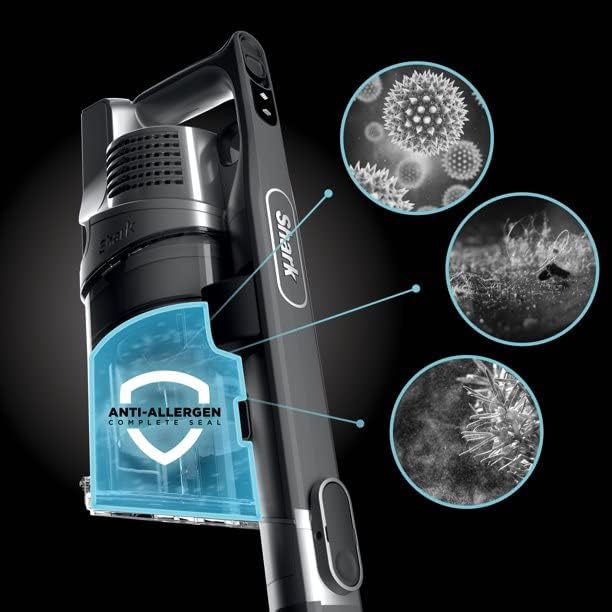

Equipped with an Anti-Allergen Complete Seal, trapping dust and allergens within the vacuum.

Mantentzea

Regular maintenance ensures optimal performance of your vacuum.

1. Hauts kopa hustea:
   • Press the dust cup release latch to detach the dust cup from the handheld vacuum.
   • Hold the dust cup over a trash bin and press the empty button to release debris.
   • Close the dust cup lid and reattach it to the handheld vacuum until it clicks.
2. Garbiketa iragazkiak:
   • Locate the pre-motor foam and felt filters inside the dust cup. Remove them.
   • Tap loose dirt off filters between washes. Rinse filters with cold water only. Allow to air-dry completely for at least 24 hours before reinstalling.
   • The post-motor HEPA filter is located at the bottom of the handheld unit. Twist to unlock and remove. Rinse with cold water and allow to air-dry completely for at least 24 hours.
   • Clean filters monthly or as needed, depending on usage.
3. Pintzelaren mantentze-lanak:
   • Regularly check the brushroll for any hair, string, or debris that may be wrapped around it.
   • Use scissors to carefully cut away any wrapped debris.

Arazoak konpontzea

If you encounter issues with your Shark IX140H vacuum, refer to the following common problems and solutions:

Zehaztapenak

Bermea eta Laguntza

For warranty information and customer support, please refer to the documentation included with your original product purchase or visit the official Shark webgunea. Gorde erosketa-agiria erosketaren frogagiri gisa, berme-erreklamazioetarako.
