Yujin Robot iClebo Arte YCR-M05-10 Robot Vacuum Cleaner Charger Docking Station User Manual

1. Sarrera

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your Yujin Robot iClebo Arte Charger Docking Station with AC 120V Adapter. This product is designed to provide a reliable charging solution for compatible iClebo robot vacuum cleaner models, including YCR-M05-10, YCR-M05-12, YCR-M05-30, YCR-M05-50, and YCR-M05-90.

Produktua erabili aurretik, irakurri arretaz eskuliburu hau, behar bezala funtzionatzen duela eta iraupena bermatzeko.

2. Segurtasun informazioa

Produktuari kalterik edo zeure buruari kalterik ez egiteko, jarraitu segurtasun neurri hauek:

• Do not expose the charging dock or adapter to water or excessive moisture.
• Use only the provided AC 120V adapter with the charging dock.
• Ez saiatu produktua desmuntatzen edo aldatzen.
• Keep the charging dock away from heat sources and direct sunlight.
• Ziurtatu entxufea erraz eskuragarri dagoela, behar izanez gero azkar deskonektatzeko.
• Unplug the adapter from the wall outlet before cleaning or if the product will not be used for an extended period.
• Mantendu haurren eta maskoten eskura.

3. Paketearen edukia

Egiaztatu elementu guztiak zure paketean daudela:

• 1 x Charging Dock Station
• 1 x AC 120V Power Adapter
• 1 x Cleaning Comb Tool (for maintenance of contact pins)

Note: The robot vacuum cleaner is sold separately and is not included with this charging station.

4. Produktua amaitu daview

Familiarize yourself with the components of your charging dock station:

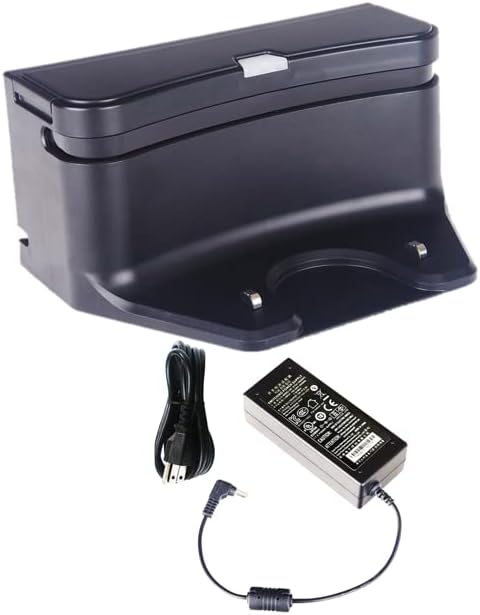

4.1. irudia: The Yujin Robot iClebo Arte Charger Docking Station shown with its accompanying AC 120V power adapter and power cord. The dock is black with a silver accent, featuring two metal contact pins at the base for charging the robot vacuum.

4.2. irudia: Hurbilago bat view of the Yujin Robot iClebo Arte Charger Docking Station, highlighting its compact black design and the two prominent metal contact pins where the robot vacuum connects for charging.

Ezaugarri nagusiak:

• Built-in infrared sensors: For precise docking of the robot vacuum.
• Status light indicator: Karga-egoeraren inguruko iritzi bisuala ematen du.
• Metal contact pins: Ensure efficient power transfer to the robot vacuum.
• Cleaning comb tool: Included for maintaining the contact pins and surrounding area.

5. Konfigurazioa

Follow these steps to set up your charging dock station:

1. Aukeratu kokapena: Select a flat, stable surface against a wall with clear space around it. Ensure there are no obstacles within 1 meter (3 feet) in front of the dock and 0.5 meters (1.5 feet) on either side. This allows the robot vacuum to dock easily.
2. Konektatu egokitzailea: Insert the small plug of the AC 120V power adapter into the power input port located on the back or side of the charging dock station.
3. Konektatu energia elektrikora: Plug the other end of the AC 120V power adapter into a standard wall outlet.
4. Egiaztatu potentzia: Once plugged in, the status light indicator on the charging dock should illuminate, indicating that it is receiving power.

6. Funtzionamendu-argibideak

The charging dock station is designed for automatic and manual charging of your iClebo robot vacuum.

Karga automatikoa:

When the robot vacuum's battery is low, it will automatically return to the charging dock to recharge. Ensure the dock is powered on and unobstructed.

Eskuzko kargatzea:

To manually charge your robot vacuum:

1. Align the robot vacuum with the charging dock, ensuring the charging contacts on the robot align with the metal contact pins on the dock.
2. Gently push the robot onto the dock until it clicks into place and the status light indicator on the dock (and/or robot) confirms charging has begun.

The charging process typically takes approximately 2 hours for a full charge, depending on the robot's battery level.

7. Mantentzea

Regular maintenance ensures optimal performance and extends the lifespan of your charging dock station.

• Kaia garbitzea: Use a soft, dry cloth to wipe down the exterior of the charging dock. Do not use abrasive cleaners or solvents.
• Cleaning Contact Pins: Periodically inspect the metal contact pins on the charging dock and the corresponding contacts on your robot vacuum. Use the included cleaning comb tool or a clean, dry cloth to remove any dust, dirt, or debris that may accumulate on these contacts. Clean contacts ensure efficient charging.
• Elikatze-kablearen ikuskapena: Regularly check the power cord and adapter for any signs of damage, fraying, or kinks. If any damage is observed, discontinue use and contact support.

8. Arazoak

If you encounter issues with your charging dock station, refer to the following common problems and solutions:

Irtenbide hauek probatu ondoren arazoa konpontzen ez bada, jarri harremanetan bezeroarentzako arreta-zerbitzuarekin laguntza gehiago jasotzeko.

9. Zehaztapenak

10. Bermea eta Laguntza

For warranty information or technical support, please refer to the documentation provided with your original robot vacuum cleaner or contact the manufacturer, Yujin Robot, or the seller, Robot Vacuum Co, directly. Keep your purchase receipt as proof of purchase.

For general inquiries or troubleshooting not covered in this manual, please visit the manufacturer's official webwebgunean edo jarri harremanetan bere bezeroarentzako arreta zerbitzuarekin.
