1. Sarrera
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Zyxel True WiFi 6 AX1800 Wireless Gigabit Business Access Point. Please read this manual thoroughly before using the device to ensure proper setup and optimal performance. This device is designed to provide robust and secure wireless connectivity for business environments, supporting the latest WiFi 6 (802.11ax) standard.
2. Produktua amaitu daview
The Zyxel AX1800 Wireless Gigabit Business AP is a high-performance access point featuring WiFi 6 technology, designed for seamless and secure wireless networking. It supports mesh networking, seamless roaming, and includes a captive portal for enhanced network management. This model comes with a CNP+ Security Bundle, offering advanced threat protection and application bandwidth management.
Aurrealdea view of the Zyxel AX1800 Wireless Access Point, showing the Zyxel logo and LED indicator.

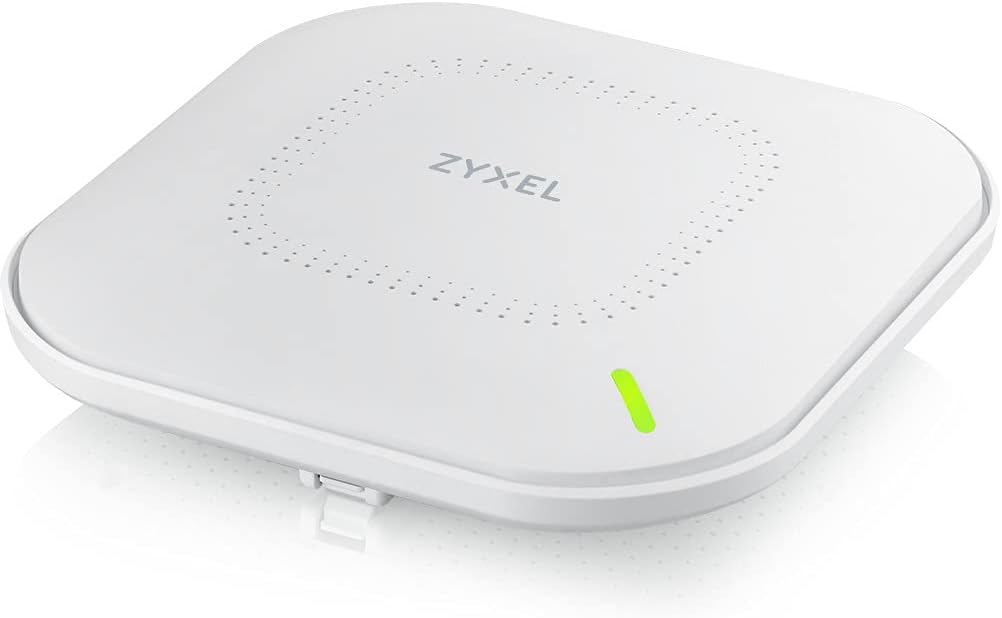

Angelukoa view of the Zyxel AX1800 Wireless Access Point, highlighting its sleek design.
Behean view of the Zyxel AX1800 Wireless Access Point, showing the UPLINK port and DC 12V power input.
Ezaugarri nagusiak:
- True WiFi 6 (802.11ax) Performance: Delivers faster speeds and greater capacity.
- Quad-Core CPU: Powered by a Qualcomm 1Ghz A53 CPU for robust performance.
Visual representation of the Quad-Core CPU powering the device.
- NebulaFlex™: Easily switch between traditional standalone mode and the license-free Nebula cloud management platform.

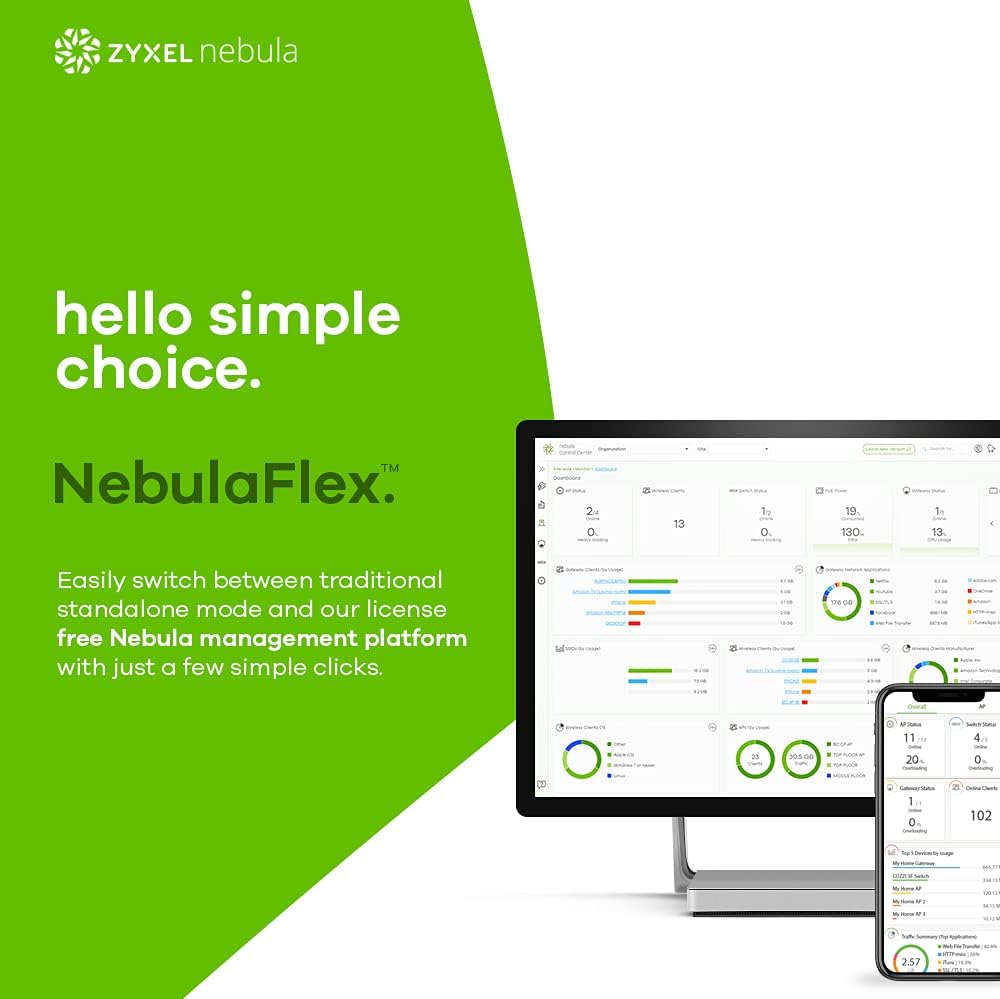

Screenshot illustrating the NebulaFlex interface for easy management.

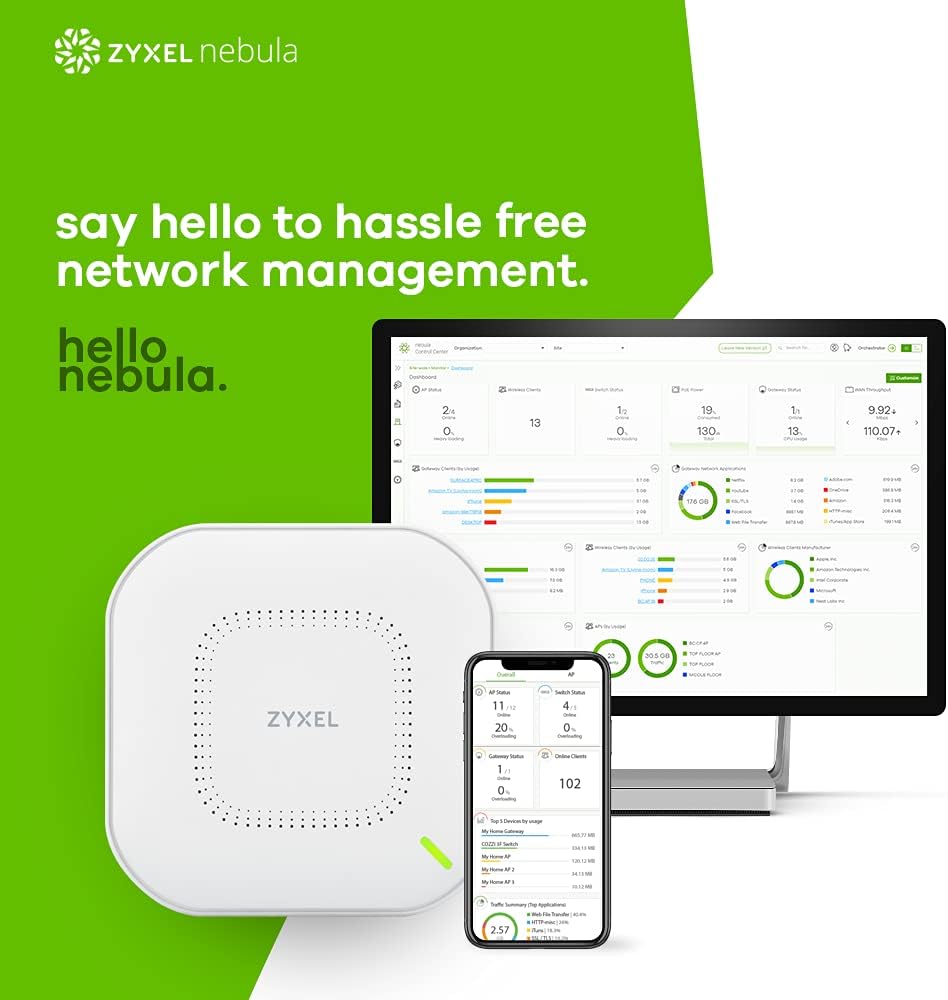

Amaituview of the Nebula cloud network management dashboard.
- Connect & Protect Plus (CNP+): Includes 1-year WiFi security service for enhanced network defense.
Icon representing the Connect & Protect Plus security service.
- Threat Protection with Application Bandwidth Management: Protects against cybersecurity risks and allows prioritization of crucial business operations.
Diagram illustrating threat protection and application bandwidth management capabilities.
- Hybrid Cloud Management: Flexible deployment options.
- POE+ or AC Powered: Versatile power options, AC adapter included.
3. Paketearen edukia
Egiaztatu zure paketeak elementu hauek dituela:
- Zyxel AX1800 Wireless Gigabit Business Access Point
- AC Potentzia Egokitzailea
- Mounting Kit (if applicable, for wall/ceiling mounting)
- Hasiera Azkarreko Gida (ikusi eskuliburu hau argibide zehatzak lortzeko)
If any items are missing or damaged, please contact your vendor or Zyxel support immediately.
4. Konfigurazioa
4.1. Gailua piztea
The Zyxel AX1800 can be powered using either Power over Ethernet (PoE+) or the included AC power adapter.
- Korronte-egokitzailea erabiliz: Connect the included AC power adapter to the "DC 12V" port on the back of the AP and plug the other end into a power outlet.
- PoE+ erabiliz: Connect an Ethernet cable from a PoE+ enabled switch or injector to the "UPLINK" port on the back of the AP. The device will power on automatically.
4.2. Sare-konexioa
Connect an Ethernet cable from your network router or switch to the "UPLINK" port on the Zyxel AX1800 AP.
4.3. Hasierako Konfigurazioa
The Zyxel AX1800 supports two primary configuration modes: Standalone and Nebula Cloud Management.
4.3.1. Standalone Mode Configuration
- Ensure the AP is powered on and connected to your network.
- Connect a computer to the same network as the AP.
- Ireki a web browser and enter the default IP address of the AP (refer to the Quick Start Guide or Zyxel support for the default IP, typically 192.168.1.2).
- Log in using the default username and password (e.g., admin/1234).
- Follow the on-screen wizard to configure your wireless network (SSID, password, security settings).
- Change the default login credentials for security purposes.
4.3.2. Nebula Cloud Management Configuration
For cloud-based management, register your device with the Zyxel Nebula platform.
- Visit the Zyxel Nebula webgunea (https://nebula.zyxel.com) and create an account if you don't have one.
- Log in to your Nebula account.
- Add your Zyxel AX1800 AP to your organization and site by scanning the QR code on the device or entering its MAC address and serial number.
- The AP will automatically connect to the Nebula cloud and download its configuration.
- Manage your wireless network, security settings, and other features directly from the Nebula dashboard.
5. Gailuaren funtzionamendua
5.1. Haririk gabeko konexioa
Once configured, the Zyxel AX1800 will broadcast your specified wireless networks (SSIDs). Devices can connect to these networks using the configured passwords.
5.2. LED adierazleak
The LED indicator on the front of the AP provides status information:
- Berde trinkoa: Gailua piztuta dago eta normal dabil.
- Berde keinukaria: Gailua abiarazten ari da edo firmwarea eguneratzen ari da.
- Anbarra solidoa: Device is in standalone mode and awaiting initial configuration or has a minor issue.
- Anbarra keinukaria: Device has a critical error or is unable to connect to the Nebula cloud (if configured for cloud management).
- Desaktibatuta: Gailua itzalita dago.
5.3. Ezaugarri aurreratuak
- Sare-sarea: Extend your wireless coverage by deploying multiple Zyxel APs in a mesh configuration. Refer to the Nebula documentation for detailed setup.
- Ibiltaritzarik gabekoa: Ensures smooth transitions for wireless clients between APs without interruption.
- Gatibu ataria: Configure a customizable login page for guest access, often used in public or business environments.
- Security Features (CNP+): Utilize the included security services for threat protection, content filtering, and application control. Access these features via the Nebula dashboard.
6. Mantentzea
6.1. Firmware eguneraketak
Regularly update the device firmware to ensure optimal performance, security, and access to new features. Firmware updates can be managed via the standalone web interface or automatically through the Nebula cloud platform.
6.2. Garbiketa
Clean the exterior of the device with a soft, dry cloth. Do not use liquid cleaners or aerosols. Ensure the device is powered off before cleaning.
6.3. Fabrika lehenetsitako ezarpenetara berrezartzea
To reset the device to its factory default settings, locate the reset button (usually a small pinhole) on the device. With the device powered on, use a paperclip or similar pointed object to press and hold the reset button for approximately 5-10 seconds until the LED indicator changes behavior (e.g., flashes rapidly). Release the button, and the device will reboot with factory defaults.
7. Arazoak
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Argirik ez / LED itzalita | Power adapter not connected; PoE+ not active or faulty cable. | Check power adapter connection and outlet. Verify PoE+ switch/injector is active and Ethernet cable is functional. |
| Ezin da Wi-Fi sarera konektatu | Incorrect Wi-Fi password; AP not broadcasting SSID; AP not configured. | Verify Wi-Fi password. Check AP configuration via web interface or Nebula. Ensure AP is powered on and LED is solid green. |
| Wi-Fi abiadura motela | Interference; AP placement; outdated firmware; too many connected devices. | Relocate AP away from obstructions/interference sources. Update firmware. Reduce number of active devices or consider adding more APs. |
| Cannot access AP web interfazea | Incorrect IP address; network connectivity issue; AP in Nebula mode. | Verify AP's IP address. Ensure your computer is on the same subnet. If using Nebula, manage via the cloud platform. Try resetting the AP to factory defaults. |
| Nebula cloud connection issues | Internet connectivity issue; firewall blocking; incorrect Nebula registration. | Check internet connection. Ensure firewall allows outbound connections to Nebula servers. Verify AP is correctly registered in your Nebula account. |
8. Zehaztapenak
| Ezaugarri | Xehetasuna |
|---|---|
| Modelo zenbakia | AX1800 | WiFi 6 | Bundle |
| Marka | ZyXEL |
| Haririk gabeko estandarra | 802.11ax (WiFi 6) |
| Maiztasun Banda Klasea | Banda Bikoitza |
| Datuen transferentzia-tasa | Up to 177 Gigabits Per Second (theoretical) |
| Portu kopurua | 3 (likely 1x Uplink, 2x Passthrough/LAN, though spec only says 3) |
| Konektibitate Teknologia | Wi-Fi, Ethernet |
| Kontrol-metodoa | App (Nebula Cloud), Web Interfazea |
| Ezaugarri Berezia | WPS, Mesh, Seamless Roaming, Captive Portal, CNP+ Security Bundle |
| Gailu bateragarriak | Desktop (and other Wi-Fi enabled devices) |
| Gomendatutako Erabilerak | Home (also suitable for small business/office environments) |
| Produktuaren neurriak | 7 x 7 x 7 hazbete |
| Elementuaren pisua | 2.12 kilo |
| Eskuragarri dagoen lehen data | 18ko azaroaren 2022a |
| Fabrikatzailea | Zyxel |
9. Bermea eta Laguntza
Bermeari buruzko informazioa lortzeko, kontsultatu zure produktuarekin batera datorren berme-txartela edo bisitatu Zyxel-en webgune ofiziala. website. Zyxel provides technical support for its products. For assistance, please visit the Zyxel support portal or contact their customer service through the details provided on their official webgunea.
Zyxelen laguntza Webgunea: https://www.zyxel.com/us/en/support
