Erabiltzailearen eskuliburua

1. Sarrera

The E-BOX series represents a new generation of LFP batteries designed for home energy storage systems. This battery pack offers a safe, well-designed, and high-performance standard LFP solution. It is compact, easy to install, maintenance-free, and can be assembled in parallel to form the building block of larger energy storage systems. Its applications span widely across home environments, small commercial and industrial energy storage systems, and Telecom stations.

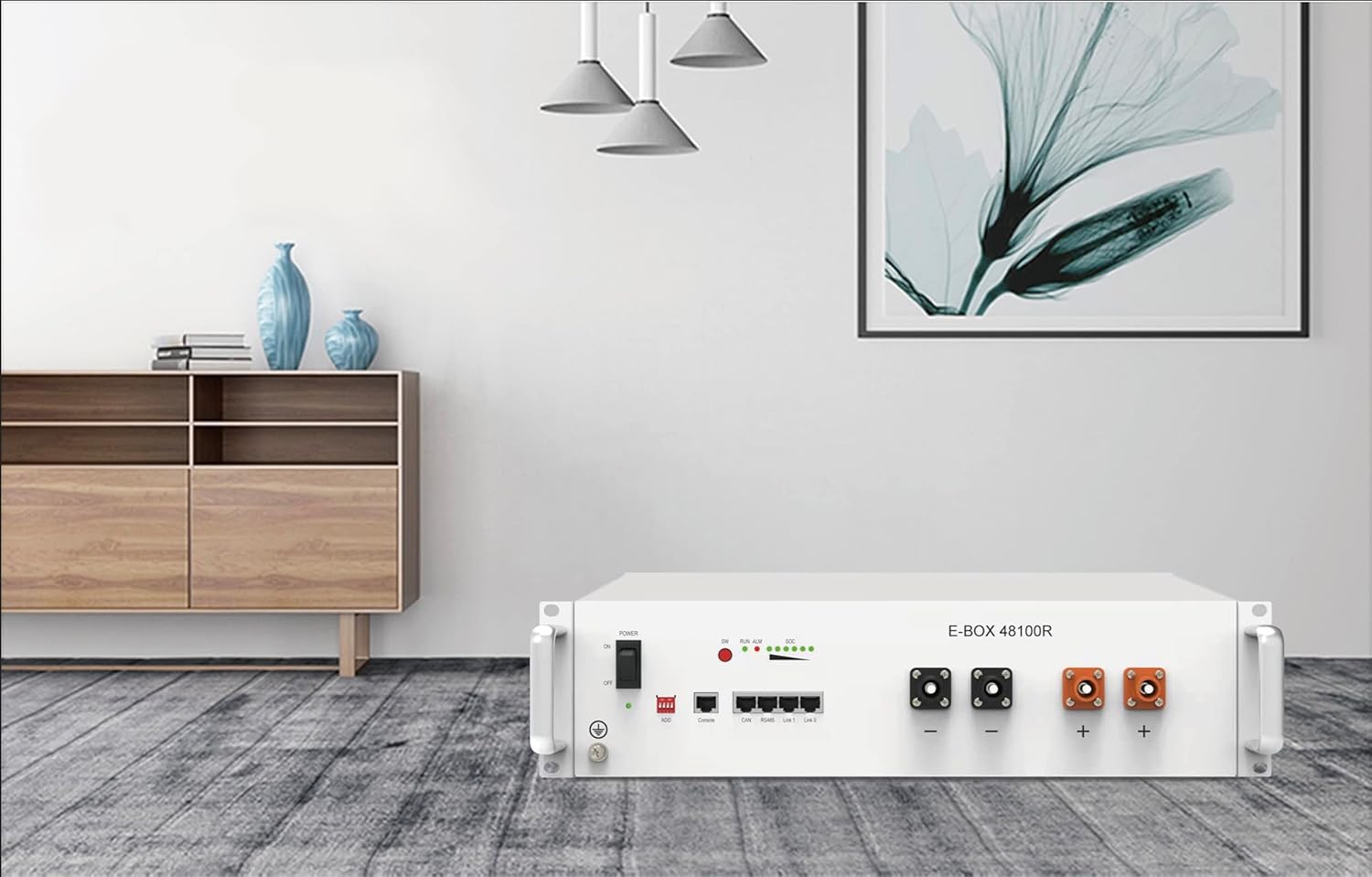

1.1. irudia: E-BOX-48100R LiFePO4 Lithium Battery in a typical home environment, demonstrating its compact design and suitability for residential integration.

2. Ezaugarri nagusiak

• Scalable to 30kWh: Allows for expansion of energy storage capacity as needed.
• Ziklo luzeko bizitza: Greater than 6000 cycles, ensuring extended product longevity.
• Easy Installation, Maintenance-Free, Easy Replacement: Designed for user convenience and minimal upkeep.
• Arinak eta trinkoak: Dimensions of 17.32" * 6.54" * 3.50" and a weight of 112.5lb for flexible placement.
• Bateriaren Kudeaketa Sistema Integratua (BMS): Ensures optimal performance, safety, and longevity of the battery cells.
• Communication with Mainstream ESS Inverters: Compatible with various energy storage system inverters for seamless integration.

2.1. irudia: Amaituview of the E-BOX battery's core features, highlighting its benefits for energy management and system integration.

3. Zehaztapen Teknikoak

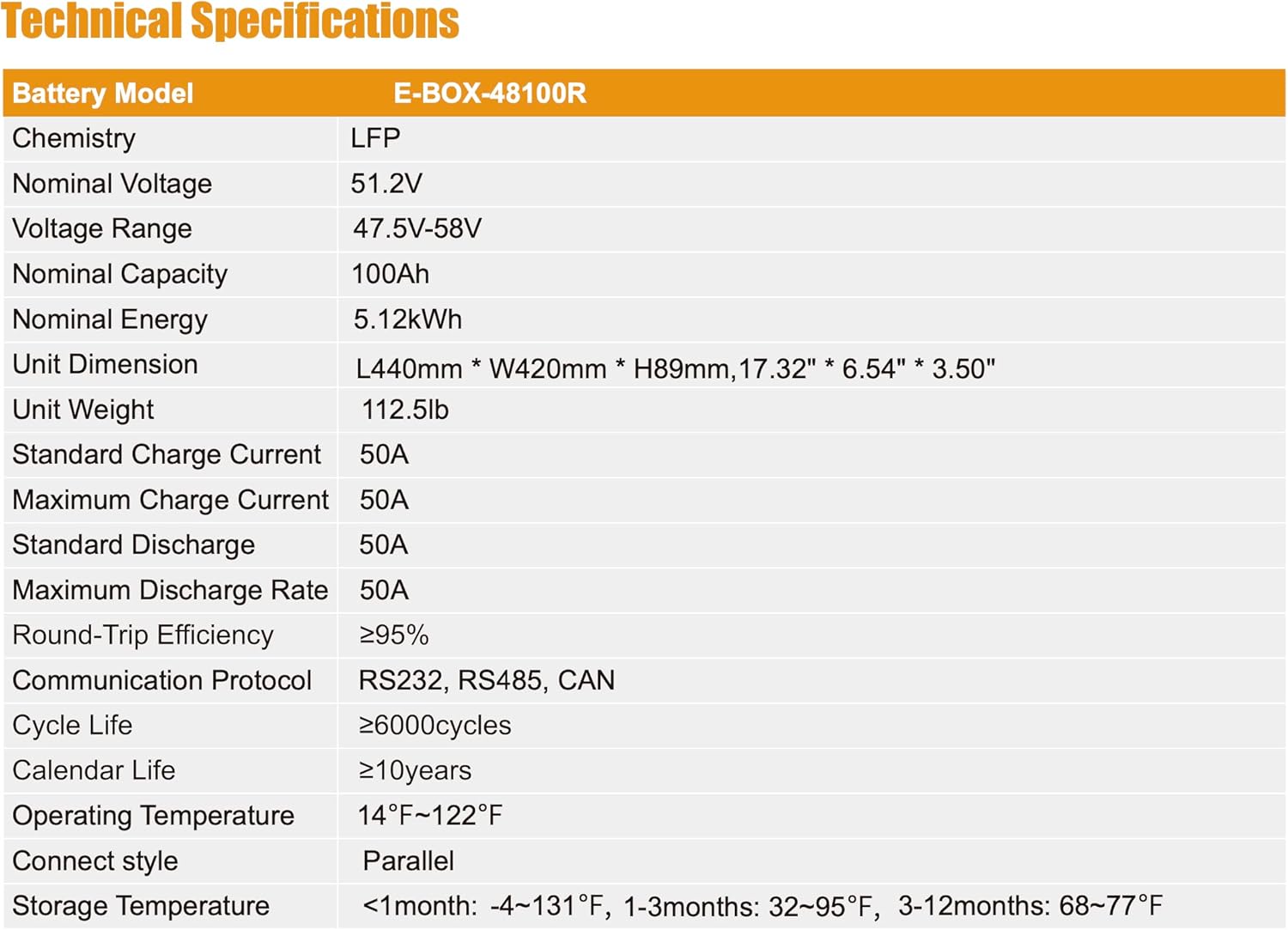

3.1. irudia: Detailed technical specifications for the E-BOX-48100R battery module.

4. Produktua amaitu daview and Operation Panel

The E-BOX-48100R battery module features a user-friendly operation panel designed for easy monitoring and control. Understanding the layout of the panel is crucial for proper operation.

4.1. irudia: Front panel of the E-BOX-48100R, displaying the main power switch, status indicators, and various communication and power terminals.

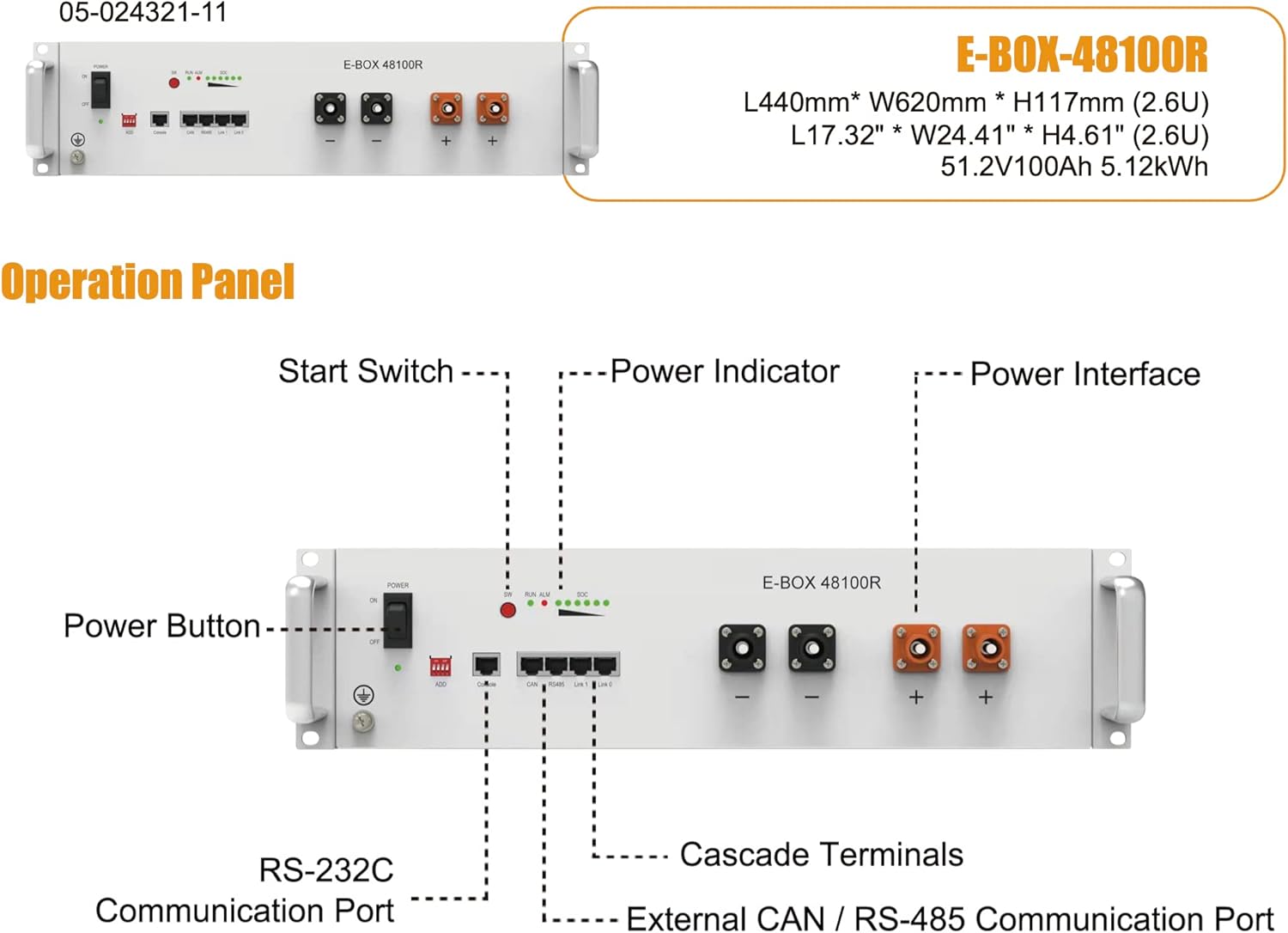

4.2. irudia: Labeled diagram of the E-BOX-48100R operation panel, indicating the function of each component.

• Pizteko botoia/etengailua: Controls the main power supply to the unit.
• Potentzia adierazlea: LEDs indicating the operational status and charge level of the battery.
• Potentzia Interfazea: Terminals for connecting the battery to the inverter or load (positive and negative).
• RS-232C Communication Port: For direct communication with a computer or monitoring device.
• External CAN / RS-485 Communication Port: For communication with inverters and other system components, supporting various protocols.
• Cascade Terminals: Used for parallel connection of multiple battery modules to increase capacity.

5. Konfigurazioa eta instalazioa

The E-BOX-48100R battery is designed for straightforward installation, primarily as a wall-mounted unit. Ensure you have adequate space and proper ventilation for the battery.

5.1 Dimentsio fisikoak

Before installation, verify the dimensions to ensure proper fit and clearance.

5.1. irudia: Detailed dimensions of the E-BOX-48100R battery module (L440mm x W620mm x H117mm).

5.2 Konexio paraleloa

Multiple E-BOX-48100R units can be connected in parallel to increase the overall energy storage capacity. Use the provided battery-to-battery cables and communication cables for this purpose. Refer to the cascade terminals on the operation panel for proper connection.

5.3 Inverter Compatibility

The E-BOX-48100R is compatible with a wide range of mainstream Energy Storage System (ESS) inverters. Ensure your inverter supports the specified communication protocols (CAN, RS485) for optimal performance.

5.2. irudia: Partial list of compatible inverters for Pytes ESS batteries. Always verify compatibility with your specific inverter model.

6. Funtzionamendu-argibideak

6.1 Hasierako piztea

1. Ensure all power and communication cables are securely connected according to the installation guidelines.
2. Turn on the main power switch on the front panel of the E-BOX-48100R.
3. Observe the power indicator LEDs for proper startup sequence. Refer to the inverter's manual for its specific startup procedure.

6.2 Communication with Inverter

The E-BOX-48100R communicates with compatible inverters via RS232, RS485, or CAN protocols. Ensure the correct communication cable is used and the inverter's settings are configured to recognize the battery module.

6.3 Monitoring Battery Status

The front panel LEDs provide basic status information. For detailed monitoring of battery parameters (e.g., State of Charge, voltage, current, temperature), connect to a compatible monitoring system via the communication ports.

7. Mantentzea

The E-BOX-48100R LiFePO4 battery is designed to be largely maintenance-free. However, periodic checks are recommended to ensure optimal performance and longevity:

• Ikus-ikuskapena: Periodically inspect the battery module for any signs of physical damage, loose connections, or corrosion.
• Garbitasuna: Keep the battery and its surroundings clean and free from dust and debris. Ensure ventilation openings are not obstructed.
• Tenperatura: Ensure the operating environment maintains the recommended temperature range (14°F~122°F) to prevent performance degradation.
• Firmware eguneraketak: Check with the manufacturer's support channels for any available firmware updates for the battery's BMS, which can improve performance or add features.

8. Arazoak

Atal honek arazo arruntetarako jarraibide orokorrak eskaintzen ditu. Arazo konplexuetarako, jarri harremanetan laguntza teknikoarekin.

8.1 Battery Not Powering On

• Verify the main power switch on the battery is in the "ON" position.
• Check all power cable connections for secure fit and proper polarity.
• Ziurtatu sarrera voltage from the solar charge controller or inverter is within the battery's specified voltagbarrutia.

8.2 Communication Issues with Inverter

• Confirm the communication cable (RS232, RS485, or CAN) is correctly connected between the battery and the inverter.
• Check the communication settings on both the battery (if configurable) and the inverter to ensure they match (e.g., baud rate, protocol).
• Refer to the inverter's manual for specific communication setup instructions.

8.3 Reduced Performance or Capacity

• Ensure the battery is operating within its specified temperature range. Extreme temperatures can affect performance.
• Verify that the charging and discharging currents are within the specified limits.
• If multiple batteries are in parallel, ensure all connections are sound and that the batteries are balanced.

9. Enbalatzeko Zerrenda

Desontziratzean, ziurtatu osagai guztiak daudela:

• 1x E-Box Battery Module (E-BOX-48100R)
• 1x Erabiltzailearen eskuliburua
• 1x Pair of Battery to Battery Cables
• 1x Communication Cable
• 1x PE Cable (Protective Earth Cable)

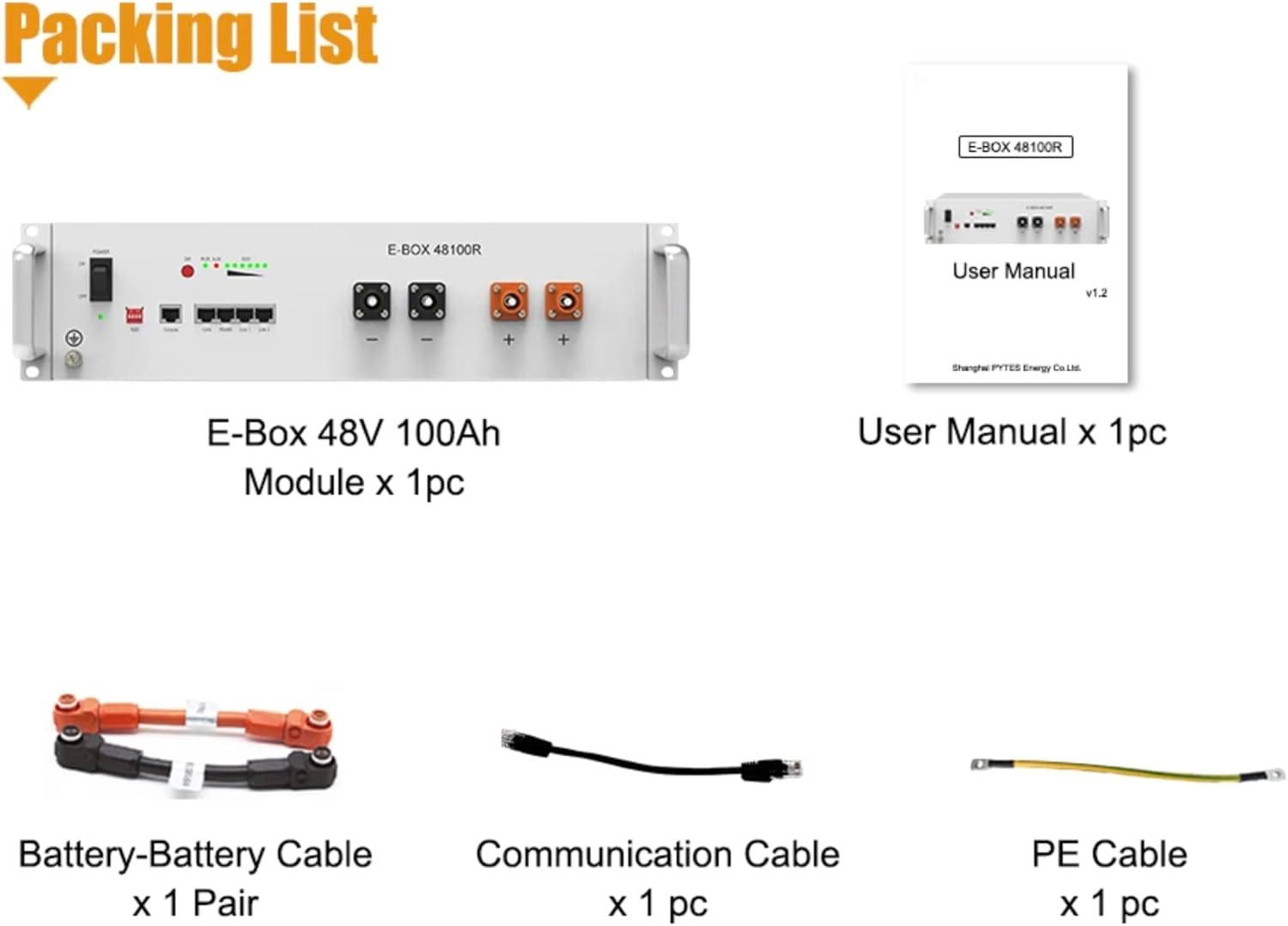

9.1. irudia: Contents included in the E-BOX-48100R product package.

10. Bermea eta Laguntza

The E-BOX-48100R battery comes with a 10 urteko bermea, epe luzerako fidagarritasuna eta lasaitasuna bermatuz.

For any technical queries, support, or warranty claims, please contact:

ess_support@pytesgroup.com
