Generic L-09-G Remote Control with Silicone Cover User Manual

1. Sarrera

This manual provides essential instructions for the proper use and maintenance of your Generic L-09-G Remote Control. This remote is designed as a replacement or secondary controller for various Android TV Box models. It features an ergonomic design and comes with a protective silicone cover.

Bateragarritasuna: This remote control is compatible with a wide range of Android TV Box models, including but not limited to: MXQ, MXQ Pro, MX10, T95M, T95N, T95Q, T95, T95X, T95Z PLUS, mx9, H96, H96 pro+, H96max, HK1 MAX, HK1BOX, HK1 RBOX, x96mini, X96, X98Q, X96MAX, X92, X96 X4, X88PRO10, X88 PRO 20, TX3MINI, TX6S, TANIXX4, H40, H50, 6K.

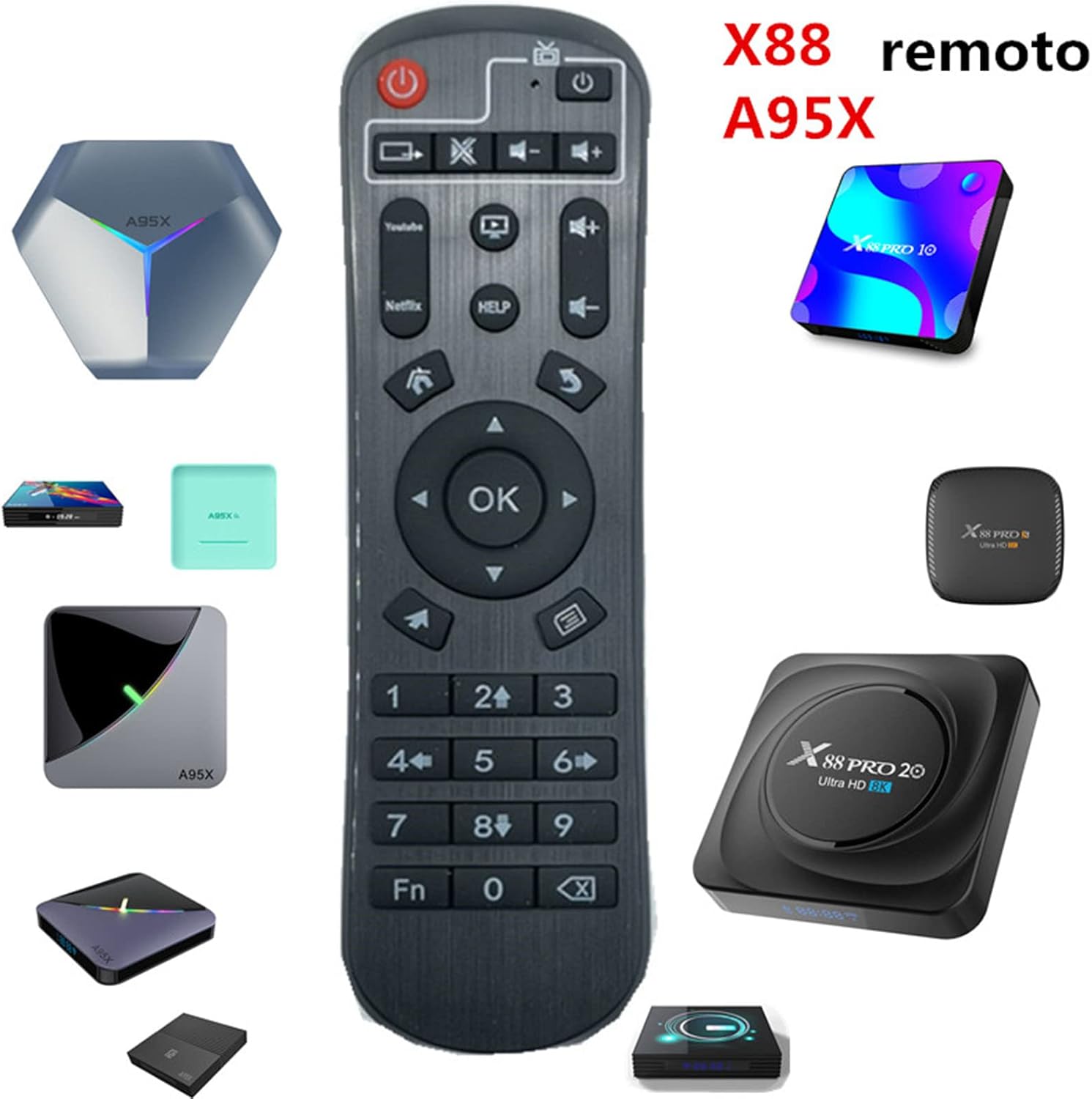

Figure 1: Generic L-09-G Remote Control shown with compatible Android TV Box models.

2. Paketearen edukia

Egiaztatu elementu guztiak zure paketean daudela:

• 1 x Generic L-09-G TV Box Remote Control
• 1 x Silicone Protective Sleeve
• Oharra: bateriak ez daude barne.

Figure 2: Remote control and its included silicone protective sleeve.

3. Konfigurazioa

3.1 Bateriaren instalazioa

Urrutiko agintea bi AAA pila behar ditu (ez daude barne). Instalatzeko:

1. Kokatu bateriaren konpartimendua urrutiko agintearen atzealdean.
2. Ireki bateriaren konpartimenduaren estalkia.
3. Sartu bi AAA pila, polaritate zuzena ziurtatuz (+ eta -).
4. Itxi bateriaren konpartimenduaren estalkia ondo.

3.2 Initial Use and Programming (Study Function)

This remote control is designed to work with compatible Android TV Boxes without programming. However, it features a "Study Function" to learn commands from another remote control, typically for TV power or volume functions.

Figure 3: Detailed steps for using the remote's Study Function.

To use the Study Function:

1. Sakatu Blue Powerkey (often labeled "SET" or a similar blue button) for 5 seconds until the LED indicator stays on. This indicates the remote is in learning mode.
2. Press a study button (a button designated for learning, often indicated by a blue LED) on the new remote. The LED indicator will blink, signifying it is ready to receive signals.
3. Place your original remote control and the new remote control together, facing each other, within 3-5mm distance.
4. Press the target key on your original remote control that you wish the new remote to learn.
5. After the LED indicator on the new remote blinks 3 times and then stays on, you can choose another study key to program, or proceed to the next step.
6. If the learning process fails (LED blinks 5 times), repeat steps 1-5.
7. When you have finished programming all desired keys, press any key outside the TV zone (e.g., a navigation button) to exit the study status. The LED indicator will turn off.

4. Funtzionamendu-argibideak

The remote control provides standard functions for navigating and controlling your Android TV Box. Key buttons include:

Figure 4: Layout of the Generic L-09-G Remote Control buttons.

• Pizteko botoia: Turns the Android TV Box on or off.
• Nabigazio-panela (Gora, Behera, Ezkerra, Eskuina, Ados): Menuetan nabigatzeko eta hautatzeko erabiltzen da.
• Bolumena igo/behera: Bolumena doitzen du.
• Ezkutatu: Audioa isilarazi edo aktibatzen du.
• Itzuli/Itzuli: Aurreko pantailara edo menura itzultzen da.
• Hasiera: Returns to the main home screen of the Android TV Box.
• Menu/Options: Accesses context-sensitive menus or options.
• Zenbaki-teklatua (0-9): Sarrera zuzenerako edo kanal hautatzeko.
• App Shortcuts (e.g., YouTube, Netflix): Direct access to popular applications.

Ensure the remote control is pointed towards the Android TV Box for optimal signal transmission.

5. Mantentzea

• Garbiketa: Erabili zapi leun eta lehor bat urrutiko agintea garbitzeko. Ez erabili garbitzaile likidorik edo material urratzailerik.
• Silikonazko estalkia: The included silicone cover helps protect the remote from dust, spills, and minor impacts. It can be removed and cleaned with mild soap and water if necessary. Ensure it is completely dry before reattaching.
• Bateria ordezkatzea: Replace batteries when the remote's performance degrades or if the LED indicator does not light up. Always replace both batteries at the same time with new ones of the same type.
• Biltegiratzea: Gorde urrutiko agintea leku fresko eta lehor batean, eguzki-argitik eta muturreko tenperaturatik urrun.

6. Arazoak

7. Zehaztapenak

8. Bermea eta Laguntza

This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. Please refer to your retailer's return policy or contact the seller for specific warranty details and support inquiries.

For further assistance, please contact the seller through the platform where the purchase was made.
