1. Sarrera
Thank you for choosing the Vikye Cordless Electric Screwdriver. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new tool. Please read this manual thoroughly before first use and retain it for future reference.
This electric screwdriver is designed for various light-duty tasks such as drilling wood, wood punching, screwing, and furniture installation. Its compact design and cordless operation offer convenience and flexibility for home improvement projects.
2. Paketearen edukia
Upon unpacking, please ensure all items listed below are present and in good condition. If any items are missing or damaged, contact customer support.
- 1 x Electric Screwdriver (with built-in lithium battery)
- 2 x bihurkin Bits
- 1 x USB kargatzeko kablea

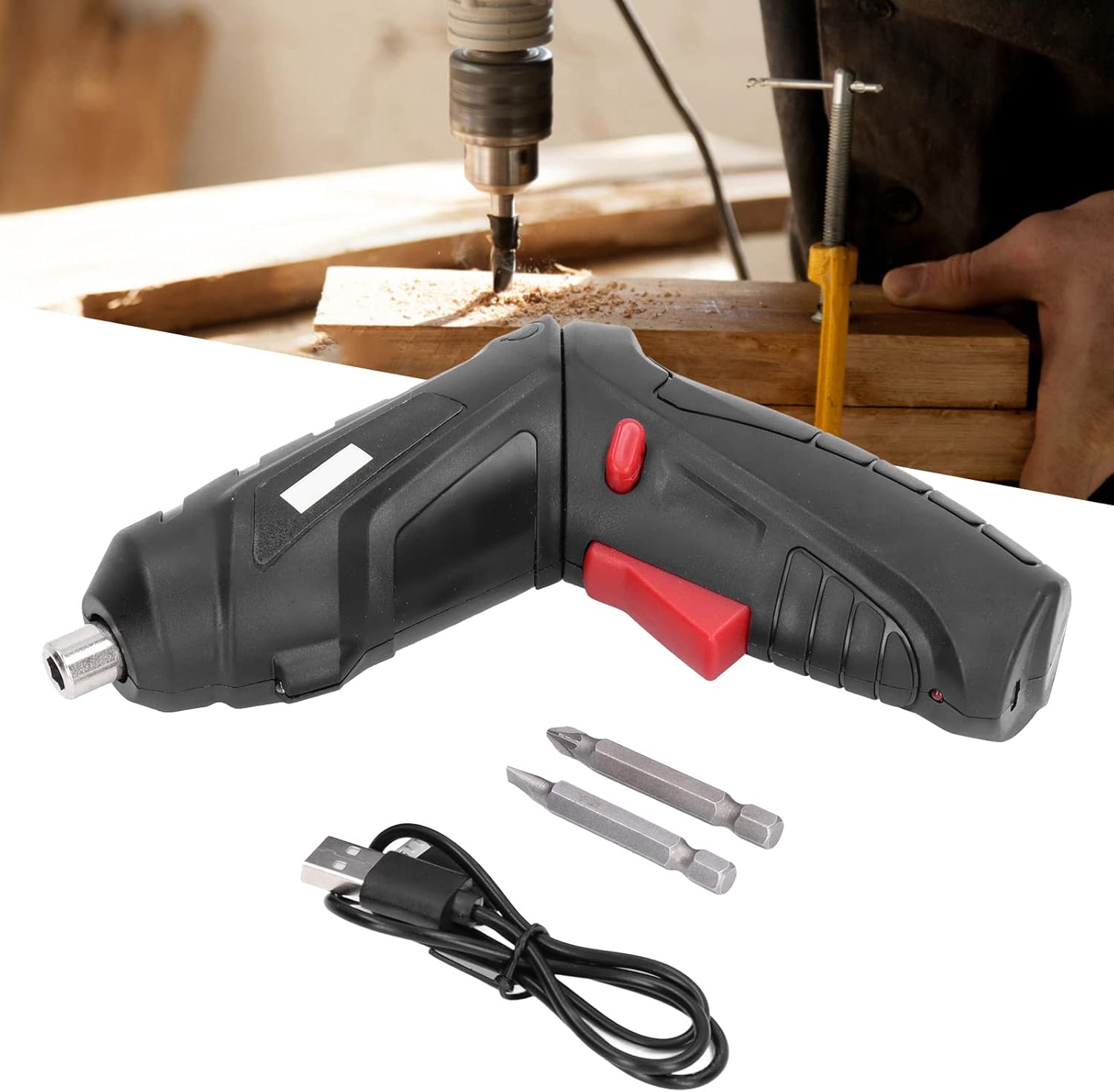

Image: Contents of the Vikye Electric Screwdriver package, including the screwdriver, two bits, and a USB cable.
3. Piezen identifikazioa
Familiarize yourself with the components of your electric screwdriver before operation.
Image: Labeled diagram showing the main parts of the electric screwdriver.
- Pintxoa: Holds the screwdriver bits securely.
- LED argia: Lan-eremua argitzen du.
- Conversion Switch: Controls the direction of rotation (forward/reverse).
- Hasi etengailua: Activates the screwdriver.
- Soft Rubber Covered Handle: Helduleku eroso eta segurua eskaintzen du.
4. Konfigurazioa
4.1 Bateria kargatzea
The screwdriver is powered by a built-in lithium battery. Before first use, fully charge the battery.
- Connect the provided USB charging cable to the charging port on the screwdriver.
- Konektatu USB kablearen beste muturra USB elikatze-egokitzaile bateragarri batera (ez dago barne) edo ordenagailuko USB ataka batera.
- Kargatzeko adierazlearen argia piztuko da kargatzen ari den bitartean.
- A full charge typically takes 3 to 5 hours. Disconnect the charger once charging is complete.
Oharra: Do not operate the screwdriver while it is charging.
4.2 Bihurkin-puntak instalatzea
The screwdriver features a magnetic hex chuck for quick and easy bit changes.
- Ensure the screwdriver is turned off and the start switch is not engaged.
- Insert the desired 6.35mm (0.25in) hex shank screwdriver bit directly into the collet until it is firmly seated. The magnetic design will hold the bit in place.
- To remove a bit, simply pull it straight out from the collet.
Image: Detail of the hex chuck, indicating the 6.35mm (0.25in) diameter for bit compatibility.
5. Funtzionamendu-argibideak
5.1 Powering On/Off and Rotation Direction
The screwdriver operates with a simple one-button switching mechanism.
- Hasteko: Press and hold the Start Switch. The LED light will illuminate, and the bit will begin to rotate.
- Gelditu: Release the Start Switch.
- Biraketa norabidea aldatzea: Use the Conversion Switch located near the handle to select forward (clockwise) or reverse (counter-clockwise) rotation. Ensure the screwdriver is stopped before changing direction.
Image: The screwdriver's capabilities, including strong motor, bi-directional rotation, and multi-purpose use.
5.2 Aplikazioak
This tool is suitable for a variety of tasks:
- Screwing and Unscrewing: Ideal for assembling furniture, installing fixtures, and general household repairs.
- Egurra zulatzea: Can be used for light wood drilling tasks with appropriate drill bits (not included).
Irudia: Adibamples of the screwdriver being used for home installation and general screwing/drilling tasks.
Image: The electric screwdriver in action, driving a screw into wood.
Image: The electric screwdriver demonstrating its drilling capability with strong motor power.
6. Mantentzea
Proper maintenance ensures the longevity and optimal performance of your electric screwdriver.
- Garbiketa: Regularly wipe the tool with a clean, dry cloth to remove dust and debris. Do not use harsh chemicals or abrasive cleaners.
- Biltegiratzea: Store the screwdriver in a dry place, away from direct sunlight and extreme temperatures.
- Bateria zaintzea: For long-term storage, charge the battery to approximately 50% every 3-6 months to maintain battery health.
- Bitaren mantentze-lanak: Keep screwdriver bits clean and free of rust. Replace worn or damaged bits to prevent stripping screws.
7. Arazoak
If you encounter issues with your electric screwdriver, refer to the following common problems and solutions:
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Bihurkinak ez du pizten. | Bateria agortuta dago. | Charge the battery fully (refer to Section 4.1). |
| Bihurkinak indarrik ez du edo gelditzen da erabiltzen ari den bitartean. | Bateria gutxi. | Kargatu bateria. |
| Bit slips or strips screw heads. | Incorrect bit size; Worn bit; Excessive pressure. | Use the correct bit for the screw head; Replace worn bits; Apply steady, moderate pressure. |
| Screwdriver overheats. | Erabilera intentsibo luzea. | Allow the tool to cool down before resuming use. Avoid continuous heavy loads. |
Irtenbide hauek probatu ondoren arazoa konpontzen ez bada, jarri harremanetan bezeroarentzako arreta-zerbitzuarekin.
8. Zehaztapenak
Technical details of the Vikye Cordless Electric Screwdriver:
- Elementu mota: Bihurkin elektrikoa
- Materiala: ABS
- Bateria mota: Litiozko bateria integratua
- Bateriaren edukiera: 1300mAh
- Maximum Torsion: 3N·m
- Kargarik gabeko abiadura: 180rpm / min
- Hex Diameter: 6.35 mm / 0.25in
- Kargatzeko denbora: 3-5 ordu
- Modelo zenbakia: Yoidesu7fyekxmgtu-11
- Fabrikatzailea: Yoidesu
9. Bermea eta Laguntza
For warranty information or technical support, please refer to the documentation provided at the point of purchase or contact your retailer. Keep your purchase receipt as proof of purchase.
