FOSSiBOT F2400 Solar Generator User Manual

Produktua amaituview

The FOSSiBOT F2400 is a high-capacity portable power station designed to provide reliable power for various applications, including home backup, outdoor camping, RV use, and emergency situations. It features a robust LiFePO4 battery, multiple charging options, and a wide array of output ports to power a diverse range of devices.

Figure 1: FOSSiBOT F2400 Solar Generator with accompanying solar panel.

This image displays the FOSSiBOT F2400 portable power station alongside its foldable solar panel, illustrating the complete solar generator system.

Ezaugarri nagusiak:

• High Capacity & Power Output: 2048Wh capacity with 2400W continuous output and 4600W surge power, capable of powering heavy-duty tools and appliances.
• Baterien teknologia aurreratua: Utilizes car-grade LiFePO4 batteries with over 4000 charge cycles, ensuring a long lifespan of approximately 10 years.
• Kargatzeko aukera anitzekoak: Supports 500W solar input and 1100W AC charging, allowing for a full charge in as little as 1.5 hours with dual charging. Also includes car charging (12V/10A).
• Etenik gabeko elikadura hornidura (UPS): Features an 8ms switch time to prevent data loss during power outages, supporting up to 1100W load in UPS mode.
• Irteera hainbat ataka: Equipped with 6 AC outlets (2400W), 100W USB-C PD, and various other USB-A, DC, and car ports, enabling simultaneous power for up to 16 devices.
• Uhin sinusoidal hutsaren irteera: Provides stable, grid-quality power to safeguard sensitive electronics.
• Smart Control & Monitoring: Monitor and adjust settings remotely via a dedicated mobile application (APP) with Bluetooth and Wi-Fi connectivity.
• Adjustable Input Power: A rotating knob allows adjustment of input power from 300W to 1100W, optimizing charging speed and ensuring safe charging in unstable grids.
• LED argiztapen integratua: Built-in warm tone LED light bar with adjustable brightness and strobe/SOS modes for emergencies or outdoor use.
• Diseinu iraunkorra: Features rubber plug covers for output ports, offering dust-proof and daily life water-resistance.

Figure 2: FOSSiBOT F2400 powering various household devices.

This illustration demonstrates the FOSSiBOT F2400's capability to power common household appliances like lights, TVs, coffee makers, microwaves, and electric fans for extended durations.

3. irudia: Barnekoa view highlighting the LiFePO4 battery structure.

Irudi honek mozketa bat eskaintzen du view of the FOSSiBOT F2400, emphasizing its safe, reliable, and long-lasting LiFePO4 battery, rated for over 4000 cycles and a 10-year lifespan.

Konfigurazioa

Kutxatik ateratzea eta hasierako ikuskapena:

Upon receiving your FOSSiBOT F2400, carefully unpack all components and inspect for any signs of damage. The standard packing list includes:

• FOSSIBOT F2400 Zentral elektriko eramangarria
• AC kargatzeko kablea
• Eguzki kargatzeko kablea
• Autoak kargatzeko kablea
• Erabiltzailearen eskuliburua

Figure 4: Contents of the FOSSiBOT F2400 package.

This image illustrates the FOSSiBOT F2400 power station and all included accessories: AC charging cable, solar charging cable, car charging cable, and the user manual.

Zentrala kargatzea:

Before first use, it is recommended to fully charge the FOSSiBOT F2400. You have several charging options:

• AC hormako entxufea: Connect the provided AC charging cable directly to a standard wall outlet. The F2400 supports 1100W AC charging, allowing a full charge in approximately 2 hours.
• Korronte alternoa + eguzki-karga: For the fastest charging, combine AC wall charging with solar panel input. This dual input can achieve a full charge in about 1.5 hours (up to 1600W combined).
• Eguzki-panela: Connect compatible solar panels (up to 500W max input) using the provided solar charging cable. Charging time will vary based on sunlight intensity and panel wattage.
• Autoa kargatzea: Use the provided car charging cable to charge the unit from your vehicle's 12V/10A car outlet.

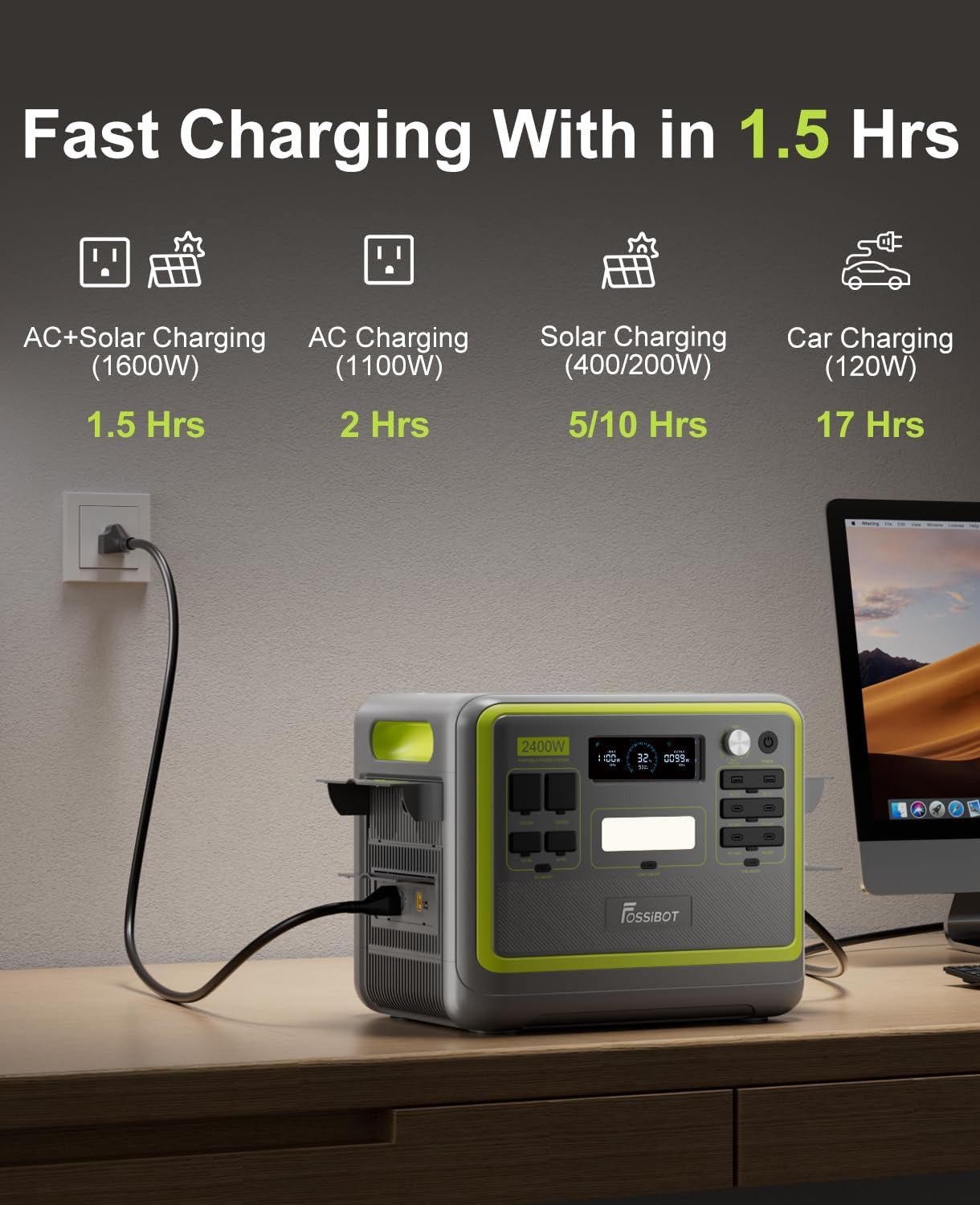

Figure 5: Various charging methods for the FOSSiBOT F2400.

This graphic illustrates the different ways to charge the FOSSiBOT F2400, including AC+Solar (1.5 Hrs), AC (2 Hrs), Solar (5/10 Hrs depending on wattage), and Car Charging (17 Hrs).

Figure 6: FOSSiBOT F2400 charging via AC outlet.

This image shows the FOSSiBOT F2400 being charged from a standard wall outlet, highlighting its rapid 1.5-hour full charge capability when combined with solar input.

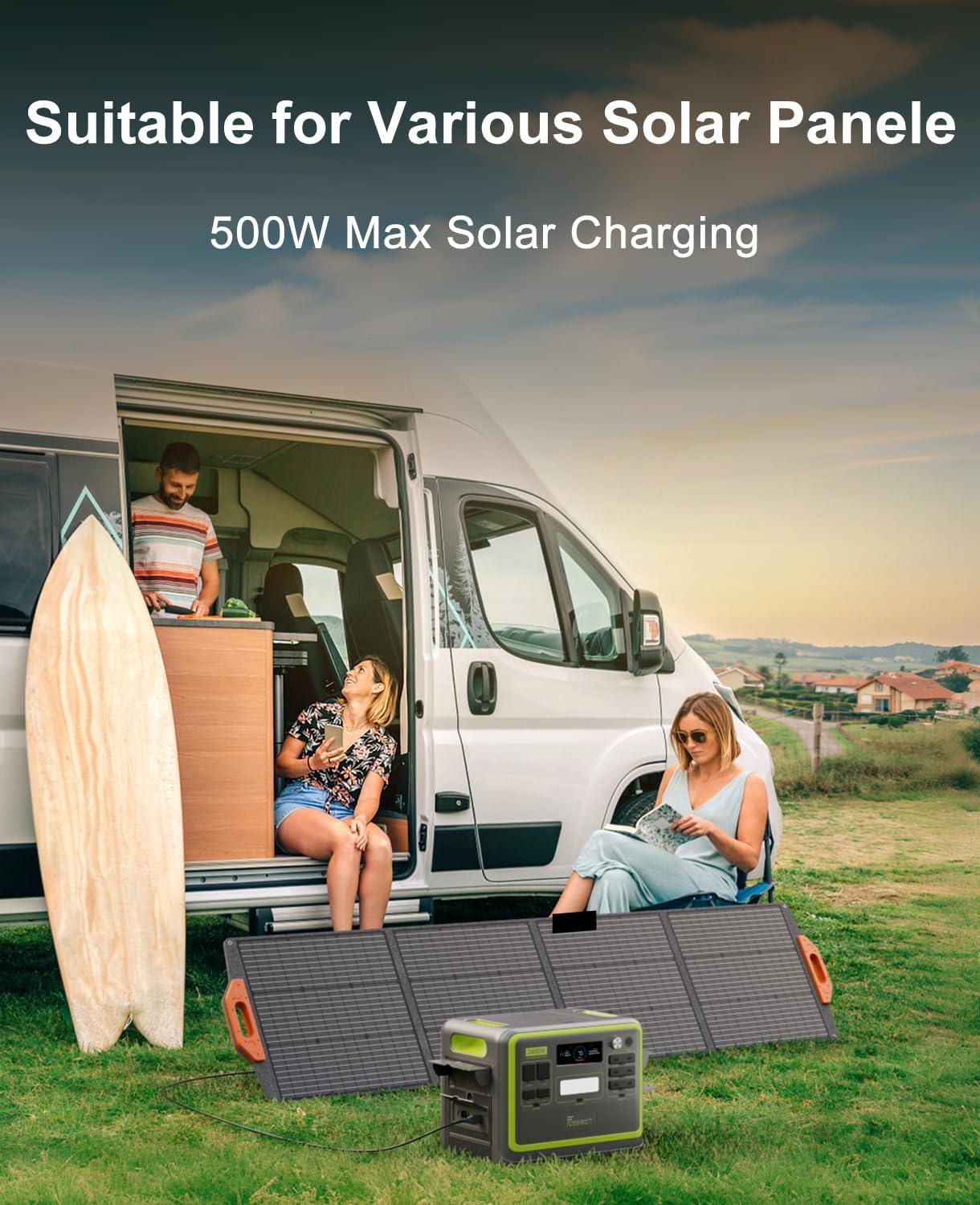

Figure 7: FOSSiBOT F2400 connected to solar panels for charging.

This image depicts the FOSSiBOT F2400 being charged by solar panels in an outdoor setting, emphasizing its compatibility with various solar panel types and up to 500W max solar charging.

Funtzionamendu-argibideak

Piztu/Itzaltzea:

To power on the FOSSiBOT F2400, press and hold the main power button located on the control panel. The display will illuminate, indicating the unit is ready for use. To power off, press and hold the power button again until the display turns off.

Gailuak konektatzea:

The F2400 offers a wide range of output ports:

• AC irteerak: 6 x 2400W AC outlets for standard household appliances.
• USB-C atakak: 4 x Type-C ports (20W/100W) for fast charging laptops, tablets, and smartphones.
• USB-A atakak: 2 x USB-A ports (18W Each).
• DC irteera: 2 x DC outputs (12V/3A Each).
• Autoen irteera: 1 x Car outlet (12V/10A).
• XT60 Port: 1 x XT60 port (12V/25A) for specific high-power devices.

Simply plug your devices into the appropriate ports. Ensure the total power draw does not exceed the unit's maximum output (2400W continuous, 4600W surge).

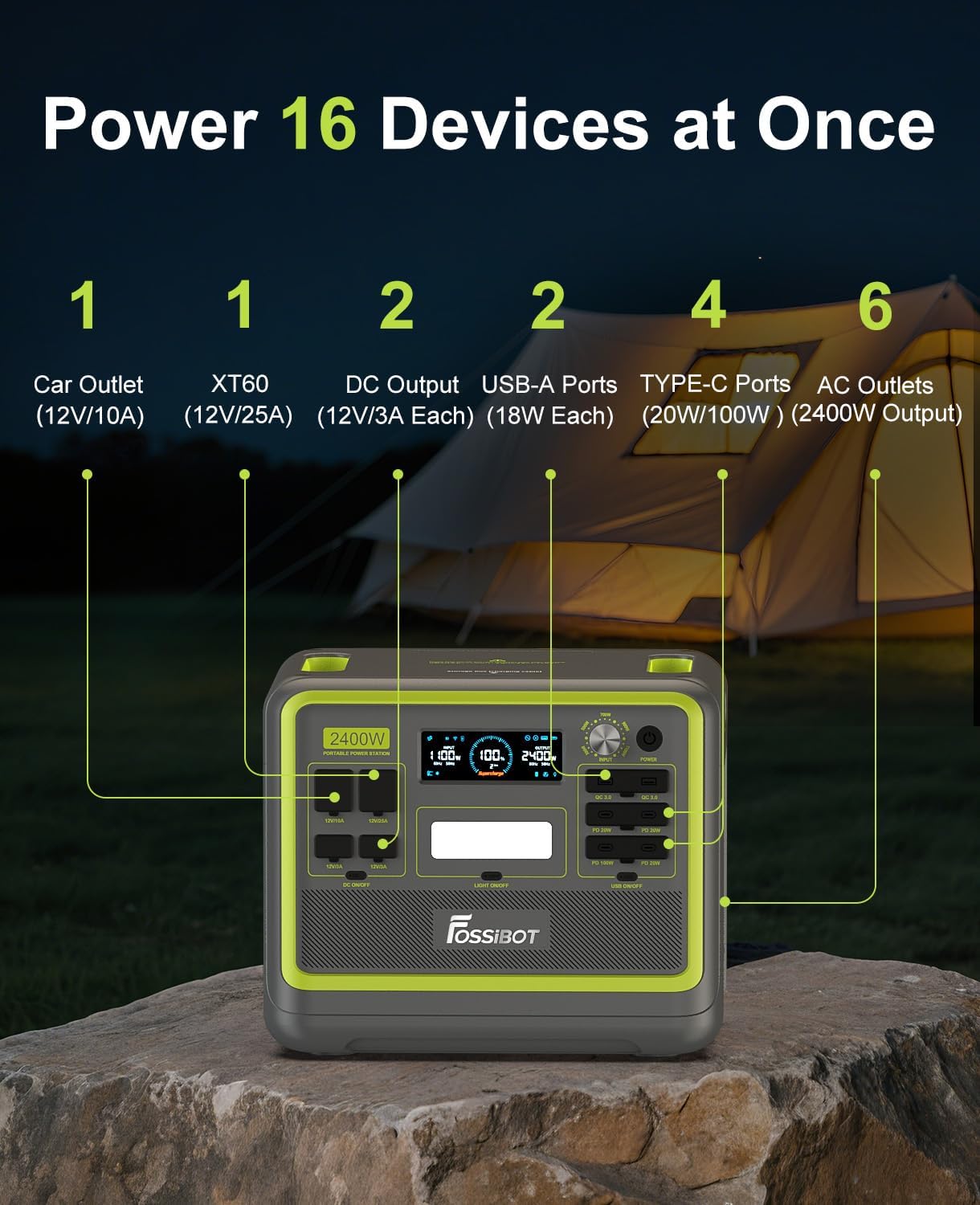

8. irudia: Xehetasuna view of FOSSiBOT F2400's 16 output ports.

This image provides a clear diagram of all 16 output ports on the FOSSiBOT F2400, including car outlet, XT60, DC outputs, USB-A, Type-C, and AC outlets, demonstrating its ability to power multiple devices simultaneously.

Using the APP Control:

The FOSSiBOT F2400 can be controlled and monitored via a smartphone application. Download the official FOSSiBOT app (usually found by scanning a QR code in the manual or on the product page). Connect your phone to the F2400 via Bluetooth or Wi-Fi to access real-time monitoring, adjust settings, set charging start times, and remotely shut down the unit.

Figure 9: Controlling the FOSSiBOT F2400 via mobile app.

This image provides a clear diagram of all 16 output ports on the FOSSiBOT F2400, including car outlet, XT60, DC outputs, USB-A, Type-C, and AC outlets, demonstrating its ability to power multiple devices simultaneously.

UPSaren funtzionaltasuna:

The F2400 features an Uninterruptible Power Supply (UPS) function with an 8ms switchover time. This allows connected devices to continue running seamlessly during a power outage, making it ideal for sensitive electronics like computers, CPAP machines, and security cameras.

Figure 10: FOSSiBOT F2400 providing uninterrupted power.

This image illustrates the FOSSiBOT F2400's UPS capability, ensuring continuous power for essential devices like computers, CPAP machines, refrigerators, and security cameras with a switchover time of less than 8ms.

Adjustable Input Power:

Use the input power knob on the control panel to adjust the recharging speed from 300W to 1100W. This feature is useful for optimizing charging based on available power sources or when dealing with unstable grid voltages.

Figure 11: Adjustable input power knob on the FOSSiBOT F2400.

This graphic highlights the adjustable input power knob on the FOSSiBOT F2400, allowing users to set the recharging speed from 300W to 1100W, which is crucial for adapting to different power sources and grid conditions.

LED argiztapena:

The F2400 includes a built-in LED light bar. Press the "LIGHT ON/OFF" button to cycle through different brightness levels (low, medium, high) and special modes (strobe, SOS). This feature is useful for illumination during travels, camping, edo larrialdietan.

Figure 12: FOSSiBOT F2400's warm tone LED lighting feature.

This image showcases the FOSSiBOT F2400's integrated warm tone LED lighting, which serves as a light source or SOS flashlight during travel or emergencies.

Mantentzea

Proper maintenance ensures the longevity and optimal performance of your FOSSiBOT F2400.

• Garbiketa: Use a soft, dry cloth to clean the exterior of the unit. Avoid using harsh chemicals or abrasive materials.
• Biltegiratzea: Store the power station in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, ensure the battery is charged to around 50-80% and recharge every 3-6 months to prevent deep discharge.
• Fan Covers: Ensure the fan covers (left and right) are open when operating to allow for proper ventilation and prevent overheating.
• Portuaren babesa: Keep the rubber plug covers on output ports when not in use to protect against dust and water.

Figure 13: Rubber plug covers for FOSSiBOT F2400 output ports.

This image highlights the rubber plug covers on the FOSSiBOT F2400's DC and USB output ports, designed to provide dust-proof and daily life water-resistance for enhanced durability.

Arazoak konpontzea

If you encounter issues with your FOSSiBOT F2400, refer to the following common problems and solutions:

For more detailed troubleshooting or issues not listed here, please refer to the comprehensive user manual or contact customer support.

Zehaztapenak

14 Irudia: Gainetikview of FOSSiBOT F2400's main features.

This image summarizes the FOSSiBOT F2400's core features, including its 2048Wh/2400W capacity, 4000+ lifespan LiFePO4 battery, 500W max solar charging, 1.5 hours full recharge, Pro UPS (<8ms switch over time), Smart APP control, and 16 versatile ports.

Bermea eta Laguntza

The FOSSiBOT F2400 comes with a 5 urteko bermea and lifetime technical support. For any questions or assistance, please contact FOSSIBOT customer service. They aim to provide a satisfactory answer within 24 hours.

Figure 15: FOSSiBOT's commitment to customer service.

This image emphasizes FOSSiBOT's dedication to perfect customer service, offering lifetime specialist support and a commitment to respond to inquiries within 24 hours.
