HiBy FD1 Headphone Ampbiziagoa Erabiltzailearen eskuliburua

1. Sarrera

The HiBy FD1 is a portable USB Digital-to-Analog Converter (DAC) and headphone amplifier designed to enhance audio quality from various devices. It features dual ES9118 audio chips for high-resolution sound and supports both single-ended and balanced headphone outputs.

This device is compatible with a wide range of operating systems and devices, including Android, iOS, Windows, macOS, smartphones, computers, tablets, and digital audio players.

Image 1: The HiBy FD1 USB Headphone Ampbizitzailea, erakustaldiaasinbere diseinu trinkoa dela eta.

Ezaugarri nagusiak:

• Dual ES9118 Audio Chips: Provides high-resolution audio and enhanced decoding capabilities.
• Dual Crystal Oscillators: Lowers jitter and improves digital audio accuracy for 44.1x and 48x clocked audio signals.
• Irteera polifazetikoak: Includes 3.5mm single-ended (SE) and 2.5mm balanced headphone outputs.
• Bateragarritasun zabala: Supports multiple system platforms including Android, iOS, Windows, and macOS.
• Lossless Audio Support: Compatible with most lossless music formats, including native DSD128 decoding.
• Hardware USB Mode Switch: Allows switching between USB Audio 1.0 and 2.0 standards.
• Driverless Plug-and-Play: No charging required; automatically powers on when connected via USB and shuts down when unplugged.

Image 2: A visual representation of the HiBy FD1's key features, including dual DAC, DSD support, and multiple system compatibility.

2. Konfigurazioa

2.1 Gailuetara konektatzea

The HiBy FD1 connects to your source device (computer, smartphone, tablet) via its USB Type-C port. It is designed for driverless plug-and-play operation.

• For Android/Windows/macOS: Connect the FD1 using a compatible USB Type-C cable.
• iOS gailuetarako (iPhone/iPad): A Camera Connection Kit (CCK) cable is required for proper functionality.

Image 3: The HiBy FD1 connected to various devices, illustrating its broad compatibility with smartphones, tablets, and computers.

2.2 USB Mode Switch

The FD1 features a hardware switch to select between USB Audio 1.0 and USB Audio 2.0 standards. This switch is located on the side of the device.

• USB Audio 1.0: Provides driverless plug-and-play functionality on Windows 7/8/10. DSD audio is not supported in this mode.
• USB Audio 2.0: Offers driverless plug-and-play on Windows 10 (build 1703 and later). For DSD support on Windows, an additional driver installation may be required.

Image 4: Close-up of the HiBy FD1's hardware USB mode switch, allowing selection between 1.0 and 2.0 standards.

2.3 Piztu/Itzaltzea

The HiBy FD1 automatically powers on when connected to a USB source and automatically shuts down when disconnected. No external power button or charging is required as it draws power directly from the connected device.

Image 5: The HiBy FD1 connected to a smartphone and a laptop, demonstrating its plug-and-play functionality without external charging.

3. Funtzionamendu-argibideak

3.1 Entzungailuak konektatzea

The HiBy FD1 offers two headphone output options:

• 3.5mm Single-Ended (SE) Output: For standard headphones.
• 2.5 mm-ko irteera orekatua: For headphones with a balanced connection, offering improved audio performance.

Connect your headphones to the appropriate port on the FD1.

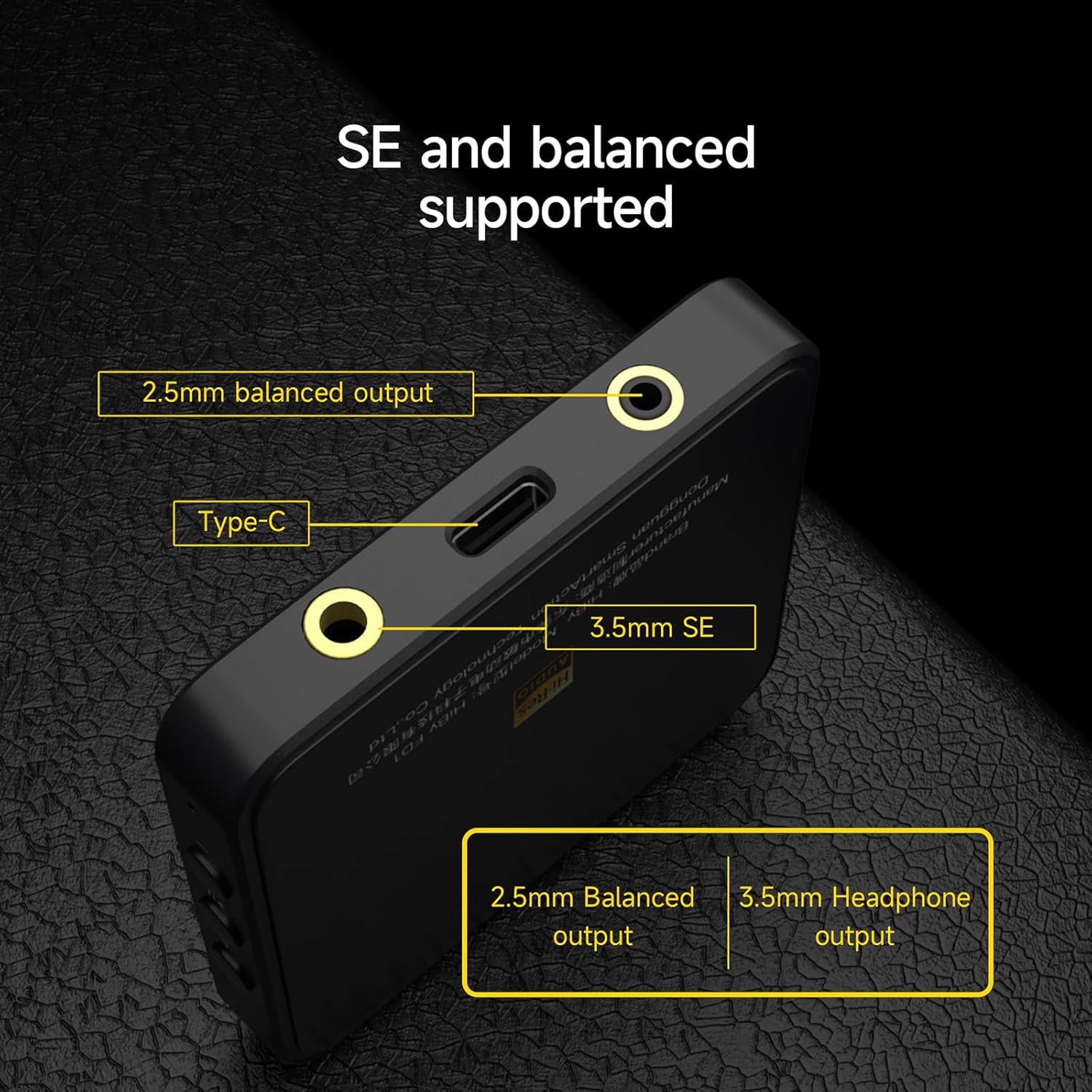

6. irudia: Xehetasun bat view of the HiBy FD1's ports, highlighting the 2.5mm balanced output, Type-C input, and 3.5mm single-ended output.

3.2 Playback and Controls

Once connected, the FD1 acts as an external sound card for your device. Play audio through your preferred music application. The FD1 features hardware buttons for basic playback control:

• Bolumena +: Sakatu bolumena igotzeko.
• Erreproduzitu/Pausatu: Sakatu audioa erreproduzitzeko edo eteteko.
• Bolumena -: Sakatu bolumena jaisteko.

3.3 Adierazle-argiaren egoera

The FD1 includes an indicator light that changes color to reflect the current audio status and samptasa:

Image 7: The HiBy FD1's hardware buttons (Volume+, Play/Pause, Volume-) and a table explaining the indicator light colors for different audio statuses.

Note: The table indicates which color is active for each status.

3.4 HiBy Music App

For optimal compatibility and advanced features, it is recommended to use the HiBy Music app, which offers an exclusive HQ USB Audio Access mode.

4. Mantentzea

To ensure the longevity and optimal performance of your HiBy FD1, follow these general maintenance guidelines:

• Mantendu gailua garbi zapi leun eta lehor batekin garbituz. Saihestu produktu kimiko gogorrak edo material urratzaileak erabiltzea.
• Gorde gailua leku fresko eta lehor batean, eguzki-argitik, tenperatura muturrekoetatik eta hezetasun handitik babestuta.
• Saihestu gailua erortzea edo kolpe gogorrak jasan.
• Do not attempt to disassemble or repair the device yourself, as this may void the warranty.

5. Arazoak

If you encounter issues with your HiBy FD1, consider the following basic troubleshooting steps:

• Soinurik ez:
  • Ensure the FD1 is securely connected to your source device and headphones.
  • Check the volume levels on both your source device and the FD1.
  • Verify that the correct audio output device (HiBy FD1) is selected in your operating system's sound settings.
  • Probatu entzungailu desberdinekin edo iturri-gailu desberdin batekin arazoa isolatzeko.
• Ez da gailua ezagutzen:
  • Saiatu beste USB ataka edo kable batekin.
  • Ensure the USB mode switch on the FD1 is set correctly (1.0 or 2.0) for your operating system.
  • Berrabiarazi iturburuko gailua.
  • For Windows 10 (build 1703 and later) with USB Audio 2.0 and DSD, ensure any necessary drivers are installed.
• Audio distortsionatua:
  • Reduce the volume on your source device or the FD1.
  • Ziurtatu audioa file ez dago hondatuta.
  • Egiaztatu beste gailu elektroniko batzuen interferentziarik.

Urrats hauek arazoa konpontzen ez badute, jo ezazu laguntza atalera laguntza gehiago lortzeko.

6. Zehaztapenak

7. Bermearen informazioa

HiBy products come with a 1 urteko bermea from the date of purchase. This warranty covers manufacturing defects. If damage is not caused by human factors, parts will be replaced free of charge.

Mesedez, gorde zure erosketa-froga berme-erreklamazioetarako.

8. Laguntza

For technical support, warranty claims, or further inquiries regarding your HiBy FD1, please contact HiBy customer service through their official webgunea edo produktua erosi diozun dendaria.

You can visit the official HiBy store on Amazon for more information: HiBy Amazon Store
