vhbw Washing Machine Door Seal Instruction Manual

1. Sarrera

Thank you for choosing the vhbw replacement door seal for your washing machine. This manual provides essential information for the proper installation, maintenance, and safe use of your new door seal. Please read these instructions carefully before proceeding with installation to ensure optimal performance and longevity of the product.

2. Produktua amaitu daview

The vhbw washing machine door seal is a high-quality rubber gasket designed to create a watertight seal between the washing machine door and the drum. This prevents water leakage during wash cycles, protecting both your appliance and the surrounding environment. It features a durable construction with drainage holes and a lip for effective sealing.

1 irudia: Goitik behera view of the vhbw washing machine door seal. This image highlights the circular design and the internal structure of the seal, including the ridges that help secure it in place.

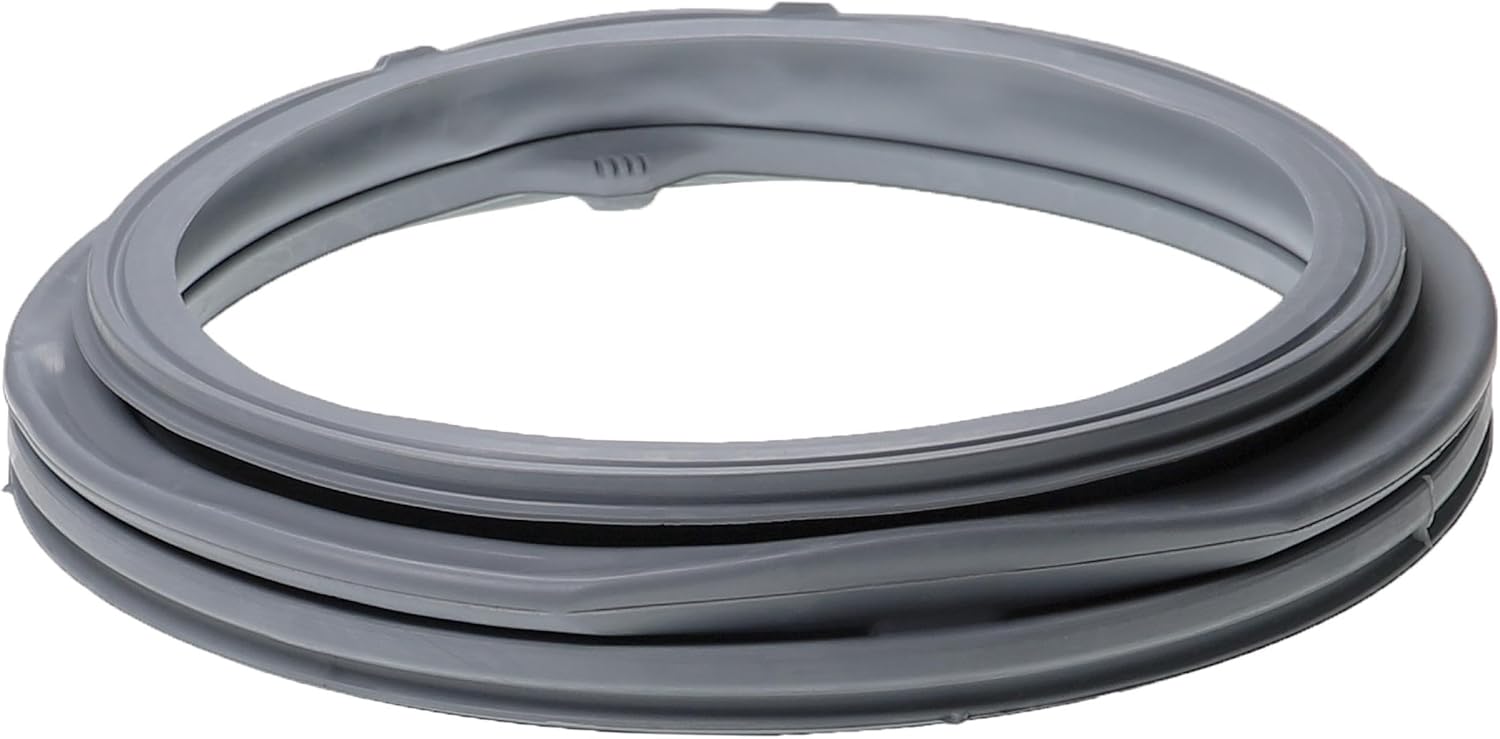

2. irudia: Angelua view of the vhbw washing machine door seal. This perspective illustrates the depth and flexibility of the rubber material, crucial for forming a tight seal.

3. irudia: Aurrealdea view of the vhbw washing machine door seal. This image provides a clear view of the entire circular gasket, including the drainage holes and the sealing lip.

3. Bateragarritasuna

This vhbw door seal is compatible with the following Friac washing machine models:

• Friac WML 15105 P (Part No. 114604, 7132082300)
• Friac WML 15125 P (Part No. 7164882100)
• Friac WML 25125 R (Part No. 7139381100)

It is a direct replacement for part number 2904520100.

4. Zehaztapenak

5. Instalatzeko jarraibideak

Replacing a washing machine door seal requires careful attention. If you are unsure about any step, it is recommended to consult a qualified technician.

1. Segurtasuna lehenik: Always unplug the washing machine from the power outlet and turn off the water supply before beginning any repair work.
2. Zigilura sartzeko: Ireki garbigailuaren atea. Bilatu eusteko malgukia edo giltza.amp that holds the outer edge of the old door seal to the front panel of the machine. Carefully remove this spring/clamp.
3. Kendu zigilu zaharra: Gently pull the outer edge of the old seal away from the front panel. Then, reach inside the drum and locate the inner retaining spring/clamp that secures the seal to the drum opening. Remove this inner spring/clamp and carefully pull the old seal out.
4. Eremu garbia: Thoroughly clean the area where the old seal was seated, both on the front panel and around the drum opening. Remove any detergent residue, mold, or debris.
5. Zigilu berria instalatu: Position the new vhbw door seal. Ensure the drainage holes (if present) are correctly aligned at the bottom. First, fit the inner lip of the new seal around the drum opening, securing it with the inner retaining spring/clamp. Ensure it is seated evenly and securely.
6. Secure Outer Edge: Next, fit the outer lip of the new seal around the front panel opening. Reinstall the outer retaining spring or clamp, ensuring the seal is taut and properly seated all around the door frame.
7. Azken egiaztapena: Once installed, gently push on the seal to ensure it is firmly in place and there are no gaps. Close the washing machine door.
8. Proba: Reconnect the power and water supply. Run a short, empty wash cycle (e.g., a rinse cycle) to check for any leaks before normal use.

6. Mantentzea

To ensure the longevity and optimal performance of your vhbw door seal, follow these maintenance tips:

• Ohiko garbiketa: After each wash, wipe down the door seal with a clean cloth to remove any excess water, detergent residue, or lint. This helps prevent mold and mildew buildup.
• Garbiketa sakona: Periodically clean the seal with a mild detergent solution or a washing machine cleaner designed for rubber components. Ensure to rinse thoroughly.
• Aireztapena: Leave the washing machine door slightly ajar after use to allow air circulation and help dry out the seal and drum, further preventing mold growth.
• Saihestu produktu kimiko gogorrak: Do not use abrasive cleaners, bleach, or harsh chemicals directly on the rubber seal, as these can degrade the material over time.

7. Arazoak

If you encounter issues after replacing the door seal, consider the following:

• Ur-ihesak: If water leaks, re-check the installation. Ensure both the inner and outer retaining springs/clamps are correctly and securely seated. Verify that the seal is not twisted or pinched anywhere.
• Atea ez da behar bezala ixten: Ensure the seal is not obstructing the door latch mechanism. The seal should be evenly seated without bulging.
• Usain desatseginak: This usually indicates mold or mildew buildup. Refer to the maintenance section for cleaning instructions. Ensure proper ventilation after each wash.

If problems persist, it is advisable to contact a professional appliance repair technician.

8. Bermea eta Laguntza

vhbw products are manufactured to high-quality standards. For specific warranty information or technical support, please refer to the documentation provided with your purchase or visit the official vhbw webgunea. Gorde erosketaren egiaztagiria berme-erreklamazioetarako.
